54001441RWC

Description
Automotive Connectors MALE 2.8MM TERM 14-16AWG PD/AU
CategoryThe connector
File Size89KB，1 Pages
ManufacturerDelphi Connection Systems
Download Datasheet Parametric Compare View All

54001441RWC Online Shopping

Suppliers Part Number Price MOQ In stock
54001441RWC - - View Buy Now

54001441RWC Overview

Automotive Connectors MALE 2.8MM TERM 14-16AWG PD/AU

54001441RWC Parametric

Parameter NameAttribute value
Product CategoryAutomotive Connectors
ManufacturerDelphi Connection Systems
RoHSDetails
ProductTerminals
GenderMale
Mounting StyleWire
Termination StyleCrimp
Contact PlatingNickel, Palladium, Gold
Wire Gauge Range16 AWG - 14 AWG
Application2.8 mm Box / Blade
Contact MaterialCopper Alloy
Contact TypeTerminal
Description/FunctionMale, Terminal, APEX 2.8 mm, Sealed
FamilyAPEX
MaterialCuTeSn
Mounting AngleVertical
Mounting MethodWire
PackagingReel
Factory Pack Quantity5000
TypeTerminal

Preview

Download Datasheet

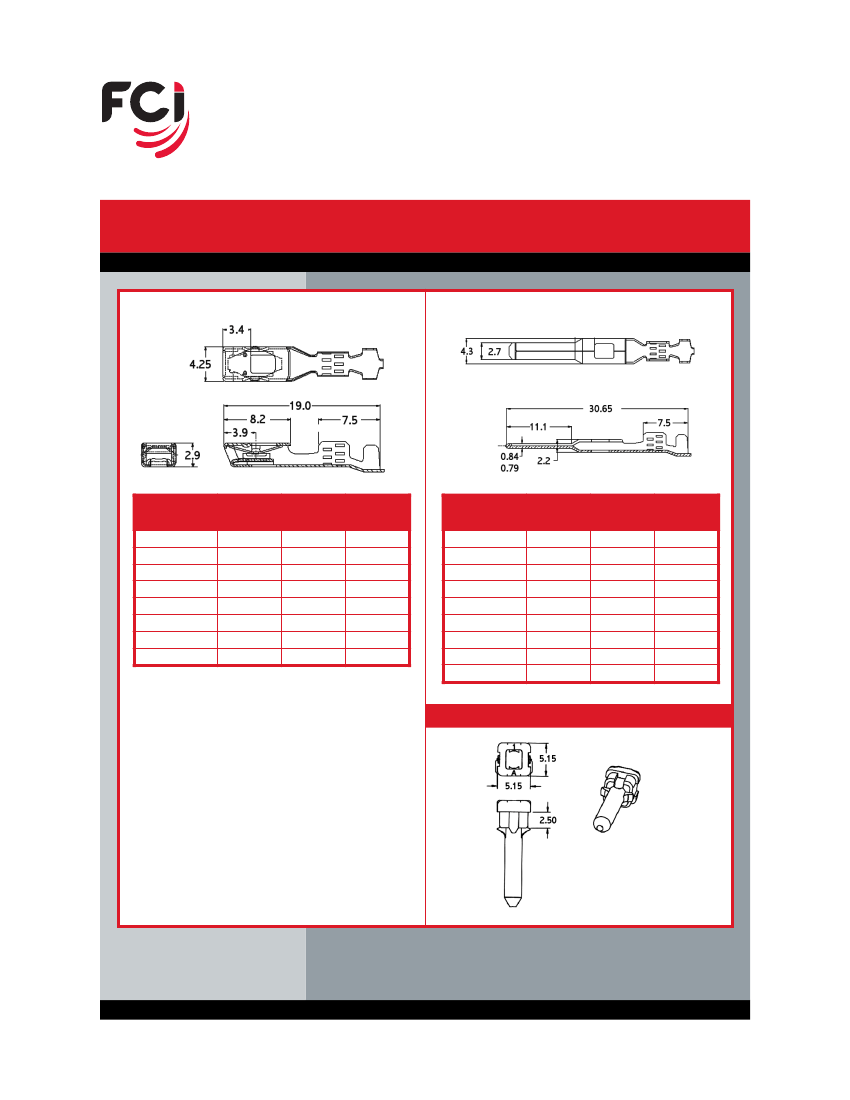

APEX 2.8
™
Connection Systems
APEX 2.8 mm Terminals & Cavity Plug
FEMALE
MALE
FEMALE
TERMINAL
PART NUMBER
54002200
54001800
54001400
54001000
54002203
54001803
54001403
54001003
WIRE GAGE
22
18-20
14-16
10-12
22
18-20
14-16
10-12
TERMINAL
MATERIAL
CuTeSn/CuBe
CuTeSn/CuBe
CuTeSn/CuBe
CuTeSn/CuBe
CuTeSn/CuBe
CuTeSn/CuBe
CuTeSn/CuBe
CuTeSn/CuBe
TERMINAL
PLATING
Sn
Sn
Sn
Sn
NiPdAu
NiPdAu
NiPdAu
NiPdAu
MALE
TERMINAL
PART NUMBER
54002201
54001801
54001401
54001001
54002230
54001818
54001441
54002229
54001819
WIRE GAGE
22
18-20
14-16
10-12
22
18-20
14-16
22
18-20
TERMINAL
MATERIAL
CuTeSn
CuTeSn
CuTeSn
CuTeSn
CuTeSn
CuTeSn
CuTeSn
CuTeSn
CuTeSn
TERMINAL
PLATING
Sn
Sn
Sn
Sn
NiPdAu
NiPdAu
NiPdAu
NiAu
NiAu
Note: The Nickel/Palladium/Gold plating is recommended for
diesel engine applications.
Nyogel 8917 low friction insertion grease available on female
terminal.
NYE 7606 grease available on female terminal for dry circuit
applications.
APEX 2.8 mm Cavity Plug
Part No. 54200005
Note: Locks on seal retainers.
14
