HCC40106B
HCF40106B
HEX SCHMITT TRIGGERS
.
.
.
.
.
.
.
.
.
.
.
SCHMITT-TRIGGER ACTION WITH NO EX-
TERNAL COMPONENTS
HYSTERESIS VOLTAGE (TYP.) 0.9V AT V
DD
=
5V, 2.3V AT V
DD
= 10V AND 3.5V AT V
DD
= 15V
NOISE IMMUNITY GREATER THAN 50%
NO LIMIT ON INPUT RISE AND FALL TIME
LOW V
DD
TO V
SS
CURRENT DURING SLOW
INPUT RAMP
STANDARDIZED SYMMETRICAL OUTPUT
CHARACTERISTICS
QUIESCENT CURRENT SPECIFIED AT 20V
FOR HCC DEVICE
5V, 10V, AND 15V PARAMETRIC RATINGS
INPUT CURRENT OF 100nA AT 18V AND 25°C
FOR HCC DEVICE
100% TESTED FOR QUIESCENT CURRENT
MEETS ALL REQUIREMENTS OF JEDEC
TENTATIVE STANDARD N° 13A, ”STANDARD
SPECIFICATIONS FOR DESCRIPTION OF ”B”
SERIES CMOS DEVICES”
EY
(Plastic Package)
F
(Ceramic Frit Seal Package)
M1
(Micro Package)
C1
(Plastic Chip Carrier)
ORDER CODES :
HCC40106BF
HCF40106BM1
HCF40106BEY HCF40106BC1
PIN CONNECTIONS
DESCRIPTION
The
HCC40106B
(extended temperature range)
and
HCF40106B
(intermediate temperature range)
are monolithic integrated circuits, available in 14-
lead dual in-line plastic or ceramic package and
plastic micropackage.
The
HCC/HCF40106B
consists of six Schmitt-trig-
ger circuits. Each circuit functions as an inverter with
Schmitt-trigger action on the input. The trigger swit-
ches at different points for positive and negative-
going signals. The difference between the
positive-going voltage (V
P
) and the negative-going
voltage (V
N
) is defined as hysteresis voltage (V
H
).
June 1989
1/13
HCC/HCF40106B
FUNCTIONAL DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
V
DD
*
V
i
I
I
P
to t
Parameter
Supply Voltage :
HC C
Types
H C F
Types
Input Voltage
DC Input Current (any one input)
Total Power Dissipation (per package)
Dissipation per Output Transistor
for T
o p
= Full Package-temperature Range
Operating Temperature :
HCC
Types
H CF
Types
Storage Temperature
Value
– 0.5 to + 20
– 0.5 to + 18
– 0.5 to V
DD
+ 0.5
±
10
200
100
– 55 to + 125
– 40 to + 85
– 65 to + 150
Unit
V
V
V
mA
mW
mW
°C
°C
°C
T
op
T
stg
Stresses above those listed under ”Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating
only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this
specification is not implied. Exposure to absolute maximum rating conditions for external periods may affect device reliability.
* All voltage values are referred to V
SS
pin voltage.
RECOMMENDED OPERATING CONDITIONS
Symbol
V
DD
V
I
T
op
Parameter
Supply Voltage :
H CC
Types
H C F
Types
Input Voltage
Operating Temperature :
HCC
Types
H CF
Types
Value
3 to 18
3 to 15
0 to V
DD
– 55 to + 125
– 40 to + 85
Unit
V
V
V
°C
°C
2/13
HCC/HCF40106B
STATIC ELECTRICAL CHARACTERISTICS
(continued)
Test Conditions
Symbol
I
OH
Parameter
Output
Drive
Current
V
I
(V)
0/ 5
HCC 0/ 5
Types
0/10
0/15
0/ 5
0/ 5
HCF
Types 0/10
0/15
I
OL
Output Sink
0/ 5
HCC
Current
Types 0/10
0/15
0/ 5
HCF
Types 0/10
0/15
I
IH
, I
IL
** Input
Leakage
Current
HCC 0/18
Types
HCF 0/15
Types
Any Input
V
O
(V)
2.5
4.6
9.5
13.5
2.5
4.6
9.5
13.5
0.4
0.5
1.6
0.4
0.5
1.5
Value
Unit
|I
O
| V
D D
T
L o w
*
25
°C
T
Hi g h
*
(µA) (V)
Min. Max. Min. Typ. Max. Min. Max.
5
5
10
15
5
5
10
15
5
10
15
5
10
15
18
Any Input
15
±
0.3
±10
5
–5
– 2
– 0.64
– 1.6
– 4.2
– 1.53
– 0.52
– 1.3
– 3.6
0.64
1.6
4.2
0.52
1.3
3.6
±
0.1
– 1.6 – 3.2
– 0.51 – 1
– 1.3 – 2.6
– 3.4 – 6.8
– 1.36 – 3.2
– 0.44 – 1
– 1.1 – 2.6
– 3.0 – 6.8
0.51
1.3
3.4
0.44
1.1
3.0
1
2.6
6.8
1
2.6
6.8
±10
– 5
±
0.1
±
0.3
7.5
– 1.15
– 0.36
– 0.9
– 2.4
– 1.1
– 0.36
– 0.9
– 2.4
0.36
0.9
2.4
0.36
0.9
2.9
±
1
µA
±
1
p
mA
mA
C
I
Input Capacitance
* T
Low
= – 55°C for
HCC
device : – 40°C for
HCF
device.
* T
High
= + 125°C for
HCC
device : + 85°C for
HCF
device.
DYNAMIC ELECTRICAL CHARACTERISTICS
(T
amb
= 25°C, C
L
= 50pF, R
L
= 200kΩ,
typical temperature coefficient for all V
D D
values is 0.3%/°C, all input rise and fall time = 20ns)
Symbol
t
PL H
,
t
PHL
Parameter
Propagation Delay Time
Test Conditions
V
D D
(V)
Min.
5
10
15
t
T HL
,
t
TLH
Transition Time
5
10
15
Value
Typ.
140
70
60
100
50
40
Max.
280
140
120
200
100
80
ns
ns
Unit
4/13
HCC/HCF40106B

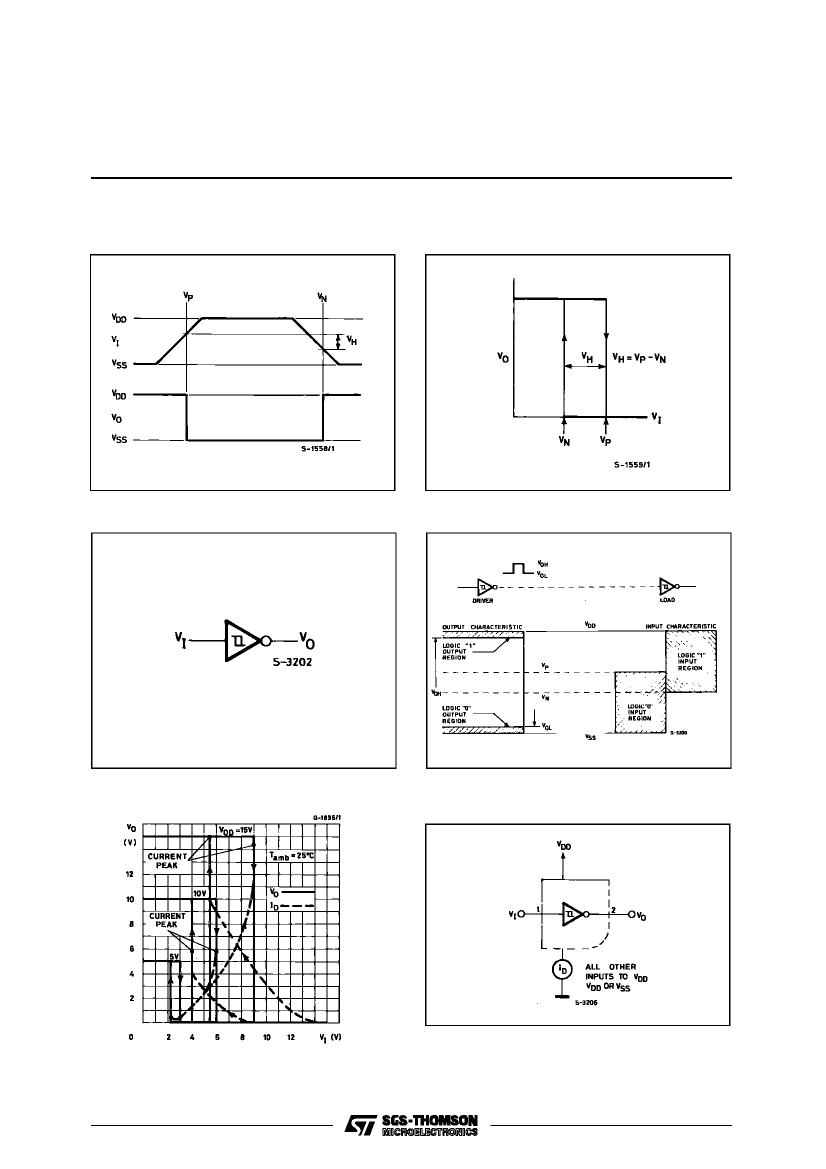

HYSTERESIS DEFINITION, CHARACTERISTICS AND TEST SETUP
(a) Definition of V
P
, V
N
and V
H
.
(b) Transfer Characteristic of 1 of 6 gates.
(c) Test Setup.
Input and Output Characteristics.
Typical Current Voltage Transfer Characteristics, and Test Circuit.
5/13
