8-2178711-8: Description(8-2178711-8) 18P,FOB,SMD,P&P,MICRO-MATCH VALUE LINE; CategoryThe connector The connector; File Size2MB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-2178711-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-2178711-8	-	-	View	Buy Now

8-2178711-8 Overview

(8-2178711-8) 18P,FOB,SMD,P&P,MICRO-MATCH VALUE LINE

8-2178711-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Objectid	313292520
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH VACCUME TAPE
body width	0.205 inch
subject depth	0.209 inch
body length	0.98 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	8 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	2178711
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	4.4958 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

4

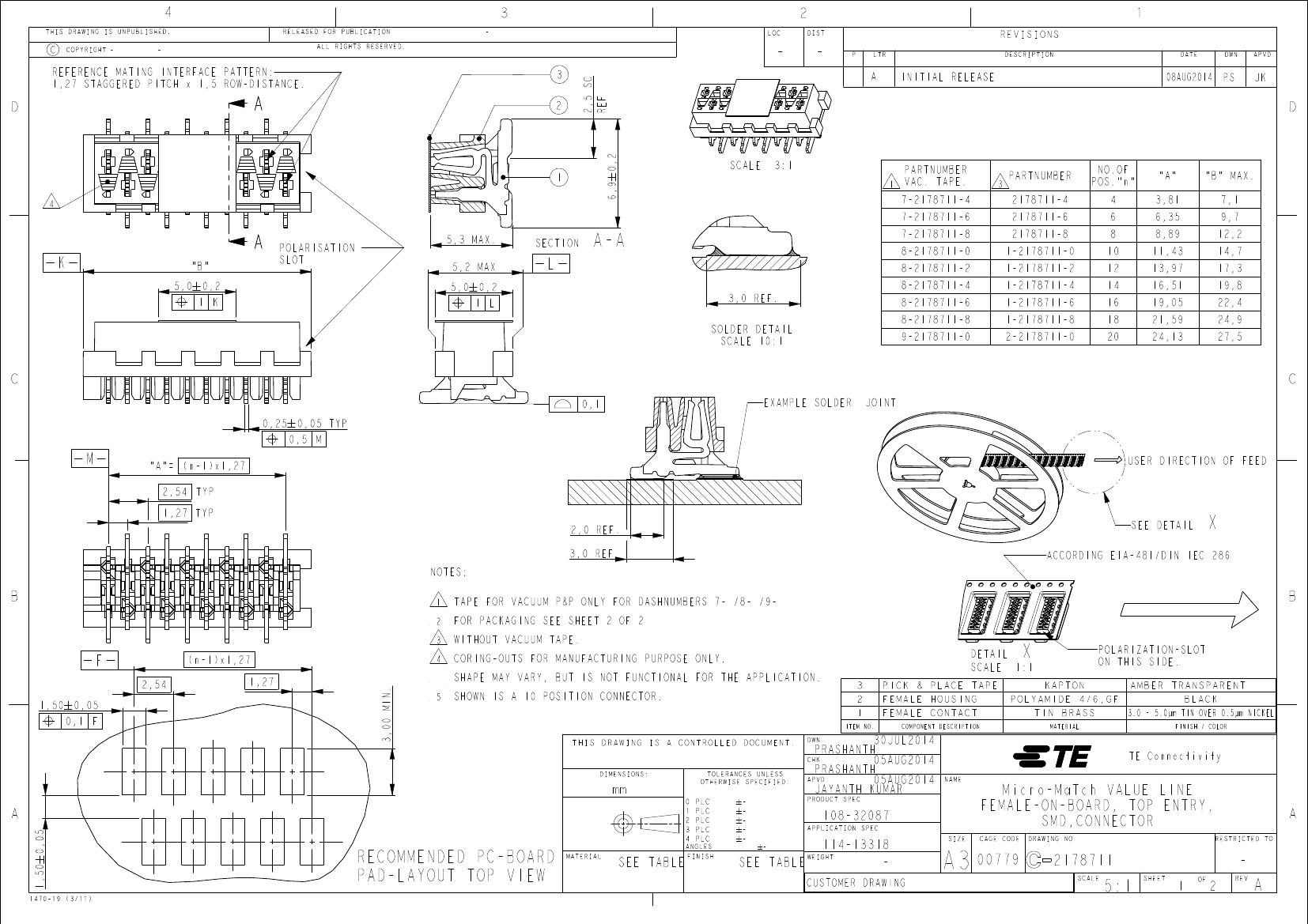

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

3

LOC

2

DIST

1

C

COPYRIGHT -

-

D

2,5 SC

REF

REFERENCE MATING INTERFACE PATTERN:

1,27 STAGGERED PITCH x 1,5 ROW-DISTANCE.

3

2

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

A

INITIAL RELEASE

08AUG2014

PS

JK

D

6,9 # 0,2

1

4

SCALE

3:1

1

PARTNUMBER

VAC. TAPE.

7-2178711-4

7-2178711-6

7-2178711-8

8-2178711-0

8-2178711-2

8-2178711-4

8-2178711-6

8-2178711-8

9-2178711-0

3

PARTNUMBER

2178711-4

2178711-6

1-2178711-0

1-2178711-2

1-2178711-4

1-2178711-6

1-2178711-8

2-2178711-0

2178711-8

NO.OF

POS."n"

4

6

10

12

14

16

18

20

8

"A"

3,81

6,35

11,43

13,97

16,51

19,05

21,59

24,13

8,89

"B" MAX.

7,1

12,2

14,7

17,3

19,8

22,4

24,9

27,5

9,7

K

"B"

5,0 0,2

1 K

POLARISATION

SLOT

5,3 MAX.

5,2 MAX

5,0 0,2

1 L

SECTION

L

A-A

3,0 REF.

SOLDER DETAIL

SCALE 10:1

C

0,1

0,25 0,05 TYP

0,5 M

EXAMPLE SOLDER

JOINT

C

M

"A"= (n-1)x1,27

2,54 TYP

1,27 TYP

2,0 REF.

3,0 REF

NOTES:

USER DIRECTION OF FEED

SEE DETAIL

X

ACCORDING EIA-481/DIN IEC 286

B

1

2

3

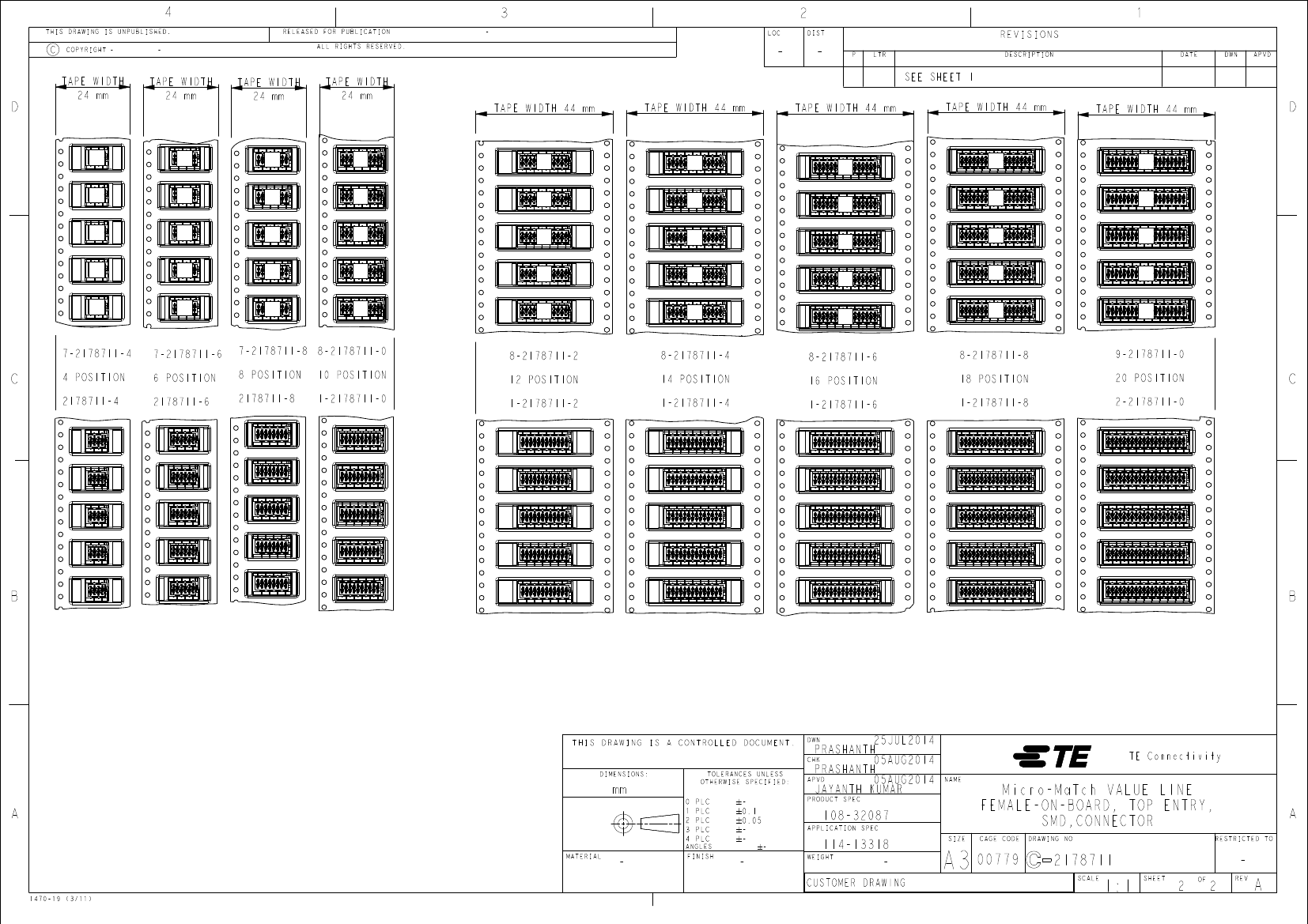

TAPE FOR VACUUM P &P ONLY FOR DASHNUMBERS 7- /8- /9-

FOR PACKAGING SEE SHEET 2 OF 2

WITHOUT VACUUM TAPE.

CORING-OUTS FOR MANUFACTURING PURPOSE ONLY.

SHAPE MAY VARY, BUT IS NOT FUNCTIONAL FOR THE APPLICATION.

SHOWN IS A 10 POSITION CONNECTOR.

2

1

ITEM NO.

B

F

2,54

1,50 0,05

0,1 F

(n-1)x1,27

3,00 MIN.

1,27

4

DETAIL

SCALE 1:1

3

FEMALE HOUSING

FEMALE CONTACT

COMPONENT DESCRIPTION

X

POLARIZATION-SLOT

ON THIS SIDE.

KAPTON

AMBER TRANSPARENT

3.0 - 5.0µm TIN OVER 0.5µm NICKEL

FINISH / COLOR

5

PICK & PLACE TAPE

POLYAMIDE 4/6,GF

TIN BRASS

MATERIAL

BLACK

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

1,50 0,05

RECOMMENDED PC-BOARD

PAD-LAYOUT TOP VIEW

0

1

2

3

4

MATERIAL

ANGLES

PLC

SEE TABLE

FINISH

114-13318

WEIGHT

-

SEE TABLE

-

30JUL2014

PRASHANTH

CHK

05AUG2014

PRASHANTH

APVD

05AUG2014

JAYANTH KUMAR

DWN

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

NAME

108-32087

SIZE

CUSTOMER DRAWING

A3

00779

CAGE CODE

Micro-MaTch VALUE LINE

FEMALE-ON-BOARD, TOP ENTRY,

SMD,CONNECTOR

DRAWING NO

A

RESTRICTED TO

2178711

SCALE

1470-19 (3/11)

5:1

SHEET

1

OF

2

REV

-

A
