87760-4417

Description
Headers u0026 Wire Housings 44CIR VERT RECPT
CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87760-4417 Online Shopping

Suppliers Part Number Price MOQ In stock
87760-4417 - - View Buy Now

87760-4417 Overview

Headers u0026 Wire Housings 44CIR VERT RECPT

87760-4417 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Objectid2087125246
Reach Compliance Codecompliant
ECCN codeEAR99
compound_id1910723
Samacsys DescriptionHeaders & Wire Housings MGrid Hdr D.R. RA .7 .R. RA .76AuLF 44Ckt
Other featuresTRAY PACKAGE
body width0.169 inch
subject depth0.157 inch
body length1.732 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN (75) OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number87760
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts44
UL Flammability Code94V-0

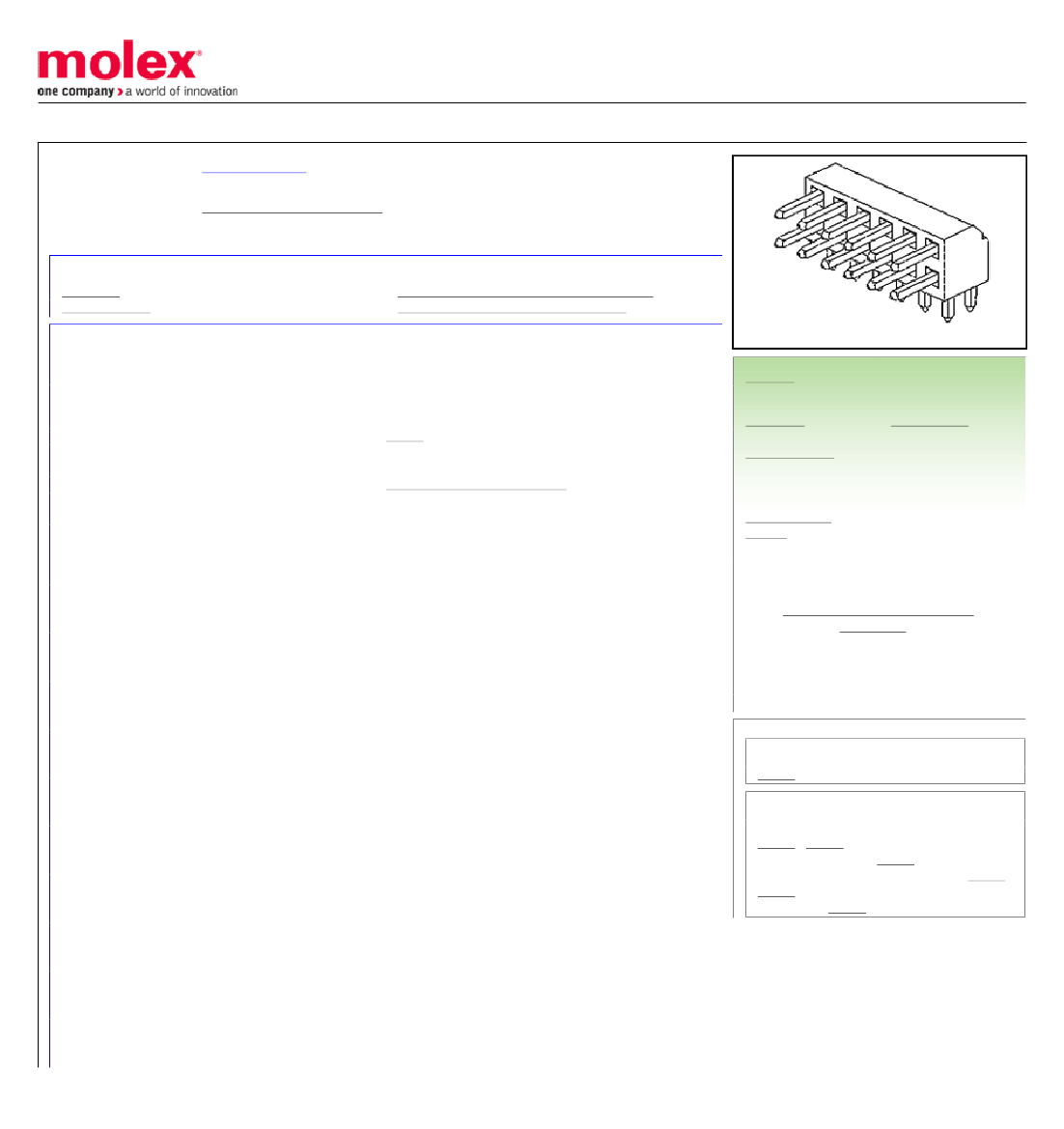

This document was generated on 10/23/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0877604417
Active
Milli-Grid™ Connector System
2.00mm Pitch Milli-Grid Header, Right Angle, Through Hole, 44 Circuits, 0.76µm Gold
(Au) Selective Plating, Tray, Lead-Free
Documents:
3D Model
Drawing (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Product Specification PS-87761-100 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
PCB Headers
87760
Board-to-Board, Signal, Wire-to-Board
Lead-Free version of 87049 series
Milli-Grid™ Connector System
Milli-Grid
822348273850
No
44
44
Black
No
94V-0
No
No
None
None
4.00mm
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
1.733/g
2
Right Angle
2.60mm
No
None
1.60mm
Tray
2.00mm
2.00mm
No
No
No
Yes
Yes
-55°C to +105°C
Through Hole
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2017 (12
January 2017)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
87760 Series
Mates With
Milli-Grid Vertical Through Hole Receptacle
79107 , 78787 , Milli-Grid Flex-to-Board
Vertical Receptacle 79108 , Milli-Grid
Vertical Surface Mount Receptacle 79109 ,
78788 , Milli-Grid Top Entry Surface Mount
Receptacle 87381
