IDC Systems
Female Sockets
FEMALE SOCKET CONNECTOR
WITH 30µ INCHES GOLD
.100" x .100" CENTERS
LR92984
E60980
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
Glass filled thermoplastic
rated UL 94V-0
C
OLOR
:
Blue
C
ONTACTS
:
Beryllium copper 30µ inches minimum
gold over 50µ inches nickel in contact zone;
tin/lead over nickel in termination area
E
LECTRICAL
P
ROPERTIES
C
URRENT
R
ATING
:
1 Amp
I
NSULATION
R
ESISTANCE
:
>1 x 10
9
0hms @ 500 VDC
D
IELECTRIC
S
TRENGTH
:
> 1000 VRMS at sea level
E
NVIRONMENTAL
P
ROPERTIES
T
EMPERATURE
R
ATING
:
-55˚C TO 125°C
C
ABLE
R
EQUIREMENTS
See Pages 116-128
M
ATING
C
ONNECTORS
H
EADERS
:
See pages 26-44
M
ALE
IDC:
See pages 47-49
A
CCESSORIES
P
OLARIZATION KEY
,
PULL TAB
&
STRAIN RELIEF
:
See page 15
A
PPLICATION
T
OOLING
H
AND
T
OOL
:
use Die
B
ENCH
P
RESS
(
MANUAL
):
use Platen
use Base Plate
B
ENCH
P
RESS
(
PNEUMATIC
):
use Platen
use Base Plate
779-2100
779-2151
779-3200
779-3130
779-3151
779-3500XT
779-3130
779-3151
Ordering Information
SOCKET
CONN.
622-0400
622-0600
622-1000
622-1200
622-1400
622-1600
622-2000
622-2400
622-2600
622-3000
622-3400
622-3600
622-4000
622-4400
622-5000
622-5600
622-6000
622-6400
SOCKET
CONN. W/
STRAIN RELIEF
622-0401
622-0601
622-1001
622-1201
622-1401
622-1601
622-2001
622-2401
622-2601
622-3001
622-3401
622-3601
622-4001
622-4401
622-5001
622-5601
622-6001
622-6401
CATALOG NUMBERS
POLARIZED
POLARIZED
SOCKET
SOCKET W/
CONN.
STRAIN RELIEF
622-0430
622-0441
622-0630
622-0641
622-1030
622-1041
622-1230
622-1241
622-1430
622-1441
622-1630
622-1641
622-2030
622-2041
622-2430
622-2441
622-2630
622-2641
622-3030
622-3041
622-3430
622-3441
622-3630
622-3641
622-4030
622-4041
622-4430
622-4441
622-5030
622-5041
622-5630
622-5641
622-6030
622-6041
622-6430
622-6441

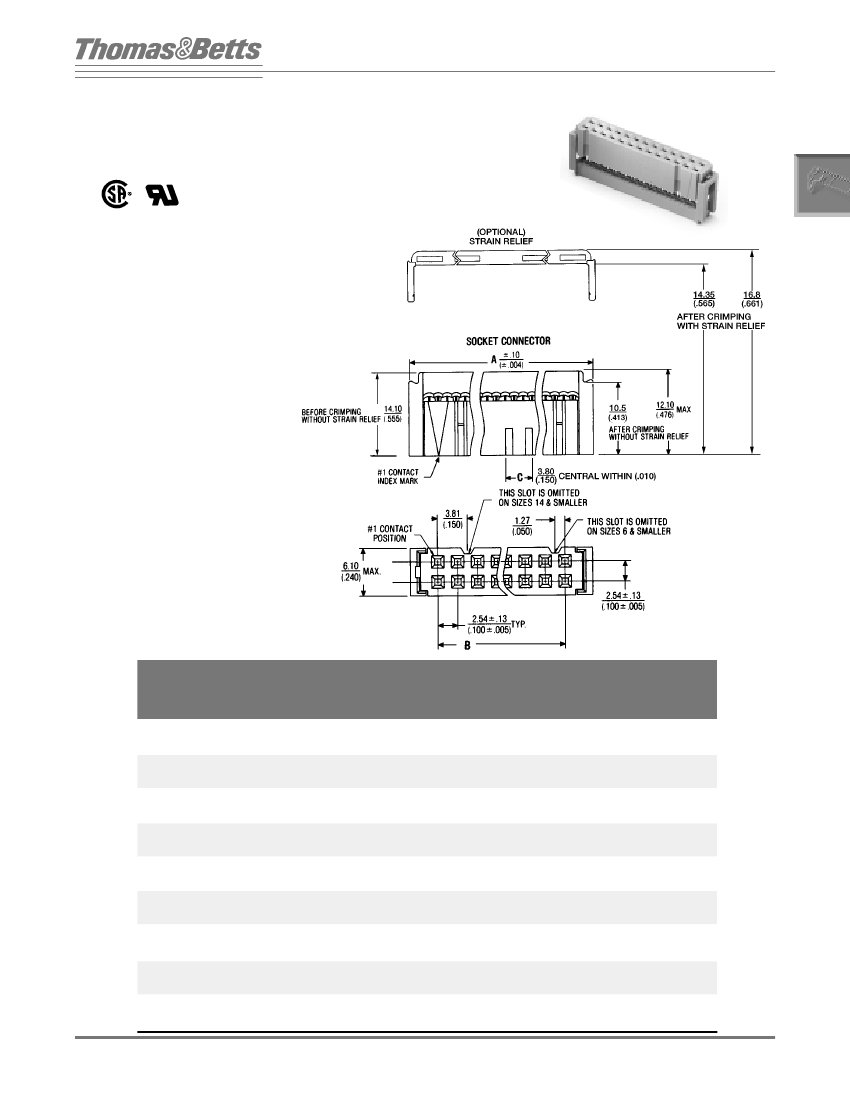

DIMENSIONS IN MM (INCHES)
NO.
OF
POS.
04
06
10
12
14
16
20
24
26
30
34
36
40
44
50
56
60
64
A
9.58 (.377)
12.12 (.477)
17.20 (.677)
19.74 (.777)
22.28 (.877)
24.81 (.977)
29.90 (1.177)
34.96 (1.377)
37.52 (1.477)
42.40 (1.677)
47.68 (1.877)
50.22 (1.977)
55.30 (2.177)
60.38 (2.377)
68.00 (2.677)
76.38 (2.977)
80.70 (3.177)
85.78 (3.377)
B
2.54 (.100)
5.08 (.200)
10.16 (.400)
12.70 (.500)
15.24 (.600)
17.78 (.700)
22.86 (.900)
27.94 (1.100)
30.48 (1.200)
35.56 (1.400)
40.64 (1.600)
43.18 (1.700)
48.26 (1.900)
53.34 (2.100)
60.95 (2.400)
68.56 (2.700)
73.66 (2.900)
78.74 (3.100)
C
1.90 (.075)
1.90 (.075)
3.20 (.126)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
3.80 (.150)
