LCMA 25-10
25r/16f
NOTES:
1. Material: High conductivity seamless copper tube.
2. Plating: Parts are annealed and tin plated.
b
CERTIFIED
LISTED
Wire Connector
3. Wire Type: Class 2r, 5f & 6f Stranded Copper per DIN VDE 0295, IEC 60228 and HD 383.
4. UL Listed Wire Connector: Yes, for applications up to 35kv.
Consult cable manufacturer for voltage stress relief instructions
with applications greater than 2000 volts.
n
m (ref)
5. UL Temperature Rating: 90 C
6. C.S.A. Certified Wire Connector: Yes
a
Beveled wire
entry
7. Parts are CE and tested per EN 61238-1:2003/IEC 61238-1:2003 Class B, with Class 2r wire 4mm² - 25mm².
Wire Inspection
Window
TITLE
i
o

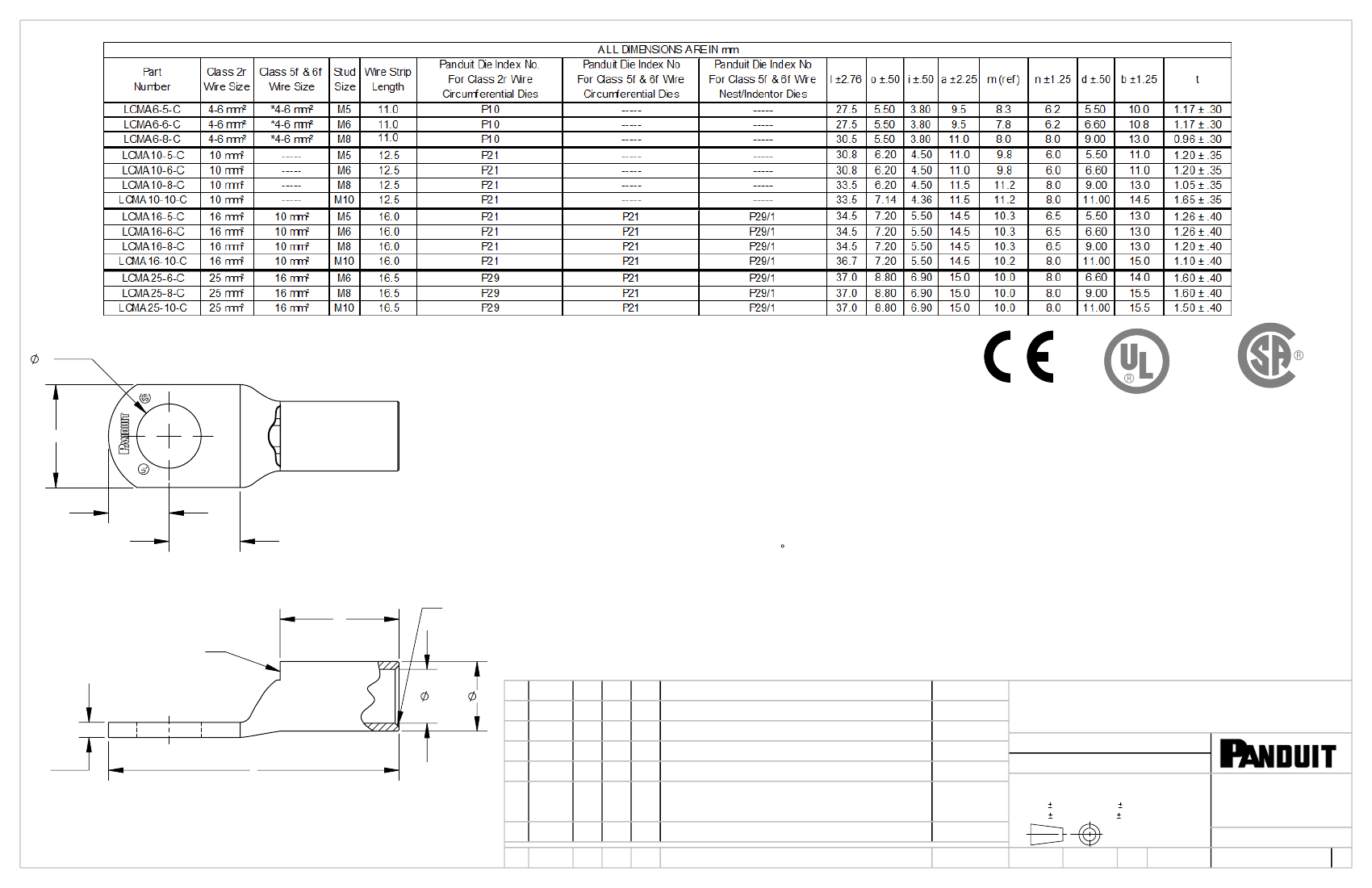

METRIC LUGS - LCMA ONE HOLE SERIES 6-25mm
STANDARD BARREL
CUSTOMER DRAWING
12J059BE/01
12J059BE-JC/01.SLDDRW
MATERIAL
ITEM REVISION NAME
DATASET FILE NAME
t
l
01
00
6/14
4/14
JHNU TLCO RGB
JHNU TLCO RGB
REVISED l DIM: LCMA10-8,LCMA10-10 WAS 30.8
REVISED m DIM: LCMA6-5 WAS 7.8, LCMA10-8,
LCMA10-10 WAS 8.5
DRAWING RELEASED
13J059BE-JC
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XXX
.XX
ANGLES
THIRD ANGLE
PROJECTION
SEE NOTES
DRAWING NUMBER
12J059BE-JC
SIZE
REV
DATE
BY
CHK APR
DESCRIPTION
ECN
DRAWN BY
JHNU
DATE
4/14
CHK
TLCO
SCALE
NONE
SHEET 1 0F 1
