1-1969590-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-1969590-3

1-1969590-3: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Crimp Terminal, White Insulator, Receptacle; CategoryThe connector The connector; File Size216KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-1969590-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1969590-3	-	-	View	Buy Now

1-1969590-3 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Crimp Terminal, White Insulator, Receptacle

1-1969590-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8003522885
Reach Compliance Code	compliant
Samacsys Description	HSG, REC, PANEL MOUNT, SINGLE ROW,EP2.5
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-11 10:54:44
YTEOL	8
body width	0.715 inch
subject depth	0.26 inch
body length	1.378 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	WHITE
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Power Connector Ratings	7.5A
Mixed contacts	NO
Installation option 2	LATCHING
Installation type	PANEL
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	7.5 A
Guideline	UL
Terminal pitch	2.5 mm
Termination type	CRIMP
Total number of contacts	13
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	26 AWG

Preview

Download Datasheet

View All

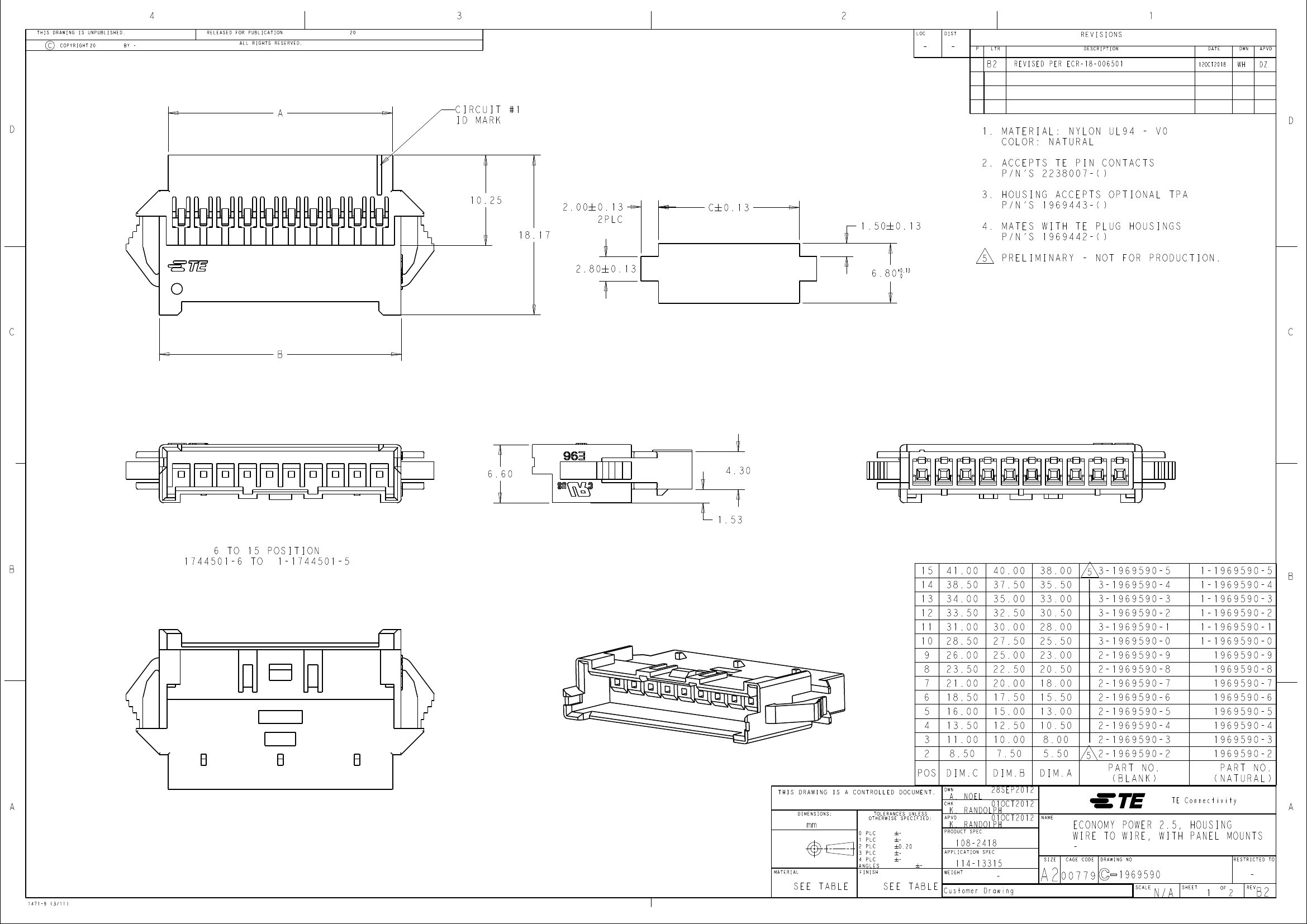

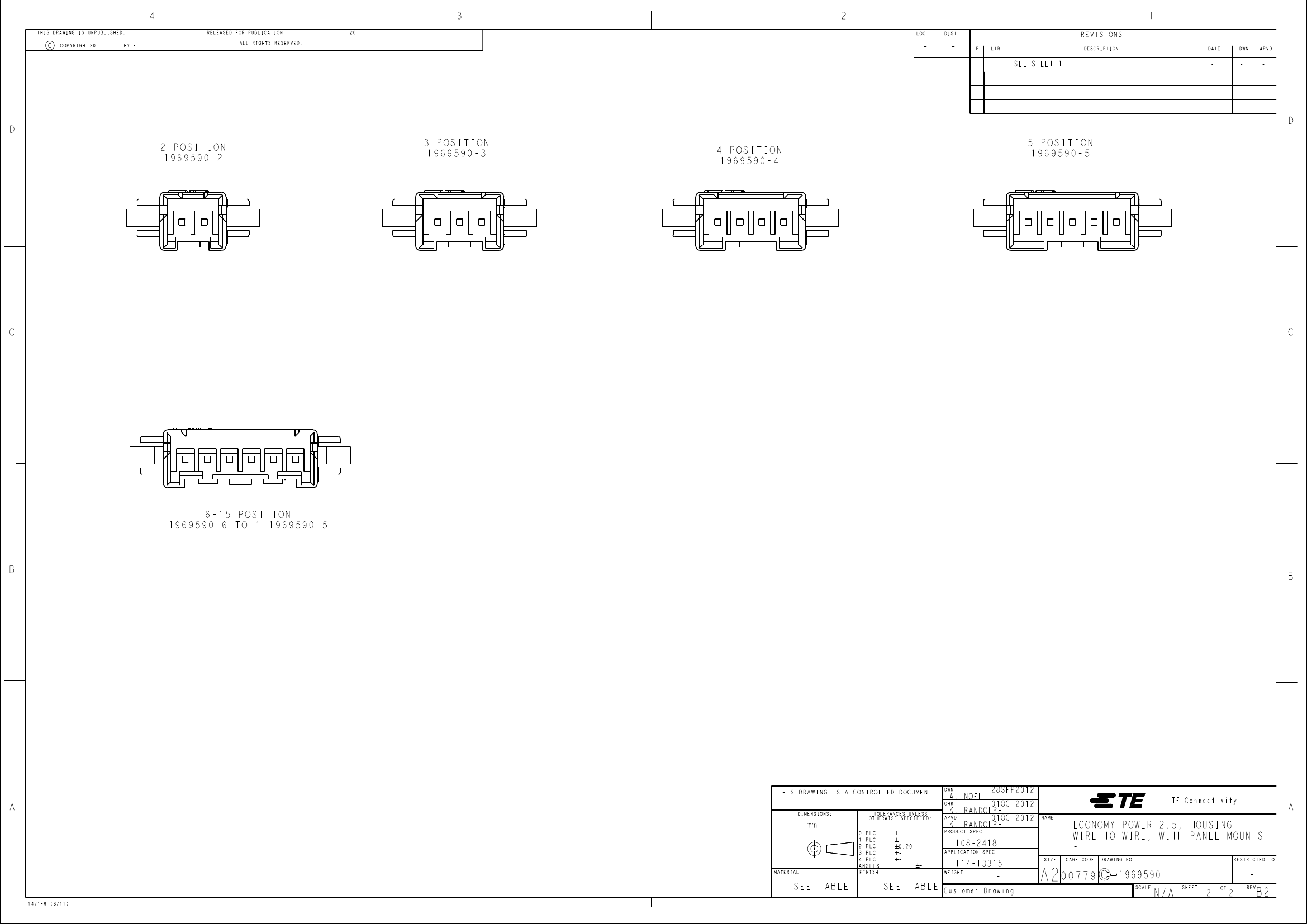

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-18-006501

12OCT2018

CIRCUIT #1

ID MARK

1. MATERIAL: NYLON UL94 - V0

COLOR: NATURAL

2. ACCEPTS TE PIN CONTACTS

P/N'S 2238007-()

10.25

18.17

2.00

0.13

2PLC

C # 0.13

1.50

0.13

3. HOUSING ACCEPTS OPTIONAL TPA

P/N'S 1969443-()

4. MATES WITH TE PLUG HOUSINGS

P/N'S 1969442-()

2.80

0.13

6.80

+0.13

PRELIMINARY - NOT FOR PRODUCTION.

6.60

4.30

1.53

6 TO 15 POSITION

1744501-6 TO 1-1744501-5

41.00

38.50

34.00

33.50

31.00

28.50

26.00

23.50

21.00

18.50

16.00

13.50

11.00

8.50

DIM.C

DWN

CHK

40.00

37.50

35.00

32.50

30.00

27.50

25.00

22.50

20.00

17.50

15.00

12.50

10.00

7.50

DIM.B

28SEP2012

38.00

35.50

33.00

30.50

28.00

25.50

23.00

20.50

18.00

15.50

13.00

10.50

8.00

5.50

DIM.A

3-1969590-5

3-1969590-4

3-1969590-3

3-1969590-2

3-1969590-1

3-1969590-0

2-1969590-9

2-1969590-8

2-1969590-7

2-1969590-6

2-1969590-5

2-1969590-4

2-1969590-3

2-1969590-2

PART NO.

(BLANK)

1-1969590-5

1-1969590-4

1-1969590-3

1-1969590-2

1-1969590-1

1-1969590-0

1969590-9

1969590-8

1969590-7

1969590-6

1969590-5

1969590-4

1969590-3

1969590-2

PART NO.

(NATURAL)

POS

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.20

01OCT2012

K. RANDOLPH

APVD

01OCT2012

K. RANDOLPH

PRODUCT SPEC

APPLICATION SPEC

A. NOEL

TE Connectivity

NAME

108-2418

114-13315

SIZE

WEIGHT

SEE TABLE

1471-9 (3/11)

SEE TABLE

Customer Drawing

00779

CAGE CODE

ECONOMY POWER 2.5, HOUSING

WIRE TO WIRE, WITH PANEL MOUNTS

DRAWING NO

RESTRICTED TO

1969590

SCALE

N/A

SHEET

REV
