24.545452 MHz
TYPE HX 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
HX3124501Q
0
March 2, 2015
A
QA
APPROVED BY CUSTOMER:
AVL Status
Please return one copy with approval to PSE-TW
PSE Technology Corporation
No.2, Tzu-Chiang 5th Rd, Chung Li Industrial Park,
Chung Li City, Taoyuan County, Taiwan (R.O.C.)
TEL: 886-3-451-8888
FAX: 886-3-461-3865
http://www.saronix-ecera.com.tw
*Pb-free
*RoHS Compliant
*HF-Halogen Free
*REACH Compliant
*AEC-Q200 Compliant
E0-R-4-014 Rev. E
Page
i
TYPE HX 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
HX3124501Q
VERSION HISTORY
Version
No.
A
Version
Date
Mar.2,2015
Customer Receipt
Date
Supplier Receipt
Date
Initial Release
Description
VER. A
2-Mar-15
Notes
E0-R-4-014 Rev. E
Page
ii
TYPE HX 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
HX3124501Q
ELECTRICAL SPECIFICATIONS
SRe Part Number :
Item
Nominal Frequency
Frequency Stability
Operating Temperature Range
Supply Voltage
Logic Type
Supply Current, Output Enabled
Supply Current, Output Disabled
Duty Cycle (Symmetry)
Rise / Fall Time
Output Voltage "0" Level
Output Voltage "1" Level
Output Load
Jitter, Phase
Jitter, Accumulated
Jitter, Peak to Peak
Start Up Time
Storage Temperature Range
VER. A
2-Mar-15
HX3124501Q
Symbol
Fo
FT
TR
V
DD
LT
I
DD
/OE
I
DD
/OD
DC/SY
T
R
/T
F
V
OL
V
OH
CL
RMS
RMS(1-σ)
Pk-Pk
Specifications
24.545452
± 25
-40 to +105
+2.8 ± 5.0%
LVCMOS
20
100
45 / 55
8
10% V
DD
90% V
DD
15
1
4
40
10
-55 to +125
Units
MHz
ppm
°C
V
**See note
Notes
mA
µA
%
ns
V
V
pF
ps
ps
ps
Max.
Max.
Measured 50% of Waveform
Max. measured 20/80% of Waveform
Max at I
OL
= 4.0mA Min.
Min at I
OH
= -4.0mA Max.
Max.
Max. 12KHz ~ 5MHz Frequency Band
Max. 20,000 Consecutive Periods
Max. 100,000 Random Periods
Max.
ms
°C
※
This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free).
**Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial
Calibration Tolerance (25°C), Aging (1 year at 25°C Average Effective Ambient Temperature), Shock and Vibration.
Output Enable / Disable Function
Parameter
Input Voltage (Pin1), Output Enable
Input Voltage (Pin1), Output Disable (low power standby)
Internal Pullup Resistance
Output Disable Delay
Output Enable Delay
Min.
0.7V
DD
Typ.
Max.
0.3V
DD
Units
V
V
KΩ
ns
us
Or Open
Notes
Output is Hi-Z
30
50
50
E0-R-4-014 Rev. E
Page 1
TYPE HX 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
HX3124501Q

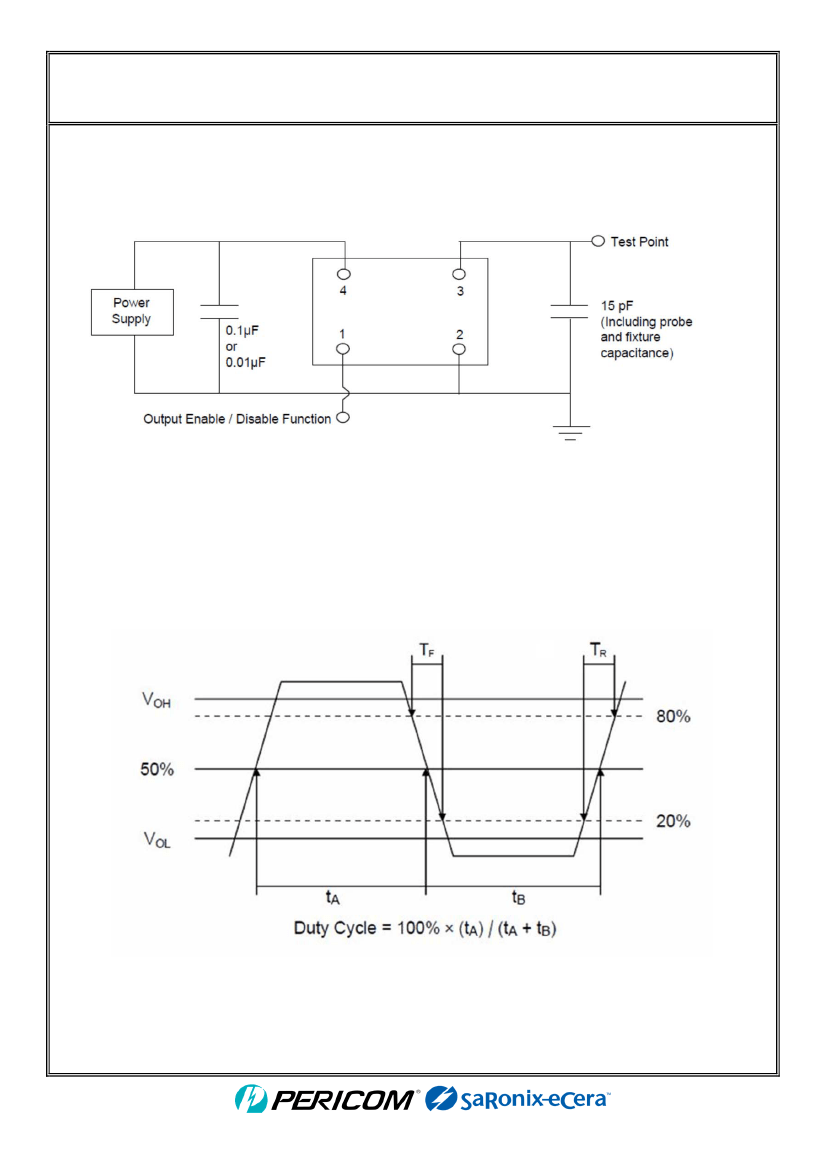

TEST CIRCUIT
VER. A
2-Mar-15
OUTPUT WAVEFORM
E0-R-4-014 Rev. E
Page 2
TYPE HX 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
HX3124501Q
AEC-Q200 RELIABILITY TEST SPECIFICATIONS:
1. Initial
1.1 Physical Dimensions: JESD22, Method JB1-100
1.2 External Visual: MIL-STD-883, Method 2009
1.3 Freq. Vs. Temperature: Per Specification/Datasheet
VER. A
2-Mar-15
2. Mechanical
2.1 Mechanical Shock: MIL-STD-202 Method 213
2.2 Vibration: MIL-STD-202 Method 204
2.3 Solderability: J-STD-020
2.4 Board Flex: AEC Q200-005
2.5 Terminal Strength (SMD): AEC Q200-006
3.Environmental
3.1 Temp Cycle: JESD22, Method JA-104
3.2
Resistance to Solder Heat: MIL-STD-202 Method 210
3.3 High Temperature Operating Life: MIL-STD-202, Method 108
3.4 High Temp: MIL-STD-202, Method 108
3.5 High Temp & High Humidity: MIL-STD-202, Method 103
3.6 Thermal Shock: MIL-STD-202, Method 107

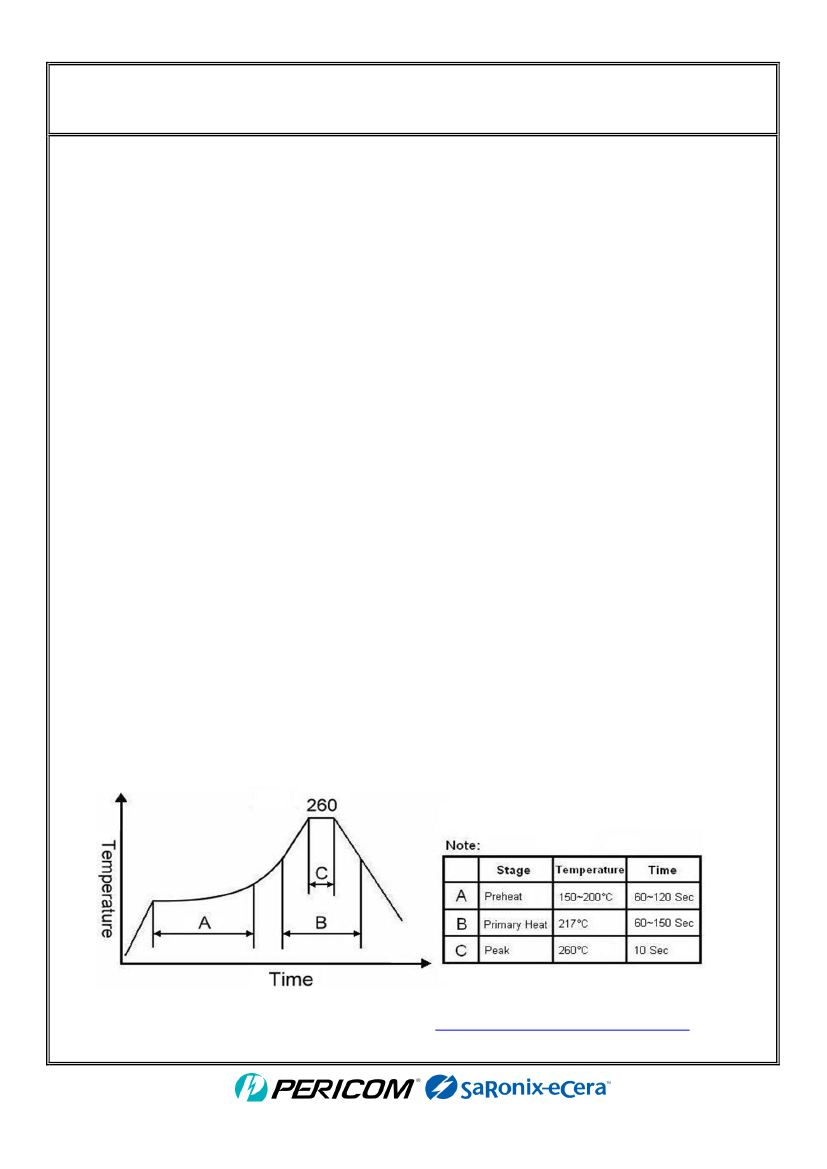

SUGGESTED IR REFLOW PROFILE
*As per IPC-JEDEC J-STD-020D
For soldering reflow profile and reliability test ratings go to:
http://www.pericom.com/pdf/sre/reflow.pdf
E0-R-4-014 Rev. E
Page 3
