TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
BUS-12-021
REVISION
Gold Plated Clincher Connector
1 of 15
AUTHORIZED BY
DATE
M
AUG 25 06
C. Martinez
CLASSIFICATION
UNRESTRICTED
1.0
GENERAL
Scope
This specification covers the Gold Plated Clincher™ Connector designed to terminate flat conductor, flat
flexible cable and to interconnect this cable with 0.025 inch square or round pins on 0.100 inch centers. The
specification is composed of the following sections.
Paragraph
1.0
2.0
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
4.0
4.1
4.2
4.3
4.4
4.5
5.0
Title
GENERAL
APPLICABLE DOCUMENTS
REQUIREMENTS
Qualification
Material
Finish
Design and Construction
Electrical Characteristics
Mechanical Characteristics
Environmental Conditions
QUALITY ASSURANCE PROVISIONS
Equipment Calibration
Inspection Conditions
Qualification Inspection
Quality Conformance Inspection
Acceptance Inspection
NOTES AND DEFINITIONS
Page
1
1
2
2
2
2
3
3
4
6
10
10
10
11
12
13
14
2.0
APPLICABLE DOCUMENTS
The following documents, of the issue in effect on the date of the latest revision of this specification, shall
form a part of this specification to the extent specified herein.
Military Specifications
MIL-G-45204
MIL-G-45662
Military Standards
MIL-STD-105
MIL-STD-202
EIA-364
Sampling Procedures and Tables for Inspection by Attributes
Test Methods for Electrical and Electronic Component Parts
Test Methods for Electrical Connectors
Gold Plating, Electrodeposited
Calibration System Requirement
Federal Specifications
QQ-N-290
QQ-C-533
Nickel Plating (Electrodeposited)
Beryllium Alloy Copper Strip
Copyright FCI
GS-01-001
Form E-3334
Rev. E
PDM: Rev:M
STATUS:
Released
Printed: Nov 28, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
BUS-12-021
REVISION
Gold Plated Clincher Connector
2 of 15
AUTHORIZED BY
DATE
M
AUG 25 06
C. Martinez
CLASSIFICATION
UNRESTRICTED
Industry Specification/Standards
UL-94
IPC-FC-220
ASTM B122
3.0
REQUIREMENTS
3.1
Qualification
Connectors furnished under this specification shall be products capable of meeting the qualification
test requirements specified herein.
3.2
Material
The material for each part shall be as specified herein, or equivalent. Substitute material shall meet
the performance requirements of this specification.
3.2.1
Metallic Parts
3.2.1.1
3.2.1.2
3.2.2
3.3
Finish
3.3.1
3.3.2
Contact Body. The body shall be plated in the contact area and lower crimp area with 30
microinches (minimum) gold per MIL-G-45204, Type II, Grade C, Class 0.
Contact Spring. The spring shall be plated on its convex side with 5 microinches
(minimum) gold over .000050 Nickel under plating per MIL-G-45204, Type II, Grade C,
Class 00.
Contact Body.
The body shall be half-hard (HO2 Temper) Copper-
Nickel-Tin Alloy 725 in accordance with ASTM B122.
Contact Spring.
The spring shall be half-hard beryllium copper in
accordance with QQ-C-533, heat treated to full-hard condition.
Tests for Flammability of Plastic Materials
Specification for Flat Cable, Flat-Conductor, Flexible, Unshielded
Copper-Nickel-Tin Alloy, Copper-Nickel-Zinc Alloy (Nickel, Silver), and Copper-Nickel
Alloy Plate, Sheet, Strip and Rolled Bar
Housing. The housing shall be molded of flame retardant Polypropylene. The material
shall be rated V-O in accordance with UL-94.
Copyright FCI
GS-01-001
Form E-3334
Rev. E
PDM: Rev:M
STATUS:
Released
Printed: Nov 28, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
BUS-12-021
REVISION
Gold Plated Clincher Connector
3 of 15
AUTHORIZED BY
DATE
M
AUG 25 06
C. Martinez
CLASSIFICATION
UNRESTRICTED
3.4
Design and Construction
The connector shall be a multi-piece assembly having a single row of non-removable contacts with
an insulation displacement style crimp termination. The female contact shall be a high reliability
disconnect for 0.025 square or round male pins on 0.100 centers.
3.4.1
3.4.2
3.4.3
Installation. The connector shall simultaneously terminate up to 32 signal leads on 0.100
inch centers.
Mating. The connector shall be capable of mating and unmating by hand without the use
of special tools within the specified temperance range.
Workmanship. Connectors shall be uniform in quality, and shall be free from burrs,
scratches, cracks, voids, chips, blisters, pin holes, sharp edges, and other defects that
will adversely affect life or serviceability.
Interchangeability. The connector shall be capable of mating with an appropriately
constituted male connector or pin filed (see figure 2) of the same population without
degradation in performance.
3.4.4
3.5
Electrical Characteristics
3.5.1
3.5.2
Current Rating. The maximum current rating of the connector shall be 2.0 ampere DC.
Contact Resistance. The contact resistance shall not exceed 15 milliohms (20 milliohms
after environmental exposure) when measured in accordance with MIL-STD-202, Method
307; the following details shall apply:
a. Method of Connection - Attach current and voltage leads as shown in Figure 1.
b. Test Current - 1.0 ampere DC
3.5.3
Low Level Circuit Resistance. The low level circuit resistance shall not exceed 10
milliohms (20 milliohms after environmental exposure) when measured in accordance
with EIA-364 TP45; the following details shall apply:
a. Method of Connection - See Figure 1
b. Test Current - 10 milliamperes DC, approximate
c. Open-Circuit Voltage - 50 millivolts, maximum
Copyright FCI
GS-01-001
Form E-3334
Rev. E
PDM: Rev:M
STATUS:
Released
Printed: Nov 28, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
BUS-12-021
REVISION
Gold Plated Clincher Connector
4 of 15
AUTHORIZED BY
DATE
M
AUG 25 06
C. Martinez
CLASSIFICATION
UNRESTRICTED
3.5.4
Insulation Resistance. The insulation resistance of the unterminated connector shall be
not less than 5000 megohms (10 megohms within 15 minutes after exposure to the
humidity environment described in 3.7.2) when measured in accordance with MIL-STD-
202, Method 302; the following details shall apply:
a. Test Condition - B (500 volts DC)
b. Points of Measurement - Between adjacent contacts
3.5.5
Dielectric Withstanding Voltage. There shall be no evidence of arc-over, insulation
breakdown, or excessive leakage current (> 1.0 milliampere) when the unterminated
connector is tested in accordance with MIL-STD-202, Method 301; the following details
shall apply:
a. Test Potential - 1000 volts RMS, 60 Hz (sea-level pressure)
b. Test Duration - 60 seconds
c. Points of Measurement - Between adjacent contacts
3.6
Mechanical Characteristics
3.6.1
Total Mating and Unmating Force. The total force to mate (or unmate) the terminated
connector with an appropriately populated header consisting of properly configured (see
Figure 2) 0.025 inch square or round pins shall not exceed 300 grams times the number
of terminals. The test shall be in accordance with EIA-364 TP13, at a cross-head speed
of one (1) inch per minute.
For product with an external mechanical locking device, the total mating force shall not
exceed 300gm times the number of terminals plus 521gm for the mechanical latch.
For product with an external mechanical locking device, the total unmating force shall not
be more than 300gm times the number of terminals plus 1200gm for the mechanical
latch.
3.6.2
Individual Contact Withdrawal Force. When measured using a minimum gage configured
as shown in Figure 3, the individual contact withdrawal force shall be not less than 25
grams. The test shall be in accordance with EIA-364 TP37; the following details shall
apply:
a.
b.
c.
d.
3.6.3
Test Procedure - 1
Speed of Withdrawal - 1 inch per minute
Insertion Depth - 0.230 to 0.250 inch
Number of Prior Activations - 1 (with maximum gage shown in Figure 3)
Cable Retention. The contact termination shall withstand, without loss of continuity, an
evenly distributed force of 10 pounds per inch-of-cable-width applied to the cable in a
direction parallel to the contact axis.
Copyright FCI
GS-01-001
Form E-3334
Rev. E
PDM: Rev:M
STATUS:
Released
Printed: Nov 28, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
BUS-12-021
REVISION
Gold Plated Clincher Connector
5 of 15
AUTHORIZED BY
DATE
M
AUG 25 06
C. Martinez
CLASSIFICATION
UNRESTRICTED

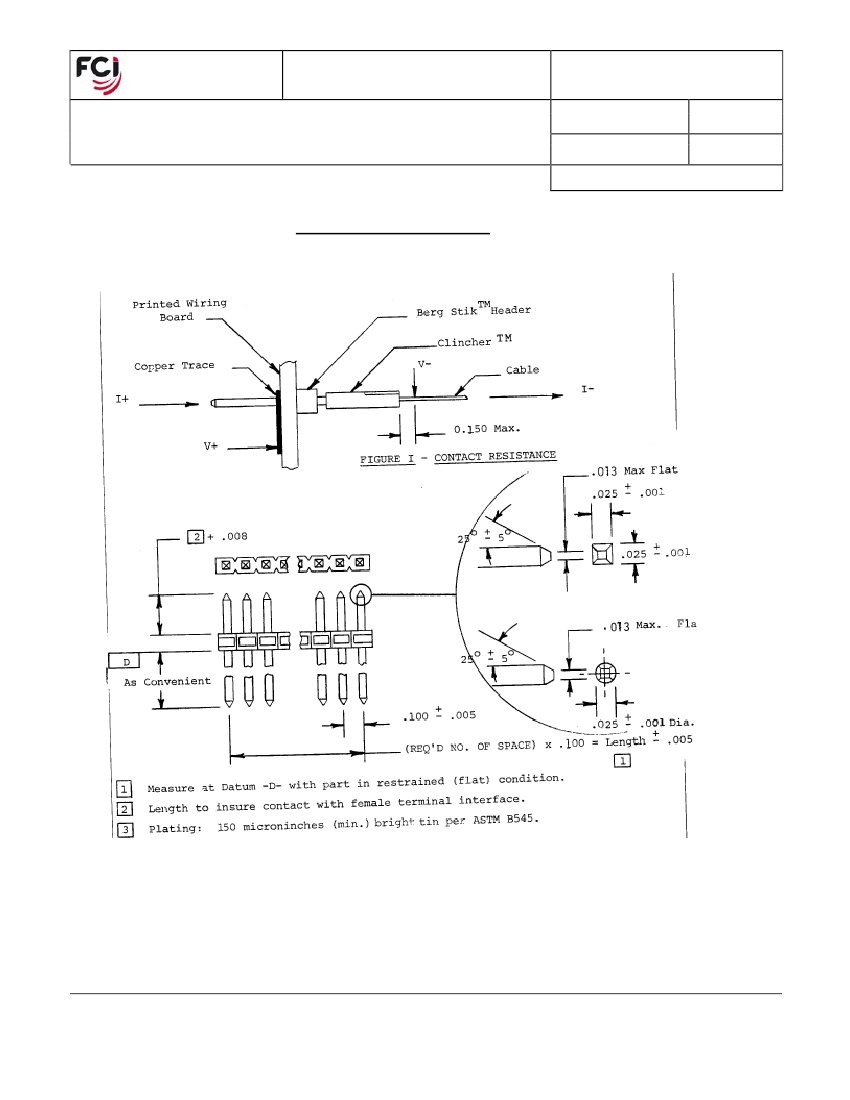

FIGURE 2 - MATING HEADER
Copyright FCI
GS-01-001
Form E-3334
Rev. E
PDM: Rev:M
STATUS:
Released
Printed: Nov 28, 2010
.
