BAV70-B0RF Overview

Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon,

BAV70-B0RF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.225 W
Maximum repetitive peak reverse voltage	70 V
Maximum reverse recovery time	0.006 µs
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

BAW56, BAV70, BAV99

Taiwan Semiconductor

Small Signal Product

225mW SMD Switching Diode

FEATURES

- Fast switching speed

- Surface mount device type

- Moisture sensitivity level 1

- Matte Tin(Sn) lead finish with Nickel(Ni) underplate

- Pb free and RoHS compliant

- Green compound (Halogen free) with suffix "G" on

packing code and prefix "G" on date code

MECHANICAL DATA

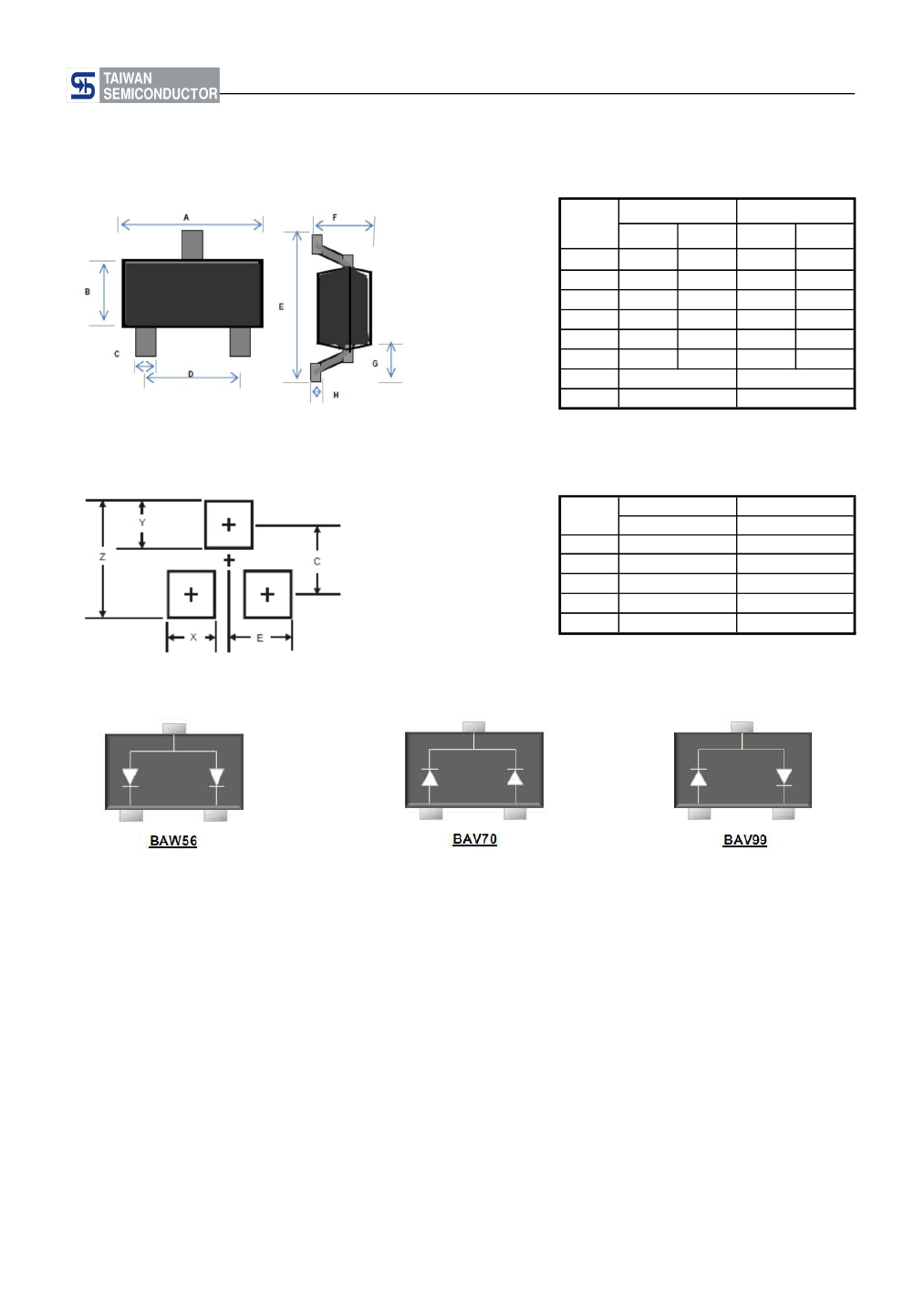

- Case: SOT-23 small outline plastic package

- Terminal: Matte tin plated, lead free,

solderable per MIL-STD-202, Method 208 guaranteed

- High temperature soldering guaranteed: 260

C/10s

- Weight: 0.008grams (approximately)

SOT-23

MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS

=25℃ unless otherwise noted)

PARAMETER

Power dissipation

Peak repetitive reverse voltage

Repetitive peak forward current

Mean forward current

Non-repetitive peak forward

surge current

Thermal resistance form junction to ambient

Junction and storage temperature range

PARAMETER

Reverse breakdown voltage

Forward voltage

Reverse leakage current

Junction capacitance

Reverse revovery time

= 0 V,

f = 1 MHz

= 100

µA

= 50 mA

= 150 mA

= 70 V

BAW56, BAV70

BAV99

Pulse Width=1 sec

Pulse Width=1

µsec

SYMBOL

RRM

FRM

FSM

θJA

, T

STG

SYMBOL

(BR)

MIN

VALUE

225

450

200

0.5

556

- 55 to + 150

MAX

1.00

1.25

2.50

1.5

UNIT

C/W

UNIT

µA

= I

= 10 mA, R

= 100

Ω,

= 1 mA

Document Number: DS_S1404011

Version: H14
