51382-1100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51382-1100

51382-1100: DescriptionHeaders u0026 Wire Housings NOVO RECEPTACLE 20P; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

51382-1100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51382-1100	-	-	View	Buy Now

51382-1100 Overview

Headers u0026 Wire Housings NOVO RECEPTACLE 20P

51382-1100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT & BAG PACKAGE
body width	0.274 inch
subject depth	0.429 inch
body length	1 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.035 inch
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	11
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 11/30/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

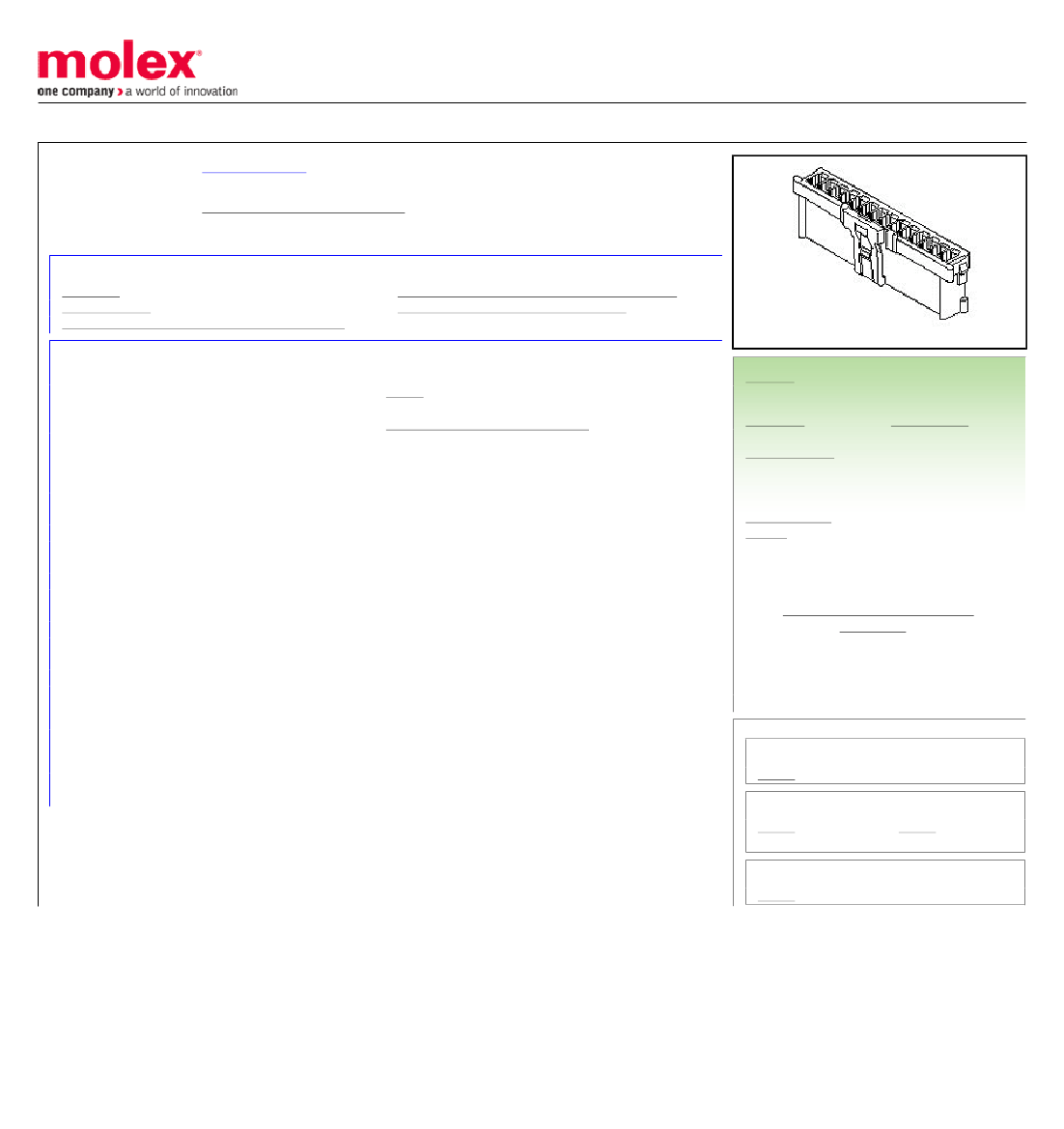

0513821100

Active

MicroClasp Wire-to-Board System

2.00mm Pitch MicroClasp Wire-to-Board Receptacle Housing, Positive Lock, Single

Row, 11 circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51382-004-001 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Stackable

Temperature Range - Operating

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification 513829200-200 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

Crimp Housings

51382

Signal, Wire-to-Board

MicroClasp Wire-to-Board System

MicroClasp

800756632339

White

Receptacle

Yes

Nylon

526.500/mg

Bag

2.00mm

-25°C to +85°C

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

513829200-200

PS-51382-004-001

SD-51382-002

Search Parts in this Series

51382 Series

Mates With

55932 Vertical Header, 55935 Right Angle

Header

Use With

56134 Terminal

This document was generated on 11/30/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
