516-250-038-111 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 516-250-038-111

Preview

516-250-038-111: DescriptionRack u0026 Panel Connectors RACK AND PANEL CONNECTOR; CategoryThe connector; File Size181KB，2 Pages; ManufacturerEDAC

Download Datasheet Parametric Compare View All

516-250-038-111 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	516-250-038-111	-	-	View	Buy Now

516-250-038-111 Overview

Rack u0026 Panel Connectors RACK AND PANEL CONNECTOR

516-250-038-111 Parametric

Parameter Name	Attribute value
Product Category	Rack & Panel Connectors
Manufacturer	EDAC
RoHS	Details
Factory Pack Quantity	25

Preview

Download Datasheet

View All

227 Idema Road, Markham,

Ontario Canada, L3R 1B1

Tel: +1 416 754‐3322

Fax: +1 416 754‐3299

Email: info@edac.net

http://www.edac.net

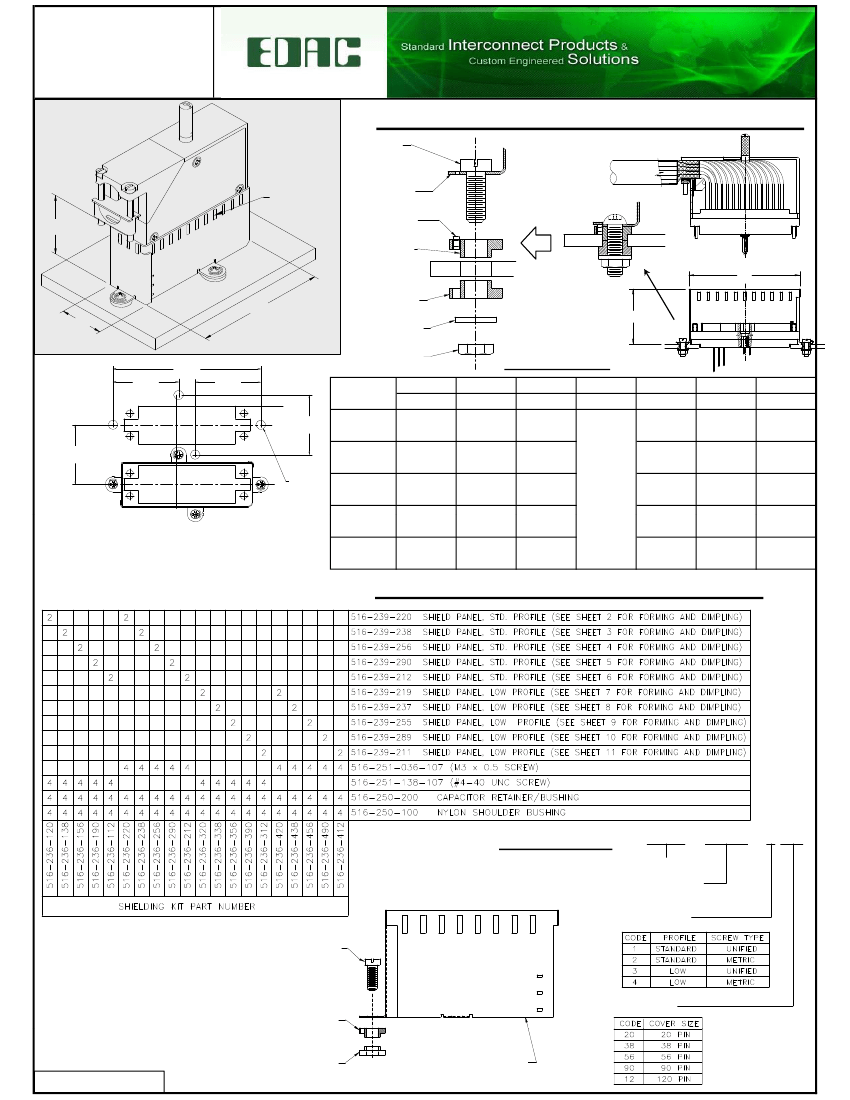

516 SERIES WITH EMI SHIELD ASSEMBLY

SCREW

SHIELD CABLE

GROUNDING

DIMPLES

'E'

SHIELD PANEL

CAPACITOR

RETAINER BUSHING

'H'

'F'

BUSHING

'E'

FLAT WASHER

HEX NUT

'A'

NO SHIELD

'B'

NUMBER OF

CONTACTS

COMPONENTS ASSY

"B"

inch (mm)

.673(17.09)

"A"

inch (mm)

1.679(42.65)

"C"

inch (mm)

1.088(27.64)

"D"

inch (mm)

"E"

inch (mm)

1.200(30.48)

.800(20.32)

1.300(33.02)

1.100(27.94)

"F"

inch (mm)

.777(19.74)

"H"

inch (mm)

1.387(35.23)

'C'

Ø'D'

(2)

SHIELD

IN PLACE

20 STANDARD

20 LOW

38 STANDARD

38 LOW

56 STANDARD

56 LOW

90 STANDARD

90 LOW

120 STANDARD

120 LOW

2.360(59.94)

1.007(25.58)

1.258(31.96)

.962(24.43)

2.975(75.57)

1.321(33.55)

1.258(31.96)

ø.190(ø4.83)

1.300(33.02)

1.100(27.94)

1.300(33.02)

1 300(33 02)

1.100(27.94)

1.300(33.02)

1.100(27.94)

.962(24.43)

2.679(68.05)

3.113(79.07)

1.383(35.30)

1.606(40.79)

1.311(33.30)

2.802(71.17)

PANEL CUT‐OUT AND SHIELD MOUNTING HOLES

PANEL CUT‐AWAY TO CLEAR CONNECTOR

3.145(79.88)

1.406(35.71)

1.897(48.18)

1.607(40.82)

2.827(71.81)

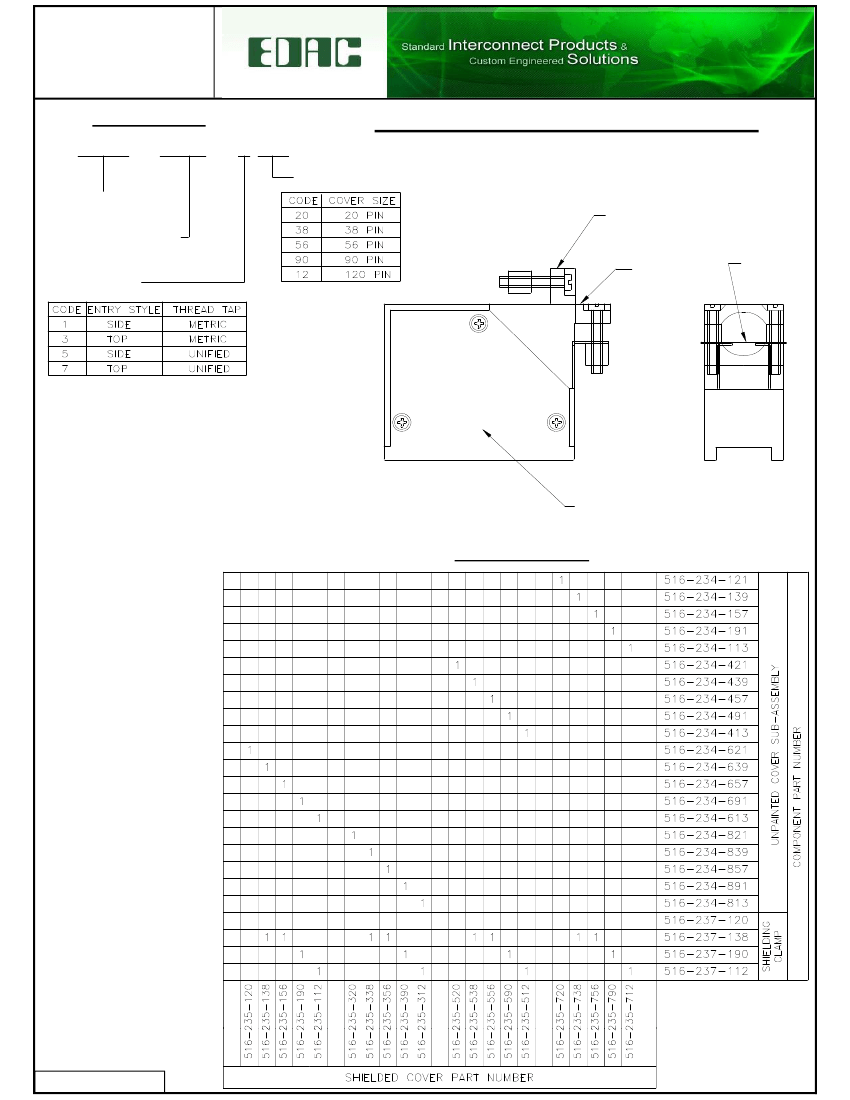

516 SERIES WITH EMI SHIELDING KIT

ORDERING GUIDE:

5 1 6 ‐ 2 3 5 ‐ 1 5 6

SERIES

SHIELDING KIT

IDENTIFICATION CODE

COVER TYPE

NOTE:

PACKAGING TO PREVENT PLATING

SCRATCHES AND SCRAPES IS

REQUIRED.

SCREW (4)

(METRIC OR

UNIFIED)

CAPACITOR

BUSHING

SHIELD PANEL (2)

(STANDARD OR

LOW PROFILE)

KIT SIZE

PAGE 1 OF 2
