3M
™

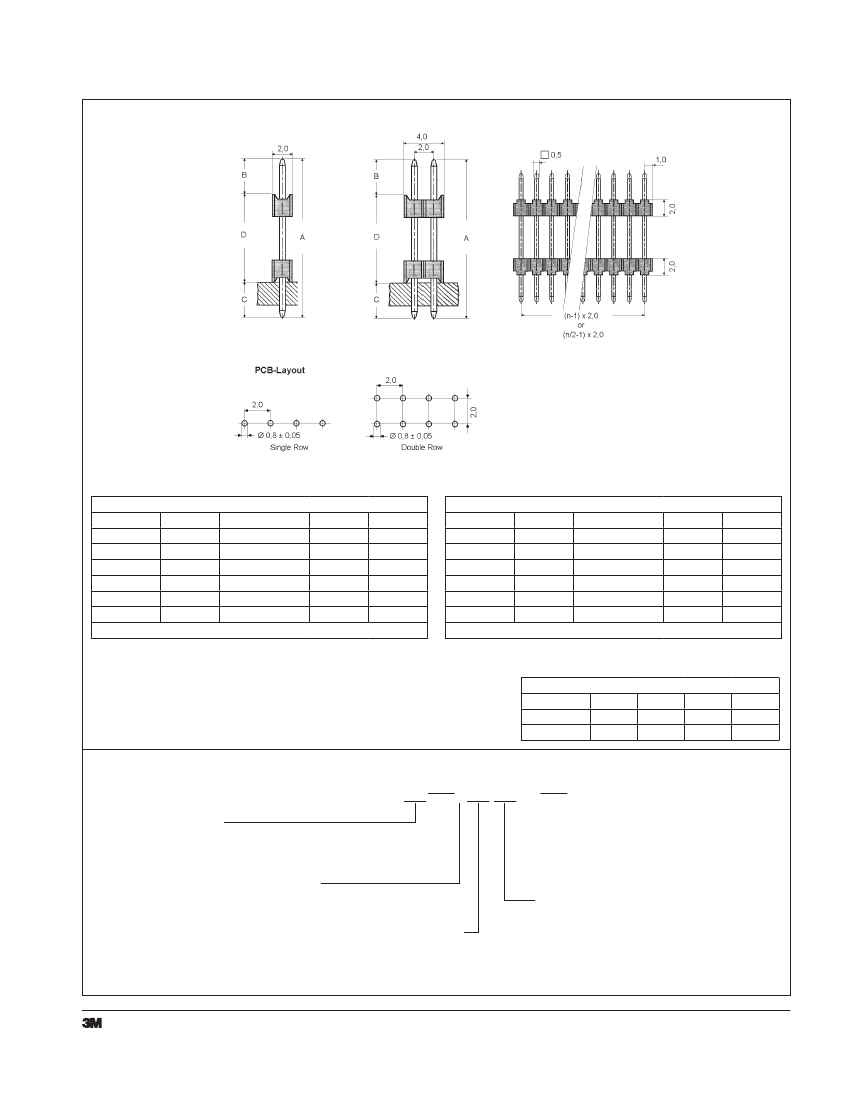

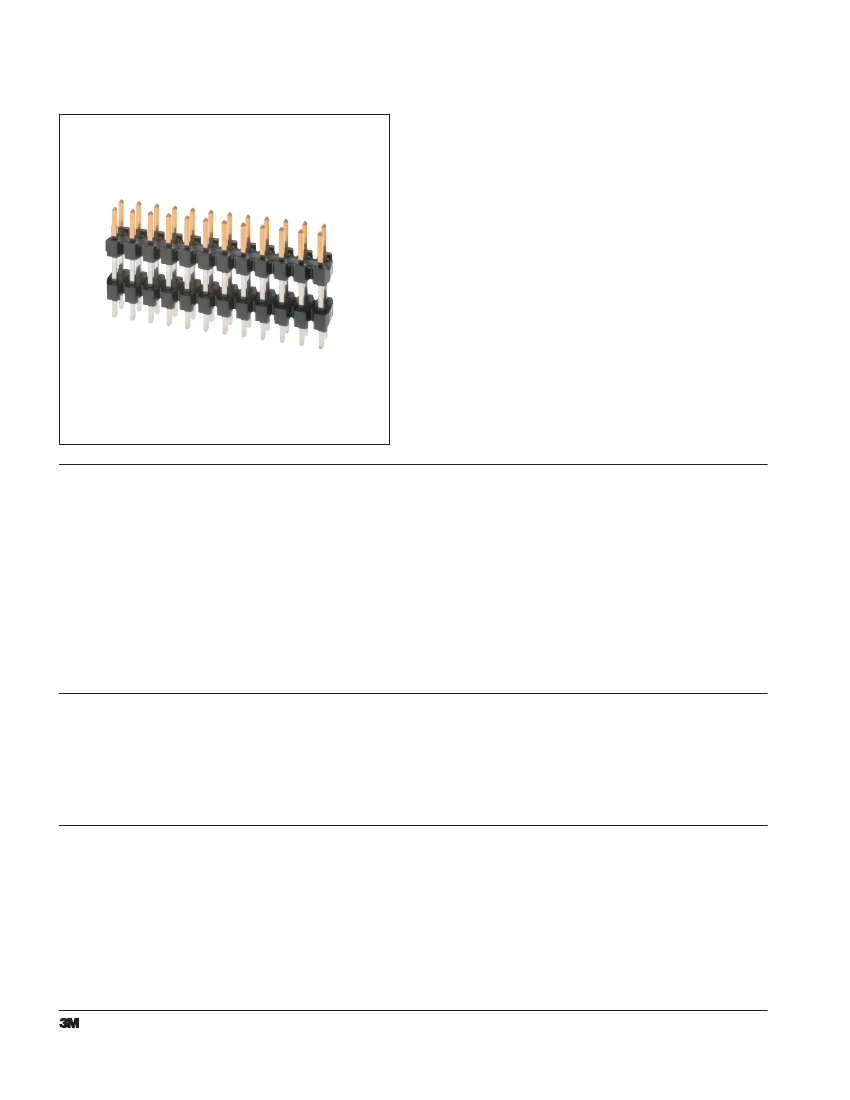

Pin Strip Header
2 mm and 2 mm x 2 mm Dual Insulator, Straight, Solder Tail
951 Series
•
High temperature dielectric
•
No lead” wave and reflow solder compatible
“
•
ptimizes use of PC board space
O
•
nd stackable feature
E
•
ide stackable feature
S
•
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the „RoHS compliance“ section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: November 27, 2012
TS-2160-C
Sheet 1 of 2
Physical
Insulation
Material: High Temperature Thermo lastic
p
Flammability: UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating: 1.25–2.5 µm [50-100 µ’’] Nickel
Wiping Area: Flash Gold
Solder Tail Area: 1–3 µm [40–118 µ’’] Matte Tin
Electrical
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Transition Resistance:
1A
> 5 x 10
8
Ohm at 100 V
DC
1000 V
DC
≤ 20 mOhm
Environmental
Temperature Range:
-40 °C to +105 °C
Processing Temperature:
ax. 260 °C (Profile per J-STD-020C)
m
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
3M
™
Pin Strip Header
2 mm and 2 mm x 2 mm Dual Insulator, Straight, Solder Tail
951 Series
Coding No.
A
08
10.8
11
11.9
15
14.3
19
16.5
22
18.6
25
21.2
Others on Request
Contact Dimensions
Mating Length B
4.0
4.0
4.0
4.0
4.0
4.0
C
2.8
2.8
2.8
2.8
2.8
2.8
D
4.0
5.1
7.5
9.7
11.8
14.4
Coding No.
A
08
12.7
11
13.8
15
16.2
19
18.4
22
20.5
25
23.1
Others on Request
Contact Dimensions
Mating Length B
5.9
5.9
5.9
5.9
5.9
5.9
C
2.8
2.8
2.8
2.8
2.8
2.8
D
4.0
5.1
7.5
9.7
11.8
14.4
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
Contact Quantity:
02-40 Pins / 1 Row
04–80 Pins / 2 Row
9514XX
X XX XX 06
AR
(RIA E1 & C1 Apply)
Mounting Style:
8 = Solder Tail, 2 Row
9 = Solder Tail, 1 Row
Mating Pin Length
Dimension B:
01 = 4.0 mm
06 = 5.9 mm
Bord Stacking Height (D):
Coding Number: see Table
TS-2160-C
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
