Power Entry Modules with Line Filter
https://www.schurter.com /PG06
GRF2

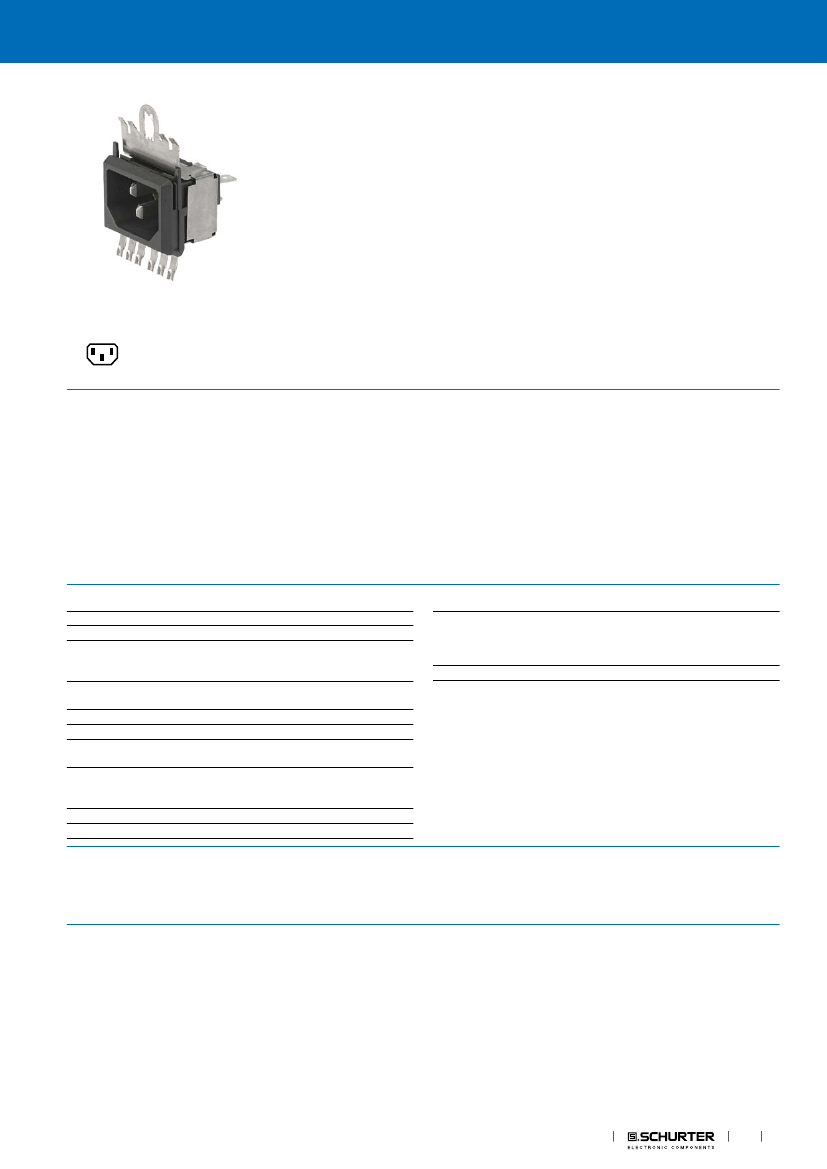

IEC Appliance Inlet C14 with Shielding, "Lock and Shield" Mounting
GRF2: only with shield, without line filter
C14
70° C
Approvals and Compliances
Description
- Panel Mount :
Snap-in version from rear-side
- 2 Functions :
Appliance Inlet Protection class I , with EMC-shield
Characteristics
- Time saving "Lock and Shield" snap-in design for rear-panel mounting
- All single elements are already wired
- Innovative EMC-shielding with flexible steel segments for an excellent
contact to the panel
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- With solder terminals
References
Weblinks
Alternative: version with line filter
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A @ Ta 40 °C / 250 VAC; 50 Hz
15 A @ Ta 40 °C / 125 VAC; 60 Hz
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Plug Connector
Solder terminal on request
Snap-in: 1.2/1.5/2 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
> 3'300'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
GRF2
Approvals
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: GRF2
Approval Logo
Certificates
VDE Approvals
UL Approvals
CSA Approvals
CQC Approvals
Certification Body
VDE
UL
CSA
CQC
Description
VDE Certificate Number: 40025743
UL File Number: E96454
CSA Certification Record: 38456
CCC File Number:
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
GRF2

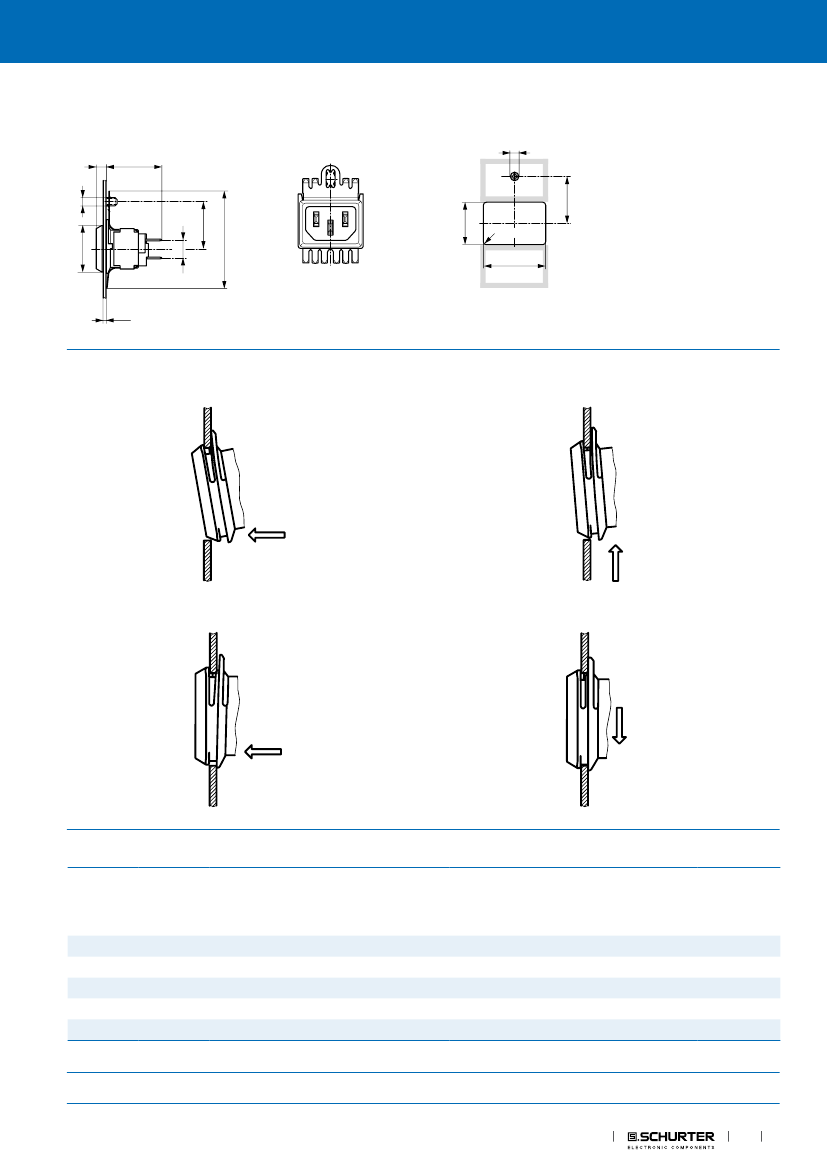

Dimension [mm]
GRF2
M4
4.8
+0.2
max.29
1)
22.9
1)
20.8
±0.1
M4
22.6
8.8
47.5
max. R1.5
30.5
±0.1
S
±0.1
1) Terminal for earth screw M4
1) Terminal for earth screw M4
This area must be conductive for optimal
shielding. Do not apply paint or coatings.
Assembly Instructions
Step 1
Step 2
Place the socket in top edge of the panel cut-out.
Push the socket upwards.
Step 3
Step 4
Push the socket forward into the panel cut-out.
Release the socket. The component is self adjusting.
All Variants
Rated Current
IEC [A]
Rated Current
UL [A]
Filter-Type
Panel Thickness
s [mm]
Additional ground terminal
Weight [g]
Order Number
10
10
10
10
10
10
15
15
15
15
15
15
-
-
-
-
-
-
1.2
1.5
2
1.2
1.5
2
-
-
-
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
22.9
13.9 g
13.9 g
13.9 g
14 g
25 g
14 g
GRF2.0212.11
GRF2.0215.11
GRF2.0220.11
GRF2.0312.11
GRF2.0315.11
GRF2.0320.11
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
100 Pcs
EMC Products
3
GRF2
Mating Outlets/Connectors
Category / Description
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to GRF2
4787
4788
5091
Connector Overview complete
4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4022 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4012 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
Connector further types to GRF2
4782
4022
4785
4300-06
4012
...
4
EMC Products
