FR85D02

Description
Rectifiers 200V 85A Fast Recovery
CategoryDiscrete semiconductor    diode
File Size730KB，4 Pages
ManufacturerGeneSiC
Websitehttp://www.genesicsemi.com/
Download Datasheet Parametric Compare View All

FR85D02 Online Shopping

Suppliers Part Number Price MOQ In stock
FR85D02 - - View Buy Now

FR85D02 Overview

Rectifiers 200V 85A Fast Recovery

FR85D02 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
MakerGeneSiC
package instructionO-MUPM-D1
Reach Compliance Codecompliant
ECCN codeEAR99
applicationFAST RECOVERY
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.4 V
JEDEC-95 codeDO-5
JESD-30 codeO-MUPM-D1
Maximum non-repetitive peak forward current1369 A
Number of components1
Phase1
Number of terminals1
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum output current85 A
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Maximum repetitive peak reverse voltage200 V
Maximum reverse current25 µA
Maximum reverse recovery time0.2 µs
surface mountNO
Terminal formSOLDER LUG
Terminal locationUPPER

Preview

Download Datasheet

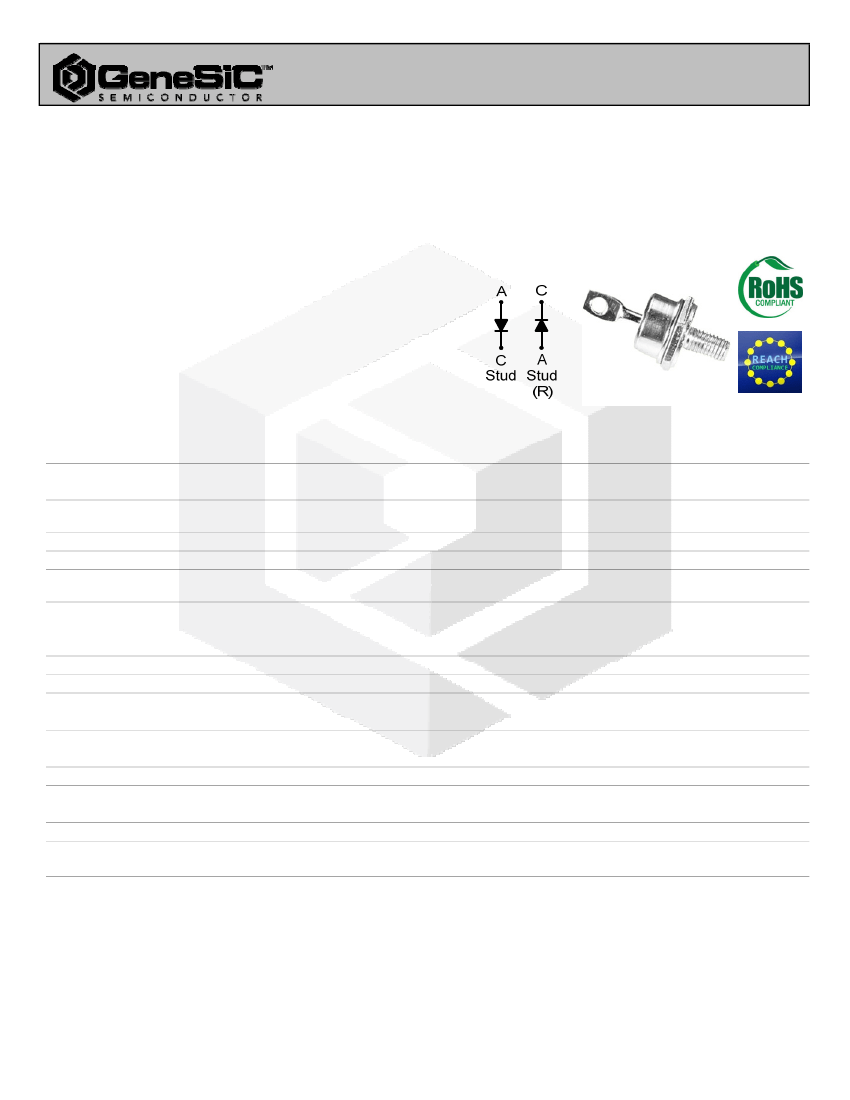

FR85B02 thru FR85JR02
Silicon Fast
Recovery Diode
Features
• High Surge Capability
• Types from 100 V to 600 V V
RRM
• Not ESD Sensitive
Note:
1. Standard polarity: Stud is cathode.
2. Reverse polarity (R): Stud is anode.
3. Stud is base.
DO-5 Package
V
RRM
= 100 V - 600 V
I
F
= 85 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified ("R" devices have leads reversed)
Parameter
Repetitive p
p
peak reverse
voltage
RMS reverse voltage
DC blocking voltage
Continuous forward current
Surge non-repetitive forward
current, Half Sine Wave
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
I
F
I
F,SM
T
j
T
stg
T
C
≤ 100 °C
T
C
= 25 °C, t
p
= 8.3 ms
Conditions
FR85B(R)02
100
70
100
85
1369
-55 to 150
-55 to 150
FR85D(R)02
200
140
200
85
1369
-55 to 150
-55 to 150
FR85G(R)02
400
280
400
85
1369
-55 to 150
-55 to 150
FR85J(R)02
600
420
600
85
1369
-55 to 150
-55 to 150
Unit
V
V
V
A
A
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Diode forward voltage
Reverse current
Symbol
V
F
I
R
Conditions
I
F
= 85 A, T
j
= 25 °C
V
R
= 100 V, T
j
= 25 °C
V
R
= 100 V, T
j
= 125 °C
I
F
=0.5 A, I
R
=1.0 A,
I
RR
= 0.25 A
FR85B(R)02
1.3
25
20
FR85D(R)02
1.3
25
20
FR85G(R)02
1.3
25
20
FR85J(R)02
1.3
25
20
Unit
V
μA
mA
Recovery Time
Maximum reverse recovery
time
T
RR
200
200
200
250
nS
Feb 2016
Latest version of this datasheet at: www.genesicsemi.com/silicon-products/fast-recovery-rectifiers/
1

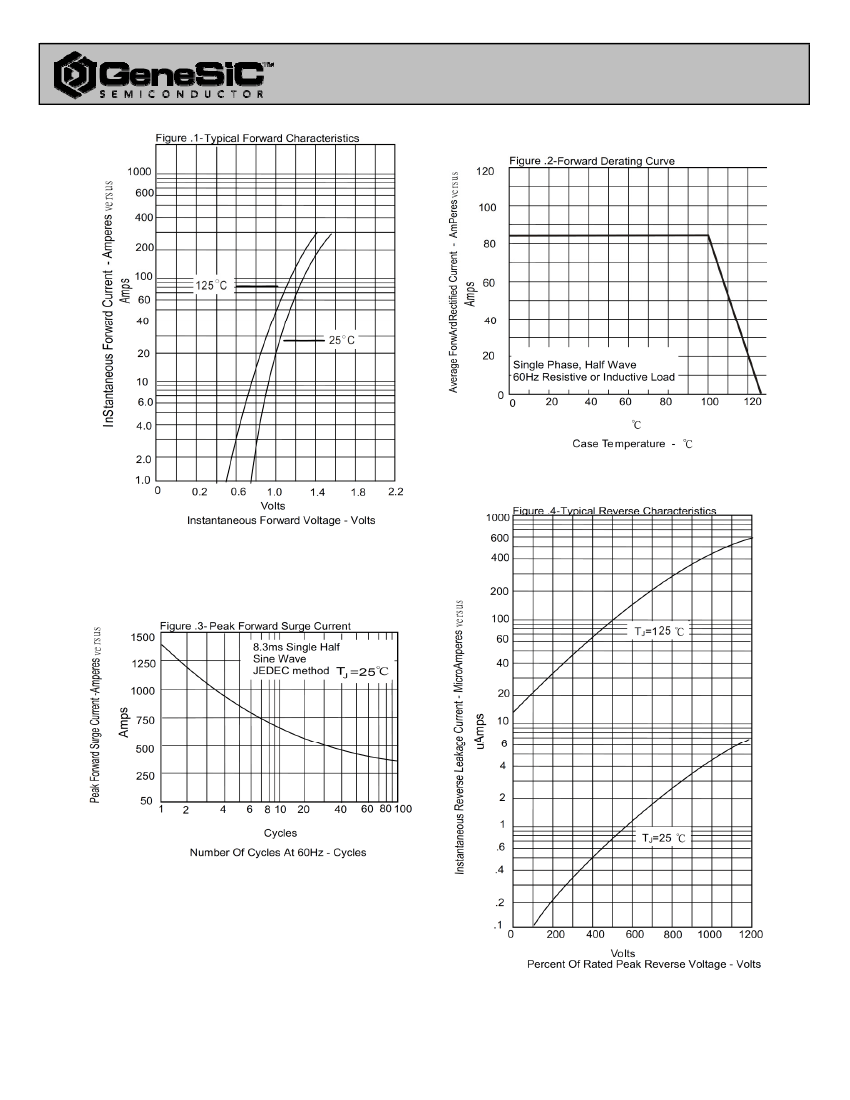

FR85D02 Related Products

FR85D02 FR85GR02 FR85JR02 FR85BR02
Description Rectifiers 200V 85A Fast Recovery Rectifiers 600V 85A REV Leads Fast Recovery Rectifiers 100V 85A REV Leads Fast Recovery
Is it lead-free? Lead free Lead free Lead free Lead free
Maker GeneSiC GeneSiC GeneSiC GeneSiC
package instruction O-MUPM-D1 O-MUPM-D1 O-MUPM-D1 O-MUPM-D1
Reach Compliance Code compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
application FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY
Shell connection CATHODE ANODE ANODE ANODE
Configuration SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.4 V 1.4 V 1.4 V 1.4 V
JEDEC-95 code DO-5 DO-5 DO-5 DO-5
JESD-30 code O-MUPM-D1 O-MUPM-D1 O-MUPM-D1 O-MUPM-D1
Maximum non-repetitive peak forward current 1369 A 1369 A 1369 A 1369 A
Number of components 1 1 1 1
Phase 1 1 1 1
Number of terminals 1 1 1 1
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Maximum output current 85 A 85 A 85 A 85 A
Package body material METAL METAL METAL METAL
Package shape ROUND ROUND ROUND ROUND
Package form POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT
Maximum repetitive peak reverse voltage 200 V 400 V 600 V 100 V
Maximum reverse current 25 µA 25 µA 25 µA 25 µA
Maximum reverse recovery time 0.2 µs 0.2 µs 0.25 µs 0.2 µs
surface mount NO NO NO NO
Terminal form SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG
Terminal location UPPER UPPER UPPER UPPER
