ETA-USA
VTD-SC/VTD-SD
The Power Professionals

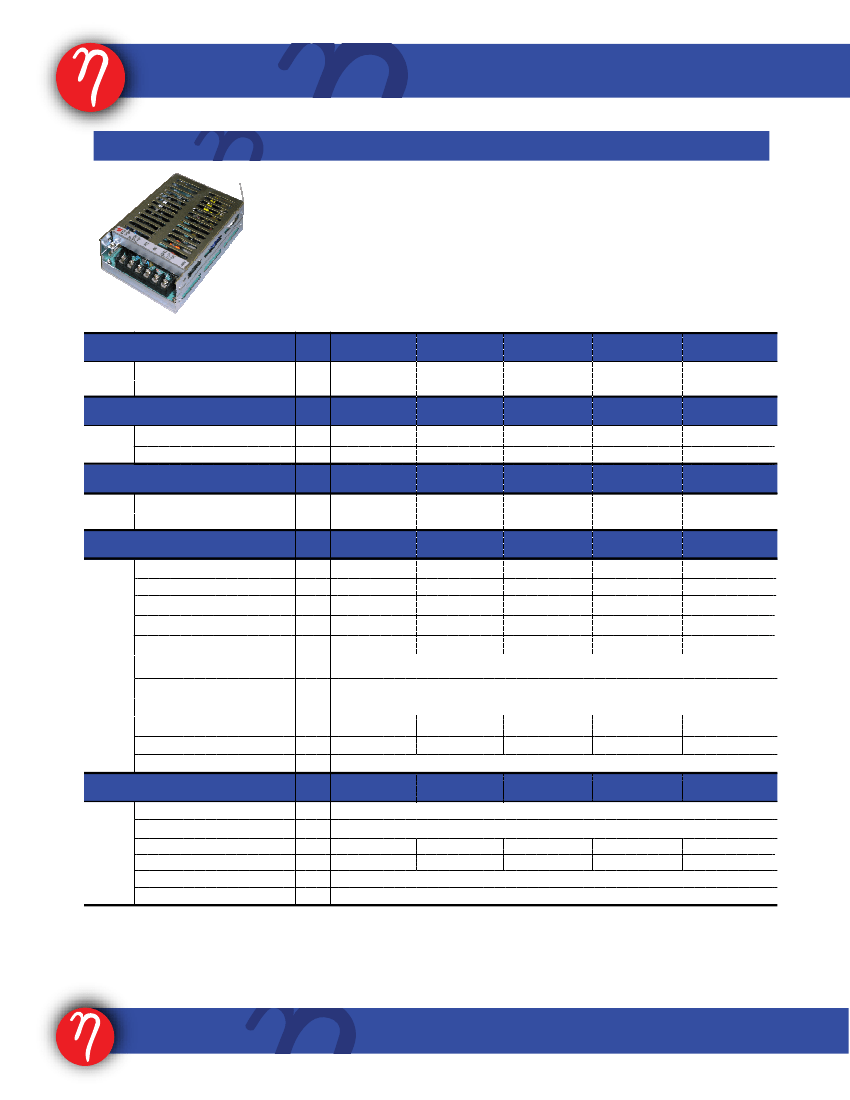

100W
FEATURES
• Variety of Models
• Chassis mount type
• Compact and High Efficiency
OUTPUT
Output Voltage
(Single)
Output Current 12VDC
OUTPUT
Output Voltage
(Single)
Output Current 24VDC
MODEL/CHANNEL
Unit
Vdc
A
VTD05-
SC12
18
5
VTD12-
SC12
12
9
VTD15-
SC12
15
7
VTD24-
SC12
4.5
24
VTD48-
SC12
2.2
48
MODEL/CHANNEL
Unit
Vdc
A
VTD05-
SC24
5
20
VTD12-
SC24
12
9
VTD15-
SC24
15
7
VTD24-
SC24
24
5
VTD48-
SC/SD
48
2
MODEL/CHANNEL
OUTPUT
Output Voltage
(Single)
Output Current 48VDC
Unit
Vdc
A
VTD05-
SC48
5
20
VTD12-
SC48
12
9
VTD15-
SC48
15
7
VTD24-
SC48
24
5
VTD48-
SC48
48
2
MODEL/CHANNEL
Output Current 110VDC
Line Regulation
Load Regulation
Ripple and Noise
Voltage Adjustment Range
Rise Time
Temp. Coefficient
Drift
Output Voltage
Unit
Vdc
A
mV
mVp
mVp
-
-
°C
mV
mV
mS
VTD05-SD
20
40
45
100
5
VTD12-SD
12
9
96
108
170
VTD15-SD
15
7
120
135
200
VTD24-SD
24
5
192
216
290
VTD48-SD
48
2
384
432
530
200mS)
255
1440
+/-10% of Rated Output Voltage(at no load within input range)
500mS(maximum) at 25℃ and rated input/output(Vin=24,48,110
0.03%/℃
40
150
75
360
90
450
0.5mS
135
720
Dynamic Load Regulation
Recovery Time
MODEL/CHANNEL
INPUT
Input Voltage
12V
Input Current
Efficiency
Ref. MTBF
Input Voltage Range
Unit
Vdc
Vdc
A
%
H
VTD05-
SC/SD
VTD12-
SC/SD
9.49
79
11.11
81
DC 9.2V-16V
10.54
83
470,000
91 Fix.
DC 12V
VTD15-
SC/SD
VTD24-
SC/SD
VTD48-
SC/SD
11.69
85
11.14
85
Switching Frequency
kHz
ETA-USA
16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com
Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753
ETA-USA
MODEL/CHANNEL
Input Voltage Range
Input Voltage
24V
Vdc
Vdc
A
%
H
Input Current
Efficiency
Ref. MTBF
The Power Professionals
Unit
VTD05-
SC24
VTD12-
SC24
VTD15-
SC24
VTD24-
SC24
VTD48-
SC24
5.27
79
5.79
82
DC 19-32V
5.27
83
DC 24V
700,000
5.95
84
4.60
87
Switching Frequency
kHz
MODEL/CHANNEL
Input Voltage
48V
Input Voltage Range
Input Current
Efficiency
Ref. MTBF
Switching Frequency
Unit
Vdc
Vdc
A
%
H
kHz
VTD05-
SC48
VTD12-
SC48
DC 48V
DC 38-63V
2.64
85
VTD15-
SC48
59 Fix.
VTD24-
SC48
VTD48-
SC48
2.64
81
2.74
84
700,000
74 Fix.
2.98
86
2.3
89
MODEL/CHANNEL
Input Voltage
110V
Input Voltage Range
Input Current
Efficiency
Ref. MTBF
Switching Frequency
Unit
Vdc
Vdc
A
%
VTD05-SD
VTD12-SD
VTD15-SD
DC 110V
DC 85-140V
1.12
85
500,000
160 Fix.
VTD24-SD
VTD48-SD
H
kHz
1.14
80
1.18
83
1.25
87
1.09
88
91 Fix.
MODEL/CHANNEL
Environment
Operating Temperature
Unit
℃
%
℃
%
%
-
-
-
-
-
A
-
mm/g
0 to +50℃
85%RH(non-condensing)
-20 to +85°C
Primary-Secondary AC1,500V for 1minute (Vin=110 2000)
Primary-Frame Ground AC1,500V for 1minute(Vin=110 2000)
Secondary-Frame Ground AC500V for 1minute
Primary-Secondary-Frame Ground 50M
Ω
(minimum) by DC500V
insulation tester
294m/s^2
Convection
Operating Humidity
Storage Temperature
Withstand Voltage
Primary-Secondary
Primary-Frame Ground
Secondary-Frame Ground
Isolation Resistance
Primary - Secondary - Case
Shock
Cooling
Vibration
Protection
Over Current Protection
Over Voltage Protection
5-10Hz:10mm double amplitude,10-55Hz:19.6m/s2,20minutes
period for 60minutes each along X,Y,Z axes(non-operating)
Current Limiting with automatic recovery
Output shutdown
48W × 190L × 97H/800g
Dimension
Size(WxHxD) / Weight
ETA-USA
16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com
Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753
ETA-USA

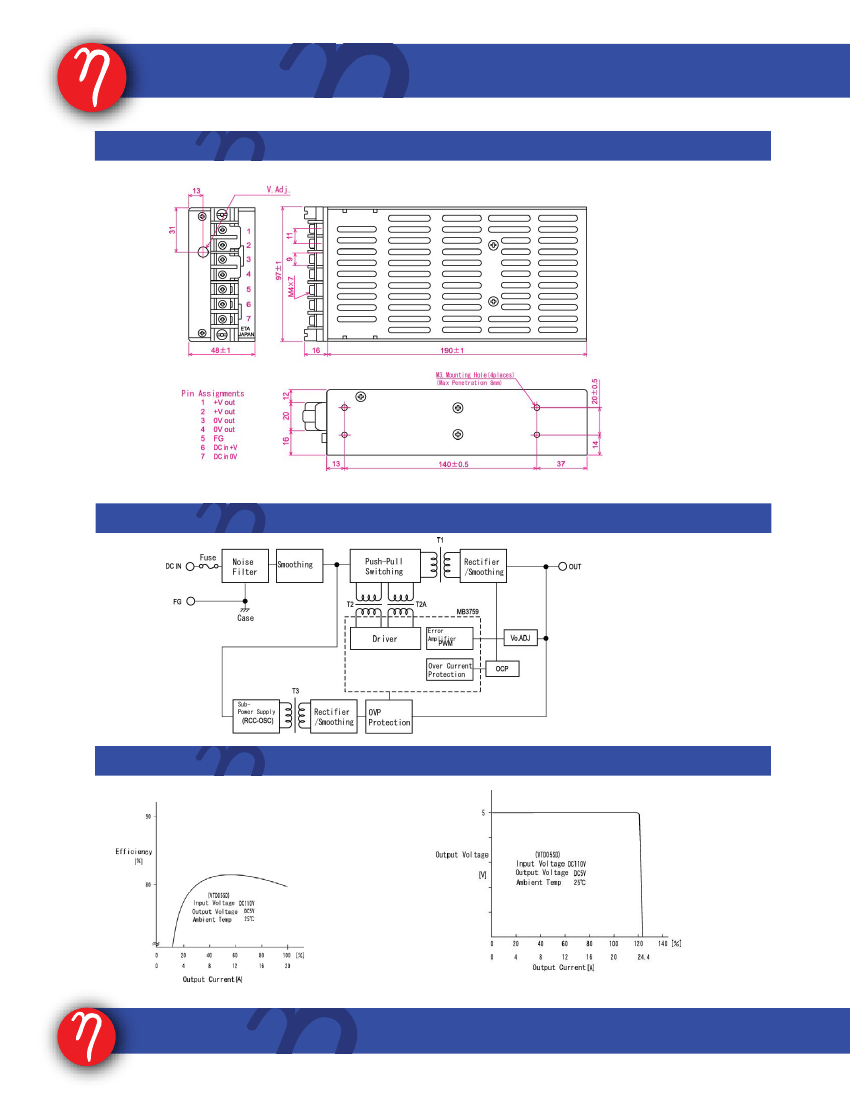

Dimension Diagram (mm)
The Power Professionals
100W
Block Diagram
100W
Efficiency Curve
OCP Curve
ETA-USA
16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com
Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753
