NCP6361BFCCT1G

Description
Power Management IC Development Tools NCP6361B EVAL BD
Categorysemiconductor    Power management
File Size1MB,20 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

NCP6361BFCCT1G Online Shopping

Suppliers Part Number Price MOQ In stock
NCP6361BFCCT1G - - View Buy Now

NCP6361BFCCT1G Overview

Power Management IC Development Tools NCP6361B EVAL BD

NCP6361BFCCT1G Parametric

Parameter NameAttribute value
Product CategorySwitching Voltage Regulators
ManufacturerON Semiconductor
RoHSDetails
PackagingReel
Factory Pack Quantity3000

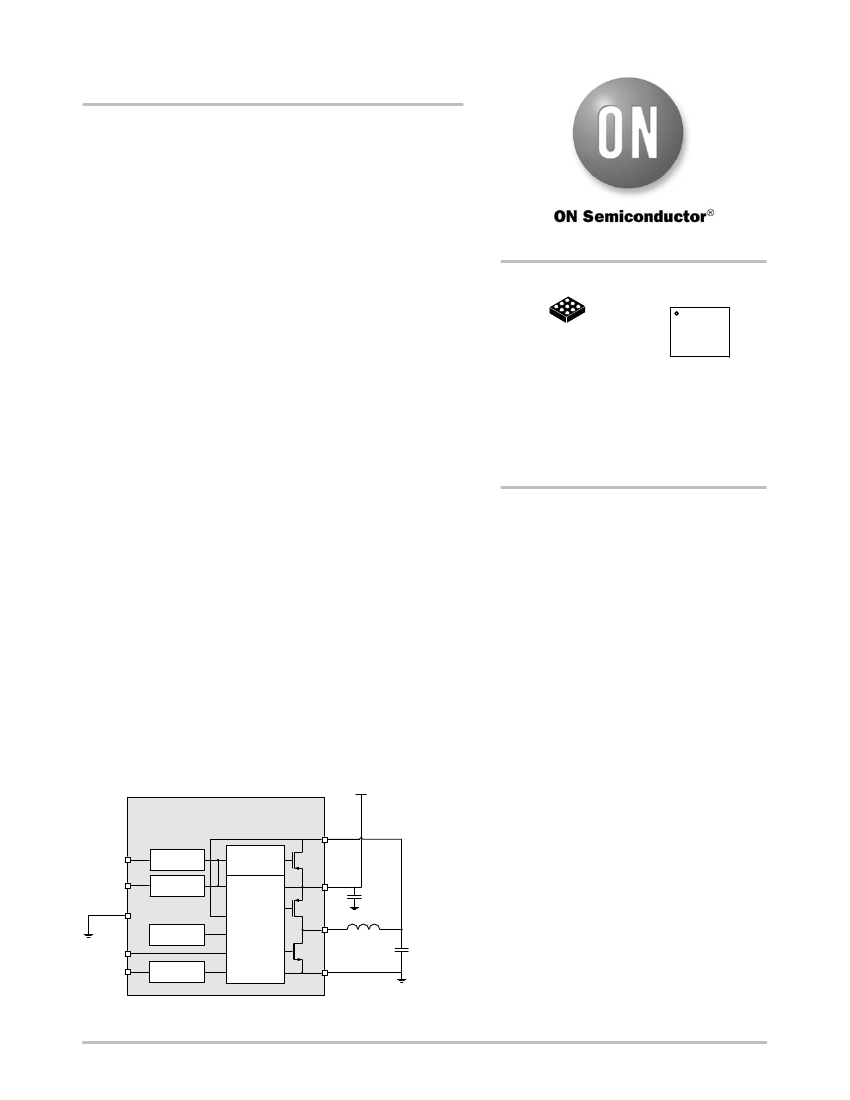

NCP6361
Buck Converter with
Bypass Mode for RF Power
Amplifiers
The NCP6361, a PWM synchronous step−down DC−to−DC
converter, is optimized for supplying RF Power Amplifiers (PAs) used
in 3G/4G wireless systems (Mobile / Smart Phones, Tablets,…)
powered by single−cell Lithium−Ion batteries. The device is able to
deliver up to 2 A current in bypass mode and 800 mA in buck mode.
The output voltage is monitorable from 0.4 V to 3.5 V by an analog
control pin VCON. The analog control allows dynamically optimizing
the RF Power Amplifier’s efficiency through the monitoring of the PA
output power. With an improved overall system efficiency the
communication time and phone autonomy can be consequently
increased. At light load for optimizing the DC−to−DC converter
efficiency, the NCP6361 enters automatically in PFM mode and
operates in a slower switching frequency. The NCP6361 enters in
bypass mode when the desired output voltage becomes close to the
input voltage (e.g.: low battery conditions). The device operates at
3.429 MHz or 6 MHz switching frequency. This way the system
tuning can focus respectively either on a better efficiency (3.249 MHz)
or on employing smaller value inductor and capacitors (6 MHz).
Synchronous rectification and automatic PFM / PWM / By−Pass
operating mode transitions improve overall solution efficiency. The
NCP6361 has two versions: NCP6361A and NCP6361B. Version B
has a spread spectrum function for low EMI operation. The NCP6361
is available in a space saving, low profile 1.36 x 1.22 mm CSP−9
package.
Features
http://onsemi.com
MARKING
DIAGRAM
6361x
ALYWW
G
WLCSP9
CASE 567GM
6361x = Specific Device Code
x = A or B
A
= Assembly Location
L
= Wafer Lot
Y
= Year
WW = Work Week
G
= Pb−Free Package
ORDERING INFORMATION
See detailed ordering, marking and shipping information on
page 19 of this data sheet.
Input Voltage from 2.5 V to 5.5 V for Battery Powered
Applications
Adjustable Output Voltage (0.4 V to 3.50 V)
3.429 / 6 MHz Selectable Switching Frequency
Uses 470 nH Inductor and 4.7
mF
Capacitor for
Optimized Footprint and Solution Thickness
PFM /PWM/Bypass Automatic Mode Change for High
Efficiency
VBATT
Low 45
mA
Quiescent Current
Thermal Protections to Avoid Damage of the IC
Small 1.36 x 1.22 mm / 0.4 mm Pitch CSP Package
This is a Pb−Free Device
Typical Applications
3G / 4G Wireless Systems, Smart−Phones and Webtablets
NCP6361
Bypass
Enable
BPEN
Bypass Control
Vout Control
Bypass
PVIN
FB
Battery or
System
Supply
VCON
10uF
AGND
Thermal
Protection
FSEL
EN
Enabling
PGND
4.7uF
DCDC
SW
1.0A
3.43/6.00 MHz
0.47uH
V
OUT
Figure 1. NCP6361 Block Diagram
©
Semiconductor Components Industries, LLC, 2014
1
April, 2014 − Rev. 5
Publication Order Number:
NCP6361/D

NCP6361BFCCT1G Related Products

NCP6361BFCCT1G NCP6361AFCCT1G
Description Power Management IC Development Tools NCP6361B EVAL BD
Product Category Switching Voltage Regulators Switching Voltage Regulators
Manufacturer ON Semiconductor ON Semiconductor
RoHS Details Details
Packaging Reel Reel
Factory Pack Quantity 3000 3000
