MC10H189FNR2

Description
Buffers u0026 Line Drivers Hex Inverter
Categorylogic    logic
File Size144KB,6 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

MC10H189FNR2 Online Shopping

Suppliers Part Number Price MOQ In stock
MC10H189FNR2 - - View Buy Now

MC10H189FNR2 Overview

Buffers u0026 Line Drivers Hex Inverter

MC10H189FNR2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerON Semiconductor
Parts packaging codeQLCC
package instructionPLASTIC, LCC-20
Contacts20
Reach Compliance Codenot_compliant
series10H
JESD-30 codeS-PQCC-J20
JESD-609 codee0
length8.965 mm
Logic integrated circuit typeINVERTER
Number of functions6
Number of entries1
Number of terminals20
Maximum operating temperature75 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeQCCJ
Encapsulate equivalent codeLDCC20,.4SQ
Package shapeSQUARE
Package formCHIP CARRIER
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)240
Maximum supply current (ICC)46 mA
Prop。Delay @ Nom-Sup1.9 ns
propagation delay (tpd)1.9 ns
Certification statusNot Qualified
Schmitt triggerNO
Maximum seat height4.57 mm
surface mountYES
technologyECL
Temperature levelCOMMERCIAL EXTENDED
Terminal surfaceTin/Lead (Sn80Pb20)
Terminal formJ BEND
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperature30
width8.965 mm

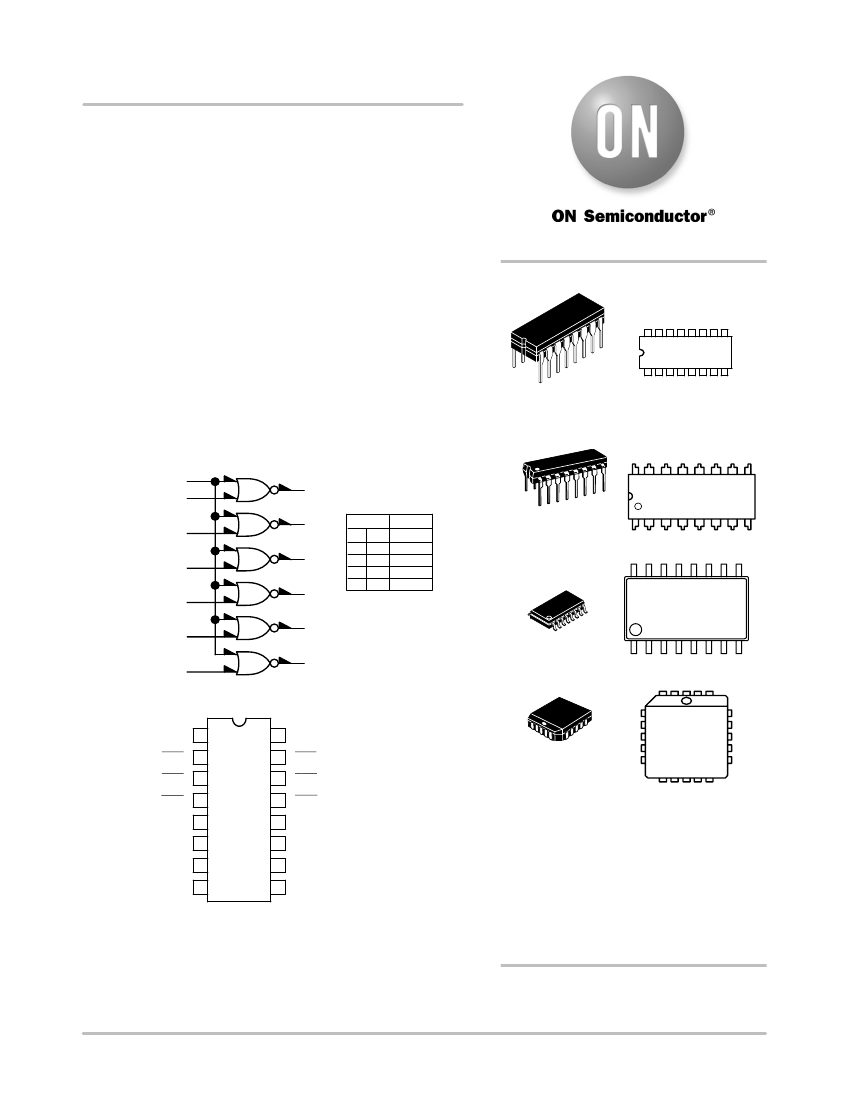

MC10H189
Hex Inverter with Enable
Description
The MC10H189 is a Hex Inverter with a common Enable input. The
hex inverting function is provided when Enable is in the low−state.
When Enable is in the high−state, all outputs are low.
This MECL 10H™ part is a functional/pinout duplication of the
standard MECL 10K™ family part, with 100% improvement in
propagation delay and no increase in power−supply current.
Features
http://onsemi.com
MARKING DIAGRAMS*
16
MC10H189L
AWLYYWW
CDIP−16
L SUFFIX
CASE 620A
1
Propagation Delay, 1.3 ns Typical Data−to−Output
Power Dissipation 180 mW Typ/Pkg (No Load)
Improved Noise Margin 150 mV (Over Operating Voltage and
Temperature Range)
Voltage Compensated
MECL 10K Compatible
Pb−Free Packages are Available*
X
Y
LOGIC DIAGRAM
9
5
6
7
10
11
12
OUT
2
3
4
13
14
15
TRUTH TABLE
Inputs Output
X Y OUT
L L
H
L H
L
H L
L
H H
L
V
CC1
= Pin 1
V
CC2
= Pin 16
V
EE
= Pin 8
16
16
1
PDIP−16
P SUFFIX
CASE 648
1
MC10H189P
AWLYYWWG
10H189
ALYWG
SOEIAJ−16
CASE 966
1 20
DIP
PIN ASSIGNMENT
V
CC1
A
OUT
B
OUT
C
OUT
A
IN
B
IN
C
IN
V
EE
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V
CC2
F
OUT
E
OUT
D
OUT
F
IN
E
IN
D
IN
COMMON
PLLC−20
FN SUFFIX
CASE 775
A
WL, L
YY, Y
WW, W
G
20 1
10H189G
AWLYYWW
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
Pin assignment is for Dual−in−Line Package.
For PLCC pin assignment, see the Pin Conversion Tables on page 18
of the ON Semiconductor MECL Data Book (DL122/D).
*For additional marking information, refer to
Application Note AND8002/D.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.

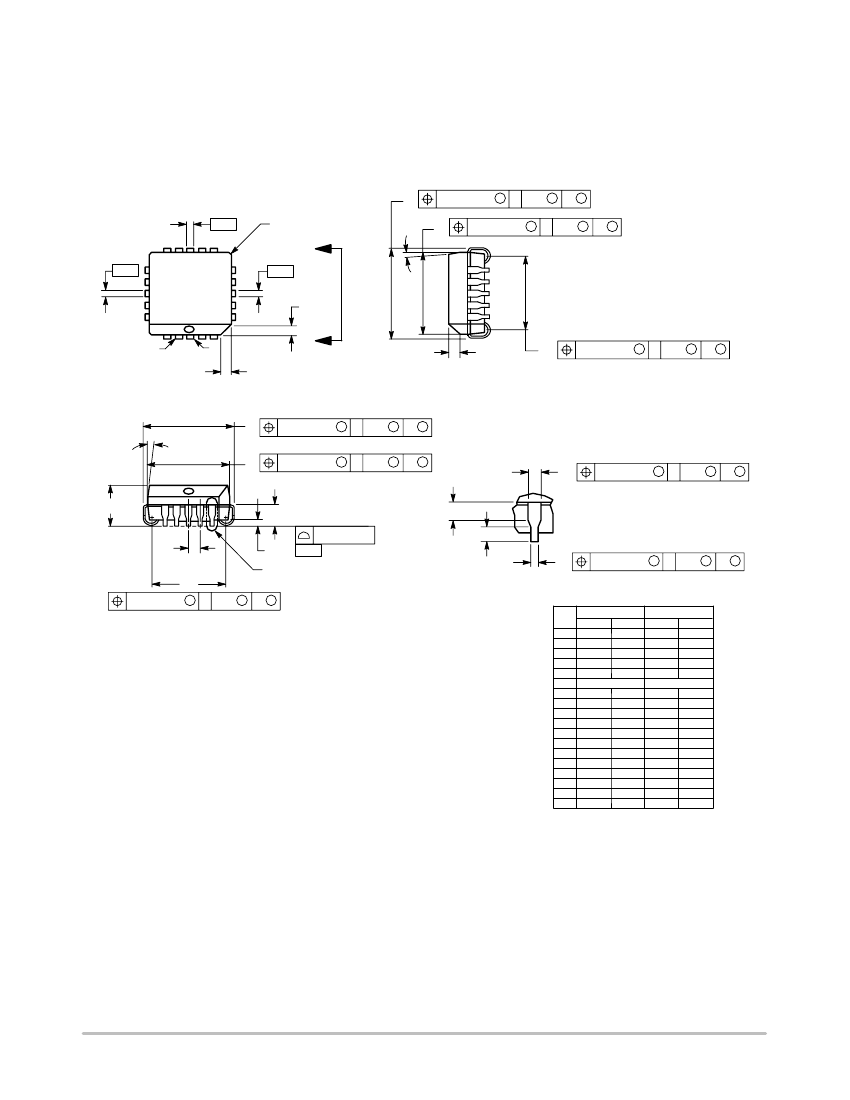

ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 3 of this data sheet.
©
Semiconductor Components Industries, LLC, 2006
February, 2006
Rev. 8
1
Publication Order Number:
MC10H189/D

MC10H189FNR2 Related Products

MC10H189FNR2 MC10H189MG MC10H189PG MC10H189FNG
Description Buffers u0026 Line Drivers Hex Inverter Buffers u0026 Line Drivers Hex Inverter w/Enable Buffers u0026 Line Drivers Hex Inverter w/Enable Buffers u0026 Line Drivers Hex Inverter w/Enable
Is it Rohs certified? incompatible conform to conform to conform to
Maker ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor
Parts packaging code QLCC SOIC DIP QLCC
package instruction PLASTIC, LCC-20 LEAD FREE, EIAJ, SO-16 LEAD FREE, PLASTIC, DIP-16 LEAD FREE, PLASTIC, LCC-20
Contacts 20 16 16 20
Reach Compliance Code not_compliant unknown unknown unknown
series 10H 10H 10H 10H
JESD-30 code S-PQCC-J20 R-PDSO-G16 R-PDIP-T16 S-PQCC-J20
JESD-609 code e0 e4 e3 e3
length 8.965 mm 10.2 mm 19.175 mm 8.965 mm
Logic integrated circuit type INVERTER INVERTER INVERTER INVERTER
Number of functions 6 6 6 6
Number of entries 1 1 1 1
Number of terminals 20 16 16 20
Maximum operating temperature 75 °C 75 °C 75 °C 75 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code QCCJ SOP DIP QCCJ
Encapsulate equivalent code LDCC20,.4SQ SOP16,.3 DIP16,.3 LDCC20,.4SQ
Package shape SQUARE RECTANGULAR RECTANGULAR SQUARE
Package form CHIP CARRIER SMALL OUTLINE IN-LINE CHIP CARRIER
method of packing TAPE AND REEL RAIL RAIL RAIL
Peak Reflow Temperature (Celsius) 240 260 260 260
Maximum supply current (ICC) 46 mA 46 mA 46 mA 46 mA
Prop。Delay @ Nom-Sup 1.9 ns 1.9 ns 1.9 ns 1.9 ns
propagation delay (tpd) 1.9 ns 1.9 ns 1.9 ns 1.9 ns
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Schmitt trigger NO NO NO NO
Maximum seat height 4.57 mm 2.05 mm 4.44 mm 4.57 mm
surface mount YES YES NO YES
technology ECL ECL ECL ECL
Temperature level COMMERCIAL EXTENDED COMMERCIAL EXTENDED COMMERCIAL EXTENDED COMMERCIAL EXTENDED
Terminal surface Tin/Lead (Sn80Pb20) Nickel/Palladium/Gold (Ni/Pd/Au) Tin (Sn) Tin (Sn)
Terminal form J BEND GULL WING THROUGH-HOLE J BEND
Terminal pitch 1.27 mm 1.27 mm 2.54 mm 1.27 mm
Terminal location QUAD DUAL DUAL QUAD
Maximum time at peak reflow temperature 30 40 40 40
width 8.965 mm 5.275 mm 7.62 mm 8.965 mm
