DMG4800LK3-13

Description
LDO Voltage Regulators 150mA 30V Ultra-Lo IQ Wd Input LDO Reg
Categorysemiconductor    Discrete semiconductor
File Size158KB,6 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric View All

DMG4800LK3-13 Online Shopping

Suppliers Part Number Price MOQ In stock
DMG4800LK3-13 - - View Buy Now

DMG4800LK3-13 Overview

LDO Voltage Regulators 150mA 30V Ultra-Lo IQ Wd Input LDO Reg

DMG4800LK3-13 Parametric

Parameter NameAttribute value
Product CategoryMOSFET
ManufacturerDiodes
RoHSDetails
TechnologySi
Mounting StyleSMD/SMT
Package / CaseTO-252-3
Number of Channels1 Channel
Transistor PolarityN-Channel
Vds - Drain-Source Breakdown Voltage30 V
Id - Continuous Drain Current10 A
Rds On - Drain-Source Resistance12 mOhms
Vgs th - Gate-Source Threshold Voltage800 mV
Vgs - Gate-Source Voltage25 V
Qg - Gate Charge8.7 nC
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 150 C
ConfigurationSingle
Channel ModeEnhancement
PackagingMouseReel
PackagingReel
PackagingCut Tape
Fall Time8.55 ns
Pd - Power Dissipation1.71 W
ProductMOSFET Small Signal
Rise Time4.5 ns
Factory Pack Quantity2500
Transistor TypeN-Channel
Typical Turn-Off Delay Time26.33 ns
Typical Turn-On Delay Time5.03 ns
Unit Weight0.139332 oz

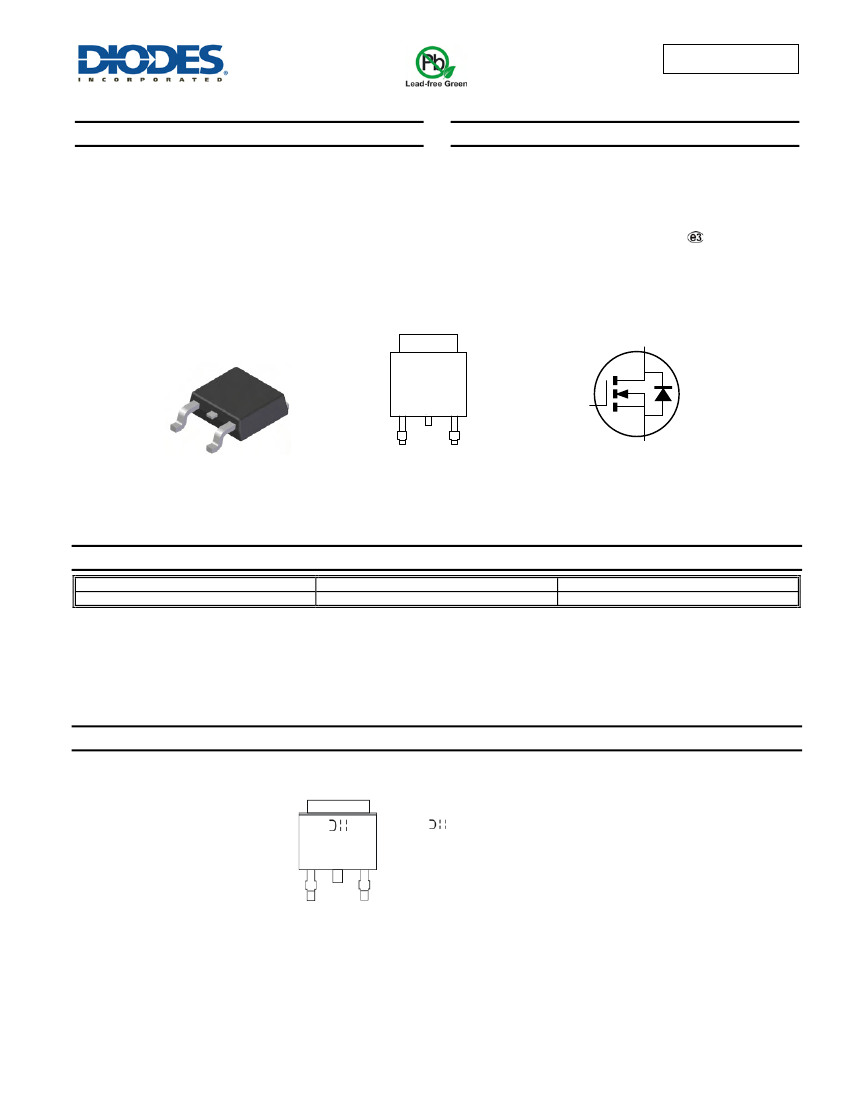

DMG4800LK3
N-CHANNEL ENHANCEMENT MODE MOSFET
Features
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.33 grams (approximate)
NEW PRODUCT
D
TO252
D
G
D
G
Top View
S
Top View
Pin-Out
S
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
DMG4800LK3-13
Notes:
Case
TO252
Packaging
2500 / Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
N4800L
YYWW
= Manufacturer’s Marking
N4800L = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01 - 53)
DMG4800LK3
Document number: DS31959 Rev. 3 - 2
1 of 6
www.diodes.com
November 2012
© Diodes Incorporated
