1N5621 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N5621

1N5621: DescriptionRectifiers D MET 1A FAST 800V; CategoryDiscrete semiconductor diode; File Size286KB，4 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

1N5621 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5621	-	-	View	Buy Now

1N5621 Overview

Rectifiers D MET 1A FAST 800V

1N5621 Parametric

Parameter Name	Attribute value
Maker	SEMTECH
Parts packaging code	DO-7
package instruction	HERMETIC SEALED PACKAGE-2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	9 weeks
Is Samacsys	N
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JEDEC-95 code	DO-7
JESD-30 code	E-XALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	UNSPECIFIED
Package shape	ELLIPTICAL
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	0.3 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

RECTIFIER, up to 1kV, 2A,

150-500ns

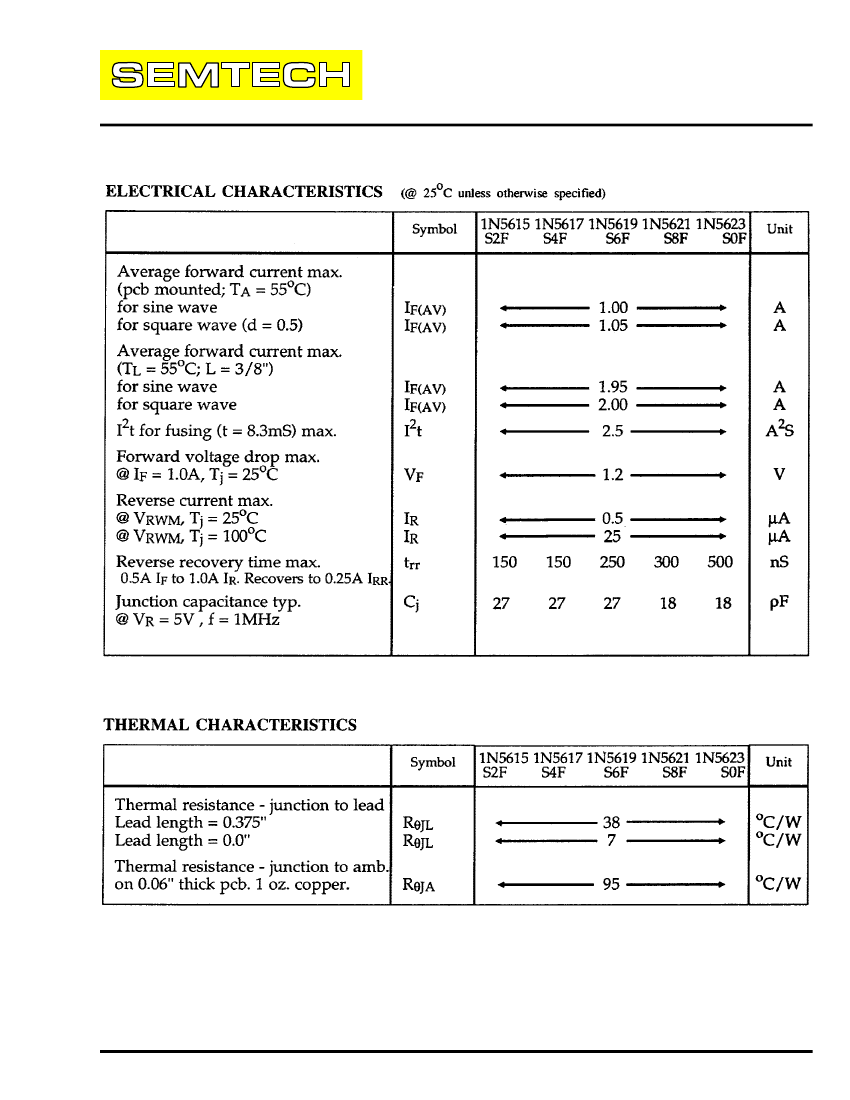

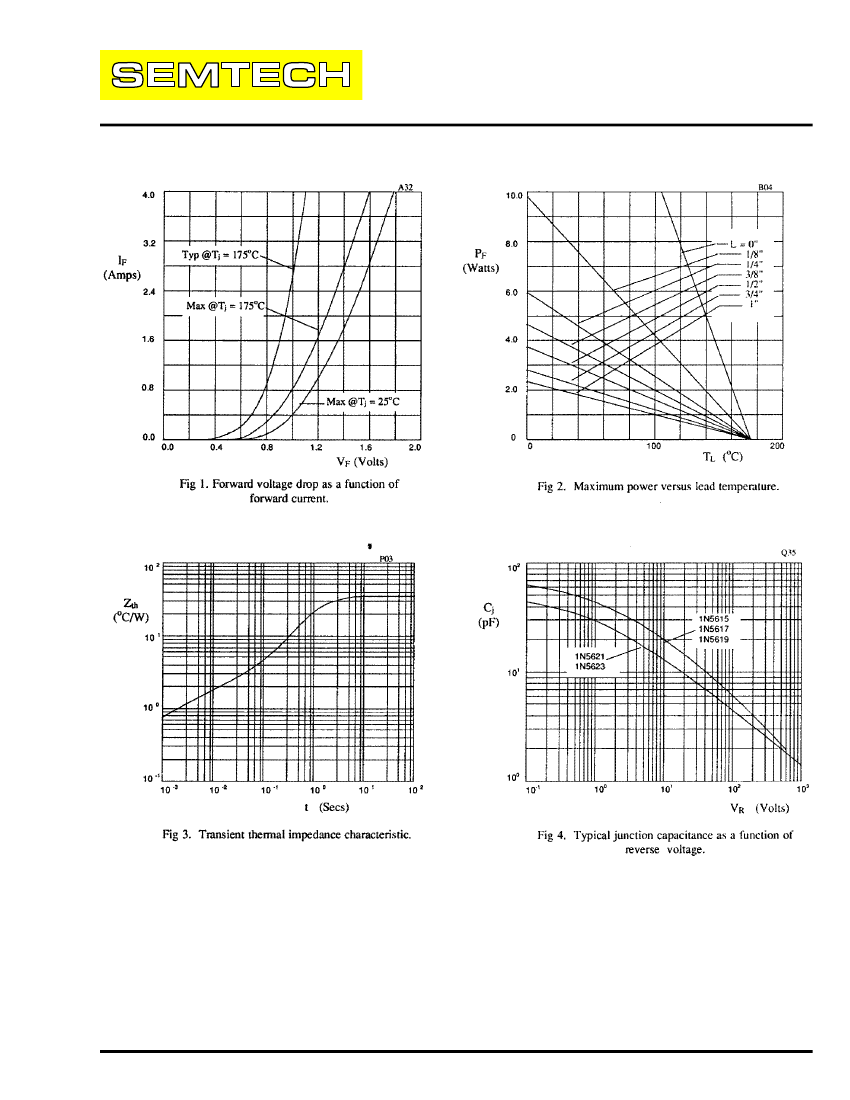

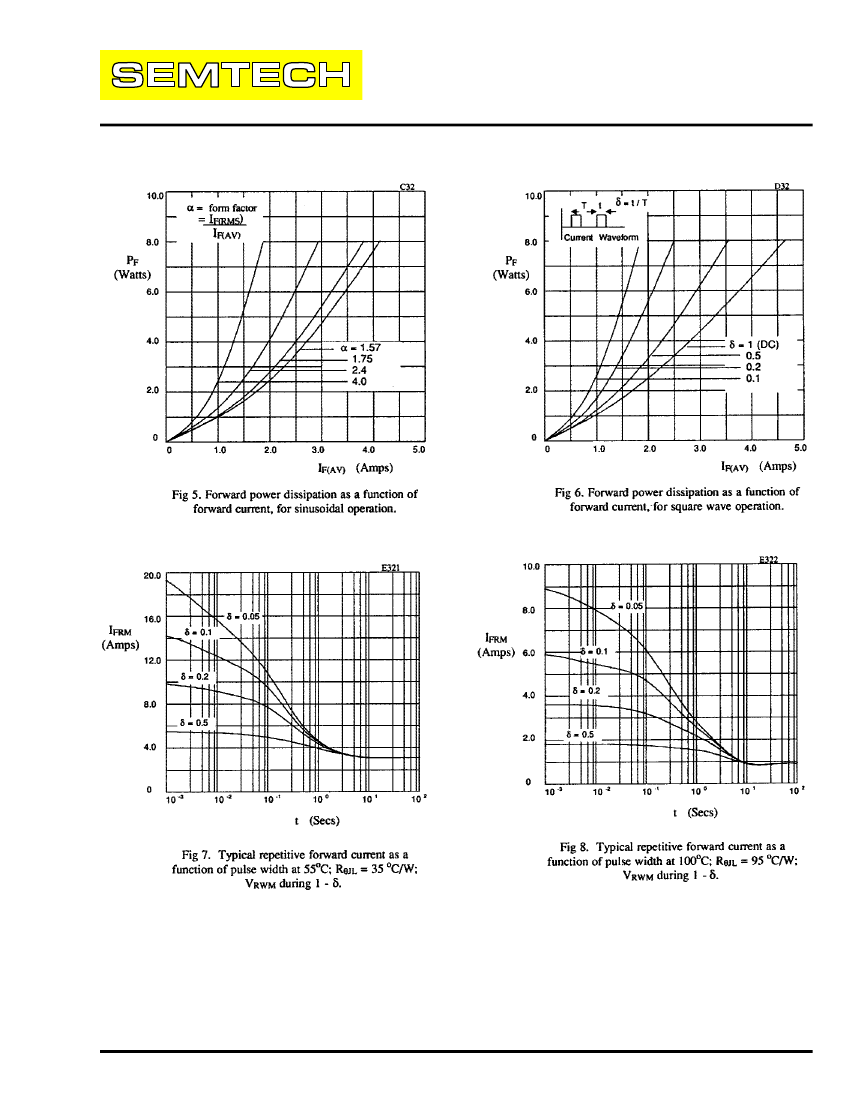

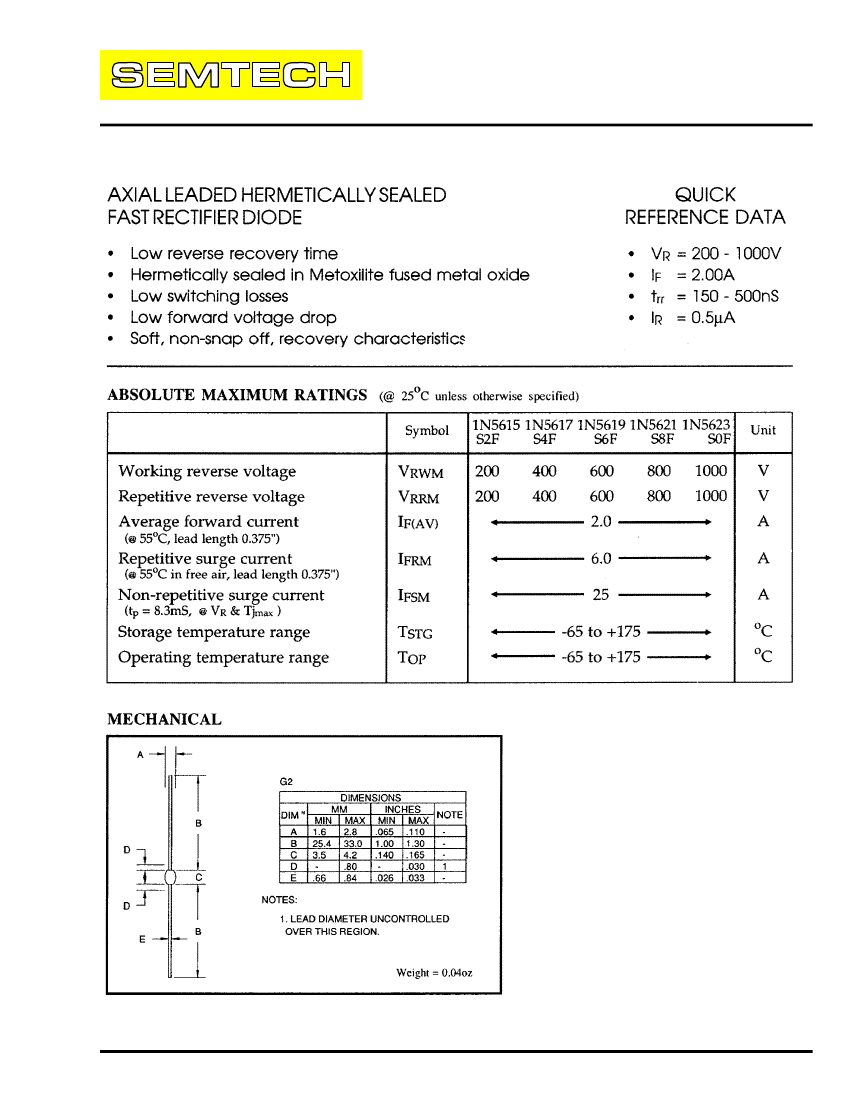

1N5615 thru 1N5623

S2F thru S0F

TEL:805-498-2111 FAX:805-498- 3804 WEB:http://www.semtech.com

These products are qualified to

These products are quali ed to

MIL-PRF-19500/429

and are preferred

parts

MIL-PRF-19500/429

and are preferred

parts as listed in MIL-STD-701.

as listed in MIL-STD-701.

They can be supplied fully released as JAN,

JANTX, JANTXV and JANS version.

These products are qualified in Europe to

DEF STAN 59-61 (PART 80)/029.

1N5621 Related Products

	1N5621	S6F	S4F	S2F	1N5619	GP50P-2083-DB
Description	Rectifiers D MET 1A FAST 800V	Rectifiers D MET 1A FAST 600V	Rectifiers D MET 1A FAST 400V	Rectifiers D MET 1A FAST 200V	RS-422/RS-485 Interface IC 52Mbps 3-5.5V RS-485 422 Fail Safe Rcvr	Fixed Resistor, Metal Film, 0.125W, 208000ohm, 200V, 0.5% +/-Tol, 100ppm/Cel,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	160 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-55 °C
Package shape	ELLIPTICAL	ROUND	ROUND	ROUND	ELLIPTICAL	CYLINDRICAL PACKAGE
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	Axial
Maker	SEMTECH	SEMTECH	SEMTECH	-	SEMTECH	-
package instruction	HERMETIC SEALED PACKAGE-2	G2, 2 PIN	G2, 2 PIN	O-LALF-W2	HERMETIC SEALED PACKAGE-2	-
Contacts	2	2	2	2	2	-
Factory Lead Time	9 weeks	18 weeks	18 weeks	18 weeks	9 weeks	-
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	-
JESD-30 code	E-XALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	E-XALF-W2	-
Maximum non-repetitive peak forward current	50 A	25 A	25 A	25 A	50 A	-
Number of components	1	1	1	1	1	-
Maximum output current	1 A	2 A	2 A	2 A	1 A	-
Package body material	UNSPECIFIED	GLASS	GLASS	GLASS	UNSPECIFIED	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum repetitive peak reverse voltage	800 V	600 V	400 V	200 V	600 V	-
Maximum reverse recovery time	0.3 µs	0.25 µs	0.15 µs	0.15 µs	0.25 µs	-
surface mount	NO	NO	NO	NO	NO	-
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	-
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	-
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	-
JESD-609 code	-	e0	e0	e0	e0	-
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	-
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
