EFM32TG225 DATASHEET
F32/F16/F8
•
ARM Cortex-M3 CPU platform
• High Performance 32-bit processor @ up to 32 MHz
• Wake-up Interrupt Controller
•
Flexible Energy Management System
• 20 nA @ 3 V Shutoff Mode
• 0.6 µA @ 3 V Stop Mode, including Power-on Reset, Brown-out
Detector, RAM and CPU retention
• 1.0 µA @ 3 V Deep Sleep Mode, including RTC with 32.768 kHz
oscillator, Power-on Reset, Brown-out Detector, RAM and CPU
retention
• 51 µA/MHz @ 3 V Sleep Mode
• 150 µA/MHz @ 3 V Run Mode, with code executed from flash
•
32/16/8 KB Flash
•
4/4/2 KB RAM
•
37 General Purpose I/O pins
• Configurable push-pull, open-drain, pull-up/down, input filter, drive
strength
• Configurable peripheral I/O locations
• 16 asynchronous external interrupts
• Output state retention and wake-up from Shutoff Mode
•
8 Channel DMA Controller
•
8 Channel Peripheral Reflex System (PRS) for autonomous in-
ter-peripheral signaling
•
Hardware AES with 128/256-bit keys in 54/75 cycles
•
Timers/Counters
• 2× 16-bit Timer/Counter
• 2×3 Compare/Capture/PWM channels
• 16-bit Low Energy Timer
• 1× 24-bit Real-Time Counter
• 1× 16-bit Pulse Counter
• Watchdog Timer with dedicated RC oscillator @ 50 nA
•
Communication interfaces
• 2× Universal Synchronous/Asynchronous Receiv-
er/Transmitter
• UART/SPI/SmartCard (ISO 7816)/IrDA/I2S
• Triple buffered full/half-duplex operation
• Low Energy UART
• Autonomous operation with DMA in Deep Sleep
Mode
2
• I C Interface with SMBus support
• Address recognition in Stop Mode
•
Ultra low power precision analog peripherals
• 12-bit 1 Msamples/s Analog to Digital Converter
• 4 single ended channels/2 differential channels
• On-chip temperature sensor
• 12-bit 500 ksamples/s Digital to Analog Converter
• 2× Analog Comparator
• Capacitive sensing with up to 12 inputs
• 3× Operational Amplifier
• 6.1 MHz GBW, Rail-to-rail, Programmable Gain
• Supply Voltage Comparator
•
Low Energy Sensor Interface (LESENSE)
• Autonomous sensor monitoring in Deep Sleep Mode
• Wide range of sensors supported, including LC sen-
sors and capacitive buttons
•
Ultra efficient Power-on Reset and Brown-Out Detec-
tor
•
2-pin Serial Wire Debug interface
• 1-pin Serial Wire Viewer
•
Pre-Programmed UART Bootloader
•
Temperature range -40 to 85 ºC
•
Single power supply 1.98 to 3.8 V
•
BGA48 package
32-bit ARM Cortex-M0+, Cortex-M3 and Cortex-M4 microcontrollers for:
• Energy, gas, water and smart metering
• Health and fitness applications
• Smart accessories
• Alarm and security systems
• Industrial and home automation
...the world's most energy friendly microcontrollers
1 Ordering Information
Table 1.1 (p. 2) shows the available EFM32TG225 devices.
Table 1.1. Ordering Information
Ordering Code
Flash (kB)
RAM (kB)
Max
Speed
(MHz)
32
32
32
Supply
Voltage
(V)
1.98 - 3.8
1.98 - 3.8
1.98 - 3.8
Temperature
(ºC)
-40 - 85
-40 - 85
-40 - 85
Package
EFM32TG225F8-BGA48
EFM32TG225F16-BGA48
EFM32TG225F32-BGA48
8
16
32
2
4
4
BGA48
BGA48
BGA48
Visit
www.silabs.com
for information on global distributors and representatives.
2015-03-06 - EFM32TG225FXX - d0205_Rev1.40
2
www.silabs.com
...the world's most energy friendly microcontrollers
2 System Summary
2.1 System Introduction
The EFM32 MCUs are the world’s most energy friendly microcontrollers. With a unique combination of
the powerful 32-bit ARM Cortex-M3, innovative low energy techniques, short wake-up time from ener-
gy saving modes, and a wide selection of peripherals, the EFM32TG microcontroller is well suited for
any battery operated application as well as other systems requiring high performance and low-energy
consumption. This section gives a short introduction to each of the modules in general terms and also
shows a summary of the configuration for the EFM32TG225 devices. For a complete feature set and in-
depth information on the modules, the reader is referred to the
EFM32TG Reference Manual.
A block diagram of the EFM32TG225 is shown in Figure 2.1 (p. 3) .

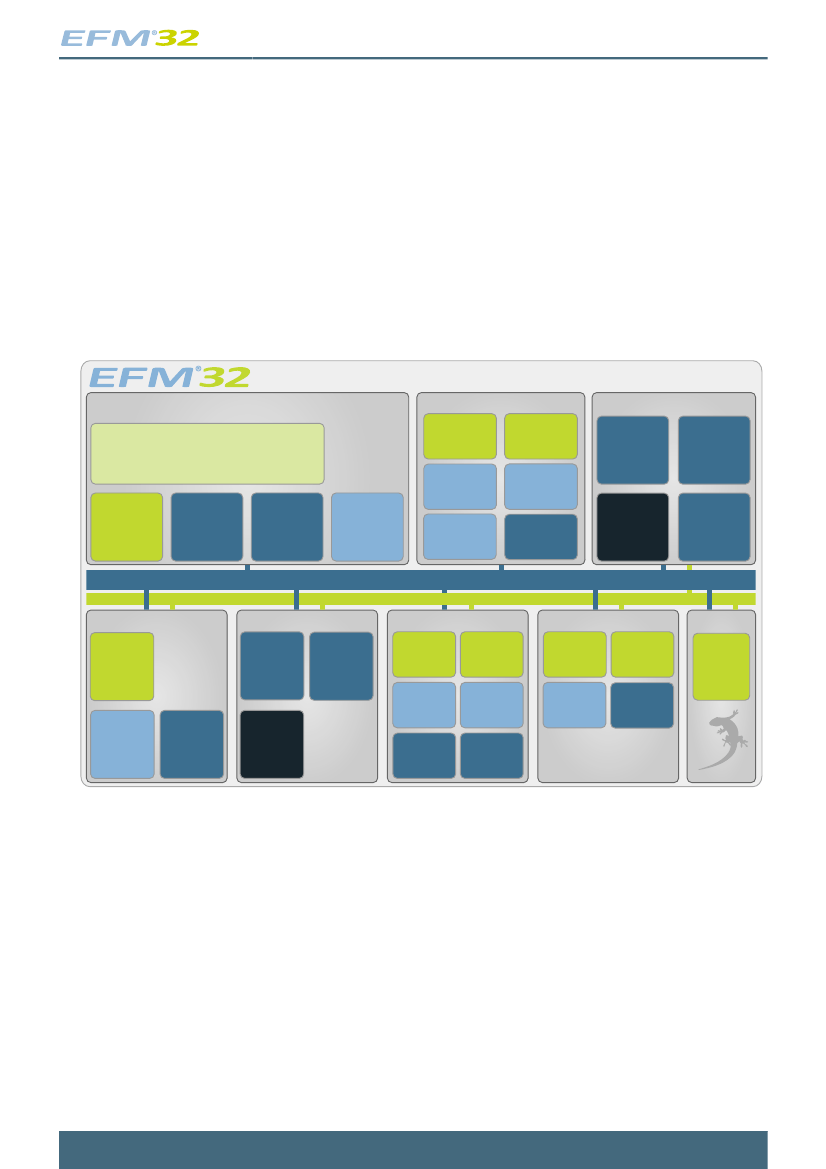

Figure 2.1. Block Diagram
TG225F8/ 16/ 32
Core and Memory
Clock Managem ent
High Frequency
Crystal
Oscill tor
a
Aux High Freq
RC
Oscillator
High Frequency
RC
Oscill tor
a
Lo w Frequency
RC
Oscill tor
a
Energy Managem ent
Voltage
Regulator
Voltage
Comparator
ARM Cortex- M3 processor
Flash
Memory
[KB]
8/ 16/ 32
RAM
Memory
[KB]
2/ 4/ 4
Debug
Interface
DMA
Controller
Lo w Frequency
Crystal
Oscill tor
a
Watchdog
Oscillator
Power-on
Reset
Brown-out
Detector
32-bit bus
Peripheral Reflex System
Serial Interfaces
USA RT
I/O Ports
Ex ternal
Interrupts
General
Purpose
I/ O
37 pins
Tim ers and Triggers
Timer/
Counter
2x
Low Energy
Timer™
Low
Energy
Sensor
Real Time
Counter
Watchdog
Timer
Analog Interfaces
ADC
DAC
Security
AES
2x
Analog
Operational
Com parator
Amplifier
2x
Low
Energy
UART™
I
2
C
Pin
Reset
Pulse
Counter
2.1.1 ARM Cortex-M3 Core
The ARM Cortex-M3 includes a 32-bit RISC processor which can achieve as much as 1.25 Dhrystone
MIPS/MHz. A Wake-up Interrupt Controller handling interrupts triggered while the CPU is asleep is in-
cluded as well. The EFM32 implementation of the Cortex-M3 is described in detail in
EFM32 Cortex-M3
Reference Manual.
2.1.2 Debug Interface (DBG)
This device includes hardware debug support through a 2-pin serial-wire debug interface . In addition
there is also a 1-wire Serial Wire Viewer pin which can be used to output profiling information, data trace
and software-generated messages.
2.1.3 Memory System Controller (MSC)
The Memory System Controller (MSC) is the program memory unit of the EFM32TG microcontroller.
The flash memory is readable and writable from both the Cortex-M3 and DMA. The flash memory is
2015-03-06 - EFM32TG225FXX - d0205_Rev1.40
3
www.silabs.com
...the world's most energy friendly microcontrollers
divided into two blocks; the main block and the information block. Program code is normally written to
the main block. Additionally, the information block is available for special user data and flash lock bits.
There is also a read-only page in the information block containing system and device calibration data.
Read and write operations are supported in the energy modes EM0 and EM1.
2.1.4 Direct Memory Access Controller (DMA)
The Direct Memory Access (DMA) controller performs memory operations independently of the CPU.
This has the benefit of reducing the energy consumption and the workload of the CPU, and enables
the system to stay in low energy modes when moving for instance data from the USART to RAM or
from the External Bus Interface to a PWM-generating timer. The DMA controller uses the PL230 µDMA
controller licensed from ARM.
2.1.5 Reset Management Unit (RMU)
The RMU is responsible for handling the reset functionality of the EFM32TG.
2.1.6 Energy Management Unit (EMU)
The Energy Management Unit (EMU) manage all the low energy modes (EM) in EFM32TG microcon-
trollers. Each energy mode manages if the CPU and the various peripherals are available. The EMU
can also be used to turn off the power to unused SRAM blocks.
2.1.7 Clock Management Unit (CMU)
The Clock Management Unit (CMU) is responsible for controlling the oscillators and clocks on-board
the EFM32TG. The CMU provides the capability to turn on and off the clock on an individual basis to all
peripheral modules in addition to enable/disable and configure the available oscillators. The high degree
of flexibility enables software to minimize energy consumption in any specific application by not wasting
power on peripherals and oscillators that are inactive.
2.1.8 Watchdog (WDOG)
The purpose of the watchdog timer is to generate a reset in case of a system failure, to increase appli-
cation reliability. The failure may e.g. be caused by an external event, such as an ESD pulse, or by a
software failure.
2.1.9 Peripheral Reflex System (PRS)
The Peripheral Reflex System (PRS) system is a network which lets the different peripheral module
communicate directly with each other without involving the CPU. Peripheral modules which send out
Reflex signals are called producers. The PRS routes these reflex signals to consumer peripherals which
apply actions depending on the data received. The format for the Reflex signals is not given, but edge
triggers and other functionality can be applied by the PRS.
2.1.10 Inter-Integrated Circuit Interface (I2C)
The I C module provides an interface between the MCU and a serial I C-bus. It is capable of acting as
both a master and a slave, and supports multi-master buses. Both standard-mode, fast-mode and fast-
mode plus speeds are supported, allowing transmission rates all the way from 10 kbit/s up to 1 Mbit/s.
Slave arbitration and timeouts are also provided to allow implementation of an SMBus compliant system.
2
The interface provided to software by the I C module, allows both fine-grained control of the transmission
process and close to automatic transfers. Automatic recognition of slave addresses is provided in all
energy modes.
2
2
2015-03-06 - EFM32TG225FXX - d0205_Rev1.40
4
www.silabs.com
...the world's most energy friendly microcontrollers
2.1.11 Universal Synchronous/Asynchronous Receiver/Transmitter (US-
ART)
The Universal Synchronous Asynchronous serial Receiver and Transmitter (USART) is a very flexible
serial I/O module. It supports full duplex asynchronous UART communication as well as RS-485, SPI,
MicroWire and 3-wire. It can also interface with ISO7816 SmartCards, IrDA and I2S devices.
2.1.12 Pre-Programmed UART Bootloader
The bootloader presented in application note AN0003 is pre-programmed in the device at factory. Auto-
baud and destructive write are supported. The autobaud feature, interface and commands are described
further in the application note.
2.1.13 Low Energy Universal Asynchronous Receiver/Transmitter
(LEUART)
The unique LEUART , the Low Energy UART, is a UART that allows two-way UART communication on
a strict power budget. Only a 32.768 kHz clock is needed to allow UART communication up to 9600 baud/
s. The LEUART includes all necessary hardware support to make asynchronous serial communication
possible with minimum of software intervention and energy consumption.
TM
2.1.14 Timer/Counter (TIMER)
The 16-bit general purpose Timer has 3 compare/capture channels for input capture and compare/Pulse-
Width Modulation (PWM) output.
2.1.15 Real Time Counter (RTC)
The Real Time Counter (RTC) contains a 24-bit counter and is clocked either by a 32.768 kHz crystal
oscillator, or a 32.768 kHz RC oscillator. In addition to energy modes EM0 and EM1, the RTC is also
available in EM2. This makes it ideal for keeping track of time since the RTC is enabled in EM2 where
most of the device is powered down.
2.1.16 Low Energy Timer (LETIMER)
The unique LETIMER , the Low Energy Timer, is a 16-bit timer that is available in energy mode EM2
in addition to EM1 and EM0. Because of this, it can be used for timing and output generation when most
of the device is powered down, allowing simple tasks to be performed while the power consumption of
the system is kept at an absolute minimum. The LETIMER can be used to output a variety of waveforms
with minimal software intervention. It is also connected to the Real Time Counter (RTC), and can be
configured to start counting on compare matches from the RTC.
TM
2.1.17 Pulse Counter (PCNT)
The Pulse Counter (PCNT) can be used for counting pulses on a single input or to decode quadrature
encoded inputs. It runs off either the internal LFACLK or the PCNTn_S0IN pin as external clock source.
The module may operate in energy mode EM0 - EM3.
2.1.18 Analog Comparator (ACMP)
The Analog Comparator is used to compare the voltage of two analog inputs, with a digital output indi-
cating which input voltage is higher. Inputs can either be one of the selectable internal references or from
external pins. Response time and thereby also the current consumption can be configured by altering
the current supply to the comparator.
2015-03-06 - EFM32TG225FXX - d0205_Rev1.40
5
www.silabs.com
Embedded System
