D1G - D7G
1.0A GLASS PASSIVATED RECTIFIER
Features and Benefits
•
•
•
•
Glass Passivated Die Construction
High Current Capability and Low Forward Voltage Drop
Surge Overload Rating to 30A Peak
Lead Free Finish, RoHS Compliant (Note 1)
Mechanical Data
•
•
•
•
•
•
•
•
Case: T1
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Polarity: Cathode Band
Terminals: Finish – Tin. Solderable per MIL-STD-202, Method 208
Marking: Type Number
Weight: 0.13 grams (approximate)
Ordering Information
(Note 2)
Device
D1G-T
D2G-T
D3G-T
D4G-T
D5G-T
D6G-T
D7G-T
Packaging
T-1
T-1
T-1
T-1
T-1
T-1
T-1
Shipping
5K/Tape & Reel, 13-inch
5K/Tape & Reel, 13-inch
5K/Tape & Reel, 13-inch
5K/Tape & Reel, 13-inch
5K/Tape & Reel, 13-inch
5K/Tape & Reel, 13-inch
5K/Tape & Reel, 13-inch
Maximum Ratings and Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 3)
@ T
A
= 75°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on rated load
Forward Voltage
@ I
F
= 1.0A
Peak Reverse Current
@ T
A
= 25°C
at Rated DC Blocking Voltage
@ T
A
= 100°C
Typical Reverse Recovery Time (Note 4)
Typical Total Capacitance (Note 5)
Typical Thermal Resistance Junction to Ambient
Operating and Storage Temperature Range
Notes:
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
t
rr
C
T
R
θ
JA
T
J
,
T
STG
D1G
50
35
D2G
100
70
D3G
200
140
D4G
400
280
1.0
30
1.0
5.0
50
2.0
8.0
100
-65 to +150
D5G
600
420
D6G
800
560
D7G
1000
700
Unit
V
V
A
A
V
μA
μs
pF
°C/W
°C
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For packaging details, visit our website at http://www.diodes.com.
3. Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.
4. Measured with I
F
= 0.5A, I
R
= 1A, I
rr
= 0.25A.
5. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
D1G – D7G
Document number: DS29001 Rev. 4 - 2
1 of 3
www.diodes.com
January 2012
© Diodes Incorporated
1.0
I
AV
, AVERAGE FORWARD RECTIFIED CURRENT (A)
0.8
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
1.0
0.6
0.4
0.1
0.2
0
40
60
80
100
120
140
160
180
0.01
0.6
0.8
1.0
1.2
1.4
1.6
T
A
, AMBIENT TEMPERATURE (ºC)

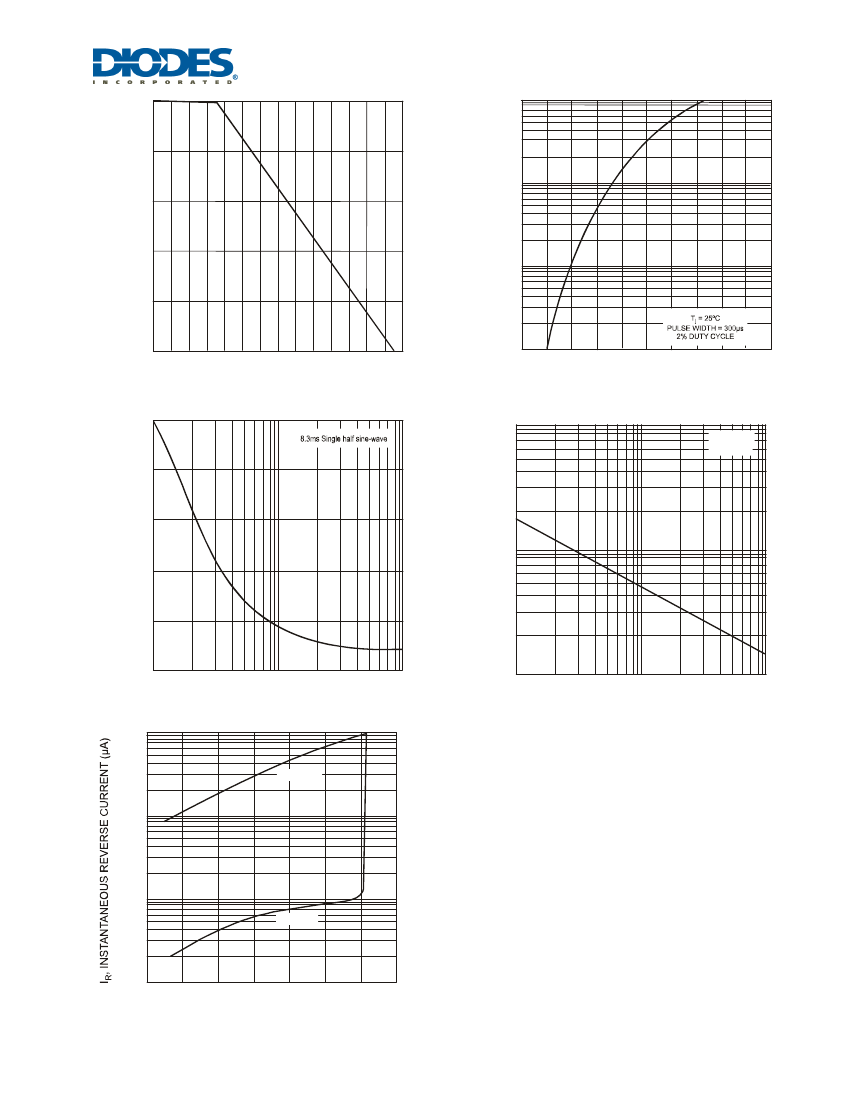

Fig. 1 Forward Current Derating Curve
30
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
100
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
T
j
= 25ºC
f = 1MHz
25
20
C
T,
TOTAL CAPACITANCE (pF)
10
15
10
0
1.0
10
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak
Forward Surge Current
100
1.0
1.0
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance
100
100
T
j
= 100°C
10
1.0
T
j
= 25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typical Reverse Characteristics
D1G – D7G
Document number: DS29001 Rev. 4 - 2
2 of 3
www.diodes.com
January 2012
© Diodes Incorporated
Package Outline Dimensions
T-1
Dim
Min
A
25.40
B
2.60
C
0.53
D
2.20
All Dimensions in mm
Max
⎯
3.20
0.64
2.60
