SolidMatrix
®

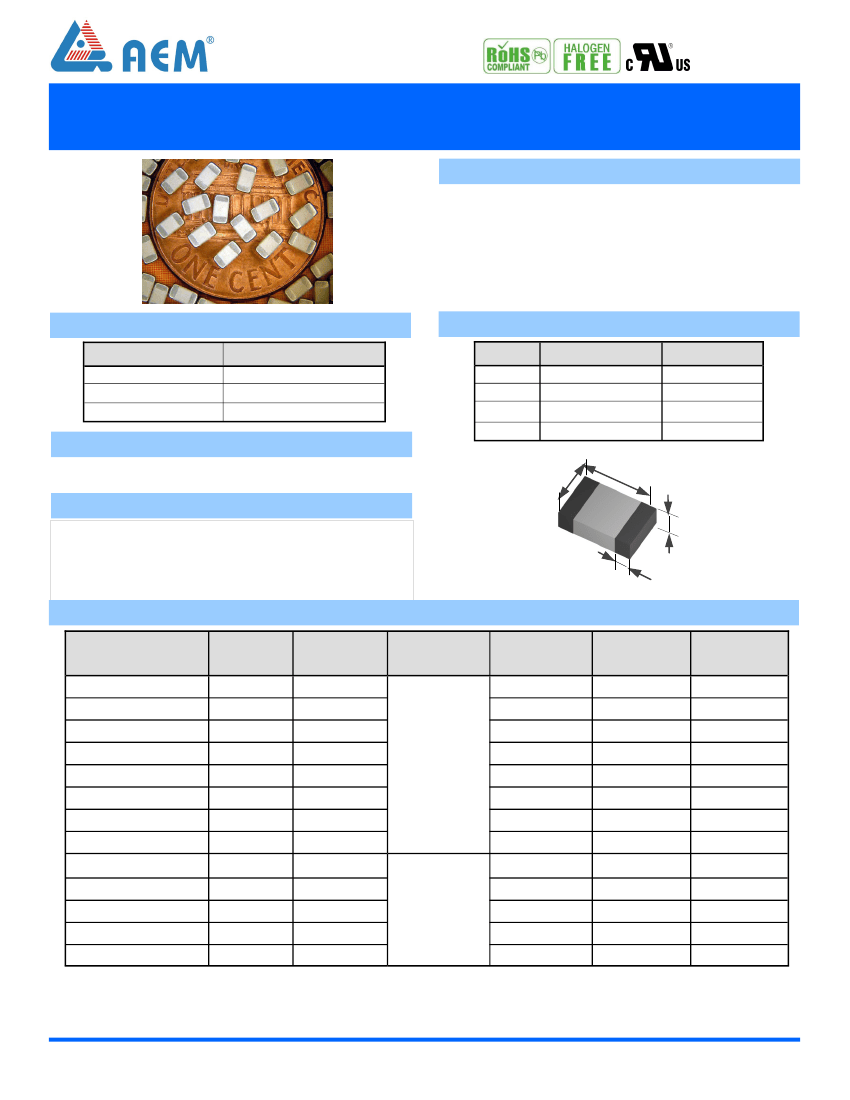

Surface Mount Fuses
FA Series (Fast Acting), 1206 Size
Features:

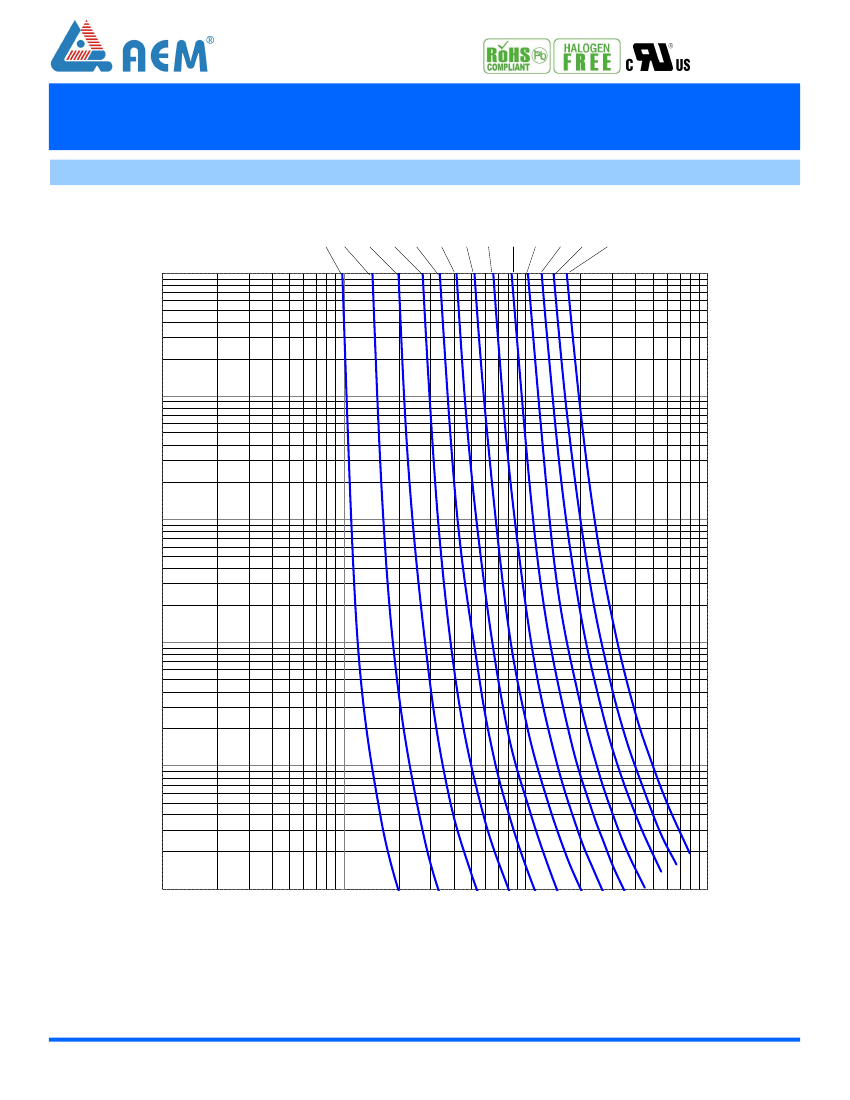

Clearing Time Characteristics:
% of current rating
100%
250%
400%
Multilayer monolithic structure with glass ceramic body
and silver fusing element
Silver termination with nickel and pure-tin solder plating,
providing excellent solderability
Compatible with both wave and reflow soldering processes
Operating temperature range: -55° to +125° (with de-
C
C
rating)
Shape and Dimensions:
Unit
L
W
T
B
Clearing time at 25°
C
4 hours min.
5 seconds max.
0.05 seconds max.
Inch
0.126 ± 0.008
0.063 ± 0.008
0.033 ± 0.008
0.020 ± 0.010
mm
3.20 ± 0.20
1.60 ± 0.20
0.85 ± 0.20
0.51 ± 0.25
Agency Approval:
Recognized Under the Components Program of UL.
File Number: E232989.
W
L
T
B
Patents:
Patent numbers “US6,034,589”, “US6,228,230”, “US6,602,766”,
“US7,268,661 B2”, “ZL00134544.3”, “ZL02114719.1”,
“ZL200410104280.7”, “ZL201020551360.8”,
“ZL201010299185.2”, “ZL201220030614.0”,
“ZL201210020693.1”.
Ordering Information:
Part Number
F1206FA0500V063T
F1206FA0750V063T
F1206FA1000V063T
F1206FA1500V063T
F1206FA1750V063T
F1206FA2000V063T
F1206FA2500V032T
F1206FA3000V032T
F1206FA4000V032T
F1206FA5000V032T
F1206FA6000V032T
F1206FA7000V032T
F1206FA8000V032T
Current
Rating (A)
0.5
0.75
1.0
1.5
1.75
2.0
2.5
3.0
4.0
5.0
6.0
7.0
8.0
Voltage Rating
(VDC)
63
63
63
63
63
63
32
32
32
32
32
32
32
2. Melting I
2
t at 0.001 second pre-arcing time.
Interrupting
Ratings
Nominal Cold
DCR (Ω)
1
0.730
0.513
0.220
0.120
0.100
0.050
0.035
0.031
0.022

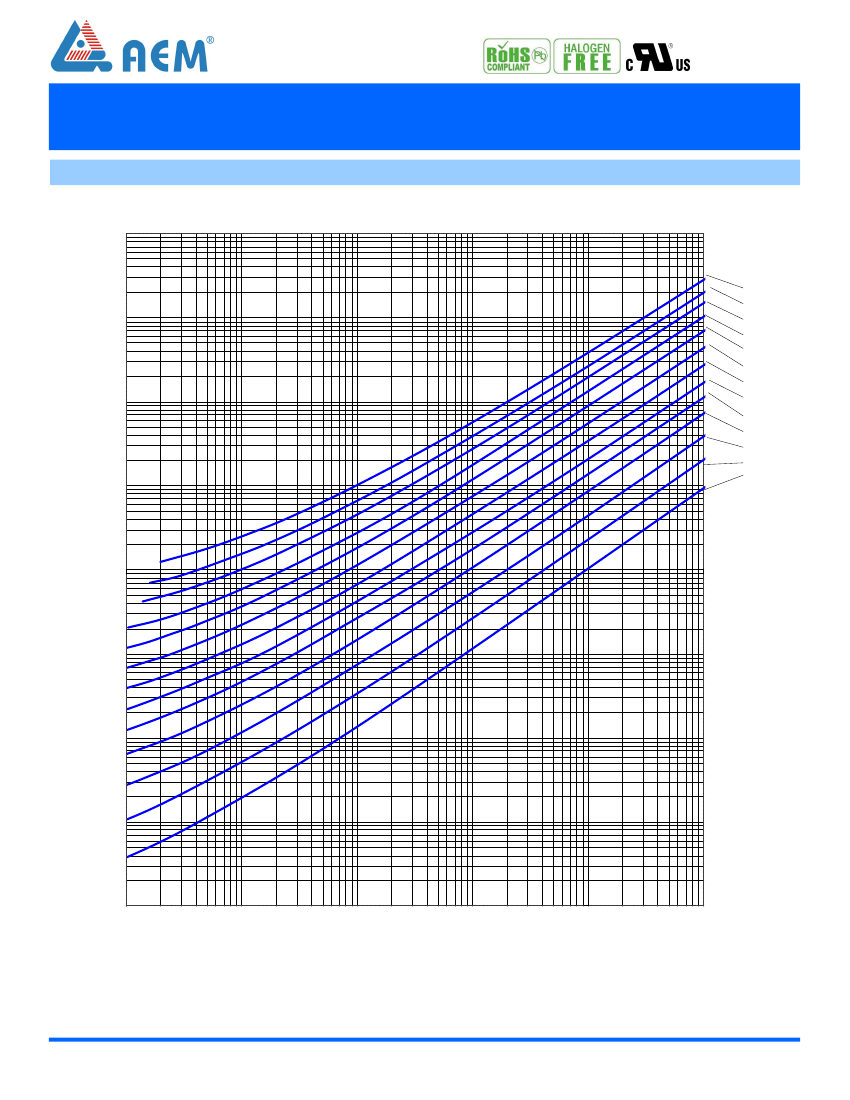

Nominal I
2
t
(A
2
s)
2
0.002
0.005
0.011
0.024
0.045
0.075
0.11
0.21
0.35
0.60
1.0
1.6
2.3
Marking
(Optional)
3
C
D
E
G
H
I
J
K
M
N
50 A at rated
voltages
45 A at rated
voltages
0.015
0.013
0.011
0.008
+
-
=
1. Measured at ≤ 10% rated current and 25
o
C ambient.
3. Black Marking Character Code.
