CM1293A
2 and 4-Channel
Low Capacitance
ESD Protection Arrays
Product Description
The CM1293A family of diode arrays has been designed to provide
ESD protection for electronic components or subsystems requiring
minimal capacitive loading. These devices are ideal for protecting
systems with high data and clock rates or for circuits requiring low
capacitive loading. Each ESD channel consists of a pair of diodes in
series that steer the positive or negative ESD current pulse to either the
positive (V
P
) or negative (V
N
) supply rail. A Zener diode is embedded
between V
P
and V
N
which helps protect the V
CC
rail against ESD
strikes. The CM1293A protects against ESD pulses up to
±8
kV
contact discharge) per the IEC 61000−4−2 Level 4 standard.
This device is particularly well−suited for protecting systems using
high−speed ports such as USB2.0, IEEE1394 (FireWire
®
, i.LINKt),
Serial ATA, DVI, HDMI, and corresponding ports in removable
storage, digital camcorders, DVD−RW drives and other applications
where extremely low loading capacitance with ESD protection are
required in a small package footprint.
Features
http://onsemi.com
SOT−143
SR SUFFIX
CASE 318A
SC−74
SO SUFFIX
CASE 318F
MSOP−10
MR SUFFIX
CASE 846AE

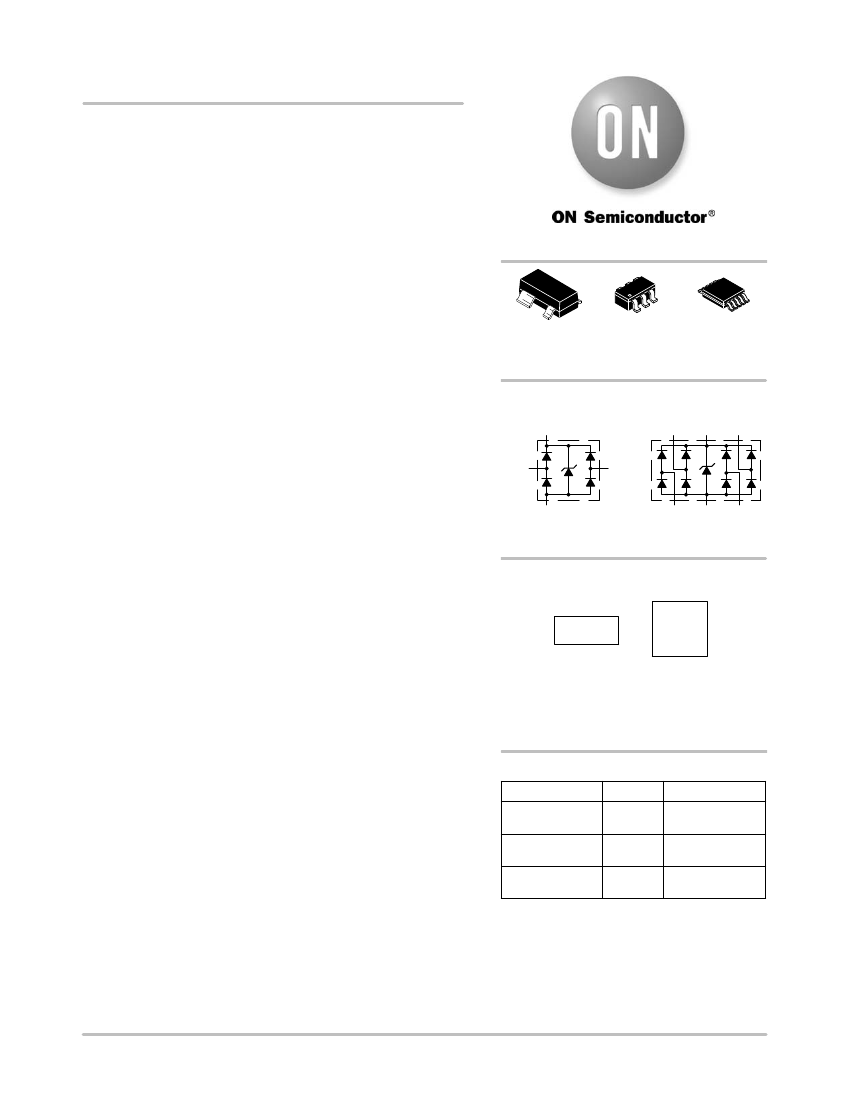

BLOCK DIAGRAM
V
P
CH1
CH2
CH4
V
P
CH3
•
Two and Four Channels of ESD Protection
•
Provides ESD Protection to IEC61000−4−2
•
•
•
•
•
•
♦
V
N
CM1293A−02SR
CM1293A−02SO
CH1 V
N
CH2
CM1293A−04MR
±8
kV Contact Discharge
Low Loading Capacitance of 2.0 pF Max
Low Clamping Voltage
Channel I/O to I/O Capacitance 1.5 pF Typical
Zener Diode Protects Supply Rail and Eliminates the Need for
External By−Pass Capacitors
Each I/O Pin Can Withstand over 1000 ESD Strikes*
These Devices are Pb−Free and are RoHS Compliant
MARKING DIAGRAM
XXX MG
G
XXX MG
G
XXX
M
G
= Specific Device Code
= Date Code
= Pb−Free Package
Applications
•
DVI Ports, HDMI Ports in Notebooks, Set Top Boxes, Digital TVs,
LCD Displays
•
Serial ATA Ports in Desktop PCs and Hard Disk Drives
•
PCI Express Ports
•
General Purpose High−Speed Data Line ESD Protection
(*Note: Microdot may be in either loca-
tion)
ORDERING INFORMATION
Device
CM1293A−02SR
CM1293A−02SO
CM1293A−04MR
Package
SOT143−4
(Pb−Free)
SC−74
(Pb−Free)
MSOP−10
(Pb−Free)
Shipping
†
3,000 /
Tape & Reel
3,000 /
Tape & Reel
4,000 /
Tape & Reel
*Standard test condition is IEC61000−4−2 level 4 test circuit with each pin
subjected to
±8
kV contact discharge for 1000 pulses. Discharges are timed at
1 second intervals and all 1000 strikes are completed in one continuous test run.
The part is then subjected to standard production test to verify that all of the
tested parameters are within spec after the 1000 strikes.
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
©
Semiconductor Components Industries, LLC, 2012
July, 2012
−
Rev. 8
1
Publication Order Number:
CM1293A/D
CM1293A
Table 1. PIN DESCRIPTIONS
2−Channel, 4−Lead SOT143−4 Package (CM1293A−02SR)
Pin
1
2
3
4
Name
V
N
CH1
CH2
V
P
Type
GND
I/O
I/O
PWR
Description
Negative Voltage Supply Rail
ESD Channel
ESD Channel
Positive Voltage Supply Rail
CH1 (2)
V
N
(1)
D636
CH2 (3)
4−Lead SOT143−4
Top View
V
P
(4)
PACKAGE/PINOUT DIAGRAM
2−Channel, SC−74 Package (CM1293A−02SO)
Pin
1
2
3
4
5
6
Name
NC
VN
CH1
CH2
NC
VP
Type
−
GND
I/O
I/O
−
PWR
Description
No Connect
Negative Voltage Supply Rail
ESD Channel
ESD Channel
No Connect
Positive Voltage Supply Rail
NC (1)
633
VN (2)
CH1 (3)
Top View
VP (6)
NC (5)
CH2 (4)
2−Channel SC−74
4−Channel, 10−Lead MSOP−10 Package (CM1293A−04MR)
Pin
1
2
3
4
5
6
7
8
9
10
Name
CH1
NC
V
P
CH2
NC
CH3
NC
V
N
CH4
NC
Type
I/O
−
PWR
I/O
−
I/O
−
GND
I/O
−
Description
ESD Channel
No Connect
Positive Voltage Supply Rail
ESD Channel
No Connect
ESD Channel
No Connect
Negative Voltage Supply Rail
ESD Channel
No Connect
CH1
NC
V
P
CH2
NC
Top View
NC
CH4
V
N
NC
CH3
D641
10−Lead MSOP−10
http://onsemi.com
2
CM1293A
SPECIFICATIONS
Table 2. ABSOLUTE MAXIMUM RATINGS
Parameter
Operating Supply Voltage (V
P
−
V
N
)
Operating Temperature Range
Storage Temperature Range
DC Voltage at any Channel Input
Rating
6.0
–40 to +85
–65 to +150
(V
N
−
0.5) to (V
P
+ 0.5)
Units
V
°C
°C
V
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
Table 3. STANDARD OPERATING CONDITIONS
Parameter
Operating Temperature Range
Package Power Rating
SOT143−4 Package (CM1293A−02SR)
SC−74 Package (CM1293A−02SO)
MSOP−10 Package (CM1293A−04MR)
Rating
–40 to +85
225
225
400
Units
°C
mW
Table 4. ELECTRICAL OPERATING CHARACTERISTICS
(Note 1)
Symbol
V
P
I
P
V
F
Parameter
Operating Supply Voltage (V
P
−V
N
)
Operating Supply Current
Diode Forward Voltage
Top Diode
Bottom Diode
Channel Leakage Current
Channel Input Capacitance
Channel I/O to I/O Capacitance
ESD Protection
−
Peak Discharge
Voltage at any Channel Input, in System
Contact Discharge per
IEC 61000−4−2 Standard
Human Body Model, MIL−STD−883,
Method 3015
Channel Clamp Voltage
Positive Transients
Negative Transients
Dynamic Resistance
Positive Transients
Negative Transients
(V
P
−V
N
) = 3.3 V
I
F
= 8 mA, T
A
= 25°C
0.60
0.60
0.80
0.80
±0.1
Conditions
Min
Typ
3.3
Max
5.5
8.0
0.95
0.95
±1.0
2.0
1.5
Units
V
mA
V
I
LEAK
C
IN
DC
IO
V
ESD
T
A
= 25°C, V
P
= 5 V, V
N
= 0 V
At 1 MHz, V
P
= 3.3 V, V
N
= 0 V, V
IN
= 1.65 V
mA
pF
pF
kV
T
A
= 25°C (Notes 2 and 4)
T
A
= 25°C (Notes 3 and 4)
T
A
= 25°C, I
PP
= 1A, t
P
= 8/20
mS
(Note 4)
T
A
= 25°C, I
PP
= 1A, t
P
= 8/20
mS
(Note 4)
±8
±15
V
V
CL
+9.9
–1.6
0.96
0.5
R
DYN
W
1.
2.
3.
4.
All parameters specified at T
A
= –40°C to +85°C unless otherwise noted.
Standard IEC 61000−4−2 with C
Discharge
= 150 pF, R
Discharge
= 330
W,
V
P
= 3.3 V, V
N
grounded.
Human Body Model per MIL−STD−883, Method 3015, C
Discharge
= 100 pF, R
Discharge
= 1.5 kW, V
P
= 3.3 V, V
N
grounded.
These measurements performed with no external capacitor on V
P
.
http://onsemi.com
3
