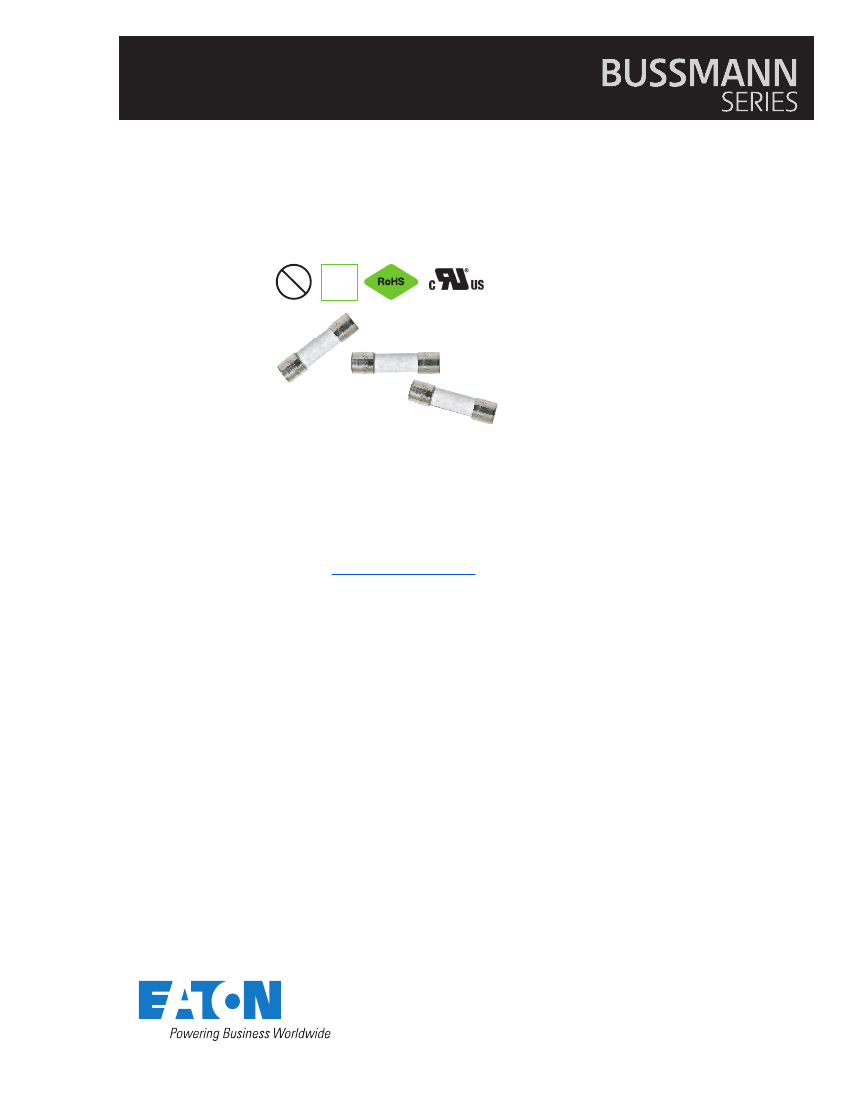

5 mm x 20 mm, Ferrule time-delay, ceramic tube fuses
Pb
HF
FREE
HALOGEN
Applications
Primary circuit protection:
•
•
•
•
•
•
LED and general lighting
LED/LCD televisions
Appliances and white goods
Printers and peripherals
Test equipment
Power supplies
Product features
•
•
•
•
Agency information
•
Time-delay high breaking capacity
Designed to IEC 60127-2
0.5 A to 12 A current ratings
Ceramic tube, nickel plated brass end cap
construction
Halogen free, RoHS compliant, lead free
Reference
S505SC data sheet (10132)
for
available axial lead options
cURus Recognition file number: E19180,
Guide JDYX2/JDYX8
CSA file: 53787
SEMKO file: 816547, 1119019
VDE file: 40014091, 40024352, 40023140
BSI file: KM55676
IMQ file: CA03 00100, CA03 00529
PSE: JET 1641-31003-1009, 1641-31003-1010,
1641-31003-1011, 1641-31003-1012,
1641- 31003-2001, 1641-31003-2002
CCC file: 2002010207011295, CQC
11012061930
KC-Mark file: SU5011-4012A, SU5011-5004A
•
•
•
•
•
•
•
•
•
•
Ordering
•
Use ordering code (see page 4 for details)
Packaging prefixes
•
•
BK- (100 parts in a cardboard carton)
BK1- (1,000 parts in a bag)
Technical Data
2037
Effective February 2017
S505
5 mm x 20 mm, Ferrule time-delay, ceramic tube fuses
Electrical characteristics
l
n
1.5l
n
min
minute
2.1l
n
max
minute
2.75l
n
min
ms
max
s
4l
n
min
ms
max
s
10l
n
min
ms
max
ms
<1A
1 A - 3.15 A
4 A - 6.3 A
8 A - 12 A
60
60
60
30
30
30
30
30
250
750
750
750
80
80
80
80
50
95
150
150
5
5
5
5
5
10
10
10
150
150
150
150
Product specifications
Current
rating
(A)
Voltage
rating AC
Interrupting
rating at rated AC Typical
Typical
Typical
voltage
1
(50 Hz)
DC cold
pre-arcing
3
voltage drop
4
(A
AC
)
resistance
2
(Ω) I
2
t (A
2
s)
(mV)
IMQ
CCC/
CQC
PSE-
JET
Part number
6
VDE
SEMKO
cURus
CSA
KC
BSI
S505-500-R
S505-800-R
S505-1-R
S505-1.25-R
S505-1.6-R
S505-2-R
S505-2.5-R
S505-3.15-R
S505-4-R
S505-5-R
S505-6.3-R
S505-8-R
S505-10-R
S505-12-R
0.5
0.8
1.0
1.25
1.6
2.0
2.5
3.15
4.0
5.0
6.3
8.0
10
12
250
250
250
250
250
250
250
250
250
250
250
250
250
250
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1000
0.5070
0.2370
0.1401
0.1075
0.0700
0.0545
0.0395
0.0305
0.0185
0.0131
0.0102
0.0077
0.0061
0.0053
0.188*
0.632*
1.28
2.22
6.78
9.6
16.6
36.6
38.45*
71.30*
111*
228*
397
713.7*
295
189
152.5
150
125
118.5
115
102.5
86.5
77.5
75
73
72
77
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
5
X
5
X
X
X
X
X
X
X
X
X
X
5
X
5
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
1 Interrupting ratings 500 mA to 10 A measured at 70% to 80% PF on AC. 12 A measured at
100% PF on AC.
2 Typical DC cold resistance measured at <10% of rated current at an ambient temperature of
20° C (reference only)
3 Typical pre-arcing (I²t) measured at listed interrupting rating and voltage.
*= measured at 10 times rated current under DC.
4 Typical voltage drop measured at 20° C at rated current.
5 CQC approval only
6 Part number definition: S505-xxx-R
S505= Product code and size
xxx= Ampere rating
-R= Rohs compliant
Dimensions (mm)
2
www.eaton.com/electronics
S505
5 mm x 20 mm, Ferrule time-delay, ceramic tube fuses

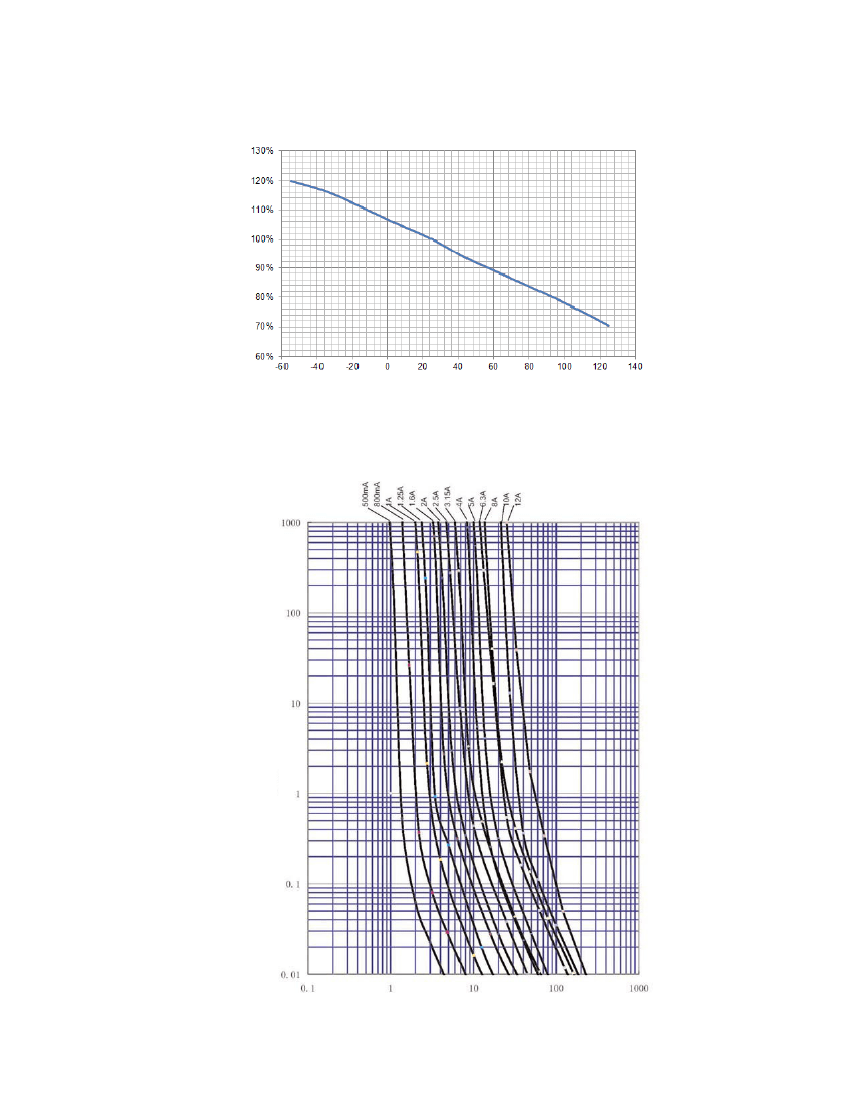

Temperature derating curve
Technical Data
2037
Effective February 2017
Derating factor
Temperature (°
C)
Time vs. current curve
Time (s)
Current (A)
www.eaton.com/electronics
3
Technical Data
2037
Effective February 2017
S505
5 mm x 20 mm, Ferrule time-delay, ceramic tube fuses
Environmental data
Operating temperature: - 55 °C to 125 °C (with derating)
Ordering codes
The ordering code is the part number replacing the “.” with a “-”
plus adding the packaging suffix.
Packaging prefixes
•
•
BK- (100 parts in a cardboard carton)
BK1- (1,000 parts in a bag)
Ordering codes
Part number
-BK option
-BK1 option
S505-500-R
S505-800-R
S505-1-R
S505-1.25-R
S505-1.6-R
S505-2-R
S505-2.5-R
S505-3.15-R
S505-4-R
S505-5-R
S505-6.3-R
S505-8-R
S505-10-R
S505-12-R
BK-S505-500-R
BK-S505-800-R
BK-S505-1-R
BK-S505-1-25-R
BK-S505-1-6-R
BK-S505-2-R
BK-S505-2-5-R
BK-S505-3-15-R
BK-S505-4-R
BK-S505-5-R
BK-S505-6-3-R
BK-S505-8-R
BK-S505-10-R
BK-S505-12-R
BK1-S505-500-R
BK1-S505-800-R
BK1-S505-1-R
BK1-S505-1-25-R
BK1-S505-1-6-R
BK1-S505-2-R
BK1-S505-2-5-R
BK1-S505-3-15-R
BK1-S505-4-R
BK1-S505-5-R
BK1-S505-6-3-R
BK1-S505-8-R
BK1-S505-10-R
BK1-S505-12-R
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
