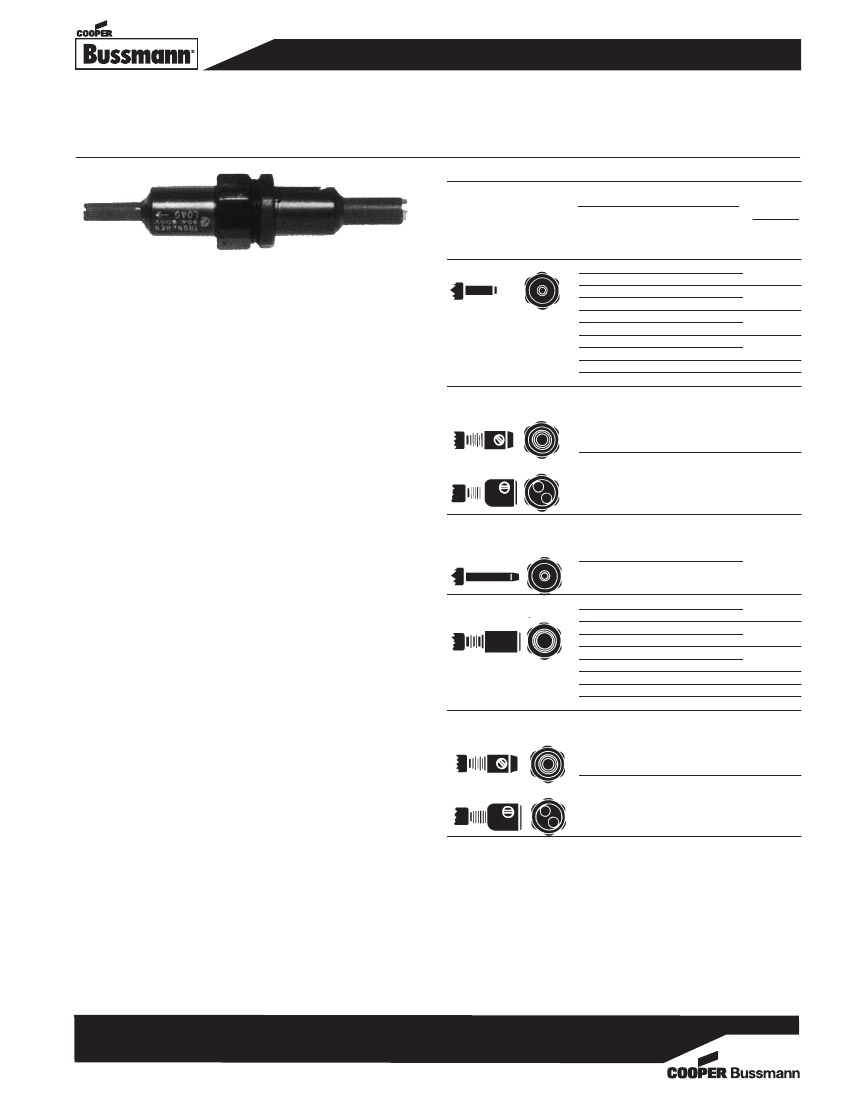

HEB Series Single-Pole Breakaway & Non-Breakway for
13
⁄
32
˝ x 1
1
⁄
2
˝ Fuses
Specification Data - Non-Breakaway & Loadside Breakaway
Conductor Terminals
Stranded
No. Per
Terminal
Terminal Type
Conductor Data
Size
Catalog
Symbol
Load &
Line
(2) & (3)
A
B
C
D
E
Z
Non-Breakaway Fuse Holders
See page 2 for breakaway holders
Catalog Symbol:
HEB
Description:
Water resistant, single-pole non-breakaway in-line fuse holders
for
13
⁄
32
˝ x 1
1
⁄
2
˝ midget fuses. Typical fuse types: BAF, DCM,
FNM, FNQ and KTK.
Ratings:
Volts: 600V (or less)
Amps: Up to 30A*
Agency Information:
(1)
UL Recognized, Guide IZLT2, File E14853
(2)
CSA Certified, Class 6225-01, File 47235
(3)
CE
Coupling Nut Torque:
10-20lb-in.
Part Number Explanation
Example: HEB-AK
• HEB = Holder series
• A = Loadside terminal (copper crimp for #12 solid
copper wire)
• K = Lineside terminal (copper setscrew for two #6 solid
copper wires)
Part Number Selection
From the table on page three, select the combination of
desired loadside and lineside terminals for the application
(define terminal type, wire size, number of wires per terminal
and whether the terminal accepts solid and/or stranded
conductors). Then in the right hand two columns, select either
the non-breakaway or breakaway holder part number to order.
Available Part Numbers
HEB-AA
(1) (2) (3)
, HEB-AB
(2)
, HEB-AC
(2)
,
HEB-AD
(2)
, HEB-AE
(2)
, HEB-AJ, HEB-AK, HEB-AL, HEB-AR,
HEB-AY, HEB-BA
(2)
, HEB-BB
(2)
, HEB-BC
(2)
, HEB-BD
(2)
,
HEB-CC
(2)
, HEB-DD
(2)
, HEB-JJ, HEB-JK, HEB-JL, HEB-JY,
HEB-LL, HEB-NN, HEB-PP
(2)
, HEB-QQ
(2)
, HEB-RR
(2)
,
HEB-SS, HEB-TT
(2)
, HEB-ZA.
Insulating Boots
For insulating boots, see page 2. Insulating boots are not included
with non-breakaway holders and must be ordered
separately. They come standard with the breakaway holders.
When insulating boots are utilized, extra heat retention requires
that fuses are sized at a minimum of 200% of the RMS load
current.
*Amp rating limited by conductor size.
Copper Crimp
#12 to #8
#12
#10
#6
#8
#4
#6
#2
#4
#20 to #18
1
2
2
1
2
1
2
1
2
1
Solid
•
•
•
•
•
—
•
—
•
•
•
•
•
•
•
•
•
•
•
•
Copper Setscrew
#12 to #3
1
•
•
J
#12 to #3
2
•
•
K
Solid Copper Terminal for
Aluminum Wire Connector
#8 to #12
#10 to #4
Aluminum Crimp
#8
#6
#6
#4
#3, #4
#2
#1, #2
#1/0
1
1
1
1
1
1
1
1
1
1
•
—
—
•
—
•
—
•
—
—
—
S
•
•
—
•
—
•
—
•
•
N
P
Q
R
T
Aluminum Setscrew
#12 to #2
1
•
•
L
#12 to #2
2
•
•
Y
0908
BU-SB08489
Page 1 of 3
Data Sheet 2127

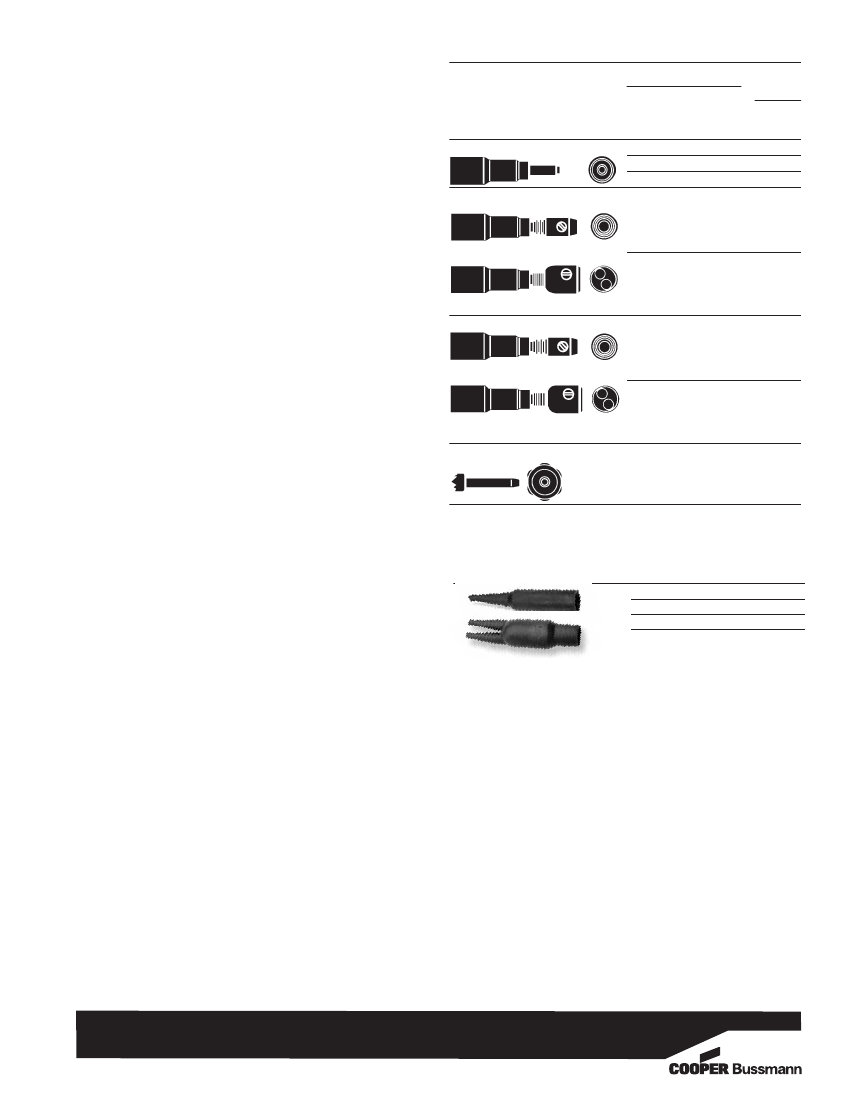

Breakaway Fuse Holders
Catalog Symbol:
HEB
Description:
Single-pole breakaway in-line fuse holders for
13
⁄
32
˝ x 1
1
⁄
2
˝
midget fuses. Typical fuse types: BAF, DCM, FNM, FNQ AND
KTK.
Ratings:
Volts: 600V (or less)
Amps: Up to 30A*
Agency Information:
(1)
UL Recognized, Guide IZLT2, File E14853
(2)
CSA Certified, Class 6225-01, File 47235
(3)
CE
Coupling Nut Torque:
10-20lb-in.
Part Number Explanation
Example: HEB-AW-RYC
• HEB = Holder series
• AW = Loadside terminal (copper crimp for #12 solid
copper wire)
• RYC = Lineside terminal (copper setscrew for two #6
solid copper wires)
Part Number Selection
From the table on page three, select the combination of desired
loadside and lineside terminals for the application (define terminal
type, wire size, number of wires per terminal and whether the
terminal accepts solid and/or stranded conductors). Then in the
right hand two columns, select either the non-breakaway or
breakaway holder part number to order.
Available Part Numbers
Breakaway Units:
(Includes fuse holder, breakaway part and insulating
boots):
HEB-AW-RLA, HEB-AW-RLC-A
(1) (2) (3)
, HEB-AW-RLC-B,
HEB-AW-RLC-C, HEB-AW-RLC-J, HEB-AW-RYA,
HEB-AW-RYC, HEB-BW-RLC-A, HEB-BW-RLC-B,
HEB-BW-RYC, HEB-JW-RLC-J, HEB-JW-RYC,
HEB-KW-RLC-J, HEB-KW-RYC, HEB-LW-RLA,
HEB-LW-RLC-J, HEB-LW-RYA
Fuse Holder Only:
HEB-AW
(2)
, HEB-BW
(2)
, HEB-DW
(2)
,
HEB-JW, HEB-LW
Breakaway Part:
RLC-A, RLC-B, RLC-C, RLC-J,
RYC, RLA, RYA
Specification Data -
Lineside Breakaway
Breakaway Receptacles
Stranded
•
•
•
•
•
•
•
Type
Single conductor
Two conductor
No. Per
Terminal
Terminal Type
Conductor Data
Size
Catalog
Symbol
Copper Crimp
Solid
#12 to #8
#6
#4
1
1
1
•
•
•
-RLC-A
-RLC-B
-RLC-C
Copper Setscrew
#12 to #2
1
•
-RLC-J
#12 to #2
2
•
-RYC
Aluminum Setscrew
#12 to #2
1
•
-RLA
#12 to #2
2
•
-RYA
Solid Breakaway
(Required with
Breakaway
Receptacle)
W
Insulating Boots
Part Numbers
2A0660
2A0661
Two insulating boots come standard with the breakaway holders
(example: HEB-AW-RLC-A). The insulating boots are not
included with the non-breakaway holders (example: HEB-AA) or
the individual pieces of the breakaway holders (example:
HEB-AW, RCL-A). Two insulating boots must be ordered for
each holder when ordering them separately. When insulating
boots are utilized, extra heat retention requires that fuses are
sized at a minimum of 200% of the RMS load current.
*Amp rating limited by conductor size.
0908
BU-SB08489
Page 2 of 3
Data Sheet 2127
For HEB Holders Only
Directions:To select complete holder P/N, work from left to right starting with loadside terminal options and then lineside terminal options. Then determine breakaway or non-breakaway style.
Loadside Terminal
Terminal
Type
No. of
Solid Stranded Terminal
Wire Size Wires per
Wire
Wire
Type
Terminal
Lineside Terminal
No. of
Solid Stranded
Wire Size Wires per
Wire
Wire
Terminal
Available P/N’s
Non-Breakaway
P/N
(Boots not included)
Breakaway
P/N
(Boots included)
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Setscrew
Copper
Setscrew
Copper
Setscrew
Copper
Setscrew
Aluminum
Setscrew
Aluminum
Crimp
Aluminum
Crimp
Aluminum
Crimp
Aluminum
Crimp
Aluminum
Crimp
#12 to #8
#12
#12 to #8
#12
#12 to #8
#12
#12 to #8
#12
#12 to #8
#12
#12 to #8
#12
#12 to #8
#12
#12 to #8
#12
#12 to #8
#12
#12 to #8
#12
#6
#10
#6
#10
#6
#10
#6
#10
#4
#8
#2
#6
#20, #18
#12 to #3
#12 to #3
#12 to #3
#12 to #3
#12 to #2
#8
#6
#6
#4
#3, #4
#2
#1, #2
1/0
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
N
Y
N
Y
Y
Y
Y
Y
Y
Y
N
Y
N
Y
N
Y
N
N
Y
N
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
N
Y
N
Y
N
Y
Y
N
Y
Copper
Crimp
Copper
Crimp
Copper
Crimp (4)
Copper
Crimp
Copper
Crimp
Copper
Setscrew
Copper
Setscrew
Aluminum
Setscrew
Aluminum
Setscrew
Aluminum
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Crimp
Copper
Setscrew
Copper
Setscrew
Aluminum
Setscrew
Aluminum
Setscrew
Aluminum
Setscrew
Aluminum
Crimp
Aluminum
Crimp
Aluminum
Crimp
Aluminum
Crimp
Aluminum
Crimp
#12 to #8
#12
#6
#10
#4
#8
#2
#6
2/0
#3
#12 to #3
#12 to #3
#12 to #2
#12 to #2
#1, #2
#12 to #8
#12
#6
#10
#4
#8
#2
#6
#4
#8
#2
#6
#12 to #8
#12
#12 to #3
#12 to #3
#12 to #2
#12 to #2
#12 to #2
#8
#6
#6
#4
#3, #4
#2
#1, #2
1/0
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
1
1
1
1
1
1
1
1
1
1
Y
Y
Y
Y
N
Y
N
Y
N
N
Y
Y
Y
Y
N
Y
Y
Y
Y
N
Y
N
Y
N
Y
N
Y
Y
Y
Y
Y
Y
Y
Y
N
Y
N
Y
N
Y
N
N
Y
N
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
N
Y
N
Y
N
Y
Y
N
Y
HEB-AA(1)(2)
(3)
HEB-AB(2)
HEB-AC(2)
HEB-AD(2)
HEB-AE(2)
HEB-AJ
HEB-AK
HEB-AL
HEB-AY
HEB-AR
HEB-BA(2)
HEB-BB(2)
HEB-BC(2)
HEB-BD(2)
HEB-CC(2)
HEB-DD(2)
HEB-ZA
HEB-JJ
HEB-JK
HEB-JL
HEB-JY
HEB-LL
HEB-NN
HEB-PP(2)
HEB-QQ(2)
HEB-RR(2)
HEB-TT(2)
HEB-SS
HEB-AW-RLC-A(1)(2)
(3)
HEB-AW-RLC-B
HEB-AW-RLC-C(4)
N/A
N/A
HEB-AW-RLC-J
HEB-AW-RYC
HEB-AW-RLA
HEB-AW-RYA
N/A
HEB-BW-RLC-A
HEB-BW-RLC-B
N/A
N/A
N/A
N/A
N/A
HEB-JW-RLC-J
HEB-JW-RYC
N/A
N/A
HEB-LW-RLA
N/A
N/A
N/A
N/A
N/A
N/A
SolidTerminal
#8 to #12
for aluminum
connector
#10 to #14
SolidTerminal
#8 to #12
for aluminum
connector
#10 to #14
(1)UL Recognized, Guide IZLT2, File E14853
(2)CSA Certified, Class 6225-01, File 47235
(3)CE
(4)HEB-AW-RLC-C is for (1) #4 stranded wire only.
Contact your local Cooper Bussmann representative for other possible terminations
not listed.
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are
by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with
design applications. Cooper Bussmann reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of
any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has
been selected, it should be tested by the user in all possible applications.
[b]Contents:[/b] Chapter 1 Electronic Relays Chapter 2 NOT Gates Chapter 3 AND Gates and OR Gates Chapter 4 Other Types of Gate Circuits Chapter 5 Practical Circuits [b]Details:[/b] Written by Chen Yo...
[align=left][color=#000]Use the SPI of MSP430F5529 to operate SST25VF016B, refer to the program of netizens. At present, the test of reading ID is correct, but there is a problem in reading and writin...
[i=s]This post was last edited by qwqwqw2088 on 2015-2-13 08:40[/i] [color=#000][font=Arial,] [/font][/color][size=3][color=#a0522d][font=Arial, Microsoft YaHei, Microsoft YaHei, SimSun, 宋体, sans-seri...
In
circuit design,
current
measurement
is widely used, and the main fields are divided into three categories: in measurement,
the electric meter
is used to measure the curre...[Details]
1 Introduction
The high temperature tester is mainly used for temperature tracking measurement and data acquisition during the heating process. By systematically analyzing the test data, the...[Details]
As a wireless broadband metropolitan area network standard, WiMAX technology has greater advantages than previous 3.5GHz MMDS products in terms of non-line-of-sight transmission and spectrum utiliz...[Details]
Introduction
Power subsystems are becoming more and more integrated into the overall system. Power systems have moved from being separate "essential dangerous devices" to being monitorable...[Details]
Instrument stepper motor
The stepper motor is an open-loop control element that converts electrical pulse signals into angular displacement or linear displacement. In the case of non...[Details]
1. With the development of modern industry and the continuous improvement of automation, some medium and large control systems have been greatly facilitated, which not only makes control easier, bu...[Details]
The potentiometer is an adjustable electronic component. The main functions of the potentiometer in the circuit are as follows:
1. Used as a voltage divider
A potentiometer is a continuou...[Details]
1. Disadvantages of choosing too high a voltage level
Choosing too high a voltage level will result in too high an investment and a long payback period. As the voltage level increases, the...[Details]
Today, with energy becoming increasingly scarce, the utilization of natural energy has become the focus of people's attention. Among various natural energies, the endless solar energy is highly fav...[Details]
The rectified DC voltage is then converted back to AC using power electronics such as insulated gate bipolar transistors.
The output voltage is switched on and off at a high frequency, control...[Details]
This article will introduce a design method for a distributed control system used in a tracking car, which can perform distributed control of motor modules, sensor modules, and lighting control mod...[Details]
Analysis of the three core aspects of digital TV transmission standards
According to the differences in regionality, transmission method and modulation method, the transmission method needs to...[Details]
introduction
When it comes to the production of mobile phone lithium-ion batteries, the first thing that comes to mind is Japan's industrialized mechanical assembly line, NOKIO, MOTOLROLA's st...[Details]
Energy conservation and environmental protection are the main directions of current automotive technology research, and power batteries are the key to electric vehicle technology. Research on powe...[Details]
1 Introduction
Automatic Test
System The ATS (Automatic Test System) integrates all the stimulus and measurement equipment required for testing.
The computer
efficiently comp...[Details]
Analog electronics
京公网安备 11010802033920号
EEWORLD
