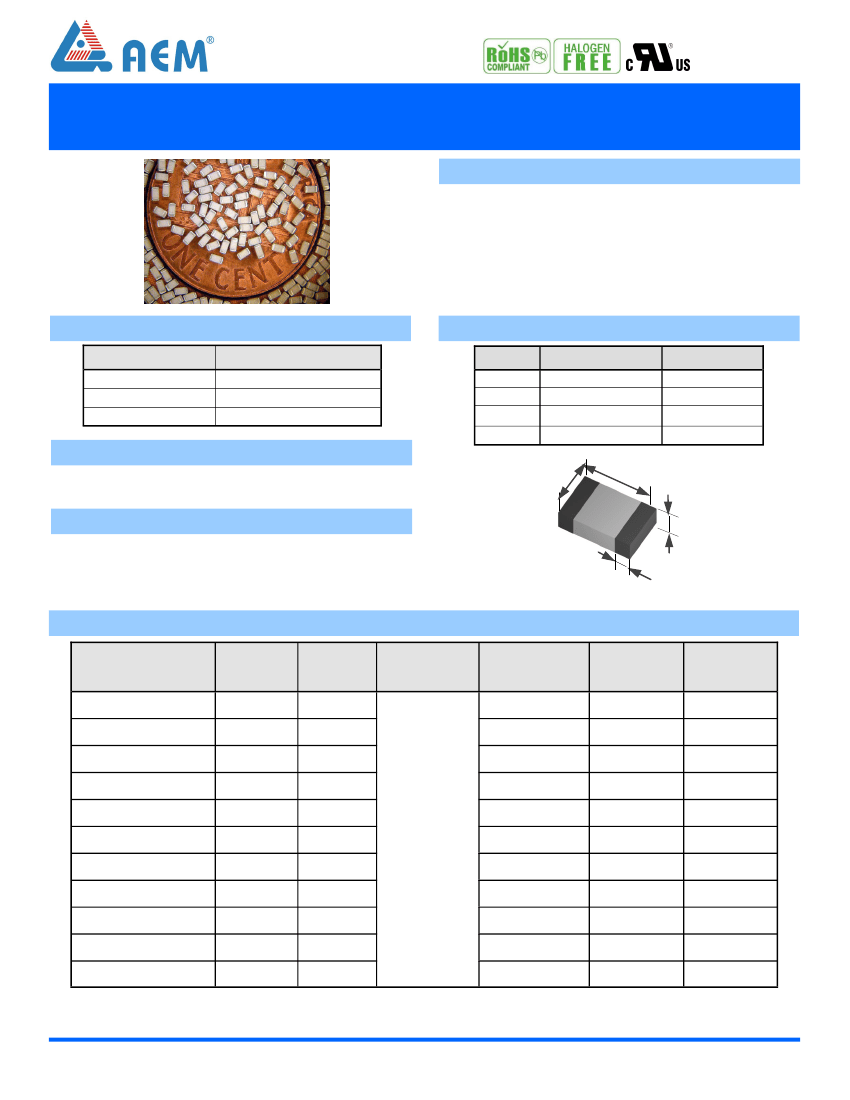

SolidMatrix
®
Surface Mount Fuses
FA Series (Fast Acting), 0603 Size
Features:
Clearing Time Characteristics:
% of current rating
100%
250%
400%
Multilayer monolithic structure with glass ceramic body
and silver fusing element
Silver termination with nickel and pure-tin solder plating,
providing excellent solderability
Compatible with both wave and reflow soldering processes
Operating temperature range: -55° to +125° (with de-
C
C
rating)
Shape and Dimensions:
Unit
L
W
T
B
Clearing time at 25°
C
4 hours min.
5 seconds max.
0.05 seconds max.
Inch
0.063 ± 0.006
0.031 ± 0.006
0.031 ± 0.006
0.014 ± 0.006
mm
1.60 ± 0.15
0.80 ± 0.15
0.80 ± 0.15
0.36 ± 0.15
Agency Approval:
Recognized Under the Components Program of UL.
File Number: E232989.
W
L
T
B
Patents:
Patent numbers “US6,034,589”, “US6,602,766”, “US7,268,661
B2”, “ZL00134544.3”, “ZL02114719.1”, “ZL200410104280.7”,
“ZL201020551360.8”, “ZL201010299185.2”,
“ZL201220030614.0”, “ZL201210020693.1”.
Ordering Information:
Part Number
F0603FA0500V063T
F0603FA0750V063T
F0603FA1000V063T
F0603FA1500V063T
F0603FA2000V032T
F0603FA2500V032T
F0603FA3000V032T
F0603FA3500V032T
F0603FA4000V032T
F0603FA5000V032T
F0603FA6000V024T
Current
Rating
(A)
0.5
0.75
1.0
1.5
2.0
2.5
3.0
3.5
4.0
5.0
6.0
Voltage
Rating
(VDC)
63
63
63
63
32
32
32
32
32
32
24
2. Melting I
2
t at 0.001 second pre-arcing time.
Interrupting
Ratings
Nominal Cold
DCR (Ω)
1
0.485
0.254
0.147
0.059
0.044
Nominal I
2
t
(A
2
s)
2
0.003
0.006
0.013
0.030
0.060
0.10
0.18
0.30
0.50
0.80
1.10
Marking
(Optional)
3
C
D
E
G
I
J
K
L
M
N
O
35 A at rated
voltages
0.032
0.025
0.024
0.018
0.013
0.010
1. Measured at ≤ 10% rated current and 25
o
C ambient.
3. Black Marking Character Code.
7
Website:
www.aemchina.com & www.aemcomponents.com
Rev. Sep. 15
SolidMatrix
®
Surface Mount Fuses
FA Series (Fast Acting), 0603 Size

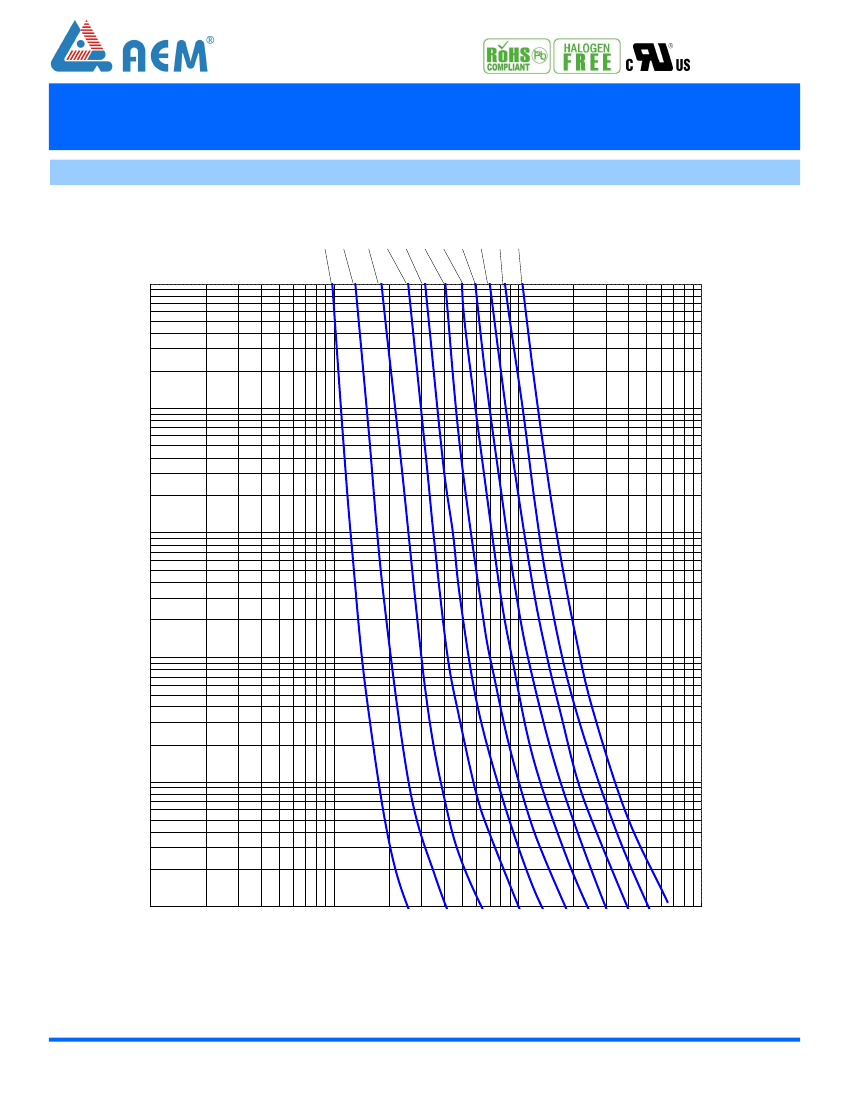

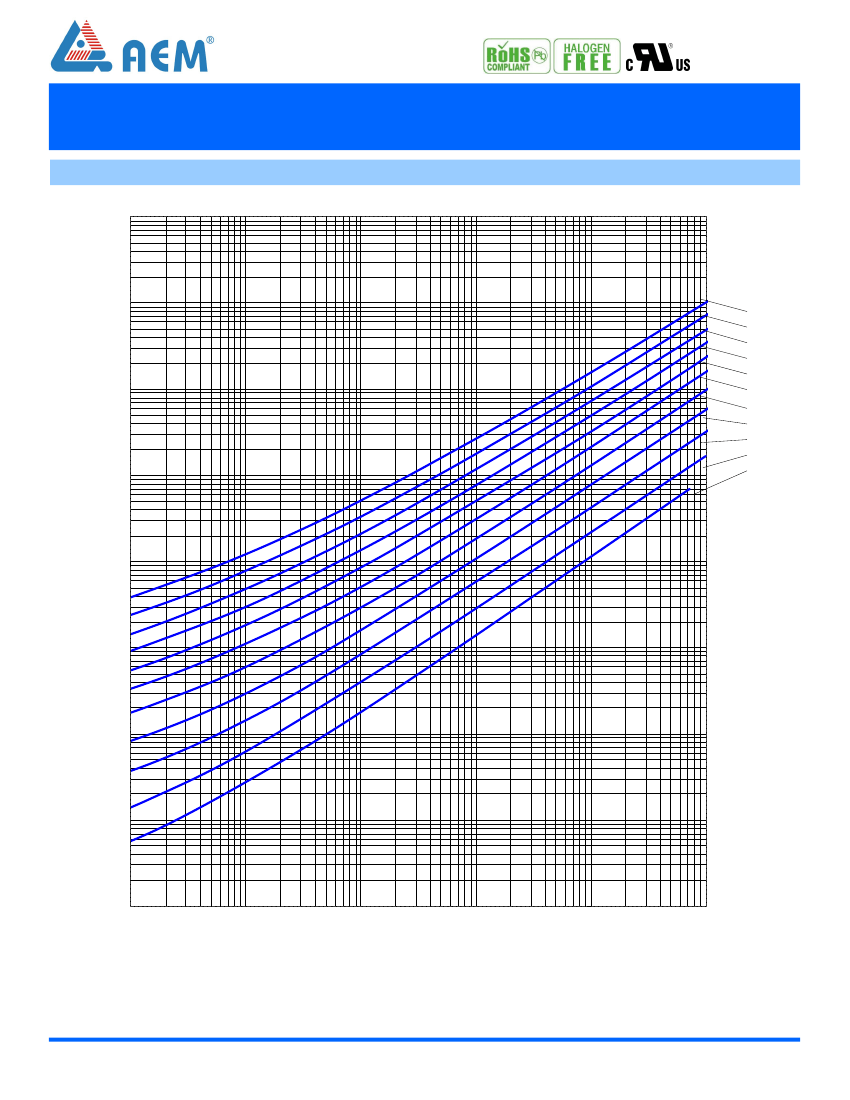

Average Pre-arcing Time Curves:
10
1
Pre-arcing Time
Clearing Time (s)
(s)
0.1
0.01
0.001
0.0001
0.1
1
10
100
0.5 A
0.75 A
1.0 A
1.5 A
2.0 A
2.5 A
3.0 A
3.5 A
4.0 A
5.0 A
6.0 A
Current (A)
Website:
www.aemchina.com & www.aemcomponents.com
8
