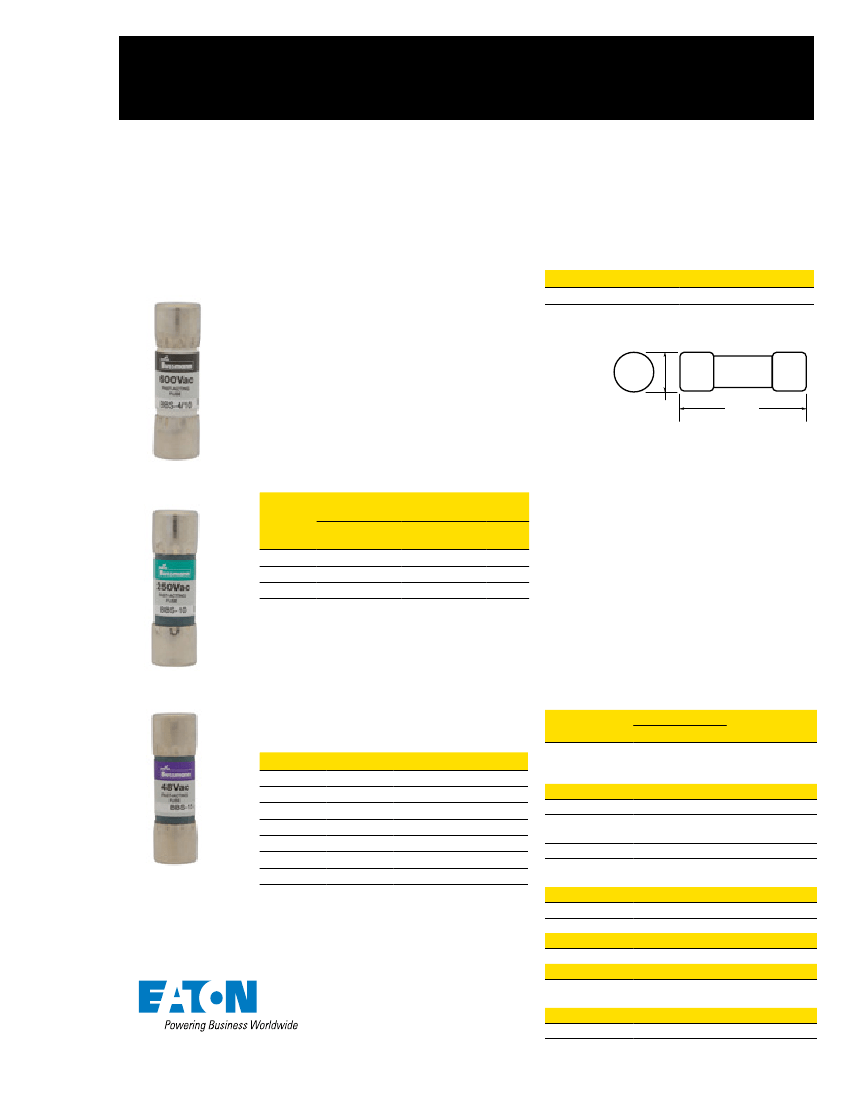

Technical Data 2010
Effective December 2015
Supersedes April 2014
BUSSMANN
SERIES
BBS 13⁄32˝ x 1-3/8˝ 600Vac fast-acting
supplemental fuses
Catalog symbol / color code:
•
Carton quantity
Amps
1/10 to 30
Qty.
10
BBS
Black (600Vac max, 1/10 to 6A)
•
Green (250Vac max, 7 to 10A)
•
Purple (48Vac max, 12 to 30A)
•
Description:
Fast-acting supplemental fuse.
For superior protection, Eaton recommends
upgrading to Bussmann series Low-Peak™
Class CC fuses. See data sheet No.1023.
Dimensions - in:
0.41"
(±0.004)
1.38"
(±0.031)
Specifications:
600Vac
1/10 to 6A
Features:
•
Ratings
Interrupting rating at
system voltage
Fuse amp
range
600
Vac
250
Vac
48
Vac
Agency
information
UL
®
CSA
®
Color coded for 600Vac (black) 250Vac
(green) and 48Vac (purple) for maximum
voltage ratings
Fiber tube construction
Nickel-plated endcaps.
•
•
1/10 to 6 10kA
7 to 10
–
12 to 30* –
–
10kA
–
–
–
–
X
X
–
X
X
-
Typical applications
•
•
•
•
•
Control circuits
Gaseous vapor fixtures
HID ballasts
Electronic circuits
Hand-held meters
* For interrupting rating, contact factory.
Agency information
•
CE
UL Listed, Std. 248-14 (1/10-6A@600Vac,
7-10A@250Vac), Guide JDYX, File E19180
CSA Certified, C22.2 No. 248.14
(1/10-6A@600Vac, 7-10A@250Vac),
Class 1422-01, File 53787
250Vac
7 to 10A
•
•
Recommended fuse blocks/fuse
holders:
Catalog
symbol
BMM
Description
Blocks
1-, 2- and 3-pole
modular blocks with
optional covers
1-, 2- and 3-pole
3-pole protection
module
3-pole holder
3-pole holder +
switch
1-pole holder
1-pole holder
1-pole holder
Data sheet
No.
10235
Catalog n
um
bers (amps)
BBS-1/10
BBS-2/10
BBS-1/4
BBS-4/10
BBS-1/2
BBS-6/10
BBS-3/4
BBS-8/10
BBS-1
BBS-1-1/2
BBS-1-6/10
BBS-1-8/10
BBS-2
BBS-3
BBS-4
BBS-5
BBS-6
BBS-7
BBS-8
BBS-10
BBS-12
BBS-15
BBS-20
BBS-25
BBS-30
DIN-Rail holders / switches
CHM
Optima NG
Optima
Optima
3185
1109
1102
1103
48Vac
12 to 30A
Panel mount holders
HPF-L
HPS-L
In-line
HEH
Fuseclips
1A3400, 5956
and 5960
Fuse covers
CVR(I)-CCM(-QC)
Finger-safe fuse cover 10235
PCB fuseclips
2132
2124
2114
2113
Technical Data 2010
Effective December 2015
BBS
600Vac fast-acting supplemental fuses

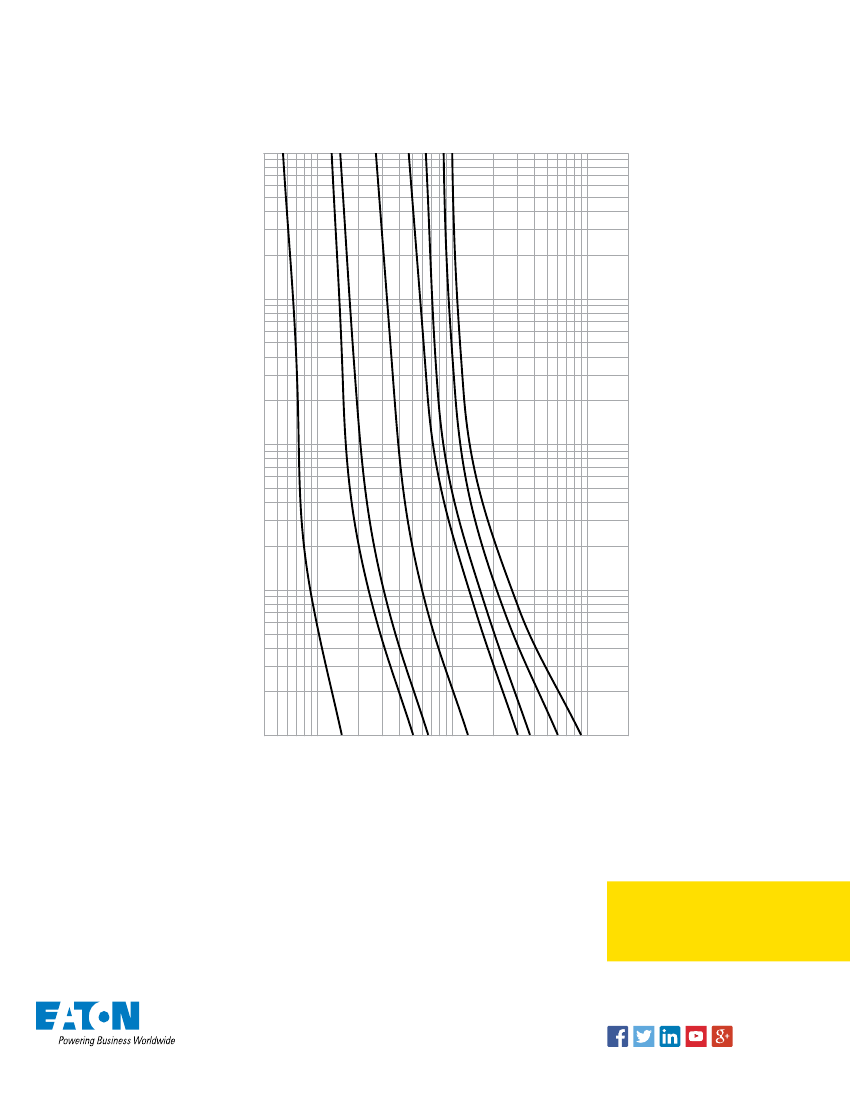

Time-current characteristic curves – average melt:
4/10
3/4
1
100
Amp
Amp
rating
Rating
2
10
Time in seconds
Time in Seconds
1
0.1
Current in
in amps
Current
Amps
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this
document are by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical
information that will help the end user with design applications. Eaton reserves the right, without notice, to change design or construction
of any products and to discontinue or limit distribution of any products. Eaton also reserves the right to change or update, without notice,
any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible
applications.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
Bussmann Division
114 Old State Road
Ellisville, MO 63021
United States
Eaton.com/bussmannseries
© 2015 Eaton
All Rights Reserved
Printed in USA
Publication No. 2010 – BU-SB14287
December 2015
Eaton, Bussmann and Low-Peak are
valuable trademarks of Eaton in the US
and other countries. You are not permitted
to use the Eaton trademarks without prior
written consent of Eaton.
CSA is a registered trademark of the
Canadian Standards Group.
UL is a registered trademark of the
Underwriters Laboratories, Inc.
100
Follow us on social media to get the
latest product and support information.
200
For Eaton’s Bussmann series
product information,
call
1-855-287-7626
or visit:
Eaton.com/bussmannseries
1
0.4
10
0.01
3
5
6
