BK-MCR-4: DescriptionFuses with Leads (Through Hole) SOLID MATRIX PICO FUSE,50; CategoryCircuit protection; File Size73KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BK-MCR-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BK-MCR-4	-	-	View	Buy Now

BK-MCR-4 Overview

Fuses with Leads (Through Hole) SOLID MATRIX PICO FUSE,50

BK-MCR-4 Parametric

Parameter Name	Attribute value
Product Category	Fuses with Leads (Through Hole)
Manufacturer	Eaton
RoHS	No
Product	PCB Mount Fuse
Current Rating	4 A
Voltage Rating AC	125 VAC
Fuse Type	Fast Blow
Body Style	Leaded Fuses
Termination Style	Axial
Fuse Size / Group	SolidMatrix
Diameter	3.1 mm
Indicator Style	Wire Element
Interrupt Rating	50 Amps
Length	7.54 mm
Factory Pack Quantity	500
Type	Specialty Fuses
Unit Weight	0.032000 oz

Preview

Download Datasheet

View All

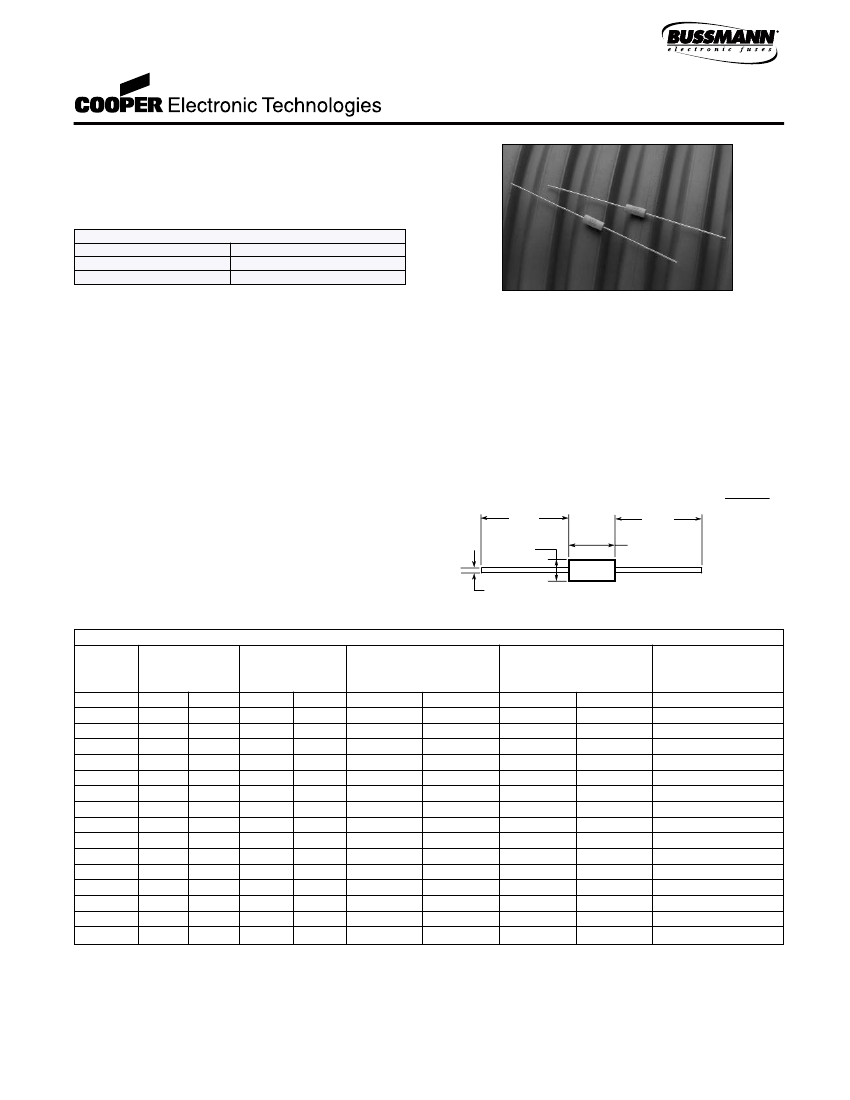

Subminiature Through Hole

MCR Series, Fast Acting, Solid Matrix

Description

• Axial Leaded

• Fast Acting, Solid Matrix Construction

• High Temperature Thermoplastic Body, UL 94 VO

• Tin-lead plated copper Lead Wires, .025" diameter

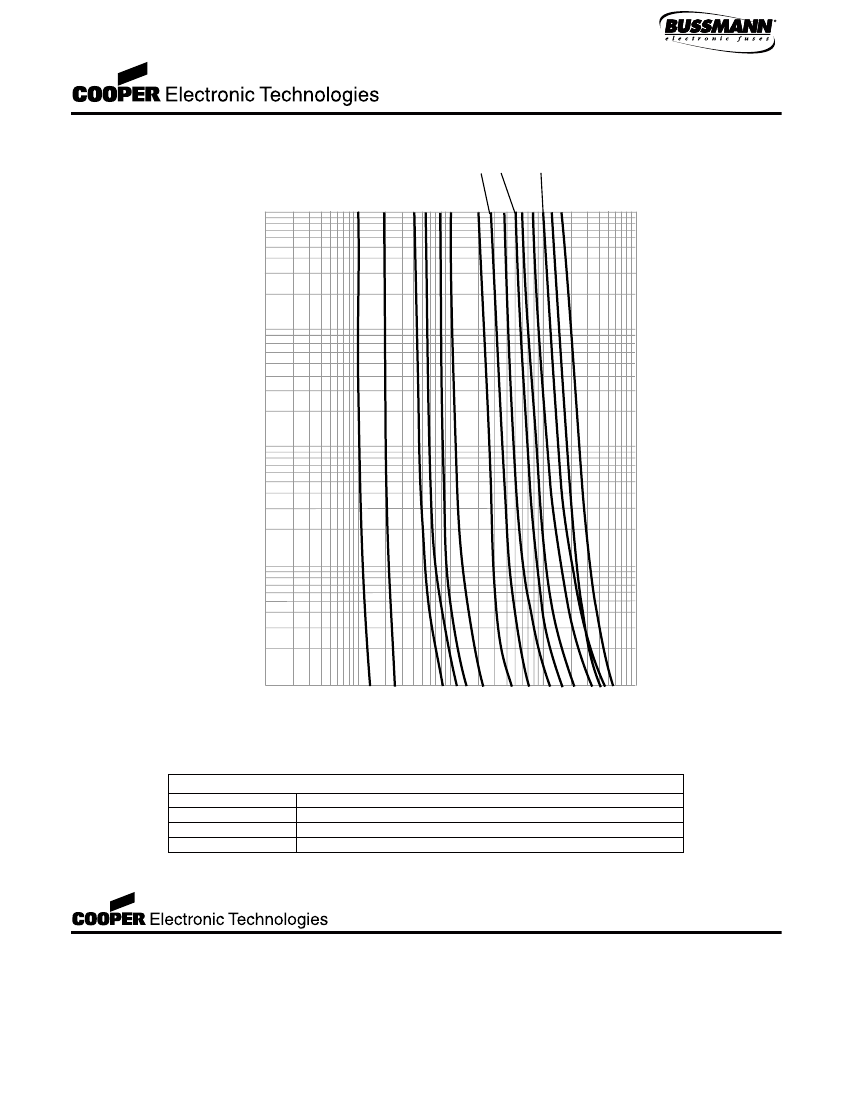

ELECTRICAL CHARACTERISTICS

% of Amp Rating (0-10A)

Opening Time

100%

4 hours minimum

250%

5 seconds maximum

OBSOLETE

- Recommended replacement with MCRW, Data Sheet 4074 -

OBSOLETE

0210

Agency Information

• UL Recognition Guide & File Numbers:

JDYX2 & E19180

• CSA Certification File & Class Numbers: 053787 C 00 &

1422 30 (0 - 1/8A); 053787 C 00 & 1422 01 (1/4A - 8A)

Ordering

• Specify product code and packaging code

Environmental Data

• Life Test: 2000 hours at 80% rated current, 55°C

• Moisture Resistance: MIL-STD-202, Method 106, 90%

relative humidity at 65°C.

• Operating Temperature: -55°C to 125°C with proper fuse

derating

• Resistance to Soldering Heat: MIL-STD-202, Method

210, Test Condition C (260°C)

• Salt Spray: MIL-STD-202, Method 101, Test Condition B

• Shock: MIL-STD-202, Method 213, Test Condition I,

100G’s for 6 milliseconds

• Solderability: MIL-STD-202, Method 208

• Terminal Strength: MIL-STD-202, Method 211, Test

Condition A, will withstand 7 lb. axial pull test.

• Thermal Shock: MIL-STD-202, Method 107, Test

Condition B, -65°C to 125°C

• Thermal Cycle: EIA-STD-RS-186-C, Test Condition A,

-55°C to 85°C

• Vibration: MIL-STD-202, Method 204, Test Condition C,

(55 to 2000 HZ, 10G’s peak)

• Wave Soldering: Maximum reservoir temperature

260°C, 10 second maximum exposure, .125" from body.

Dimensions

mm

⁄

(inches)

*All tolerances:

±0.005"

±0.13mm

1.13"

28.58mm

.12"

3.10mm

.025"

0.64mm

1.13"

28.58mm

.297"

7.54mm

SPECIFICATIONS

Product

Code

MCR-1/16

MCR-1/8

MCR-1/4

MCR-3/8

MCR-1/2

MCR-3/4

MCR-1

MCR-1 1/2

MCR-2

MCR-2 1/2

MCR-3

MCR-3 1/2

MCR-4

MCR-5

MCR-7

MCR-10

Rated

Voltage

AC

DC

125V

60V

90V

60V

90V

Interrupting

Rating

1

AC

DC

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

50A

300A

Pre-arching

2

I

2

t (A

2

sec)

AC

DC

-6

1.1 x 10

1.0 x 10

-7

-6

4.3 x 10

7.1 x 10

-7

8.0 x 10

-5

1.0 x 10

-6

9.7 x 10

-5

6.7 x 10

-6

7.4 x 10

-4

5.4 x 10

-5

1.3 x 10

-3

7.4 x 10

-5

.01

.03

.02

.09

.07

.19

.14

.35

.28

.56

.37

.96

.67

1.82

1.34

1.48

.49

3.62

1.16

Typical Total Clearing

2

I

2

t (A

2

sec)

AC

DC

-6

1.8 x 10

1.5 x 10

-7

-6

7.3 x 10

8.7 x 10

-7

1.2 x 10

-4

1.3 x 10

-6

1.1 x 10

-4

8.3 x 10

-6

6.2 x 10

-3

6.8 x 10

-5

7.5 x 10

-2

9.2 x 10

-5

.02

.01

.04

.03

.11

.08

.25

.17

.45

.32

.83

.43

1.37

.77

2.53

1.51

2.02

.58

4.41

1.38

Typical Voltage

Drop Volts at

100% Rated

2.33

1.52

.76

.73

.65

.55

.24

.20

.16

.15

.14

.13

.11

.10

.08

1. Interrupting ratings were measured at 100% (1/16 to 5) and 100% (7, 10) power factors on AC, and a time constant less than 1 ms. on DC.

2. I

2

t was measured at 50 amps 125 VAC, .95PF, (random closing angle) and 300 amps 125 VDC, TC <1ms. for 1/16 through 5 amps and 50 amps 60 VAC, .95PF,

(random closing angle), and 300 amps 90 VDC, TC <1ms. for the 7 and 10 amp fuses.

NOTE: All values shown above are typical.

• Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required

at elevated ambient temperatures.

BU-SB10142

Page 1 of 2

Data Sheet 2003
