UMZ 250
Surface Mount Fuse with Clip, 4.2 x 11.1 mm, Time-Lag T, UMZ 250 = UMT 250 (Au) + UMC 250
IEC 60127-4 · 250 VAC · 125 VDC · Time-Lag T
Description
Approvals and Compliances
- VDE/UL Approvals UMT 250, UMT 250 (Au), UMC 250 , see variants
- High breaking capacity of 200 A @ 250 VAC (IEC)
- UL approval for 0.08 A - 4 A 277 VAC and 250 VDC
Applications
References
Weblinks
- Primary protection on SMD PCBs
Packaging Details
Fuse Kit
Fuse Kit UMT 250 / UMZ 250
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product, Microsite
Unique Selling Proposition
- Compact design
- Maximum breaking capacity at minimal footprint
Technical Data
Rated Voltage
Rated current
Breaking Capacity
Characteristic
Mounting
Admissible Ambient Air Temp.
Climatic Category
Material: Housing
Material: Terminals
Storage Conditions
Product Marking
250 VAC, 125 VDC
0.08 - 4 A
200 A
Time-Lag T
PCB,SMT
-40 °C to 85 °C
40/085/21 acc. to IEC 60068-1
Ceramic
Gold-Plated Copper Alloy
0 °C to 60 °C, max. 70% r.h.
, Rated current, Rated Voltage, Cha-
racteristic, Breaking Capacity
Soldering Methods
Solderability
Resistance to Soldering Heat
Life Test
Moisture Resistance Test
Terminal Strength
Mechanical Shock
Resistance to Solvents
Flammability
Reflow
Soldering Profile
245 °C / 3 sec acc. to IEC 60068-2-58
260 °C / 10 sec acc. to IEC 60068-2-58
MIL-STD-202, Method 108A
(1000h @ 0.42*In @ 70°C)
MIL-STD-202, Method 106E
(50 cycles in a temp./mister chamber)
MIL-STD-202, Method 211A
(Deflection of board 1 mm for 1 minute)
MIL-STD-202, Method 213B
(Shock 50g, half sine wave, 11 ms)
Cleaning with common solvents
min. UL 94V-1
(acc. to EIA/IS-722, Test 4.12)
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: UMZ 250
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
VDE Certificate Number: 40013121 / 40023291
UL File Number: E39328
Fuses
1
UMZ 250
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60127-6
IEC 60127-4
UL 248-14 / 4248-1
CSA22.2 No. 248.14 / No. 4248.1
Description
https://www.schurter.com /PG01_2
Fuses
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Miniature fuses. Part 4. Universal modular fuse-links for through-hole and
surface mount types
Low voltage fuses - Part 14: Additional fuses
Low-Voltage Fuses - Part 14: Supplemental Fuses
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
REACH
SCHURTER AG
SCHURTER AG
Dimension [mm]
11.3 mm
10.7
11.3
3
5.5
3
3.6
2
6.7
4.2
Soldering pads
Pre-Arcing Time
Rated Current In
0.08 A - 4.0 A
1.25 x In min.
60 min
2.0 x In max.
120 s
10.0 x In min. 10.0 x In max.
10 ms
100 ms
2
Fuses
4.75
10.1
+0.2
0
4
Fuses
https://www.schurter.com /PG01_2
UMZ 250

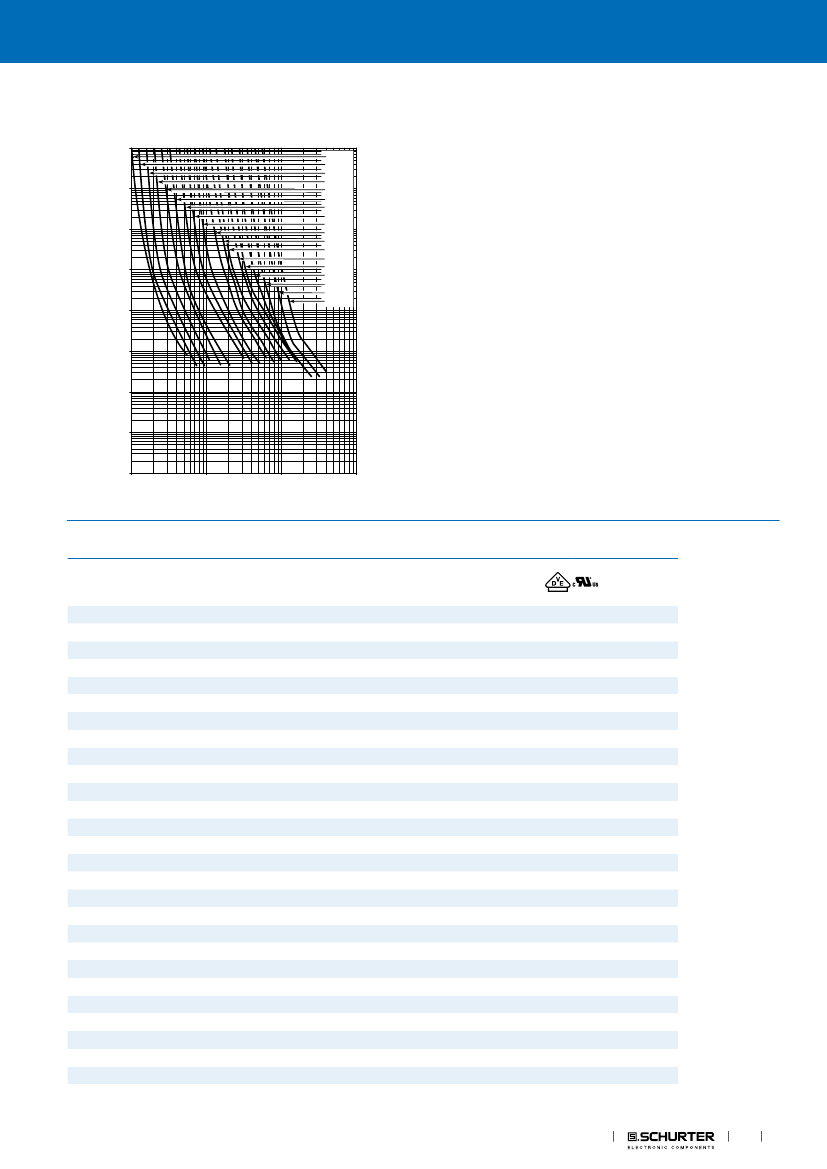

Time-Current-Curves
10000
80 mA
100 mA
125 mA
160 mA
200 mA
250 mA
315 mA
400 mA
500 mA
630 mA
800 mA
1A
1.25 A
1.6 A
2A
2.5 A
3.15 A
4A
1000
100
10
Time in Seconds
1
0.1
0.01
0.001
0.0001
0.1
1
10
100
Current in Amperes
All Variants
Rated Cur-
rent [A]
Rated Vol-
tage [VAC]
Rated Vol-
tage [VDC]
Breaking
Capacity
Voltage Drop
1.0 In max.
[mV]
-
-
1300
1300
1000
1000
1000
1000
1000
1000
800
800
750
750
700
700
600
600
500
500
400
400
300
300
300
300
300
300
Voltage Drop
1.0 In typ.
[mV]
1030
1030
850
850
700
700
540
540
460
460
395
395
344
344
320
320
264
264
216
216
174
174
174
174
140
140
130
130
Power Dissi-
pation 1.25 In
max [mW]
-
-
200
200
200
200
240
240
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
1000
1000
1000
1000
Melting I²t
10.0 Intyp.
[A²s]
0.022
0.022
0.04
0.04
0.055
0.055
0.057
0.057
0.092
0.092
0.2
0.2
0.27
0.27
0.4
0.4
0.54
0.54
1.1
1.1
1.4
1.4
2.8
2.8
4.5
4.5
6.9
6.9
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Order Number
0.08
0.08
0.1
0.1
0.125
0.125
0.16
0.16
0.2
0.2
0.25
0.25
0.315
0.315
0.4
0.4
0.5
0.5
0.63
0.63
0.8
0.8
1
1
1.25
1.25
1.6
1.6
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
2)
2)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
3404.2405.11
3404.2405.22
3404.2406.11
3404.2406.22
3404.2407.11
3404.2407.22
3404.2408.11
3404.2408.22
3404.2409.11
3404.2409.22
3404.2410.11
3404.2410.22
3404.2411.11
3404.2411.22
3404.2412.11
3404.2412.22
3404.2413.11
3404.2413.22
3404.2414.11
3404.2414.22
3404.2415.11
3404.2415.22
3404.2416.11
3404.2416.22
3404.2417.11
3404.2417.22
3404.2418.11
3404.2418.22
█
█
█
█
█
█
█
█
█
█
█
█
█
Fuses
3
UMZ 250
Rated Cur-
rent [A]
Rated Vol-
tage [VAC]
Rated Vol-
tage [VDC]
Breaking
Capacity
Voltage Drop
1.0 In max.
[mV]
300
300
300
300
300
300
300
300
Voltage Drop
1.0 In typ.
[mV]
103
103
90
90
95
95
83
83
Power Dissi-
pation 1.25 In
max [mW]
1000
1000
1200
1200
1500
1500
2000
2000
Melting I²t
10.0 Intyp.
[A²s]
7.3
7.3
7.5
7.5
14
14
26
26
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
https://www.schurter.com /PG01_2
Fuses
Order Number
2
2
2.5
2.5
3.15
3.15
4
4
█
Most Popular.
250
250
250
250
250
250
250
250
125
125
125
125
125
125
125
125
1)
1)
1)
1)
1)
1)
1)
1)
3404.2419.11
3404.2419.22
3404.2420.11
3404.2420.22
3404.2421.11
3404.2421.22
3404.2422.11
3404.2422.22
█
█
█
█
█
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) IEC: 200 A @ 250 VAC, p.f.
≥
0.95 / 100 A @ 125 VDC
1) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC
2) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC
Approval Overview
UMT 250 -> Fuse with tin-plated caps, Approval Status: VDE, UL LISTED, cURus, Free of CCC, PSE JET, KTL
UMT 250 (Au) -> Fuse with gold-plated caps, Approval Status: VDE Mark and cURus
UMC 250 -> Clip, Approval Status: VDE UG Mark and cURus
UMZ 250 = UMT 250 (Au) + UMC 250
There is no approval existing for the combination fuse and clip UMZ 250, but the fuse and the clip are fully approved independently at VDE/UL. See
details above.
In the reflow soldering process, the fuse must have gold-plated caps, otherwise fuse and clip would be soldered together. For fuse replacement in the
field, a standard UMT 250 fuse with tin-plated caps can be used. This is not allowed for the 80 mA version. This must be replaced with an original UMZ
with gold caps.
It is not allowed to replace higher rated current than 4 A in the clip.
Packaging Unit
.xx = .11 Blister Tape of 100 pcs. in Plastic Bag
.xx = .22 Blister Tape 33 cm Reel (1000 pcs.)
4
Fuses
