PTCSL03T131DT1E

Description
PTC Thermistor, Through Hole Mount, RADIAL LEADED
CategoryPassive components    The resistor
File Size122KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

PTCSL03T131DT1E Online Shopping

Suppliers Part Number Price MOQ In stock
PTCSL03T131DT1E - - View Buy Now

PTCSL03T131DT1E Overview

PTC Thermistor, Through Hole Mount, RADIAL LEADED

PTCSL03T131DT1E Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7022208662
package instructionRADIAL LEADED
Reach Compliance Codecompliant
Factory Lead Time16 weeks
Samacsys ManufacturerVishay
Samacsys Modified On2019-12-17 09:32:41
YTEOL7.2
Other features20-120 OHMS AT 25 DEG CEL
Installation featuresTHROUGH HOLE MOUNT
Number of terminals2
Maximum operating temperature145 °C
Minimum operating temperature-40 °C
Package shapeDISK PACKAGE
method of packingTR
Resistor typePTC THERMISTOR
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Thermistor ApplicationsOVERLOAD PROTECTION

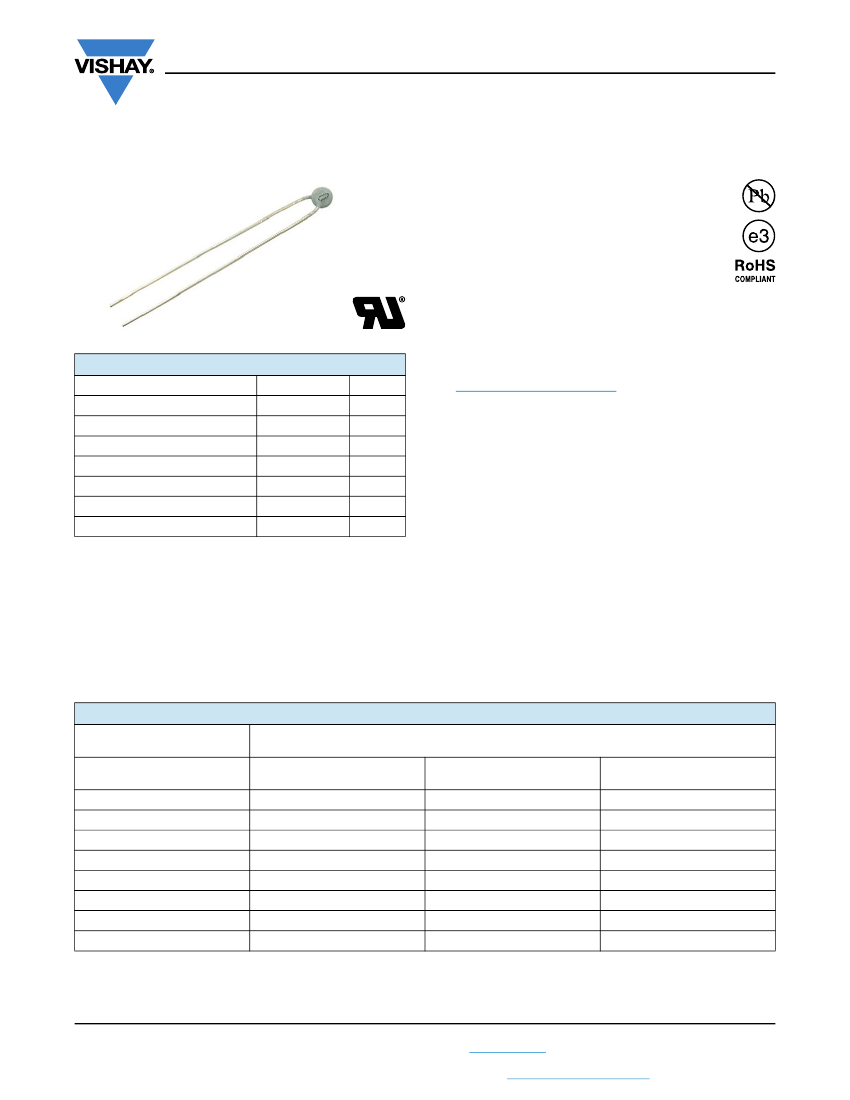

PTCSL03
www.vishay.com
Vishay BCcomponents
PTC Thermistors, Mini Radial Leaded
for Over-Temperature Protection
FEATURES
• Well-defined protection temperature levels
• Fast response time
• Accurate resistance for ease of circuit design
• Excellent long term behavior (T
1 °C after
1000 h at T
n
+ 15 °C)
• Wide range of protection temperatures (80 °C to 150 °C)
• Small size and rugged
• Coated leaded (bare pellets available)
• Material categorization:
for
definitions
of
compliance
www.vishay.com/doc?99912
QUICK REFERENCE DATA
PARAMETER
Resistance at 25 °C (R
25
)
Nominal working temperature T
n
Maximum voltage
Operating temperature range
(1)
Dissipation factor
Thermal time constant (still air)
Weight
VALUE
20 to 120
80 to 150
30
-40 to +165
5
6
0.12
UNIT
°C
V
°C
mW/K
s
g
please
see
APPLICATIONS
Over-temperature protection and control in:
• Industrial electronics, motor drives, and lighting drivers
• Power supplies, converters, and heat-sink
• Motor protection
DESCRIPTION
These PTC sensing thermistors consist of a medium
resistivity doped barium titanate ceramic with copper clad
steel wires lead (Pb)-free soldered to the Ag metalized pellet.
A high temperature silicone coating covers the sensing body
and has a temperature marking character.
Note
(1)
Max operating temperature range is T +15 °C, indicated value
n
is for T
n
= 150 °C.
PACKAGING
PTC thermistors are available in 500 pieces bulk packed or
2000 pieces tape on reel.
NOMINAL WORKING TEMPERATURES AND ORDERING INFORMATION
NOMINAL WORKING
TEMPERATURE
T
n
(°C)
80
90
100
110
120
130
140
150
BULK
PTCSL03T081DB1E
PTCSL03T091DB1E
PTCSL03T101DB1E
PTCSL03T111DB1E
PTCSL03T121DB1E
PTCSL03T131DB1E
PTCSL03T141DB1E
PTCSL03T151DB1E
VISHAY SAP ORDERING NUMBER
TAPE AND REEL
PTCSL03T081DT1E
PTCSL03T091DT1E
PTCSL03T101DT1E
PTCSL03T111DT1E
PTCSL03T121DT1E
PTCSL03T131DT1E
PTCSL03T141DT1E
PTCSL03T151DT1E
MARKING CODE
8
9
0
1
2
3
4
5
Note
• 2E pitch version in bulk or tape and reel available on request.
Revision: 02-Mar-16
Document Number: 29160
1
For technical questions, contact:
nlr@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

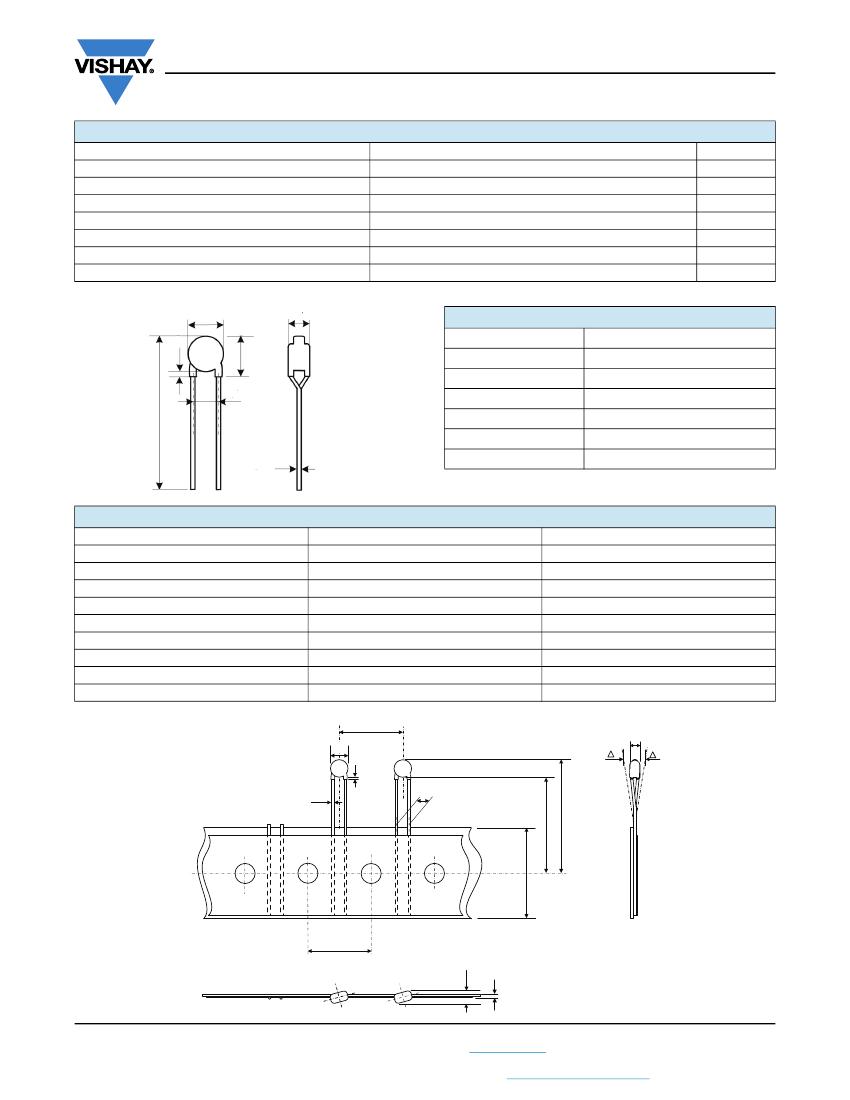

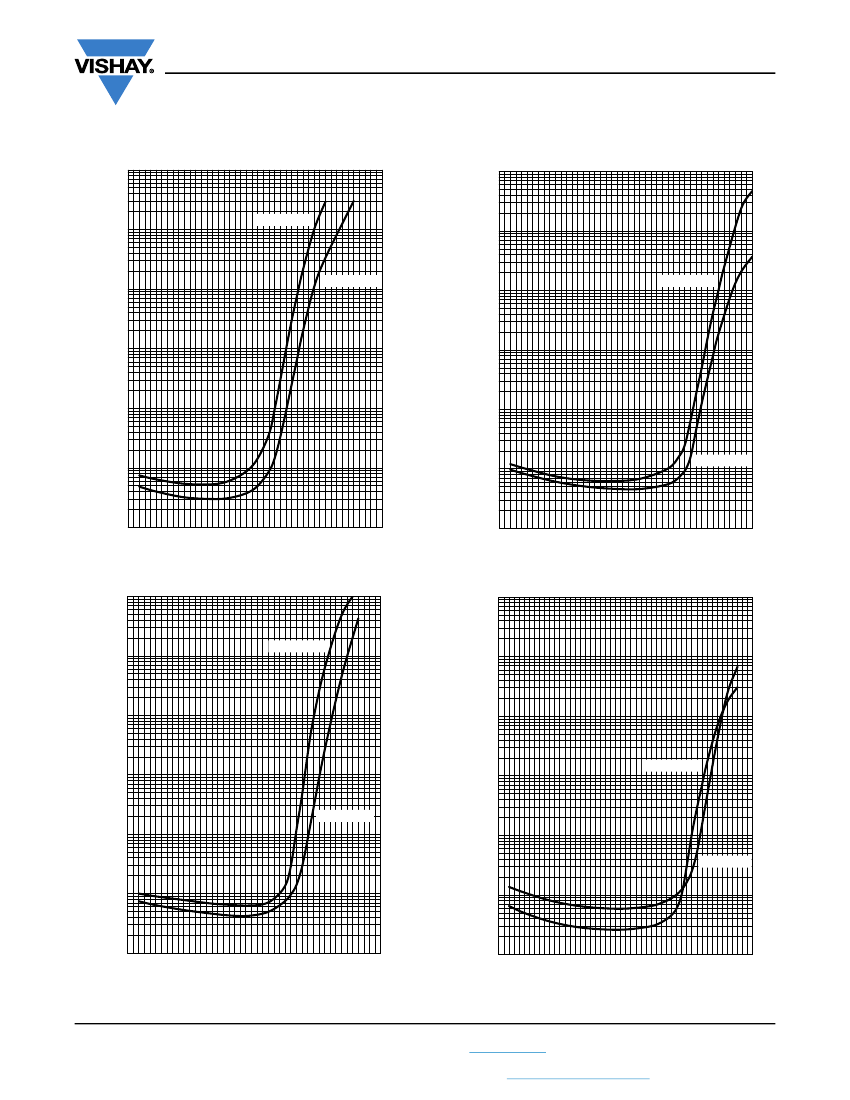

www.vishay.com/doc?91000
