Part Number

Search

PIN1215C-332KB

Description
General Purpose Inductor, 3300uH, 10%, 1 Element, RADIAL LEADED
CategoryPassive components    inductor
File Size185KB,6 Pages
ManufacturerFenghua (HK) Electronics Ltd.
Download Datasheet Parametric View All

PIN1215C-332KB Overview

General Purpose Inductor, 3300uH, 10%, 1 Element, RADIAL LEADED

PIN1215C-332KB Parametric

Parameter NameAttribute value
MakerFenghua (HK) Electronics Ltd.
Reach Compliance Codeunknown
ECCN codeEAR99
structureBobbin
DC Resistance3.3 Ω
Nominal inductance(L)3300 µH
Inductor ApplicationsDC-DC CONVERTER
Inductor typeGENERAL PURPOSE INDUCTOR
Lead diameter0.8 mm
Lead length10 mm
lead spacing7.5 mm
Manufacturer's serial numberPIN
Number of functions1
Number of terminals2
Package diameter12.5 mm
Package length15 mm
Package formRadial
method of packingBulk
Maximum rated current0.6 A
seriesPIN
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Test frequency0.001 MHz
Tolerance10%
Base Number Matches1

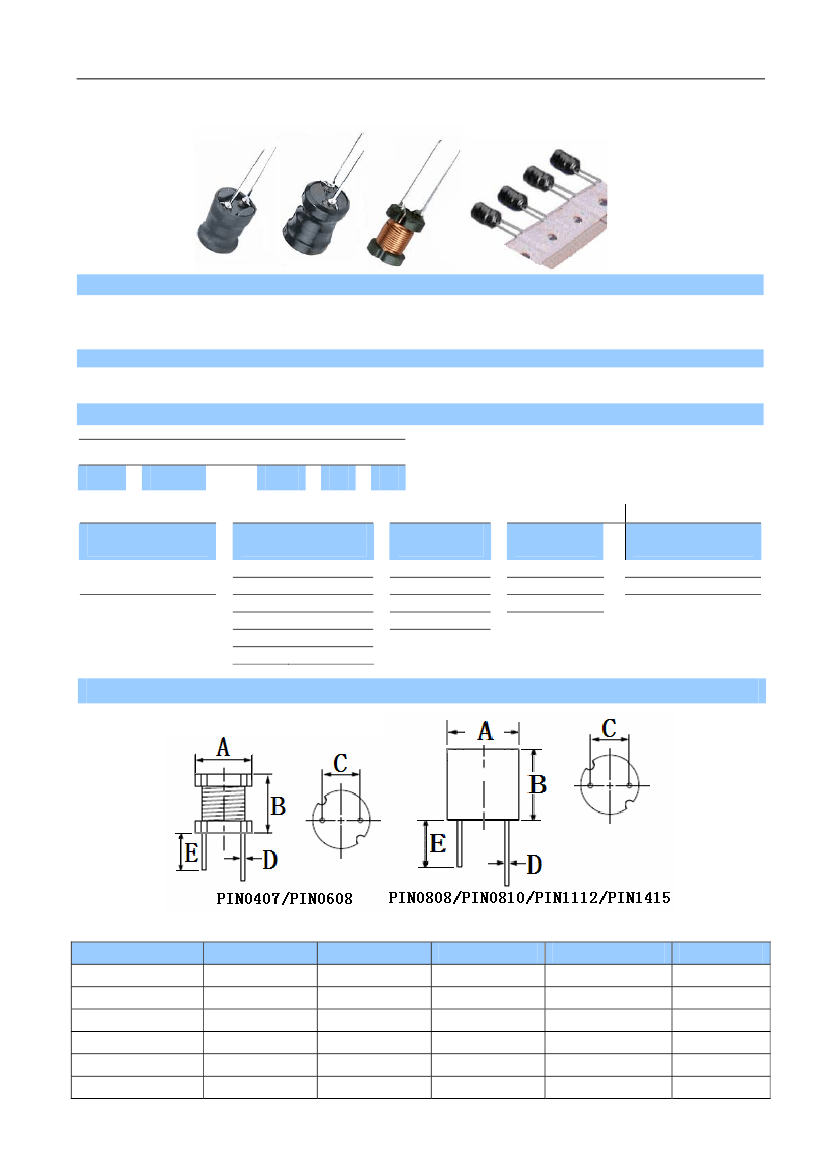

广东肇庆英达电感器件有限公司
GUANGDONG ZHAOQING YINGDA INDUCTOR CO.,LTD
表面贴装元件
SMD COMPONENTS
PIN
系列工字型电感
PIN Series Radial Choke Inductors
特征
FEATURES
·高效率及高饱和电流
·可根据客户要求进行设计
·High reliability,efficiency and saturation
· Design as customer’s requested
应用
APPLICATIONS
打印机/液晶电视/复印机
·DC/DC
½换
Printers/LCD TV/Copy Machine
· DC/DC converters
产品规格型号表示方法
ORDERING CODE
PIN
产品代号
Code
PIN
系列功率电感
0407
150
规格尺寸
Dimensions
0407
0608
0808
0810
1112
1415
M
电感量
(µH)
Inductance
1R0
100
101
102
1.0
10
100
1000
误差
Tolerance
J
K
M
±5%
±10%
±20%
包装方式
Packaging Style
5.0×8.0
7.0×10.0
8.8×8.8
9.0×12.5
10.8×12.5
16.0×18.0
T
B
Tape&Reel
Blku
外½尺寸
Dimensions
单½(Unit):mm
型号
Type
PIN0407
PIN0608
PIN0808
PIN0810
PIN1112
PIN1415
A
4.5±0.3
6.0±0.3
8.6±0.3
9.5±0.5
10.6±0.3
15.5±0.5
B
7.0±0.3
8.0±0.3
8.6±0.3
10.6±0.5
10.6±0.3
15.6±0.5
C
2.00±0.5
3.00±0.5
5.00±0.5
5.00±0.5
5.00±0.5
7.50±0.5
D
0.60±0.05
0.60±0.05
0.60±0.05
0.60±0.05
0.65±0.05
0.80±0.05
E (Min)
10.0
10.0
10.0
10.0
10.0
10.0
