SMCG100A-HR

Description
ESD Suppressors / TVS Diodes 1500W 100V 5% Uni-Directional
CategoryDiscrete semiconductor    diode
File Size1MB,6 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Environmental Compliance
Download Datasheet Parametric View All

SMCG100A-HR Online Shopping

Suppliers Part Number Price MOQ In stock
SMCG100A-HR - - View Buy Now

SMCG100A-HR Overview

ESD Suppressors / TVS Diodes 1500W 100V 5% Uni-Directional

SMCG100A-HR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerLittelfuse
package instructionR-PDSO-L2
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresEXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED
Maximum breakdown voltage123 V
Minimum breakdown voltage111 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 codeDO-215AB
JESD-30 codeR-PDSO-L2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak reverse power dissipation1500 W
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
polarityUNIDIRECTIONAL
Maximum power dissipation6.5 W
GuidelineIEC-61000-4-2; IEC-61000-4-4
Maximum repetitive peak reverse voltage100 V
surface mountYES
technologyAVALANCHE
Terminal surfaceMatte Tin (Sn)
Terminal formL BEND
Terminal locationDUAL

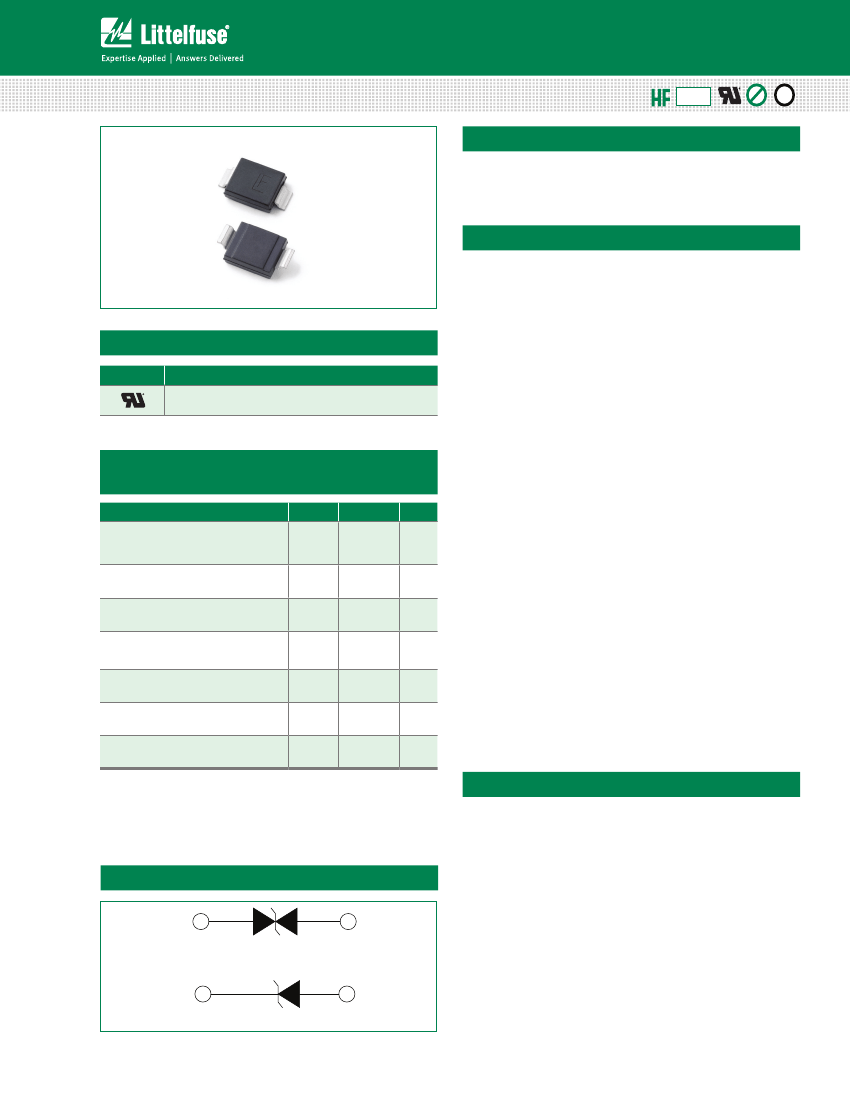

Transient Voltage Suppression Diodes
Surface Mount – 1500W > SMCG-HR series
SMCG-HR Series
Description
RoHS
Pb
e3
The SMCG-HR series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
• High-Reliability up-
screened for critical
applications require higher
reliability performance
and low infant mortality
failures.
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical I
R
less than 1µA
above 12V
• For surface mounted
applications to optimize
board space
• L bend lead forming gives
best solderbility for Hi
reliability application
• ypical failure mode is
T
short from over-specified
voltage or current
• hisker test is conducted
W
based on JEDEC
JESD201A per its table 4a
and 4c
• EC-61000-4-2 ESD
I
15kV(Air), 8kV (Contact)
• SD protection of data
E
lines in accordance with
IEC 61000-4-2 (IEC801-2)
• FT protection of data
E
lines in accordance with
IEC 61000-4-4 (IEC801-4)
• Built-in strain relief
• Fast response time:
typically less than 1.0ps
from 0V to BV min
• 1500W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
V
BR
@T
J
= V
BR
@25°C x (1+αT
x (T
J
- 25)) (αT:Temperature
Coefficient, typical value is
0.1%)
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at
T
A
=25ºC
by 10/1000µs waveform
(Fig.2)(Note 1), (Note 2)
Power Dissipation on infinite heat
sink at T
A
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
only
Operating Junction and Storage
Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
M(AV)
I
FSM
V
F
T
J
, T
STG
R
uJL
R
uJA
Value
1500
6.5
200
3.5
-65 to 150
15
75
Unit
W
W
A
V
°C
°C/W
°C/W
• Glass passivated chip
junction
• High temperature
soldering guaranteed:
260°C/10 seconds at
terminals
• eet MSL level1, per
M
J-STD-020, LF maximun
peak of 260
°
C
• Matte tin lead–free plated
• Halogen free
• RoHS compliant with
exemption 7a and 7c-I
• 2nd level interconnect is
Pb-free per IPC/JEDEC
J-STD-609A.01
Notes:
1. Non-repetitive current pulse , per Fig. 4 and derated above T
A
= 25
O
C per Fig. 3.
2. Mounted on copper pad area of 0.31x0.31” (8.0 x 8.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only, duty cycle=4 per minute maximum.
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
Functional Diagram
Bi-directional
Cathode
Uni-directional
Anode
©2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/09/15
