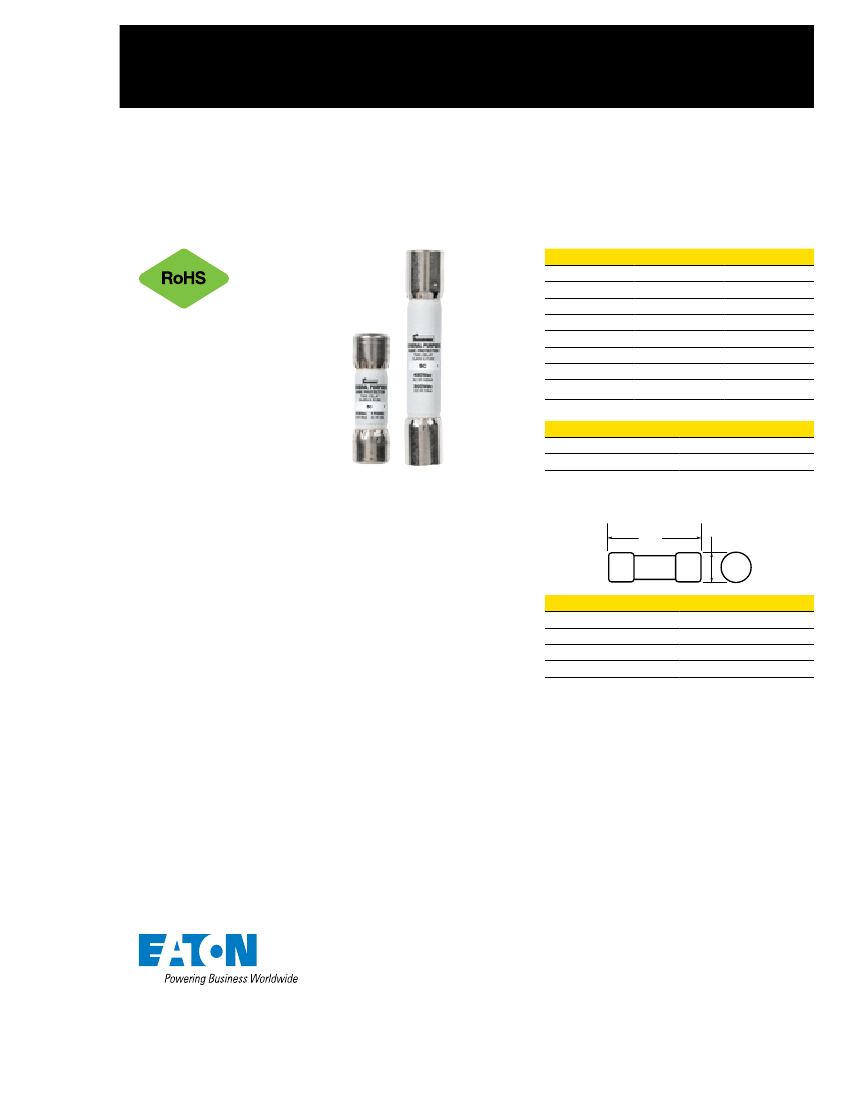

Technical Data 1024
Effective December 2015
Supersedes August 2013
BUSSMANN
SERIES
SC Class G, 600Vac/480Vac, 1⁄2-60A
size-rejecting fuses
Catalog numbers (amps)
SC-1⁄2
SC-6
SC-1
SC-7
SC-1-1⁄2
SC-8
SC-2
SC-10
SC-2-1⁄2
SC-12
SC-3
SC-15
SC-4
SC-20
SC-5
SC-25
SC-30
SC-35
SC-40
SC-45
SC-50
SC-60
Carton quantity:
Amp rating
1/2-20
25–60
Carton qty.
4
2
Catalog symbol:
•
Dimensions - in (mm):
A
(Length)
0.41”
(10.41mm)
SC-(amp)
Description:
Basic protection Class G size-rejecting, current
limiting fuses. 1/2 to 6A Fast-acting, 7 to 60A
time-delay. Time-delay – 12 seconds (minimum)
at 200% of rated current.
Amp rating
1/2-15
20
25 to 30
35 to 60
Specifications:
Ratings
•
A
1.31 (33.3)
1.41 (35.8)
1.62 (41.1)
2.25 (57.1)
Volts
•
600Vac/170Vdc (½-20A)
•
Features:
•
480Vac/300Vdc (25-60A)
•
•
Amps 1/2-60A
IR
•
•
•
Meets basic protection requirements of
NEC
®
, Canadian Electrical Code (CEC), UL
and CSA.
Most economical overcurrent protection
solution compared to circuit breakers.
For use in various non-demanding, general
purpose applications.
Compact branch-circuit units with high
interrupting rating and current-limitation.
With up to a 600V rating, they can be used in
120/208V, 120/240V, and 277/480V circuits.
Size rejection by length helps prevent
overfusing.
Fuses 7 amps and above have a degree of
overload time-delay that permits them to
pass temporary overloads.
100kA Vac RMS Sym.
10kA Vdc
•
Agency information
•
•
UL Listed, Std. 248-5, Class G,
Guide JDDZ, File E4273
®
•
•
CSA Certified, C22.2 No. 248.5,
Class 1422-01, File 53787
®
•
•
•
CE
RoHS compliant
•
SC Class G 600Vac/480Vac, 1⁄2-60A size-rejecting fuses
Technical Data 1024
Effective December 2015
Recommended fuse blocks:
Fuse amps
1⁄2-15
20
25-30
35-60
1-Pole
BG30011_
BG30021_
BG30031_
G30060-1C_
Fo
3-Pole
BG30013_
BG30023_
BG30033_
G30060-2C_

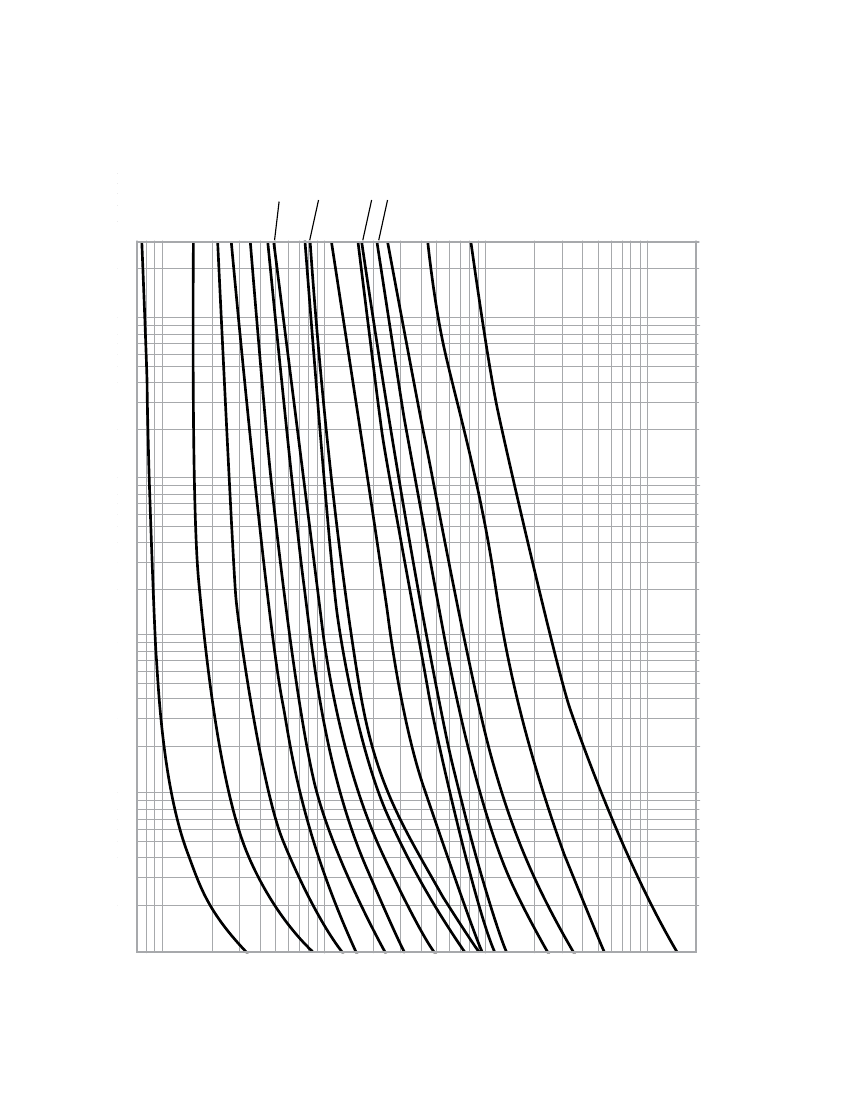

Current-limitation curves:
10,000
B
Instantaneous peak-let-through current in amps
2-Pole
BG30012_
BG30022_
BG30032_
G30060-2C_
60
30
20
15
1000
A
100
100
1000
10,000
100,000
RMS symmetrical currents in amps
A - B = Asymmetrical Available peak (2.3 x Sym. RMS amps)
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
Bussmann Division
114 Old State Road
Ellisville, MO 63021
United States
Eaton.com/bussmannseries
© 2015 Eaton
All Rights Reserved
Printed in USA
Publication No. 1024 – BU-SB13733
December 2015
Eaton and Bussmann are valuable
trademarks of Eaton in the US and other
countries. You are not permitted to use the
Eaton trademarks without prior written
consent of Eaton.
CSA is a registered trademark of the
Canadian Standards Group.
NEC is a registered trademark of the
National Fire Protection Association, Inc.
UL is a registered trademark of the
Underwriters Laboratories, Inc.
For Eaton’s Bussmann series
product information,
call
1-855-287-7626
or visit:
Eaton.com/bussmannseries
Follow us on social media to get the
latest product and support information.
Amp rating
3
For additional information on the BG and G Series of Class G
fuse blocks, see data sheet No. 1006.
