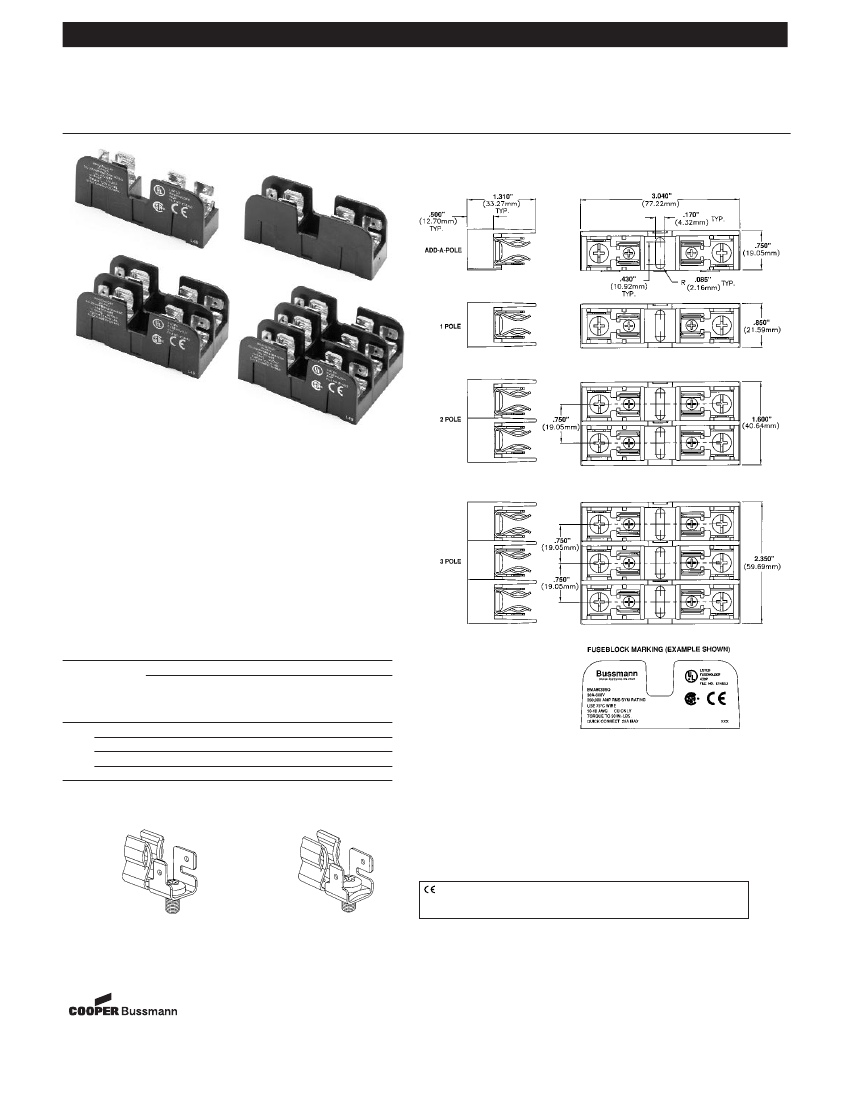

Bussmann
®
Supplementary Fuseblocks
Type M, For ⁄‹Ω£™∑ ≈ 1⁄Ω™∑ Fuses
600 Volt, 30 Amps
BMA Series
Dimensional Data
All dimensions ±.015’’
(.38mm)
Catalog Symbol:
BMA Series
Type M Supplementary Fuseblocks
For use with any ⁄‹Ω£™∑ ≈ 1⁄Ω™∑ Fuses
(Bussmann KTK, FNQ, FNM, BAF, BAN and AGU)
Ampere Rating:
⁄Ω¡º to 30A
Voltage Rating:
600V
Withstand Rating:
200,000 RMS Sym. or interrupting
rating of the fuse used, whichever is lower.
Agency Information:
UL Recognized, UL 512, Guide IZLT2, File E14853
CSA Certified, C22.2 No. 39, Class 6225-01, File 47235
UL Flammability:
94VO
Material:
Thermoplastic
Catalog Data
Amps
⁄Ω¡º
to
30
*QUICK CONNECT RATED FOR 20A MAXIMUM.
Wire
Range
CU Only
#10-#18
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
4-12-05
th o
e m O
Se BM me B
n d SO
e M
da m e L
d E
ta od r T
ep E
sh ul
ee ar lac
t n fus em
o. e e
bl nt
10 o
is
24 ck
1 .
Terminal Type
Screw with
Quick
Connect*
BMA603ASQ
BMA6031SQ
BMA6032SQ
BMA6033SQ
Poles
Adder
1
2
3
Pressure
Plate with
Quick
Connect*
BMA603APQ
BMA6031PQ
BMA6032PQ
BMA6033PQ
R
ec
Fuse blocks feature a unique adder block which can be
snapped onto 1-, 2-, or 3-pole blocks to form multi-pole
segmented blocks of as many poles as desired.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
SB05085
Form No. BMA Series
Page 1 of 1
Data Sheet: 1155
