FRN-R-90: DescriptionIndustrial u0026 Electrical Fuses 250V 90A Dual Elemtent Time Delay; CategoryCircuit protection Circuit protection; File Size528KB，6 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

FRN-R-90 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FRN-R-90	-	-	View	Buy Now

FRN-R-90 Overview

Industrial u0026 Electrical Fuses 250V 90A Dual Elemtent Time Delay

FRN-R-90 Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
Other features	RATED BREAKING CAPACITY AT 125 VDC: 20000 A
Fusing characteristics	TIME DELAY
body height	149.35 mm
Body length or diameter	26.92 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	FRN-R
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	26.92mm x 149.35mm
Rated breaking capacity	200000 A
Rated current	90 A
Rated voltage (AC)	250 V
Rated voltage (DC)	125 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	TAB/BLADE

Preview

Download Datasheet

View All

Technical Data1019

Effective February 2016

Supersedes July 2013

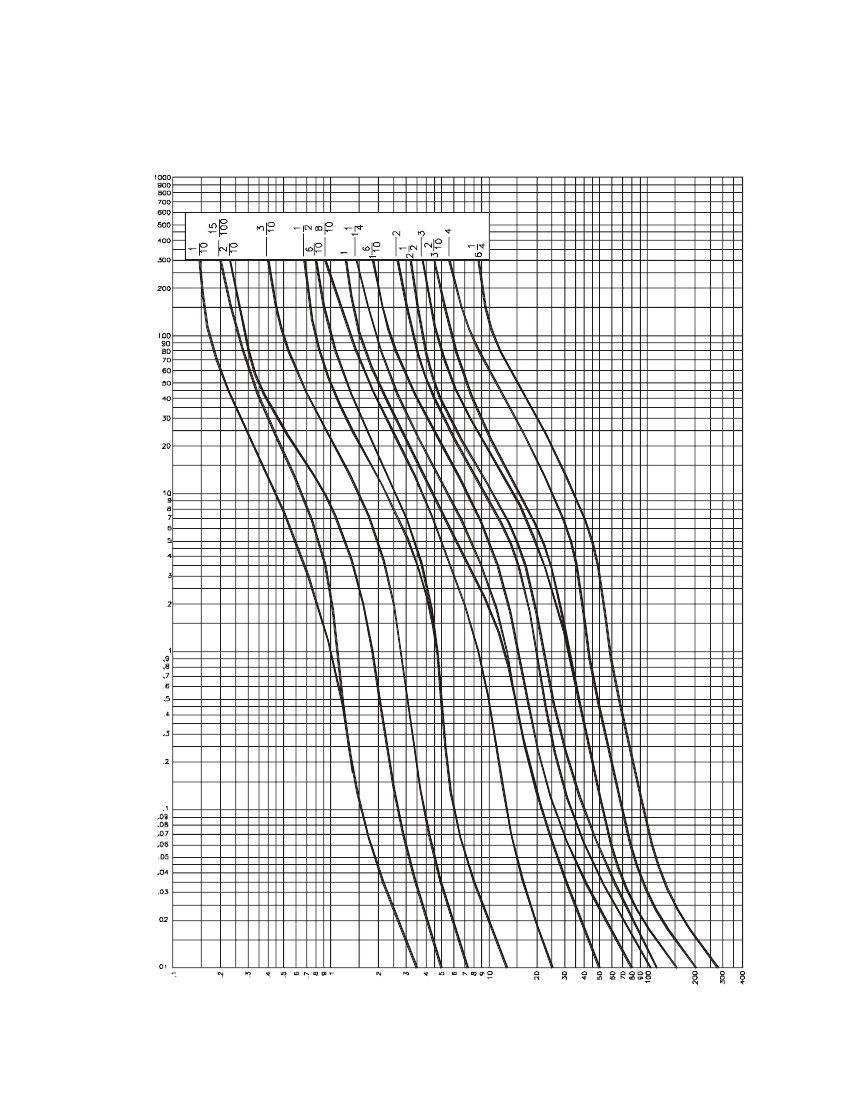

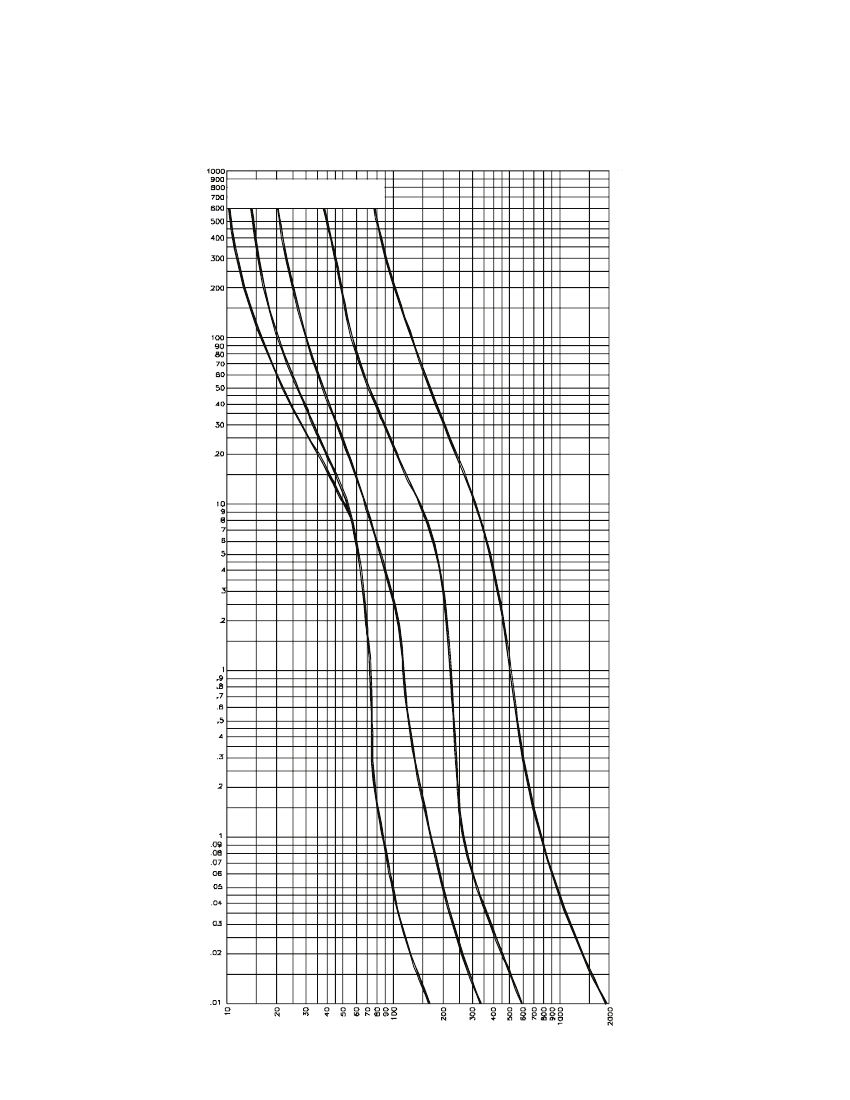

Fusetron™ FRN-R Class RK5 250Vac/125Vdc

1⁄10-60A, dual element, time-delay fuses

Catalog numbers (amps) — non-indictaing fuses

FRN-R-1⁄10

FRN-R-1⁄8

FRN-R-15⁄100

FRN-R-2⁄10

FRN-R-1⁄4

FRN-R-3⁄10

FRN-R-4⁄10

FRN-R-1⁄2

FRN-R-6⁄10

FRN-R-1-8⁄10

FRN-R-2

FRN-R-2-1⁄4

FRN-R-2-1⁄2

FRN-R-2-8⁄10

FRN-R-3

FRN-R-3-2⁄10

FRN-R-3-1⁄2

FRN-R-4

FRN-R-4-1⁄2

FRN-R-5

FRN-R-5-6⁄10

FRN-R-6

FRN-R-6-1⁄4

FRN-R-7

FRN-R-7-1⁄2

FRN-R-8*

FRN-R-9*

FRN-R-10*

FRN-R-12*

FRN-R-15*

FRN-R-17-1⁄2*

FRN-R-20*

FRN-R-25*

FRN-R-30*

FRN-R-35*

FRN-R-40*

FRN-R-45*

FRN-R-50*

FRN-R-60*

Catalog symbols:

•

FRN-R-8⁄10

FRN-R-1

FRN-R-1-1⁄8

FRN-R-1-1⁄4

FRN-R-1-4⁄10

FRN-R-1-1⁄2

FRN-R-1-6⁄10

FRN-R-_ (non-indicating)

FRN-R-_ID (indicating)

Description:

Eaton Bussmann

series advanced protection,

energy efficient FRN-R Class RK5 dual element,

current-limiting, time-delay fuses with optional

open fuse indication on select ratings. Time-delay

– 10 seconds (minimum) at 500% of rated current

(8 seconds for 1⁄10-30A sizes).

* Open fuse indication available by inserting the sufix “ID.”

E.g., FRN-R-15ID.

Carton Quantity:

Amp rating

1⁄10 – 60

Carton qty.

Specifications:

Ratings

•

Volts

•

250Vac

•

Features:

•

Provides motor overload, ground fault and

short-circuit protection

Helps protect motors against burnout from

overloads

Helps protect motors against burnout from

single-phasing on three-phase systems

Simplifies and improves blackout prevention

(selective coordination)

Dual-element fuses can be applied in circuits

subject to temporary motor overloads and surge

currents to provide both high performance

short-circuit and overload protection

The overload element provides protection

against low level overcurrent of overloads

and will hold an overload which is five times

greater than the ampere rating of the fuse for a

minimum of ten seconds

125Vdc

•

Amps 1⁄10-60A

Interrupting rating

•

200kA Vac RMS Sym.

•

20kA Vdc

Agency information

•

UL Listed, Std. 248-12, Class RK-5, Guide

JDDZ, File E4273

CSA Certified, C22.2 No. 248.12, Class 1422-

02, File 53787

•

FRN-R-90 Related Products

	FRN-R-90	BP-FRN-R-60	FRN-R-100
Description	Industrial u0026 Electrical Fuses 250V 90A Dual Elemtent Time Delay	Industrial u0026 Electrical Fuses FUSETRON DUAL 1A3406	Industrial u0026 Electrical Fuses 250V 100A Dual Elemtent Time Delay
Maker	Eaton	-	Eaton
Reach Compliance Code	unknown	-	unknown
Other features	RATED BREAKING CAPACITY AT 125 VDC: 20000 A	-	RATED BREAKING CAPACITY AT 125 VDC: 20000 A
Fusing characteristics	TIME DELAY	-	TIME DELAY
body height	149.35 mm	-	149.35 mm
Body length or diameter	26.92 mm	-	26.92 mm
Circuit protection type	ELECTRIC FUSE	-	ELECTRIC FUSE
Manufacturer's serial number	FRN-R	-	FRN-R
Installation features	INLINE/HOLDER	-	INLINE/HOLDER
method of packing	BOX	-	BOX
physical size	26.92mm x 149.35mm	-	26.92mm x 149.35mm
Rated breaking capacity	200000 A	-	200000 A
Rated current	90 A	-	100 A
Rated voltage (AC)	250 V	-	250 V
Rated voltage (DC)	125 V	-	125 V
Guideline	CSA; UL	-	CSA; UL
surface mount	NO	-	NO
Terminal shape	TAB/BLADE	-	TAB/BLADE
