Three-pole IEC Class II surge arrestors for TN-C systems
Optional remote contact signaling
The three-pole terminal remote contact signaling
option has a floating changeover contact for use
as a break or make contact, according to circuit
concept.
Specifications:
Remote
contact
signaling
available
System volts
•
•
120
230
System types
•
TN-C
easyID™
local
visual status
indication
Agency infiormation
•
•
•
CE
KEMA
RoHS compliant
Catlog symbols:
•
•
Mounting
•
BSPM_TNC
BSPM_TNCR
35mm DIN-Rail
Warranty
•
Description:

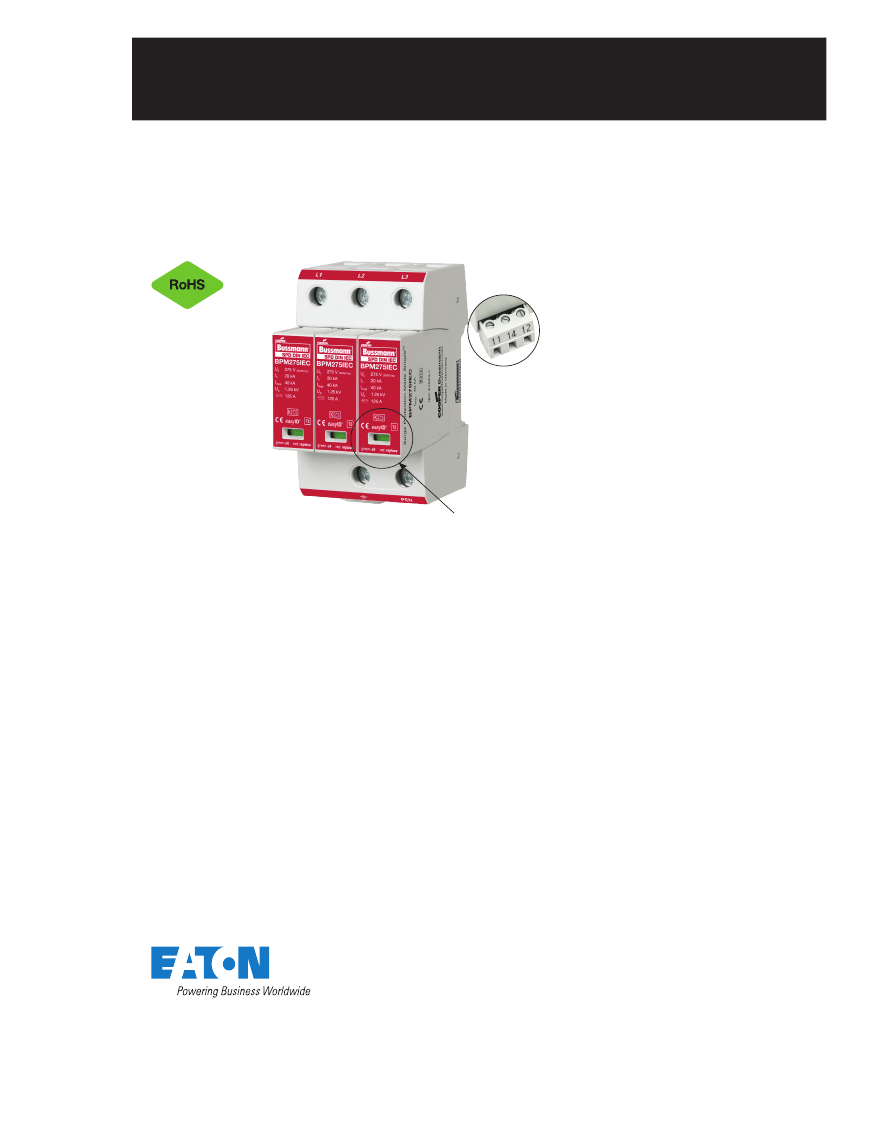

Eaton’s Bussmann™ series three-pole IEC Class II
modular surge arresters for TN-C systems feature
local
easyID™
visual status indication and optional
remote contact signaling. The unique module
locking system fixes the protection module to the
base. Modules can be easily replaced without
tools by simply depressing the release buttons.
Integrated mechanical coding between the base
and protection module ensures against installing
an incorrect replacement module.
MCOV rating are 150V for 120 volt models and
275V or 385V for 230 volt models.
Five years
TNC System Arresters
The features of these three-pole devices are for
use in TN-C 120/240 volt or 230/400 volt systems
(“3-0” circuit) against surges.
Technical Data 1168
Effective December 2015
3-Pole IEC Class II surge arresters for
120/240 and 230/400 volt TN-C systems

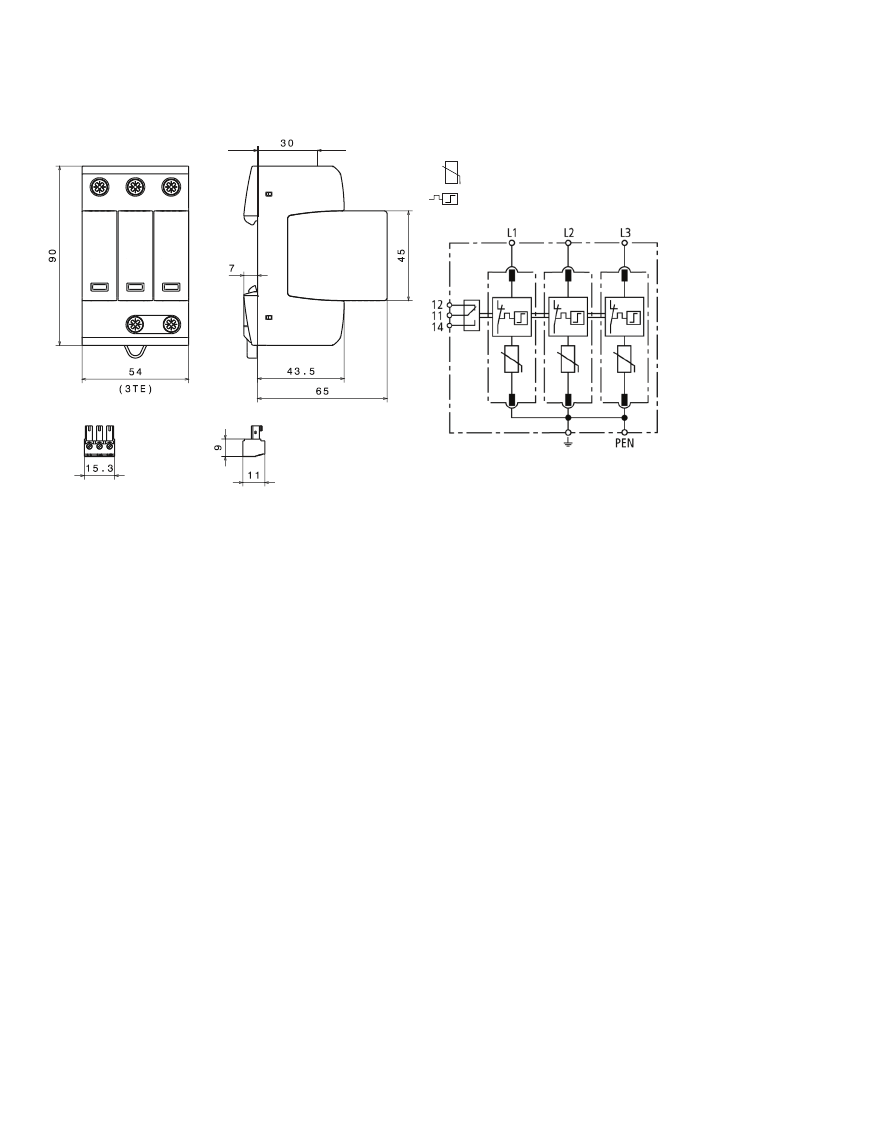

Circuit diagrams:
Shown with optional remote contact signaling.
MOV
Thermal disconnector
Dimensions - mm:
BSPM3150TNC(R)
BSPM3275TNC(R)
BSPM3385TNC(R)
Shown with optional remote contact signaling.
2
Eaton.com/bussmannseries
3-Pole IEC Class II surge arresters for
120/240 and 230/400 volt TN-C systems
Ordering information:
System voltage (50-60Hz) / poles
Max. Continuous Operating Voltage (MCOV) [U
C
] AC (50-60Hz)
W/O remote signaling
Catalog numbers (base + modules)
W/ remote signaling
Replacement modules
Specifications
Nominal AC voltage [U
N
]
at 5kA
Short-circuit withstand capability for max. mains-side overcurrent protection
(I
SCCR
)
Withstand
Temporary overvoltage (TOV) [U
T
]
Safe failure
Nominal discharge current (8/20µs) [I
n
]
Agency information
Max. discharge current (8/20µs) [I
max
]
SPD according to
Response time [t
A
]
Max. mains-side overcurrent protection
Operating environment [T
U
]
Operating state/fault indication
Number of ports
Min.
Cross-sectional area
Max.
Mounting
Enclosure material
Location category
Degree of protection
Capacity
Product warranty
Remote contact signaling
Contact signaling type
Switching capacity (volts/amps)
Conductor ratings and cross-sectional area
Ordering information
AC
DC
Voltage protection level [U
P
]
120/240V / 3
150V
BSPM3150TNC
BSPM3150TNCR
BPM150IEC
120 / 240V
≤
0.7kV
≤
0.55kV
50kA
rms
175V / 5 sec
230V / 120 min.
15kA
—
40kA
230/400V / 3
275V
BSPM3275TNC
Technical Data 1168
Effective December 2015
230/400V / 3
385V
BSPM3275TNCR
BPM275IEC
230 / 400V
≤
1.5kV
≤
1kV
50kA
rms
335V / 5 sec
440V / 120 min
20kA
KEMA
BSPM3385TNC
BSPM3385TNCR
BPM385IEC
230 / 400V
≤
1.75kV
≤
1.35kV
25kA
rms
440V / 120 min.
—
20kA
—
EN 61643-11
Type 2,
IEC 61643-11 Class II
≤
25 ns
125A gG
-40°C to +80°C, 5% to 95% RH
Green (good) / Red (replace)
1
1.5mm
2
/14AWG solid/flexible
35mm
2
/2AWG stranded — 25mm
2
/4AWG flexible
35mm DIN-Rail per EN 60715
Thermoplastic, UL 94V0
Indoor
IP20
3 mods., DIN 43880
Five years*
Changeover contact
250V/0.5A
250V/0.1A; 125V/0.2A; 75V/0.5A
60/75°C Max. 1.5mm
2
/14AWG solid/flexible
Order from catalog numbers above
* See Eaton Bussmann series SPD limited warranty statement (3A1502) for details at www.cooperbussmann.com/surge.
Recommended Bussmann series back up fuses
DIN fuse size
00
0
01
02
NH fuse catalog number
125NHG00B
125NHG0B
125NHG01B
125NHG02B
Eaton.com/bussmannseries
3
Technical Data 1168
Effective December 2015
3-Pole IEC Class II surge arresters for
120/240 and 230/400 volt TN-C systems
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this document are
by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the
end user with design applications. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit
distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once
a product has been selected, it should be tested by the user in all possible applications.
