Surge arrester
2-electrode arrester
B88069X5531T203
S30-A300X
Description
The S30-series has been especially designed to meet data transmission protection requirements.
The optimized design features a high level of protection against fast rising transients usually caused
by lightning disturbances. For use in high frequency data lines, the series offers ultra low
capacitances and shows only marginally signal losses up to high frequencies. The devices are
extremely reliable and are able to withstand high surge currents without destruction.
Features
Very small size (EIA 1812)
Short response time
High current handling capability
Stable performance over service life
Ultra low capacitance and insertion loss
High insulation resistance
Excellent SMD handling
RoHS-compatible
Applications
Telecommunication:
Ethernet, PoE, xDSL
Cable modem, splitters, line cards
Wireless antenna protection
Others:
CCTV
Switching power supply
Product characteristics
Physical dimensions
(length × width × height)
0.18 × 0.12 × 0.10
4.5 × 3.2 × 2.7
EIA 1812 / 4532 metric
Weight
Operating temperature
Recommended storage
1)
- temperature
- humidity
- period
Climatic category (IEC 60068-1)
Moisture sensitivity level
2)
Marking, black positive
I
Y
in
mm
~ 0.2
–40 ... +90
+5 … +35
45 … 80
2
40/ 90/ 21
1
IY
g
°C
°C
%
years
- Nominal voltage (I
≙
300 V)
- Year of production (last digit)
Certifications
Notes:
1)
Specified in terms of corrosion against Sn-plating
2)
Tests according to JEDEC J-STD-020
UL 497B (E163070)
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 7
Issue 05 / 2014-02-27
Surge arrester
2-electrode arrester
B88069X5531T203
S30-A300X
Electrical specifications and stress test methods
Nominal DC spark-over voltage
3) 4)
Tolerance
Min.
Max.
Impulse spark-over voltage
at 100 V/µs
- for 99% of measured values
- typical values of distribution
at 1 kV/µs
- for 99% of measured values
- typical values of distribution
50 Hz, 1 s
8/20 µs
8/20 µs
10/1000 µs
300
± 25
225
375
< 700
< 650
< 850
< 800
2
100
1
10
>1
< 0.8
~ 10
< 0.4
~ 55
V
%
V
V
V
V
V
V
A
A
kA
A
G
pF
V
A
V
Service life
5) 6)
10 operations
300 operations
10 operations [5× (+) & 5× (–)]
100 operations [50× (+) & 50× (–)]
Insulation resistance at 100 V
DC
Capacitance at 1 MHz
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
3)
4)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
5)
Tests according to ITU-T Rec. K. 12 and UL 497B
6)
Electrical specifications may vary after stress tests
Terms and current waveforms in accordance with ITU-T Rec. K. 12; IEC 61643-21; IEC 61643-311 and IEC 61663-2.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 7
Issue 05 / 2014-02-27
Surge arrester
2-electrode arrester
B88069X5531T203
S30-A300X

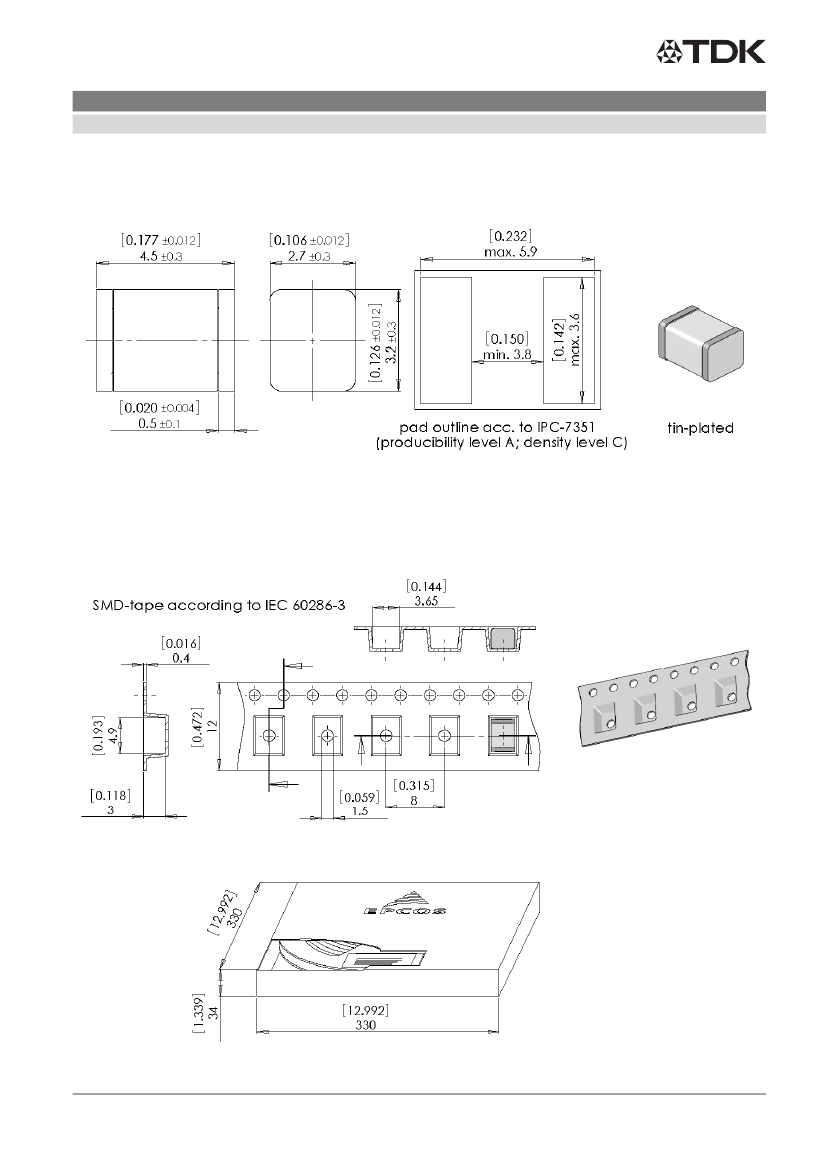

Dimensional drawing in mm
Ordering code and packing advice
B88069X5531T203 = 2000 pcs. on SMD-tape
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 7
Issue 05 / 2014-02-27
Surge arrester
2-electrode arrester
B88069X5531T203
S30-A300X

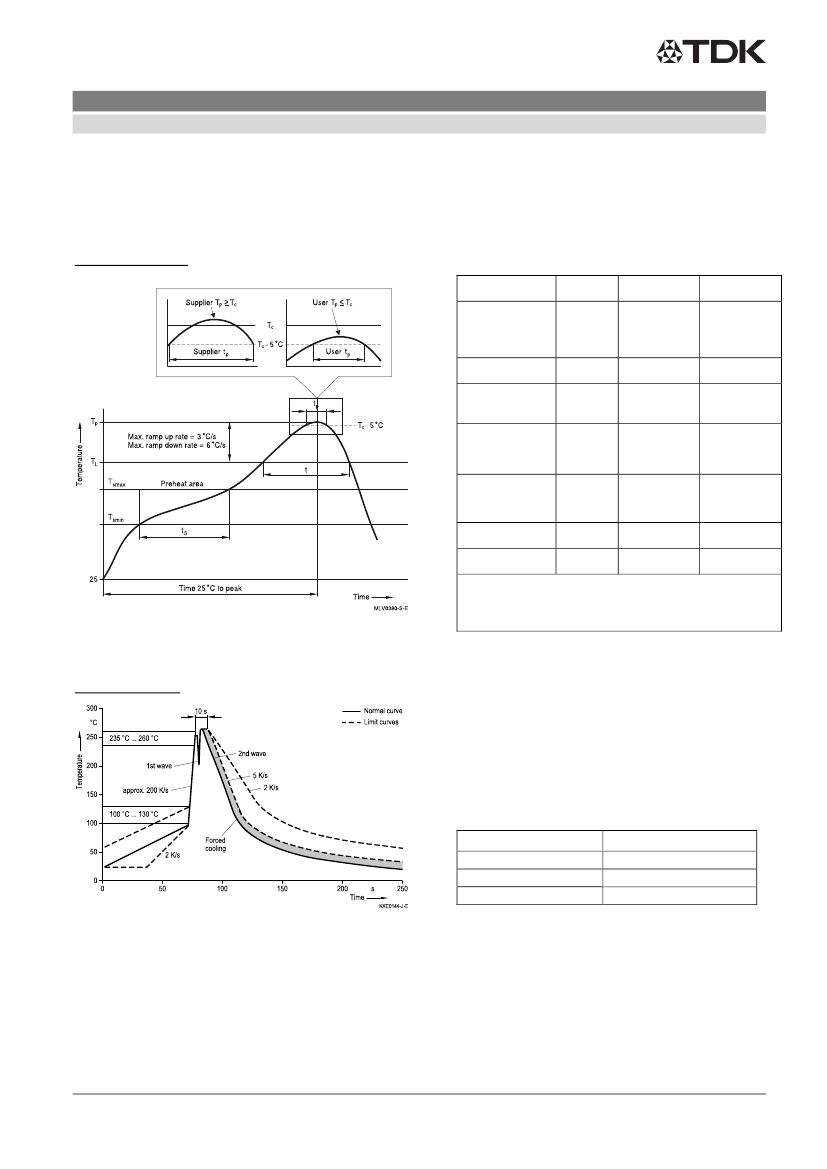

Soldering parameters
Reflow soldering
Reflow profile
features
Preheat and soak
- Temperature min
- Temperature max
- Time
Average ramp-up
rate
Liquidous
temperature
Time at liquidous
Peak package body
temperature *,
Classification
temperature **
Time (t
p
) ** within
5 °C of the specified
classification
temperature (T
C
)
Average ramp-down
rate
Time 25 °C to peak
temperature
*=
Sn- Pb eutectic
assembly
T
smin
T
smax
t
smin
to t
smax
T
smax
to T
p
T
L
t
L
T
p
, T
C
100 °C
150 °C
60 ... 120 s
max. 3 °C/ s
183 °C
60 ... 150 s
220 ... 235 °C **
Pb-free
assembly
150 °C
200 °C
60 ... 180 s
max. 3 °C/ s
217 °C
60 ... 150 s
245 ... 260 °C **
20 s ***
30 s ***
T
p
to T
smax
max. 6 °C/ s
max. 6 min
max. 6 °C/ s
max. 8 min
Tolerance for peak profile temperature (T
p
) is defined as a supplier minimum
and a user maximum.
** = For details please refer to JEDEC J-STD-020D.
*** = Tolerance for time at peak profile temperature (t
p
) is defined as a supplier
minimum and a user maximum.
Wave soldering
Wave profile features
Pb-free assembly
Solder
Sn 95.5 / Ag 3.8 / Cu 0.7
Solder bath temperature 263 (±3) °C
Dwell time
<3s
Soldering profile applied to a single soldering process.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 7
Issue 05 / 2014-02-27
