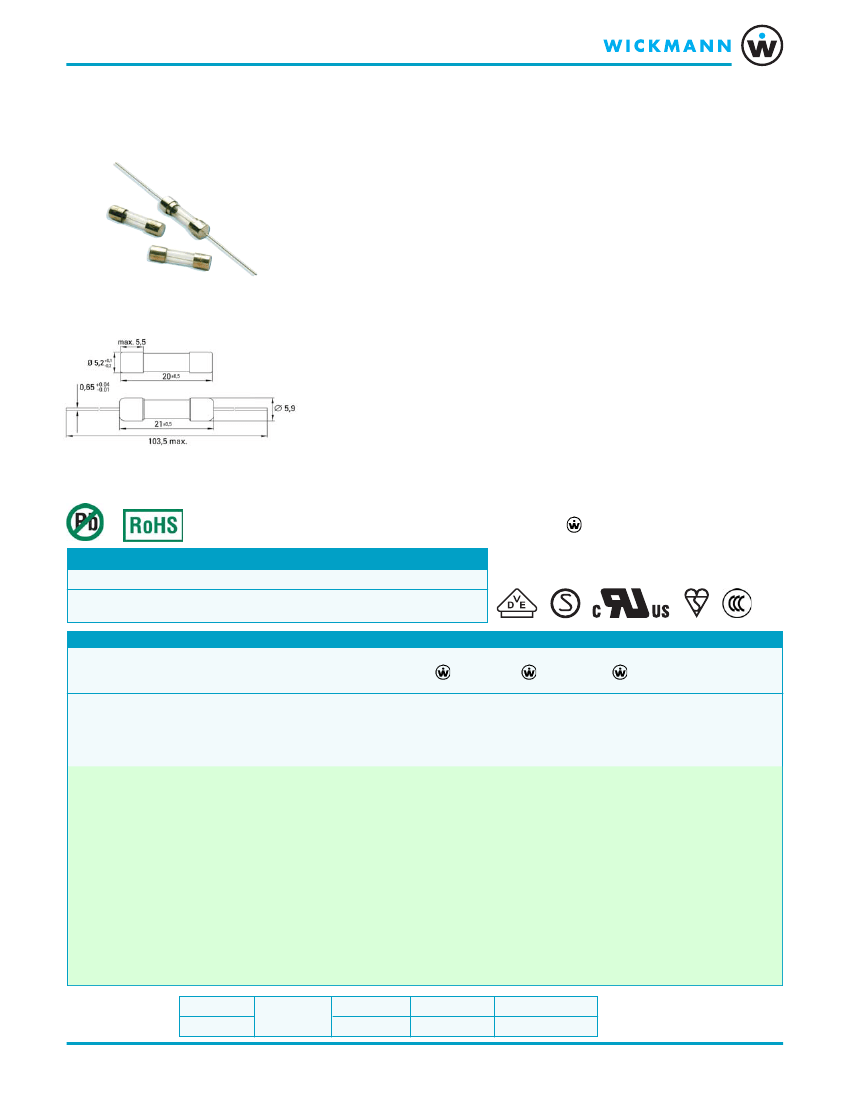

INIATURE
M
INIATURE
F
USES
This product is not recommended
for new designs. Please refer to
Littelfuse No. 219XA.
5x20mm / No. 196
250V,
IEC 60127-2/VI, 250V, T
Time-Current Characteristic
Time Lag (T)
Specifications
Packaging
000: Bulk (1000 pcs.)
002: Bulk (20x10 pcs.)
043: With mounted holder - Tape/Reel (1250 pcs.)
on request
Tube:
End Caps:
Optional Holders:
Glass
Nickel-plated brass
Nickel-plated caps
Tin-plated copper wires
Standard
IEC 60127-2/VI
VDE
SEMKO
cULus Recognized
BSI License
CCC
Approvals
Materials
Features
Dimensions (mm)
Enhanced breaking capacity
Visual fault indication
Direct solderable or plug-in versions
Internationally approved
Worldwide availability
Temperature
Operating Temperature
Climatic Category
Stock Conditions
-25ºC to +70ºC (consider de-rating)
-25ºC/+70ºC/21 days (EN 60068-1..3)
+10ºC to +60ºC
relative humidity
≤
75% yearly average,
without dew, maximum value for 30 days-95%
24 cycles at 15 min. each (EN 60068-6)
10 - 60Hz at 0.75mm amplitude
60 - 2000Hz at 10g acceleration
260ºC,
≤
3 sec. (Wave)
350ºC,
≤
1 sec. (Hand)
260ºC, 10 sec. (IEC 60068-2-20)
, T, Current Rating, E, 250V, Approvals
W ebLinks
Further info see:
www.wickmanngroup.com
Vibration Resistance
Further application info see fuseology:
www.wickmanngroup.com/download/
fuseology.pdf
Optional Holders
Solderability
Soldering Heat Resistance
Marking
only 125 mA up to 8 A
Limits for Pre-arcing Time
Rated Current
32mA ... 100mA
125mA ... 6.30A
Unit Weight
4 x I
Rated
10 x I
Rated
1.5 x I
Rated
> 1h
> 1h
2.1 x I
Rated
< 2 min
< 2 min
2.75 x I
Rated
200ms ...10s
600ms ...10s
1.1g (approx.)
2.1g (with leads)
40ms ... 3s 10ms ... 300ms
150ms ... 3s 20ms ... 300ms
100%
Permissible continuous operating current is
≤
100% at ambient temperature of 23ºC (73.4ºF).
Rated
Amp
Voltage
Breaking
Voltage Drop Power Dissipation Melting Integral
Current
Code
Rating
Capacity
1.0 x I
Rated
1.5 x I
Rated
10 x I
Rated
max. (mV)
max. (W)
min. (A
2
s)
32mA
40mA
50mA
63mA
80mA
100mA
125mA
160mA
200mA
250mA
315mA
400mA
500mA
630mA
800mA
1.00A
1.25A
1.60A
2.00A
2.50A
3.15A
4.00A
5.00A
6.30A
8.00 A
0032
0040
0050
0063
0080
0100
0125
0160
0200
0250
0315
0400
0500
0630
0800
1100
1125
1160
1200
1250
1315
1400
1500
1630
1800
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
2500
1600
1500
1300
1100
1000
900
800
600
550
350
300
250
200
180
150
135
125
110
100
100
90
100
70
70
0.2
0.2
0.3
0.3
0.3
0.3
0.3
0.4
0.4
0.4
0.5
0.5
0.6
0.6
0.7
0.7
0.8
0.9
0.6
1.0
1.1
1.0
1.3
1.5
2.0
0.010
0.011
0.019
0.035
0.055
0.075
0.13
0.24
0.30
0.90
1.2
2.4
4.4
7.5
11
15
22
36
12
17
30
50
70
136
149.5
Approvals
cURus
SEMKO
VDE
CCC
BSI
150A / 250VAC
50-60Hz
cos
ϕ
= 1.0
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Order
Information
050912
Qty.
Order-
Number
Series
196
Amp Code
Packaging
Specifications are subject
to change without notice
China
Tel: +86 21 6432 5146
E-mail: sales@wickmann.cn
WebSite
Europe
Tel: +49 2302 662-107
www.wickmanngroup.com E-mail: sales@wickmann.com
Americas
Tel: +1 404 699-7820
E-mail: service@wickmannusa.com
Asia
Tel: +852 26 14-1108
E-mail: sales@wickmann.com.hk
M
INIATURE
F
USES
INIATURE
5x20mm / No. 196

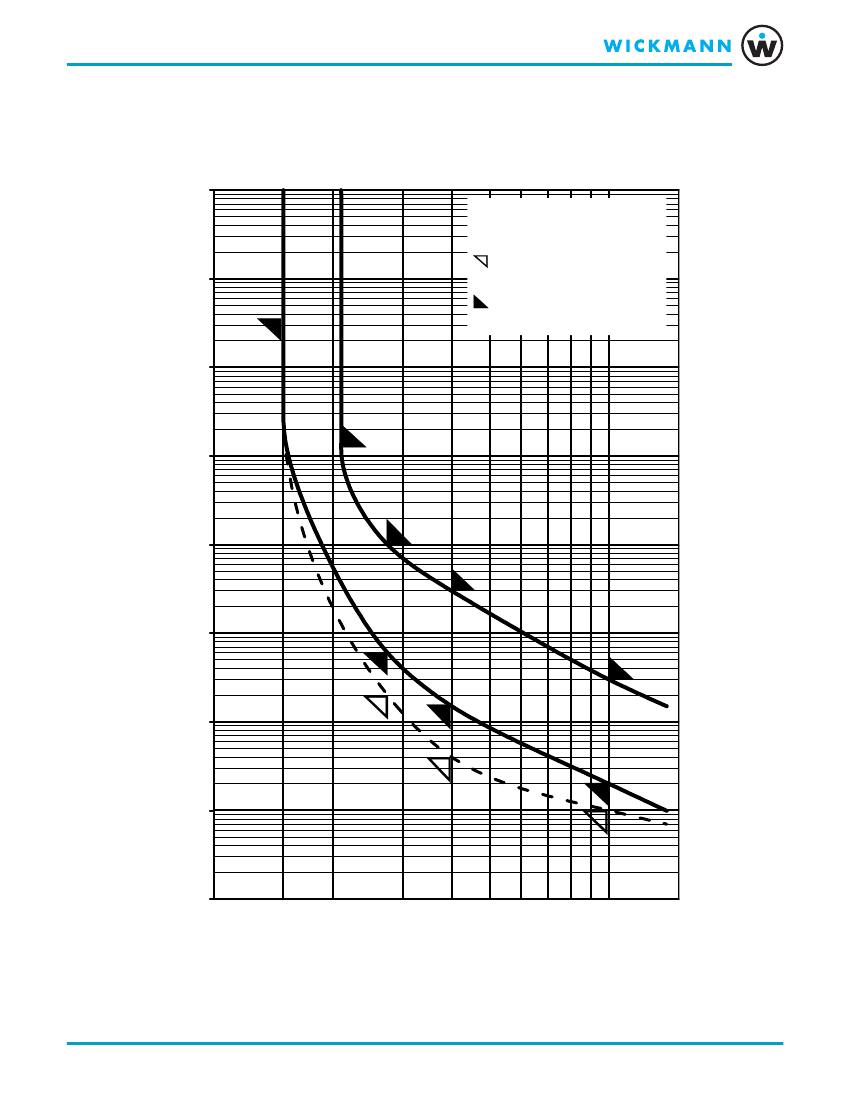

I-t Characteristics
(Min-Max Limit)
IEC 60127-2/VI
(32 ... 100mA)
IEC 60127-2/VI
(125mA ... 6.30A)
Time (sec.)
00
0,0
10
,00
10
WebSite
www.wickmann.com
Europe
Tel: +49 2302 662-107
E-mail: sales@wickmann.com
0
0
1,0
0
10
0
10
1
0.1
1
0.0
01
0.0
1
1.5
2
3
4
5
6
7 8 9 10
15
I
Fault
/ I
Rated
Contact WICKMANN for individual I-t curves
050912
Americas
Tel: +1 404 699-7820
E-mail: service@wickmannusa.com
Asia
Tel: +852 26 14-1108
E-mail: sales@wickmann.com.hk
China
Tel: +86 21 6432 5146
E-mail: sales@wickmann.cn
