3P18U3S-57 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 3P18U3S-57

3P18U3S-57: DescriptionCircuit Breaker Accessories Busbar, 3 Phase+1pole, 18sqmm, PIN Type, 57 Lugs, UL/cUL listed; CategoryCircuit protection; File Size148KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

3P18U3S-57 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3P18U3S-57	-	-	View	Buy Now

3P18U3S-57 Overview

Circuit Breaker Accessories Busbar, 3 Phase+1pole, 18sqmm, PIN Type, 57 Lugs, UL/cUL listed

3P18U3S-57 Parametric

Parameter Name	Attribute value
Product Category	Circuit Breaker Accessories
Manufacturer	Altech
Product	Busbars
Factory Pack Quantity	1
Termination Style	Lug

Preview

Download Datasheet

View All

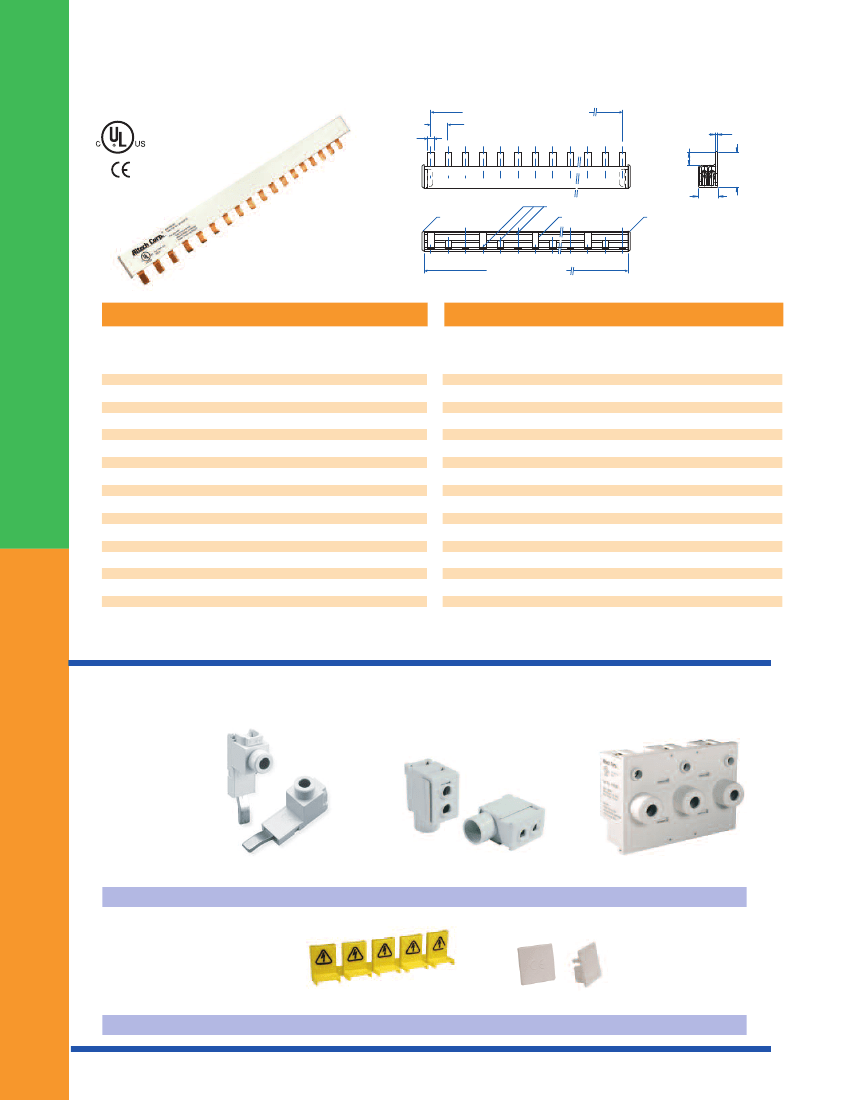

3 PHASE BUSBAR - standard spacing

18mm

for 80A

25mm

for 100A

56 x 17.75 = 994 mm (39.13 in.)

17.75 mm

(0.70 in.)

L3 L2 L1

Copper strips

Insulation Track

21 mm

End Cap (0.83 in.)

13 mm (.51 in.)

Altech UL1077

UL508 listed

E205412

End Cap

L3 L2 L1

1009 mm (39.72 in.)

18mm

for 80A

Type/

Cat. No.

3P18U3/6

3P18U3/9

3P18U3/12

3P18U3/15

3P18U3/18

3P18U3/21

3P18U3/24

3P18U3/27

3P18U3/30

3P18U3/33

3P18U3/36

3P18U3/39

3P18U3/42

3P18U3/45

3P18U3/48

3P18U3/51

3P18U3/54

3P18U3/57

No. of

Pins

No. of MMC

to Jumper

2x3 pole

3x3 pole

4x3 pole

5x3 pole

6x3 pole

7x3 pole

8x3 pole

9x3 pole

10x3 pole

11x3 pole

12x3 pole

13x3 pole

14x3 pole

15x3 pole

16x3 pole

17x3 pole

18x3 pole

19x3 pole

Length

[mm]

101.8

155.0

208.3

261.5

314.8

368.0

421.3

474.5

527.8

581.0

634.3

687.5

740.8

794.0

847.3

900.5

953.8

1007.0

Type/

Cat. No.

3P25U3/6

3P25U3/9

3P25U3/12

3P25U3/15

3P25U3/18

3P25U3/21

3P25U3/24

3P25U3/27

3P25U3/30

3P25U3/33

3P25U3/36

3P25U3/39

3P25U3/42

3P25U3/45

3P25U3/48

3P25U3/51

3P25U3/54

3P25U3/57

25mm

for 100A

No. of

Pins

No. of MMC

to Jumper

2x3 pole

3x3 pole

4x3 pole

5x3 pole

6x3 pole

7x3 pole

8x3 pole

9x3 pole

10x3 pole

11x3 pole

12x3 pole

13x3 pole

14x3 pole

15x3 pole

16x3 pole

17x3 pole

18x3 pole

19x3 pole

Length

[mm]

101.8

155.0

208.3

261.5

314.8

368.0

421.3

474.5

527.8

581.0

634.3

687.5

740.8

794.0

847.3

900.5

953.8

1007.0

Altech UL508

ACCESSORIES

Type/Cat. No:

Description:

P50UT

Power Feed Lug

P50UB

Modular Direct Power Feed

P95UB

Power Feed Block

Type/Cat. No:

Description:

BRS5

Insulation Cap

18/25CAP3P

End Cap

37 mm

(1.46 in.)

7 mm

(0.28 in.)

2 mm (.079 in.)
