1C4DL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 1C4DL

1C4DL: DescriptionCircuit Breakers 1C4DL, 4A, CIRCUIT BREAKER C CHAR, 1POLE, 125VDC, UL489; CategoryCircuit protection; File Size1MB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

1C4DL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1C4DL	-	-	View	Buy Now

1C4DL Overview

Circuit Breakers 1C4DL, 4A, CIRCUIT BREAKER C CHAR, 1POLE, 125VDC, UL489

1C4DL Parametric

Parameter Name	Attribute value
Product Category	Circuit Breakers
Manufacturer	Altech
Product	Circuit Protection Devices
Type	C-Trip
Current Rating	4 A
Voltage Rating DC	125 VDC
Number of Poles	1 Pole
Actuator Type	Handle
Operating Temperature Range	- 25 C to + 55 C
Illuminated	Not Illuminated
Mounting Style	DIN Rail
Termination Style	Box Clamp, Ring Tongue

Preview

Download Datasheet

View All

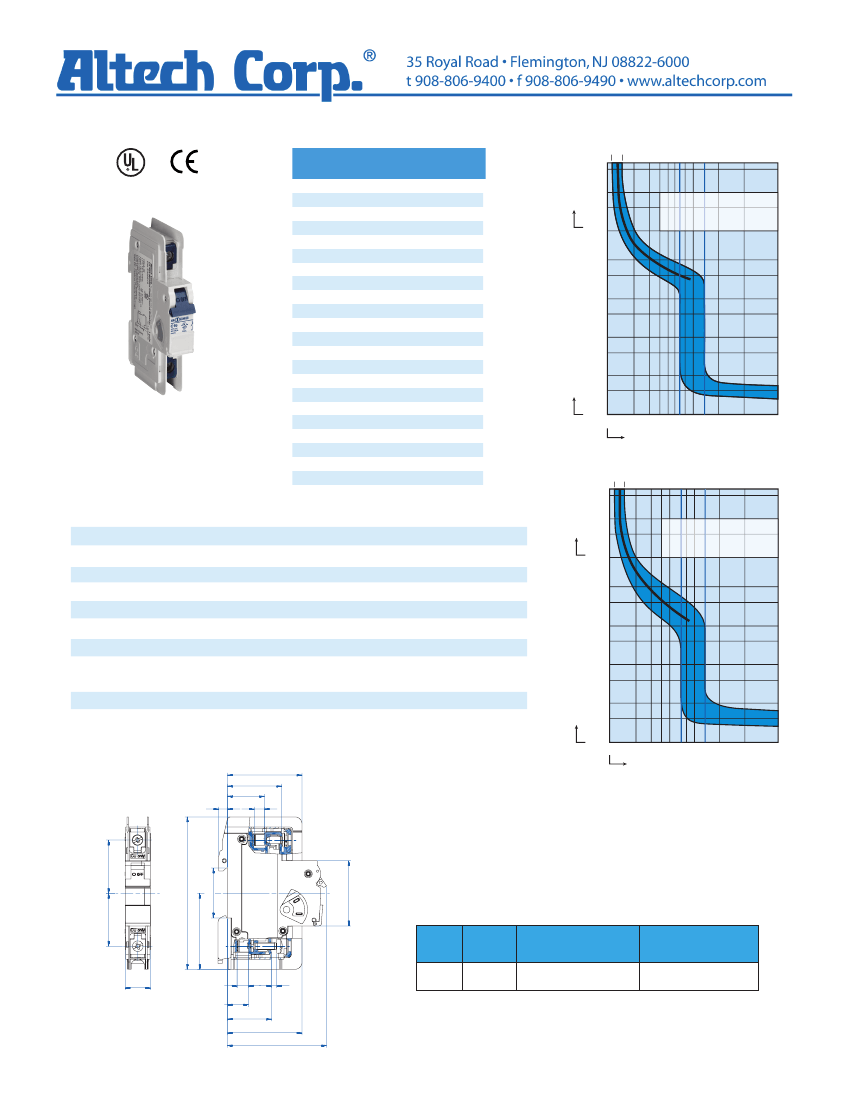

UL-Series - UL489 Miniature Molded Case Circuit Breaker -

1 pole C-Trip - DC

LISTED

C.B.

E329510

One Pole

Standard Pack:

Weight:

0.3-32A:

1.74kg (3.83lb.)

40-63A:

1.98kg (4.37lb.)

Rated

Type/

Current Cat. No.

0.3A

1C03DL

0.5A

1C05DL

1.0A

1C1DL

1.6A

1C1.6DL

2.0A

1C2DL

3.0A

1C3DL

4.0A

1C4DL

5.0A

1C5DL

6.0A

1C6DL

8.0A

1C8DL

10A

1C10DL

12A

1C12DL

13A

1C13DL

15A

1C15DL

16A

1C16DL

20A

1C20DL

25A

1C25DL

30A

1C30DL

32A

1C32DL

40A

1C40DL

50A

1C50DL

60A

1C60DL

63A

1C63DL

Rated

Voltage

125V DC

1.05-1.35xI

Minutes

Thermal Overload

“Must Trip” < 1 hr = 135% RC

“Must Not Trip” > 1 hr = 105% RC

Tripping time t

0.4

-1

4x10

-2

Seconds

-2

4x10

-3

3 4 5 67 8 10

100

Multiple of Rated Current

0.3A Through 10A Rated Current

1.05-1.35xI

Minutes

Thermal Overload

“Must Trip” < 1 hr = 135% RC

“Must Not Trip” > 1 hr = 105% RC

Current/ Voltage Rating

Calibration Temperature

Ambient Temperature

Storage Temperature

Terminal Torque (min/max)

Electrical Life

Mechanical Life

Vibration Resistance

0.3 - 63A/ 125V DC

40ºC (104ºF)

-25ºC to +55ºC (-13ºF to 131ºF )

-40ºC to +70ºC (-40ºF to 158ºF )

2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)

6000 switching cycles ON/ OFF

10000 switching cycles ON/ OFF

> 15g according to DIN EN 60069-2-59 during a load

with I1 = 1.05 x IN

Tripping time t

0.4

-1

4x10

-2

Resistance to mechanical shocks

25g @ 11ms

Seconds

-2

4x10

-3

3 4 5

8 10

100

51.5 mm

25.5 mm

37.5 mm

Multiple of Rated Current

12A Through 63A Rated Current

“C” Magnetic Trip Parameters

Rated current 0.3A to 63A.

1. Hold for a minimum of 100ms at surge of 7 times rated current.

2. Trip in under 100ms at 14 times rated current.

36.8 mm

105.3 mm

34.5 mm

45 mm

Short Circuit Interrupting Capacity

No.

Poles

Type

0.3-32A

10kA @ 125V

40-63A

10kA @ 125V

36.5 mm

52.5 mm

17.5 mm

14.5 mm

30.5 mm

1 Pole

51.5 mm

68.4 mm

1C4DL Related Products
