Technical Data
4332
Effective
June
2017
Supersedes
July
2009
S506

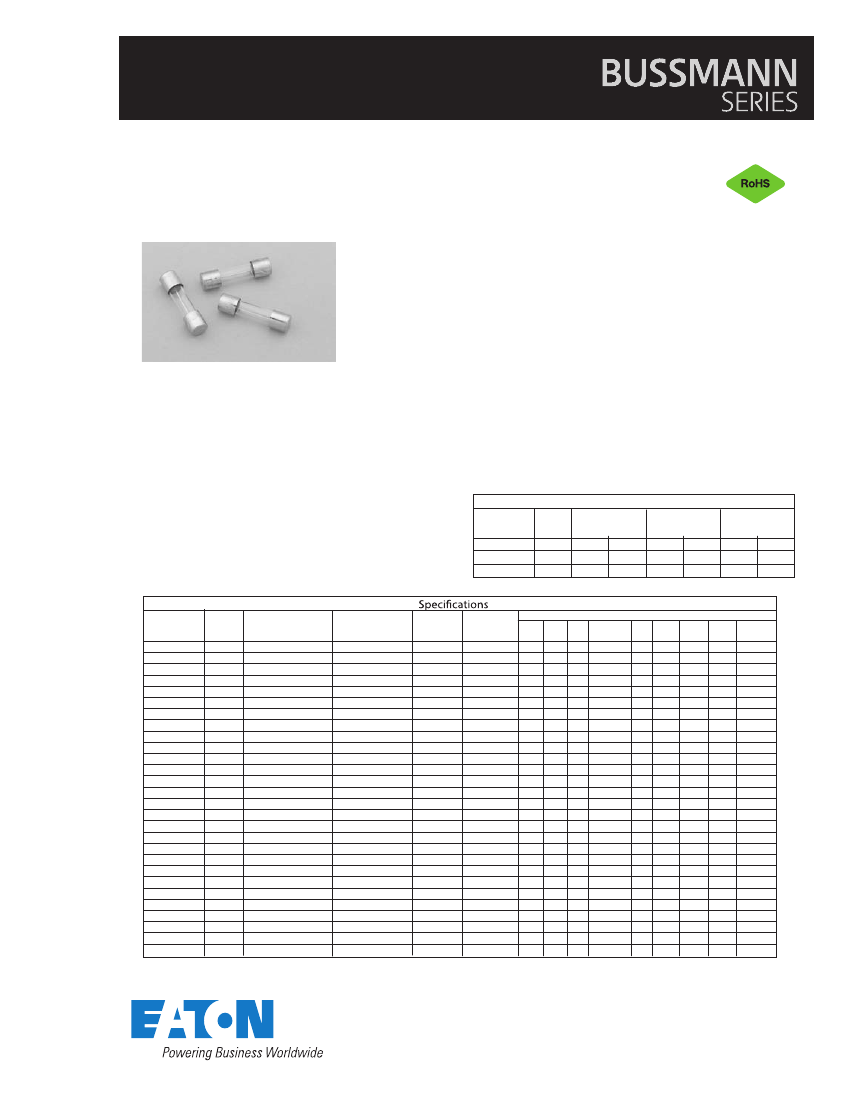

5 mm x 20 mm Time-delay glass tube fuses
Agency information
•
•
•
•
•
•
•
•
•
UL Recognized Card: Guide JDYX2, File E19180
CSA Component Acceptance: File 1803366
cURus Recognition: Guide JDYX8, File E19180
SEMKO Approval: File 507078, 415434, 806492
VDE Approval: File 40011926
BSI Approval: File KM55676
IMQ Approval: File E1921, CA03.00530
PSE/JET: File JET1641-31003-1005, JET1641-31003-1006
CCC Approval: File 2005010207155693, 2002010207011294
Product features
•
•
•
•
•
Time-delay, low breaking capacity
Optional axial leads available
5 x 20mm physical size
Glass tube, nickel-plated brass endcap construction
Designed to IEC 60127-2/3 (32mA-10A) &
extensions:12.5A-15A
•
Ordering
information
•
Specify product code
•
Insert packaging code prefix before part number. E.g. BK/
S506-1-R
•
Ratings above 4A have a 0.81mm diameter lead
S506 Electrical Characteristics
2.1 In
2.75 In
4 In
10 In
In
max min
max min
max min
max
32mA-100mA
2 min
200 ms 10 sec 40 ms 3 sec 10 ms 300 ms
125mA-6.3A 2 min 600 ms 10 sec 150 ms 3 sec 20 ms 300 ms
8A-15A
2 min 600 ms 10 sec 150 ms 3 sec 20 ms 300 ms
Product
Code
S506-32-R
S506-40-R
S506-50-R
S506-63-R
S506-80-R
S506-100-R
S506-125-R
S506-160-R
S506-200-R
S506-250-R
S506-315-R
S506-400-R
S506-500-R
S506-630-R
S506-800-R
S506-1-R
S506-1.25-R
S506-1.6-R
S506-2-R
S506-2.5-R
S506-3.15-R
S506-4-R
S506-5-R
S506-6.3-R
S506-8-R
S506-10-R
S506-12.5-R
S506-15-R
Voltage Interrupting Rating
(amps) at Rated
Rating
Voltage (50Hz) Vac
Vac
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
40
250
50
250
63
250
80
250
100
250
125
250
125
Typical DC
Cold Resistance
(Ω)*
21.0
13.90
9.24
6.96
4.42
2.80
1.97
1.27
1.00
0.640
0.450
0.31
0.183
0.186
0.129
0.0757
0.060
0.0425
0.03325
0.0255
0.0185
0.0139
0.00985
0.0071
0.007
0.005
0.004
0.004
Typical
Typical
Melting I
2
t
Voltage
(amps)
Drop (mV)‡
0.0051
1050
0.0072
920
0.0095
800
0.021
760
0.038
580
0.045
490
0.063
390
0.093
320
0.114
340
0.265
270
0.621
250
0.872
210
0.827
140
1.33
150
2.78
75
6.45
87.5
10.05
86
21.7
82
31.6
77
59.4
72.5
96.4
68.5
71.8
67
142.5
60.5
237.6
54
255.8
55
450
54
1019.5
45
1091.7
65.5
Agency Approvals
IMQ VDE BSI SEMKO UR CCC PSE/
JET
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
CSA
cURus
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
* DC Cold Resistance (measured at <10% of rated current)
‡ Typical Voltage Drop (voltage drop was measured at 20°C ambient temperature at rated current)
Effective
June
2017
Technical Data
4332
S506
5 mm x 20 mm Time-delay glass tube fuses

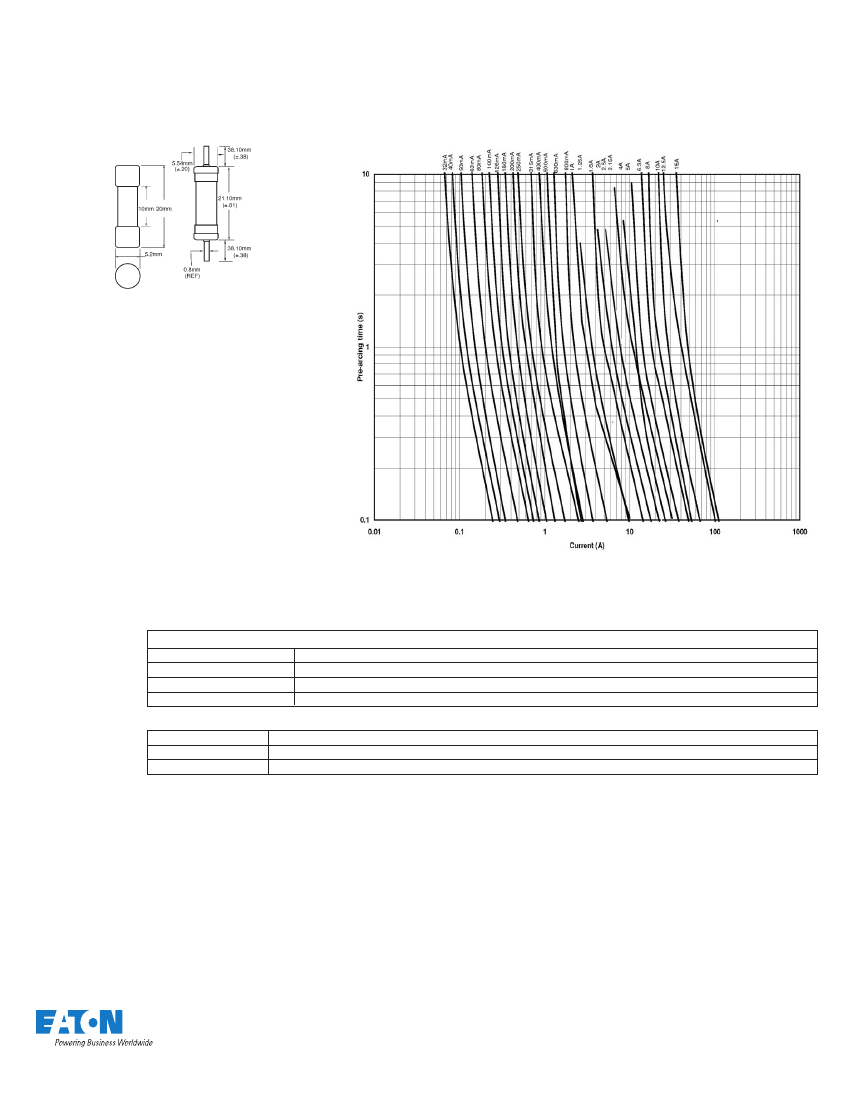

Nominal Time-Current Characterisitics of S506-R
Dimensions - mm
Drawing Not to Scale
Packaging Code Su x
BK
BK1
TR2
Description
100 fuses packed into a cardboard carton
1,000 fuses packed into a poly bag
1,500 fuses packed into tape on a reel (19.05mm lead wire length)
Packaging Code
Option Code
V
Description
Axial leads - copper tinned wire with nickel plated brass endcaps
Option Code
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No.
4332 BU-SB08673
June
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
