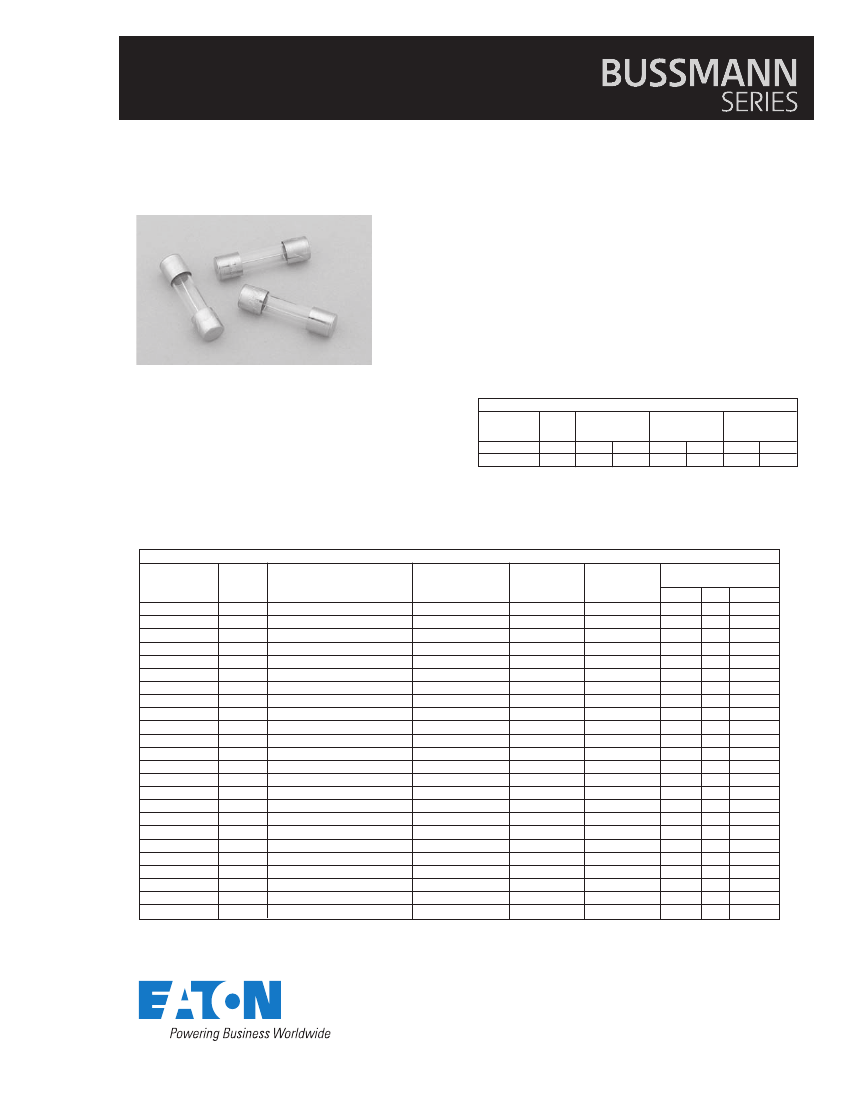

Technical Data
2016
Effective
May
2017
Supersedes
February
2009
GDC
5 mm x
20
mm Time-delay glass tube fuses
Agency information
•
cURus Recognition: Guide JDYX2/JDYX8, File
E19180
•
IMQ Approval: File E1921, CA03.00530
•
MITI/JET: File JET1641-31003-1005
Ordering
•
•
Specify packaging, product, and option code
With TR2 packaging code, lead wire length is 19.05mm
Product features
Time-delay, low breaking capacity
Optional axial leads available
5 x 20mm physical size
Glass tube, nickel-plated brass endcap
construction
•
Designed to IEC 60127-2 (32mA-10A)
•
•
•
•
Electrical Characteristics
2.1 In
2.75 In
4 In
10 In
In
max min max min max
min max
32mA-100mA 2 min 200 ms 10 sec 40 ms 3 sec 10 ms 300 ms
125mA-6.3A 2 min 600 ms 10 sec 150 ms 3 sec 20 ms 300 ms
Product Code
GDC-32mA
GDC-40mA
GDC-50mA
GDC-63mA
GDC-80mA
GDC-100mA
GDC-125mA
GDC-160mA
GDC-200mA
GDC-250mA
GDC-315mA
GDC-400mA
GDC-500mA
GDC-630mA
GDC-800mA
GDC-1A
GDC-1.25A
GDC-1.6A
GDC-2A
GDC-2.5A
GDC-3.15A
GDC-4A
GDC-5A
GDC-6.3A
Voltage Interrupting Rating (amps)
Rating
at Rated Voltage (50Hz)
Vac
Vac
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
35
250
40
250
50
250
63
Speci cations
Typical DC
Cold Resistance
(Ω)*
21.0
13.90
9.24
6.96
4.42
2.80
1.97
1.27
1.00
0.640
0.450
0.31
0.183
0.186
0.129
0.0757
0.060
0.0425
0.03325
0.0255
0.0185
0.0139
0.00985
0.0071
Typical
Melting I
2
t
(amps)
0.0051
0.0072
0.0095
0.021
0.038
0.045
0.063
0.093
0.114
0.265
0.621
0.872
0.827
1.33
2.78
6.45
10.05
21.7
31.6
59.4
96.4
71.8
142.5
237.6
Typical
Voltage
Drop (mV)‡
1050
920
800
760
580
490
390
320
340
270
250
210
140
150
75
87.5
86
82
77
72.5
68.5
67
60.5
54
Agency Approvals
cURus IMQ MITI/JET
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
* DC Cold Resistance (measured at <10% of rated current)
‡ Typical Voltage Drop (voltage drop was measured at 20°C ambient temperature at rated current)
Technical Data
2016
Effective
May
2017
GDC
5 mm x
20
mm Time-delay glass tube fuses

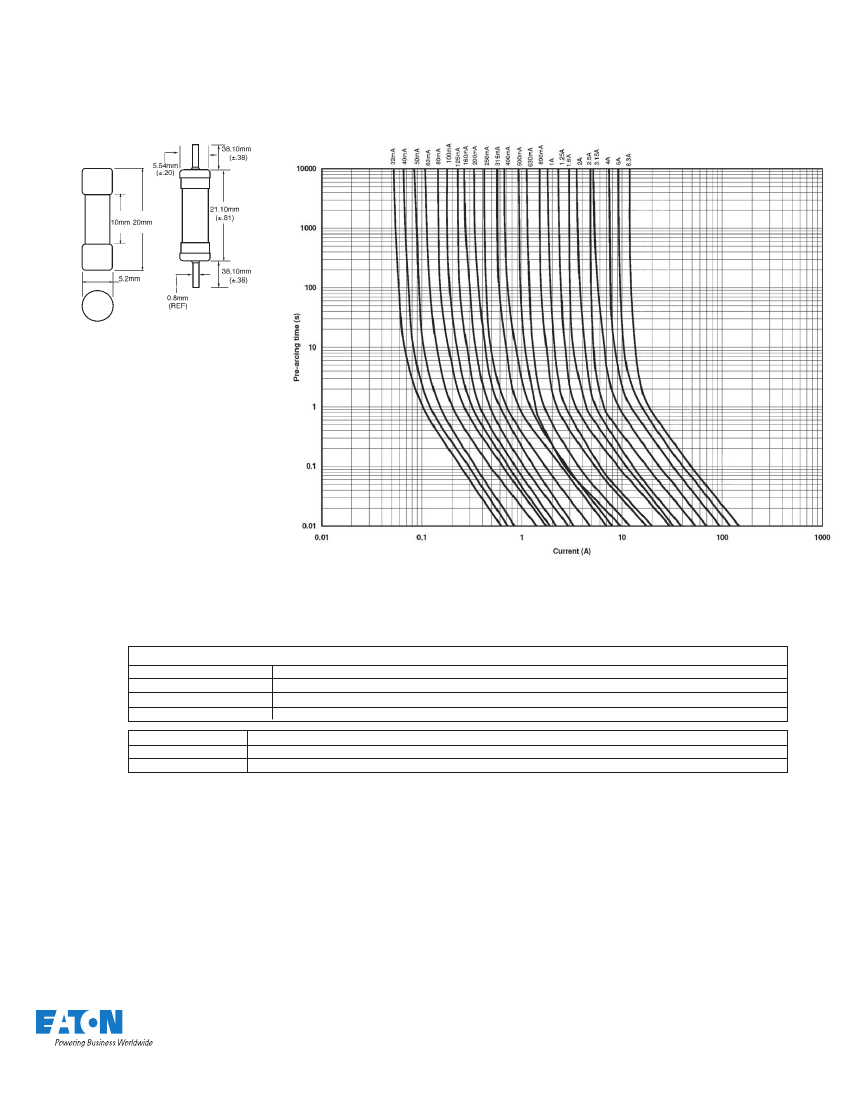

Nominal Time-Current Characterisitics of GDC
Dimensions - mm
Drawing Not to Scale
Packaging Code Su x
BK
BK1
TR2
Option Code
V
Description
100 fuses packed into a cardboard carton
1,000 fuses packed into a poly bag
1,500 fuses packed into tape on a reel (19.05mm lead wire length)
Description
Axial leads - copper tinned wire with nickel plated brass endcaps
Packaging Code
Option Code
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No. 2016
BU-SB08382
May
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
