3P25U3H-66 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Circuit protection> 3P25U3H-66

Preview

3P25U3H-66: DescriptionCircuit Breaker Accessories Busbar, 3 Phase+1/2pole, 25sqmm, PIN Type, 66Lugs, UL/cUL listed; CategoryCircuit protection; File Size146KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

3P25U3H-66 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3P25U3H-66	-	-	View	Buy Now

3P25U3H-66 Overview

Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 25sqmm, PIN Type, 66Lugs, UL/cUL listed

3P25U3H-66 Parametric

Parameter Name	Attribute value
Product Category	Circuit Breaker Accessories
Manufacturer	Altech
Product	Busbars
Factory Pack Quantity	1
Termination Style	Lug

Preview

Download Datasheet

View All

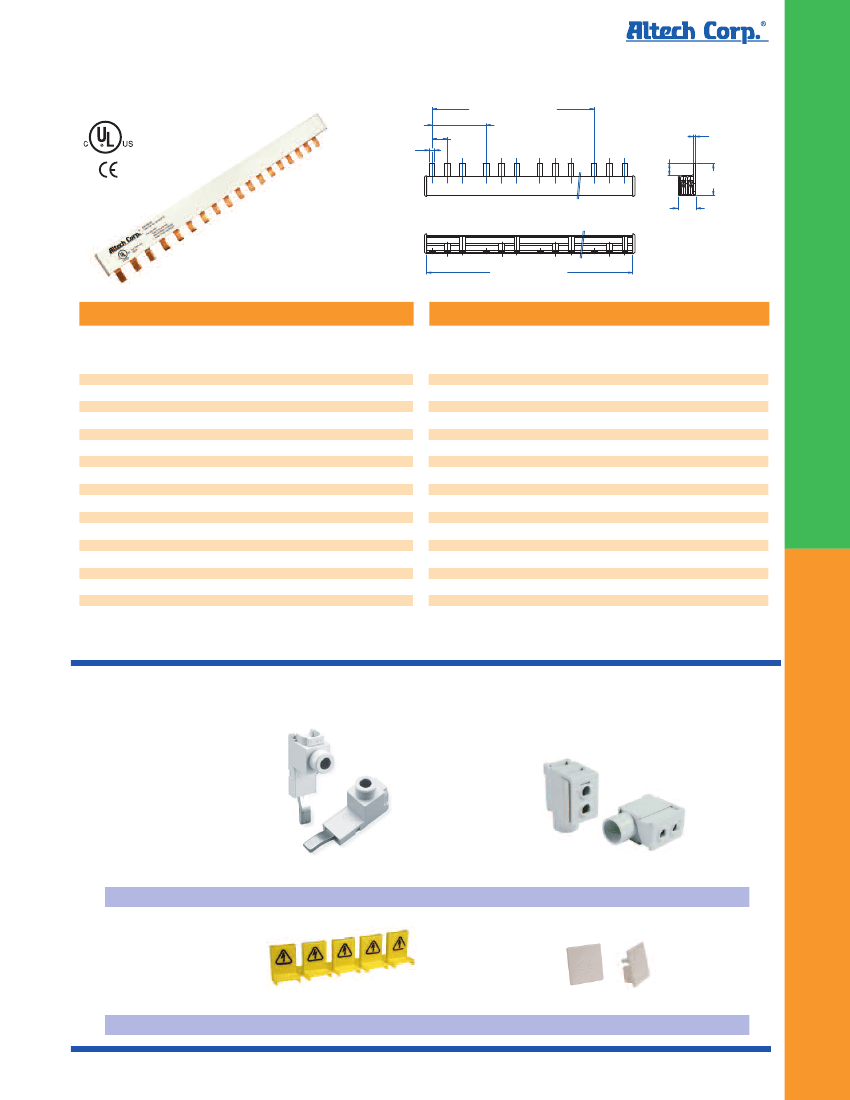

3 PHASE BUSBAR - 1/2 pole spacing

18mm

2

for 80A

/

25mm

2

for 100A

15 x 62.3 = 934.5 mm

UL508 listed

E205412

21 mm

(0.83 in.)

982 mm (38.66 in.)

18mm

2

for 80A

Type/

Cat. No.

3P18U3H/6

3P18U3H/9

3P18U3H/12

3P18U3H/15

3P18U3H/18

3P18U3H/21

3P18U3H/24

3P18U3H/27

3P18U3H/30

3P18U3H/33

3P18U3H/36

3P18U3H/39

3P18U3H/42

3P18U3H/45

3P18U3H/48

3P18U3H/51

3P18U3H/54

3P18U3H/57

No. of

Pins

6

9

12

15

18

21

24

27

30

33

36

39

42

45

48

51

54

57

No. of MMC

to Jumper

2x3 pole

3x3 pole

4x3 pole

5x3 pole

6x3 pole

7x3 pole

8x3 pole

9x3 pole

10x3 pole

11x3 pole

12x3 pole

13x3 pole

14x3 pole

15x3 pole

16x3 pole

17x3 pole

18x3 pole

19x3 pole

Length

[mm]

110.8

173.1

235.4

297.7

360.0

422.3

484.6

546.9

609.2

671.5

733.8

796.1

858.4

920.7

983.0

1045.3

1107.6

1169.9

Type/

Cat. No.

3P25U3H/6

3P25U3H/9

3P25U3H/12

3P25U3H/15

3P25U3H/18

3P25U3H/21

3P25U3H/24

3P25U3H/27

3P25U3H/30

3P25U3H/33

3P25U3H/36

3P25U3H/39

3P25U3H/42

3P25U3H/45

3P25U3H/48

3P25U3H/51

3P25U3H/54

3P25U3H/57

25mm

2

for 100A

No. of

Pins

6

9

12

15

18

21

24

27

30

33

36

39

42

45

48

51

54

57

No. of MMC

to Jumper

2x3 pole

3x3 pole

4x3 pole

5x3 pole

6x3 pole

7x3 pole

8x3 pole

9x3 pole

10x3 pole

11x3 pole

12x3 pole

13x3 pole

14x3 pole

15x3 pole

16x3 pole

17x3 pole

18x3 pole

19x3 pole

Length

[mm]

110.8

173.1

235.4

297.7

360.0

422.3

484.6

546.9

609.2

671.5

733.8

796.1

858.4

920.7

983.0

1045.3

1107.6

1169.9

Type/Cat. No:

Description:

P50UT

Power Feed Lug

P50UB

Modular Direct Power Feed

Type/Cat. No:

Description:

BRS5

Insulation Cap

18/25CAP3P

End Cap

41

Altech UL508

ACCESSORIES

37 mm

(1.46 in.)

7 mm

(0.28)

17.8 mm

(0.70 in.)

2 mm

(.079 in.)

Altech UL1077

62.3 mm (2.45 in.)

13 mm (.51 in.)

3P25U3H-66 Related Products

	3P25U3H-66	3P25U3H-30	3P18U3H-72	3P18U3H-9	3P18U3H-18	3P25U3H-48	3P18U3H-33	3P25U3H-11	3P25U3H-12
Description	Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 25sqmm, PIN Type, 66Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 25sqmm, PIN Type, 30Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 18sqmm, PIN Type, 72Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 18sqmm, PIN Type, 9lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 18sqmm, PIN Type, 18Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 25sqmm, PIN Type, 48 lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 18sqmm, PIN Type, 33Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 25sqmm, PIN Type, 11Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 3 Phase+1/2pole, 25sqmm, PIN Type, 12Lugs, UL/cUL listed
Product Category	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories
Manufacturer	Altech	Altech	Altech	Altech	Altech	Altech	Altech	Altech	Altech
Product	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
Termination Style	Lug	Lug	Lug	Lug	Lug	Lug	Lug	Lug	Lug
RoHS	-	Details	-	Details	Details	Details	Details	-	Details
Type	-	3 Phase Busbar	-	3 Phase Busbar	3 Phase Busbar	3 Phase Busbar	3 Phase Busbar	-	3 Phase Busbar
Current Rating	-	100 A	-	80 A	80 A	100 A	80 A	-	100 A
Mounting Style	-	Press Fit	-	Press Fit	Press Fit	Press Fit	Press Fit	-	Press Fit
Number of Poles	-	3 Poles	-	3 Poles	3 Poles	3 Poles	3 Poles	-	3 Poles
Voltage Rating	-	480 V	-	480 V	480 V	480 V	480 V	-	480 V
