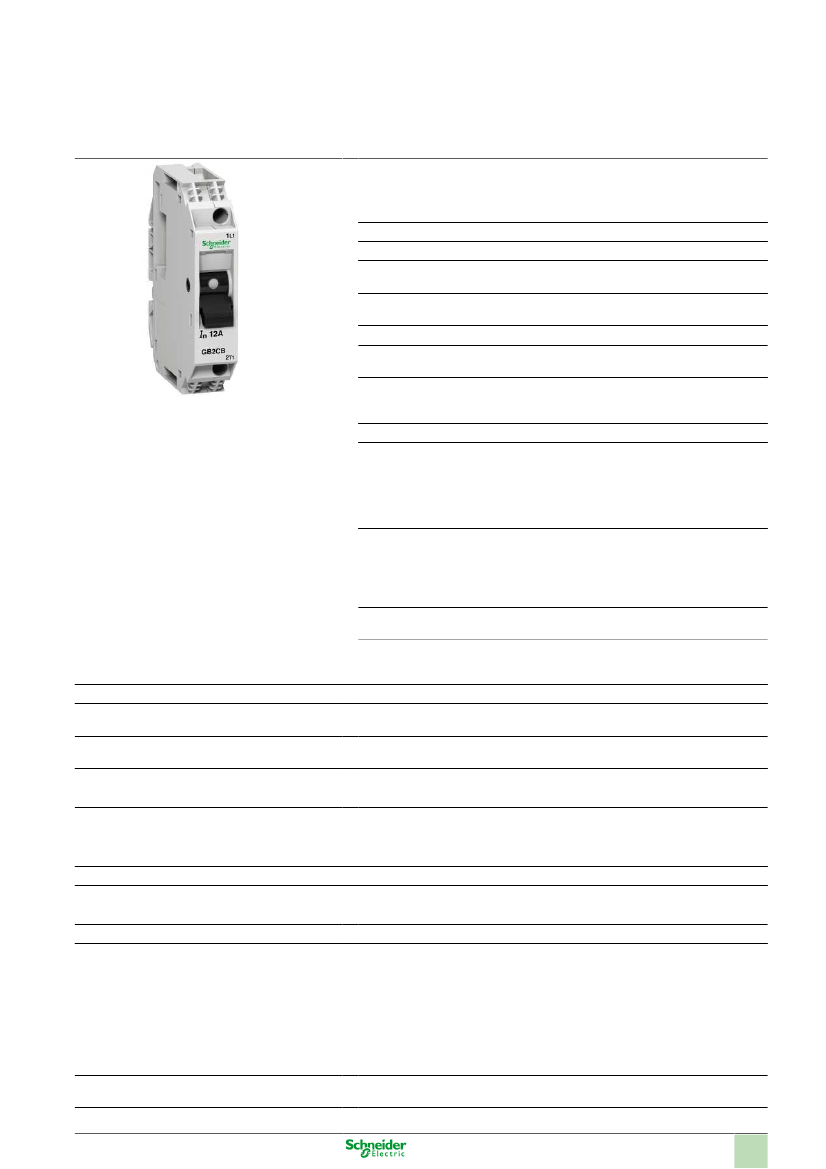

Product data sheet
Characteristics
GB2CB12
TeSys GB2 - thermal-magnetic circuit breaker -
1P - 6 A - Id = 83 A
Product availability: Stock - Normally stocked in distribution facility
Main
Commercial Status
Range of product
Device short name
Product or component
type
Circuit breaker
application
Poles description
Network type
Utilisation category
Commercialised
TeSys GB2
GB2
Circuit breaker
Control circuit
1P
AC
DC
DC-13 conforming to IEC 60947-5-1
DC-12 conforming to IEC 60947-5-1
Category A conforming to IEC 60947-2
50/60 Hz conforming to IEC 60947-2
Icu = 1.5 kA at 230/240 V AC 50/60 Hz conforming
to IEC 60947-2
Icu = 1.5 kA at 24 V DC conforming to IEC 60947-2
Icu = 3 kA at 110 V AC 50/60 Hz conforming to IEC
60947-2
Icu = 1 kA at 48 V DC conforming to IEC 60947-2
75 % at 230/240 V AC 50/60 Hz conforming to IEC
60947-2
75 % at 110 V AC 50/60 Hz conforming to IEC
60947-2
Thermal-magnetic
83 A
Network frequency
Breaking capacity
[Ics] rated service
short-circuit breaking
capacity
Trip unit technology
Magnetic tripping
current
Complementary
Mounting mode
Mounting support
Mounting position
Control type
[In] rated current
[Ue] rated operational voltage
By clips
Plate
Rail
Horizontal
Vertical
Toggle
6A
277 V AC 50/60 Hz conforming to CSA C22.2 No 14
48 V DC
277 V AC 50/60 Hz conforming to UL 1077
250 V AC 50/60 Hz conforming to IEC 60947-2
4 kV conforming to IEC 60947-2
2W
8000 cycles
8000 cycles
Connector 2 cable(s) 0...0 in² (0.75...2.5 mm²) - cable stiffness : flexible - with
cable end
Connector 1 cable(s) 0...0.01 in² (0.75...4 mm²) - cable stiffness : flexible - with
cable end
Connector 2 cable(s) 0...0.01 in² (0.75...4 mm²) - cable stiffness : solid - without
cable end
Connector 1 cable(s) 0...0.01 in² (0.75...6 mm²) - cable stiffness : solid - without
cable end
10.62 lbf.in (1.2 N.m) - on connector
Vibrations 5 Gn, 5...110 Hz conforming to IEC 60068-2-6
Shocks 22 Gn for 20 ms conforming to IEC 60068-2-27
[Uimp] rated impulse withstand voltage
Power dissipation per pole
Mechanical durability
Electrical durability
Connections - terminals
Tightening torque
Mechanical robustness
Jun 15, 2016
1
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Quantity per set
Height
Width
Depth
Product weight
Set of 6
2.91 in (74 mm)
0.59 in (15 mm)
2.64 in (67 mm)
0.13 lb(US) (0.06 kg)
Environment
Standards
EN 60947-1
EN 60947-2
IEC 60947-1
IEC 60947-2
CSA
NEMKO
UL
TC
IP20 conforming to IEC 60529
-4...140 °F (-20...60 °C)
-40...176 °F (-40...80 °C)
1760 °F (960 °C) conforming to IEC 60695-2-1
9842.52 ft (3000 m)
Product certifications
Protective treatment
IP degree of protection
Ambient air temperature for operation
Ambient air temperature for storage
Fire resistance
Operating altitude
Ordering and shipping details
Category
Discount Schedule
GTIN
Nbr. of units in pkg.
Package weight(Lbs)
Product availability
Returnability
Country of origin
22631 - TELE CIRCUIT BREAKER (GB2)
I
00785901214694
6
0.11
Stock - Normally stocked in distribution facility
Y
FR
Contractual warranty
Period
18 months
