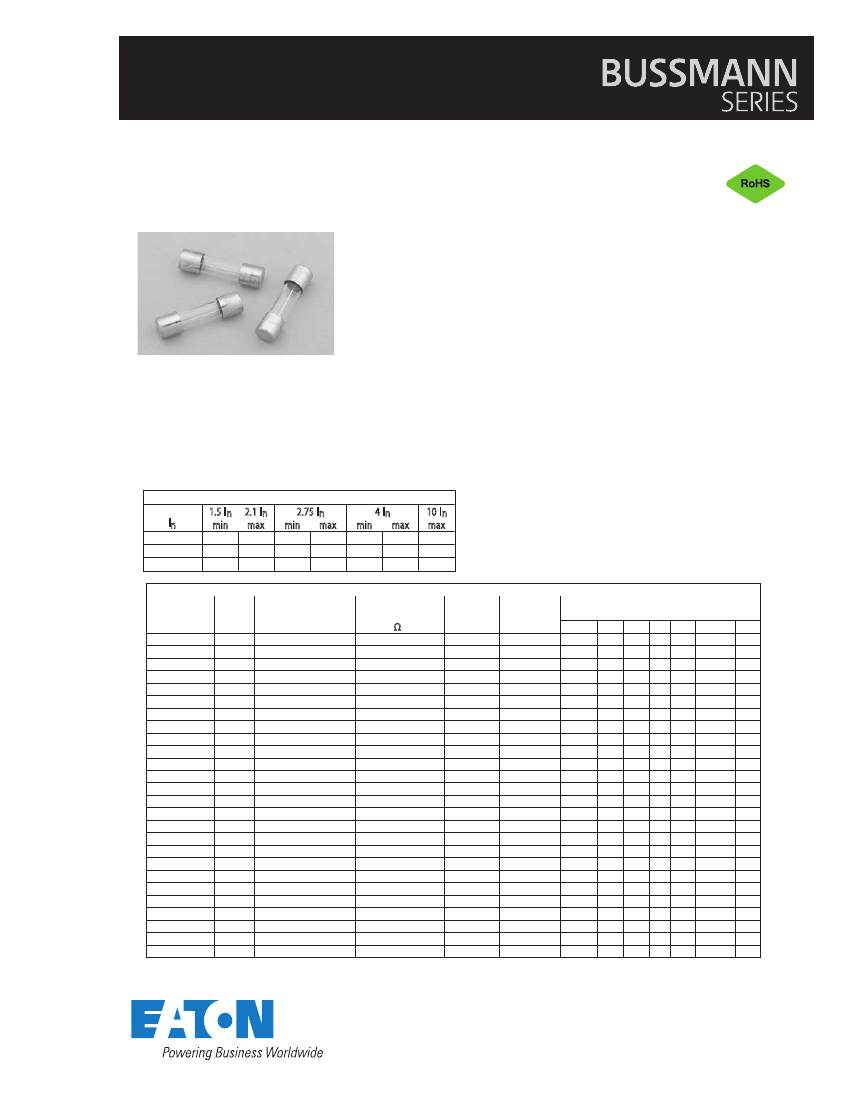

Technical Data
2052
Effective
June
2017
Supersedes
February
2009
S500
5 mm x 20 mm Fast-acting glass tube fuses
Agency information
•
cURus: File E19180, Guide JDYX2, JDYX8
•
CSA Component Acceptance: File
1803366
•
SEMKO Approval: File 414552
•
VDE Approval: File 40014109
•
BSI Approval: File KM55676
•
IMQ Approval: File CA03.00097
•
CCC Approval: File 2005010207155694
Product features
Fast-acting, low breaking capacity
Optional axial leads available
5 mm x 20 mm physical size
Glass tube with silver-plated (32-125 mA) and nickel-
plated (160 mA-10 A) endcaps
•
Designed to IEC 60127-2 (160 mA-10 A)
•
•
•
•
Ordering
information
•
Specify product code
•
Insert packaging code prefix before part number. E.g.
BK/S500-32-R
•
Ratings above 6.3A have a 0.8mm diameter lead
•
With TR2 packaging code, lead wire length is 19.05 mm
•
Specify option code if desired
•
For axial leads, insert “V” between catalog series and
amp rating. E.g. S500-V-100-R
Electrical Characteristics
1.5 I n 2.1 I n
2.75 I n
4 In
10 I n
In
min
max
min
max
min
max
max
32mA-125mA 60 min 30 min
–
–
–
–
–
160mA-6.3A 60 min 30 min 50 ms 2 sec 10 ms 300 ms 20 ms
8A-10A
30 min 30 min 50 ms 2 sec 10 ms 400 ms 40 ms
Voltage Interrupting Rating
Part Number Rating
(amps) at Rated
Voltage (50Hz) Vac
Vac
S500-32-R
250
35
S500-40-R
250
35
S500-50-R
250
35
S500-63-R
250
35
S500-80-R
250
35
S500-100-R
250
35
S500-125-R
250
35
S500-160-R
250
35
S500-200-R
250
35
S500-250-R
250
35
S500-315-R
250
35
S500-400-R
250
35
S500-500-R
250
35
S500-630-R
250
35
S500-800-R
250
35
S500-1-R
250
35
S500-1.25-R
250
35
S500-1.6-R
250
35
S500-2-R
250
35
S500-2.5-R
250
35
S500-3.15-R
250
35
S500-4-R
250
40
S500-5-R
250
50
S500-6.3-R
250
63
S500-8-R
250
80
S500-10-R
250
100
Typical DC
Cold Resistance
(Ω)*
40
25
17
125
5.0
3.8
2.8
9.1
6.8
4.3
3.1
2.0
0.26
0.20
0.14
0.125
0.096
0.066
0.043
0.034
0.025
0.021
0.014
0.010
0.010
0.008
Specifications
Typical
Maximum
Agency Approvals
Melting I
2
t Voltage
AC†
Drop (mV)‡ cURus CSA CCC BSI VDE SEMKO IMQ
0.000047
3200
0.00011
2500
0.00020
2400
0.00057
2000
0.0012
1200
0.003
1100
0.005
1000
0.008
2000
X
X
X
X
X
X
X
0.016
1700
X
X
X
X
X
X
X
0.28
1400
X
X
X
X
X
X
X
0.58
1300
X
X
X
X
X
X
X
0.18
1100
X
X
X
X
X
X
X
0.18
220
X
X
X
X
X
X
X
0.35
220
X
X
X
X
X
X
X
0.67
190
X
X
X
X
X
X
X
0.60
200
X
X
X
X
X
X
X
0.84
200
X
X
X
X
X
X
X
1.6
190
X
X
X
X
X
X
X
4.2
150
X
X
X
X
X
X
X
6.1
150
X
X
X
X
X
X
X
13
130
X
X
X
X
X
X
X
22
130
X
X
X
X
X
X
X
42
120
X
X
X
X
X
X
X
69
120
X
X
X
X
X
X
X
N/A
120
X
X
X
X
X
N/A
120
X
X
X
X
X
* DC Cold Resistance (Measured at <10% of rated current)
† Typical Melting I
2
t (I
2
t was measured at listed interrupting rating and rated voltage)
‡ Maximum Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)
Effective
June
2017
Technical Data
2052
S500
5 mm x 20 mm Fast-acting glass tube fuses

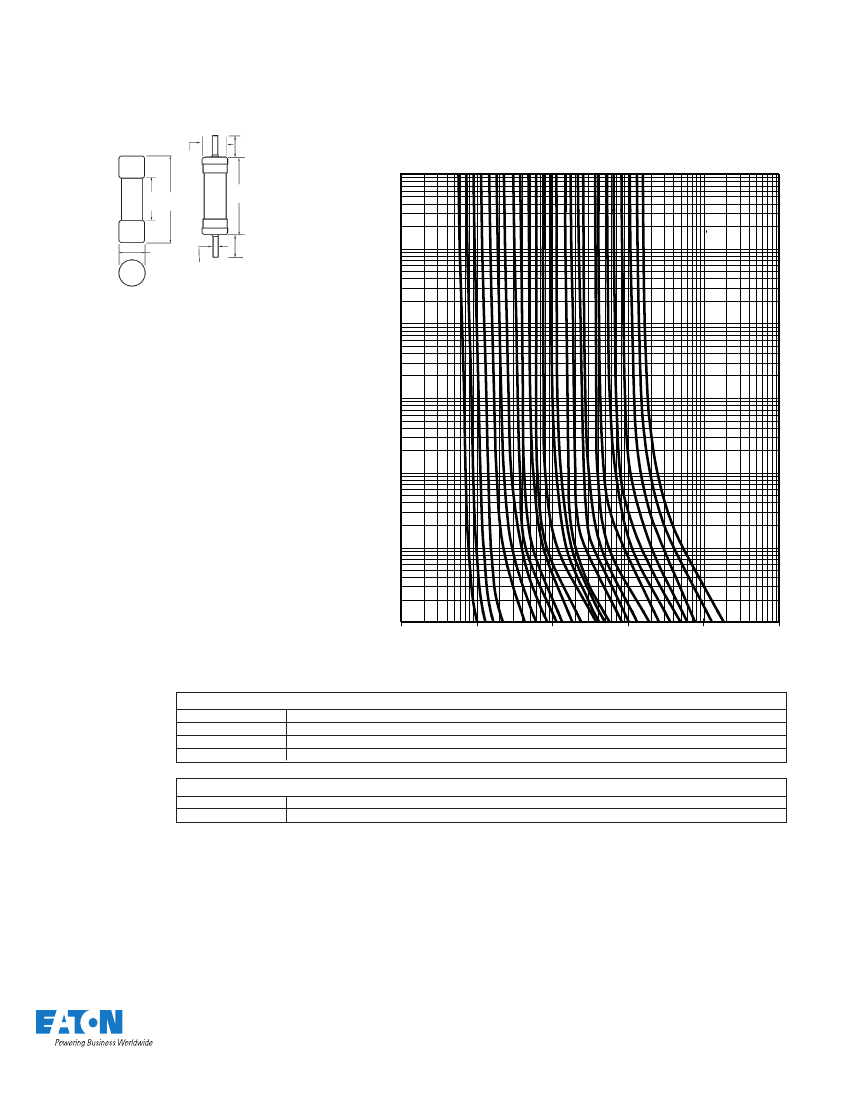

Time-current Curve
Dimensions - mm
Drawing Not to Scale
5.54
(±0.20)
38.10
(±0.38)
32mA
40mA
50mA
Nominal Time/Current Characteristics
100mA
125mA
315mA
400mA
160mA
200mA
250mA
500mA
630mA
800mA
1A
1.25A
1.6A
63mA
80mA
3.15A
4A
2A
2.5A
10000
10
20
(±2.0) (±0.5)
21.10
(±0.81)
5.2
(±0.1/-0.2)
0.65
(REF)
38.10
(±0.38)
1000
100
Time In Seconds
10
1
0.1
0.01
0.01
0.1
1
Current In Amps
10
100
1000
Packaging Pre x
BK
BK1
TR2
Description
100 fuses packed into a cardboard carton
1,000 fuses packed into a poly bag
1,500 fuses packed into tape on a reel (19.05mm lead wire length)
Packaging Code
Option Code
V
Description
Axial leads - copper tinned wire with nickel plated brass endcaps
Option Code
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No.
2052
BU-SB08761
June
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
6.3A
8A
10A
5A
Amp
Rating
