3KP130CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3KP130CA

3KP130CA: DescriptionESD Suppressors / TVS Diodes TVS Diode 3KP Axial Bi-Directional; CategoryDiscrete semiconductor diode; File Size1011KB，6 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

3KP130CA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3KP130CA	-	-	View	Buy Now

3KP130CA Overview

ESD Suppressors / TVS Diodes TVS Diode 3KP Axial Bi-Directional

3KP130CA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	159 V
Minimum breakdown voltage	144 V
Breakdown voltage nominal value	151.5 V
Shell connection	ISOLATED
Maximum clamping voltage	209 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	3000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Maximum power dissipation	7 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	130 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

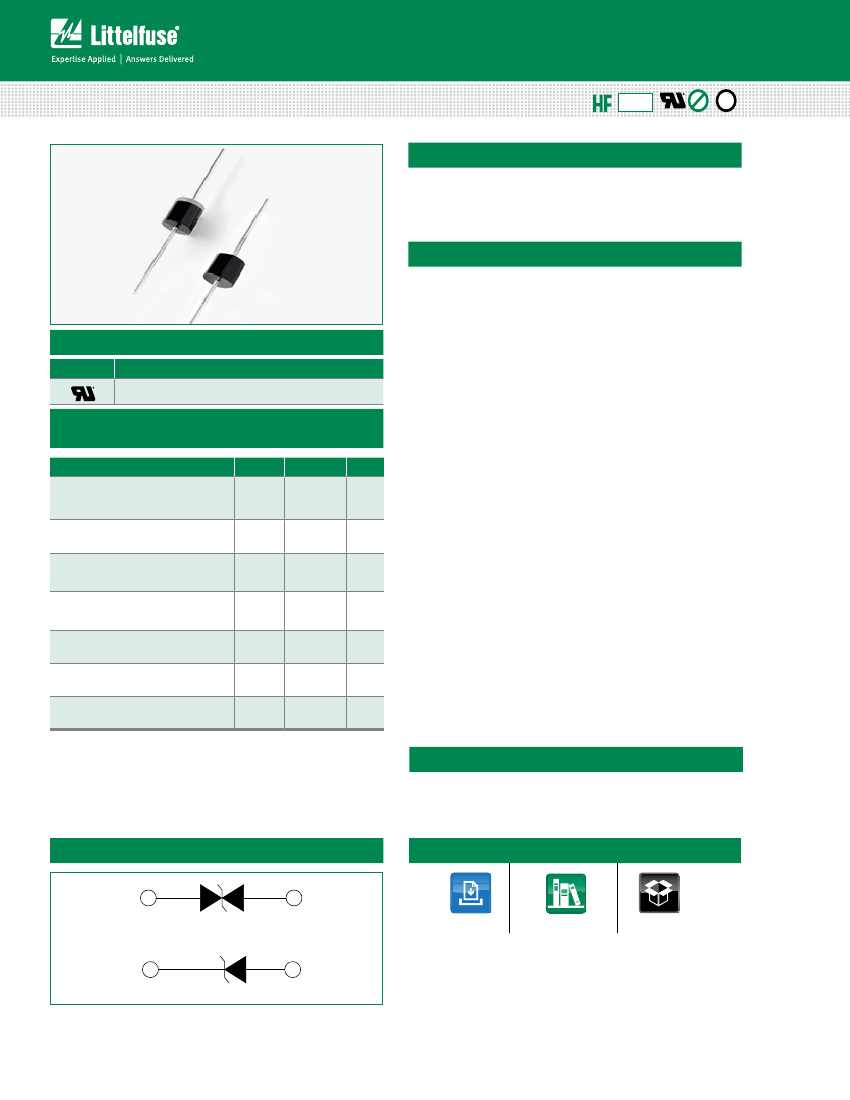

Transient Voltage Suppression Diodes

Axial Leaded – 3000W > 3KP series

3KP Series

Uni-directional

Description

RoHS

The 3KP Series is designed specifically to protect sensitive

electronic equipment from voltage transients induced by

lightning and other transient voltage events.

Bi-directional

Features

• 3000W peak pulse

capability at 10/1000μs

waveform, repetition rate

(duty cycles):0.01%

• Glass passivated chip

junction in P600 package

• Fast response time:

typically less than 1.0ps

from 0 Volts to BV min

• Excellent clamping

capability

• Typical failure mode is

short from over-specified

voltage or current

• Whisker test is conducted

based on JEDEC

JESD201A per its table 4a

and 4c

• IEC-61000-4-2 ESD

30kV(Air), 30kV (Contact)

• ESD protection of data

lines in accordance with

IEC 61000-4-2

• EFT protection of data

lines in accordance with

IEC 61000-4-4

• Low incremental surge

resistance

Applications

TVS devices are ideal for the protection of I/O interfaces,

bus and other vulnerable circuits used in telecom,

computer, industrial and consumer electronic applications.

Additional Infomarion

• Typical I

less than 2μA

when V

min>12V

• High temperature

to reflow soldering

guaranteed: 260°C/40sec

/ 0.375” (9.5mm) lead

length, 5 lbs., (2.3kg)

tension

• V

@ T

= V

@25°C

x (1+

T x (T

- 25))

(

T:Temperature

Coefficient, typical value

is 0.1%)

• Plastic package is

flammability rated V-0 per

Underwriters Laboratories

• Matte tin lead–free plated

• Halogen free and RoHS

compliant

• Pb-free E3 means 2nd

level interconnect is

Pb-free and the terminal

finish material is tin(Sn)

(IPC/JEDEC J-STD-

609A.01)

Agency Approvals

AGENCY

AGENCY FILE NUMBER

E230531

Maximum Ratings and Thermal Characteristics

=25

C unless otherwise noted)

Parameter

Peak Pulse Power Dissipation by

10/1000μs Test Waveform (Fig.2)

(Note 1), (Note 4)

Steady State Power Dissipation on

Infinite Heat Sink at T

=75ºC

Peak Forward Surge Current, 8.3ms

Single Half Sine Wave Unidirectional

Only (Note 2)

Maximum Instantaneous Forward

Voltage at 100A for Unidirectional

Only (Note 3)

Operating Junction and Storage

Temperature Range

Typical Thermal Resistance

Junction to Lead

Typical Thermal Resistance

Junction to Ambient

Symbol

PPM

FSM

, T

STG

θJL

θJA

Value

3000

300

3.5/5.0

-55 to 175

8.0

Unit

°C

°C/W

Notes:

1. Non-repetitive current pulse , per Fig. 4 and derated above T

(initial) =25

C per Fig. 3.

2. Measured on 8.3ms single half sine wave or equivalent square wave, duty cycle=4 per

minute maximum.

3. V

< 3.5V for single die parts and V

< 5.0V for stacked-die parts.

4. The P

PPM

of stacked-die parts is 4kW and please contact littelfuse for the detail

stacked-die parts.

Functional Diagram

Bi-directional

Datasheet

Resources

Samples

Cathode

Uni-directional

Anode

Specifications are subject to change without notice.

Revised: 11/20/15
