0.5 mm Pitch, Board to Board Connector with Floating Structure
FX20 Series
X direction
Y direction
Floating range
:0.6∼0.8mm
Floating range
:0.6mm
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

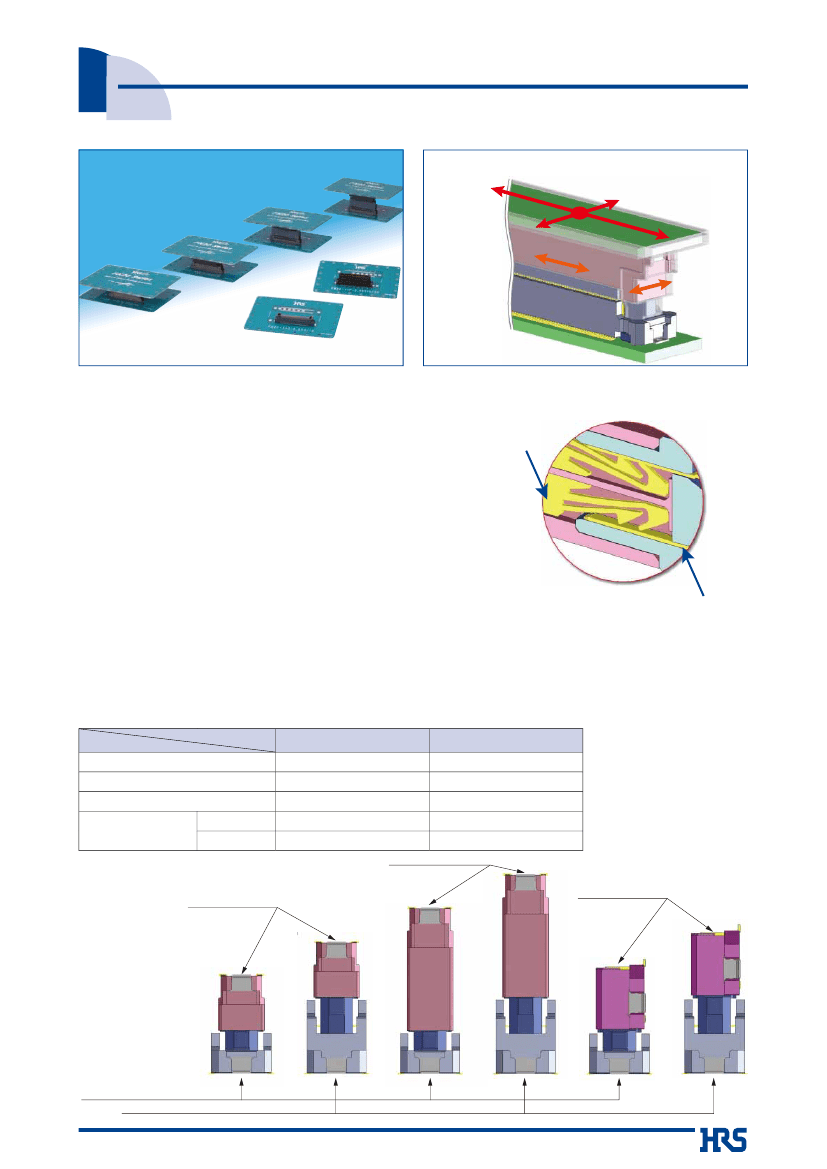

■Features
1. 0.5 mm pitch
2. Connection type: Right angle / Vertical
3. Pin counts : 20, 40, 60, 80, 100, 120 and 140
4. Floating range: ± 0.6 to 0.8 mm in the X direction
and ± 0.6 mm in the Y direction
5. A double beam contact structure produces a highly
reliable contact (Refer to the figure on the right)
6. Current capacity: 0.5 A per pin
7. Effective mating length of 1.5 mm
This connector utilizes a 1.5 mm effective mating length for signal
contacts and provides a sufficient margin for its mating stroke.
Enlarged view of the contact area
Receptacle-side
contact
8. No conductive trace surface is not specified
9. Contains the vacuum pick up area needed to allow
automatic mounting
10.Self-aligning and self-guiding structure
Built-in guide posts enable self-alignment and ensure a secure connection
Header-side contact
■Stacking
height chart
Receptacle
FX20-
**
S-0.5SV
FX20-
**
S-0.5SV10
FX20-
**
S-0.5SH
Floating range
X direction
Y direction
Header
FX20-
**
P-0.5SV15
h=15mm
h=25mm
Right angle connection
±0.6mm
±0.6mm
FX20-**S-0.5SV10
FX20-**S-0.5SH
FX20-
**
P-0.5SV20
h=20mm
h=30mm
Right angle connection
±0.8mm
±0.6mm
FX20-**S-0.5SV
h=15mm
FX20-**P-0.5SV15
FX20-**P-0.5SV20
h=20mm
h=25mm
h=30mm
Right angle
connection
Right angle
connection
2014.3
②
1
FX20 Series●0.5 mm Pitch, Board to Board Connector with Floating Structure
■Product
Specifications
Ratings
Rated current 0.5A
Rated voltage AC 50V
Standards
70 mø max.
100 Mø min.
100 V DC.
150V AC for 1 min.
50 times insertions and extractions.
Frequency: 10 to 55 to 10Hz, approx 5 min
Single amplitude : 0.75mm, 10 cycles for 3 axial directions.
490m/s , duration of pulse 11ms
at 3 times for 3 both axial directions.
Exposed at 40±2°C, 90~95%, 96h.
Temperature: -55
➝
+85°C
Time:
30
➝
30 min.
Under 5 cycles(relocation time to chamber: within 2~3min)
2
Operating temperature range: -55 - 85°C (Note 1)
Storage temperature range: -10 - 60°C (Note 2)
Condition
100 mA(DC or 1000Hz)
Item
1. Contact resistance
2. Insulation resistance
3. Voltage proof
No flashover or breakdown.
Contact resistance : Variation from initial
4. Mechanical operation
value 20 mø or less.
No damage, crack and looseness of parts.
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5. Vibration
No electrical discontinuity of 1 µs.
No damage, crack and looseness of parts.
6. Shock
7. Damp heat
(Steady state)
8. Rapid change of
temperature
Contact resistance : Variation from initial
value 20 mø or less.
Insulation resistance : 100Mø min.
No damage, crack and looseness of parts.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" here refers to products stored for a long period prior to board mounting and use.
■Materials
Part
Insulator
Contacts
Metal Fitting
Finish
Header
PA
Black
Receptacle
LCP
Black
Header
Copper alloy
Contact area: Gold plated
Receptacle
Phosphor bronze Mounting area: Gold plated
Brass
Tin plated
Material
UL standard
UL94V-0
UL94V-0
----------------------
----------------------
■Product
Number Structure
Refer to the charts below for determining specific part number characteristics.
Please select connectors listed in this catalog when placing orders and be sure to check the latest delivery specifications at the time of ordering the product.

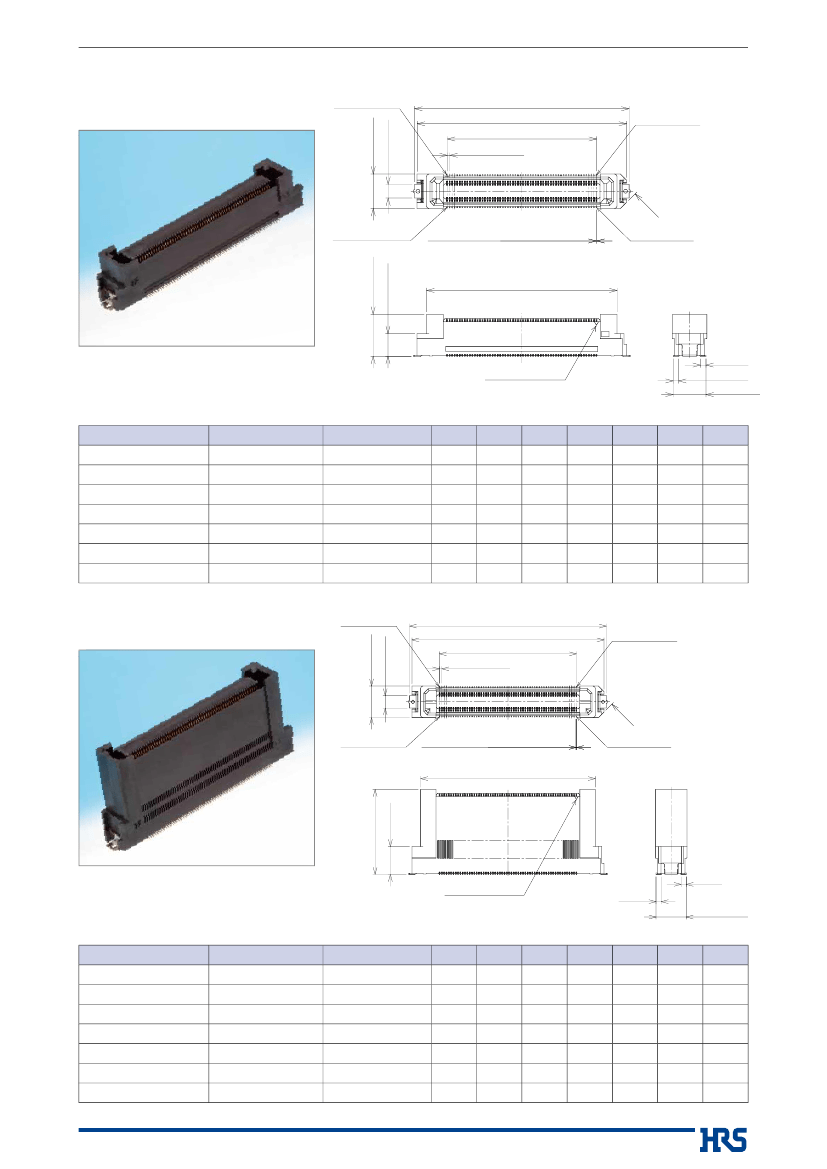

●Straight
receptacle
FX20 − 60 S − 0.5 SV 10
❶
❷
❸
❹
❺
❻

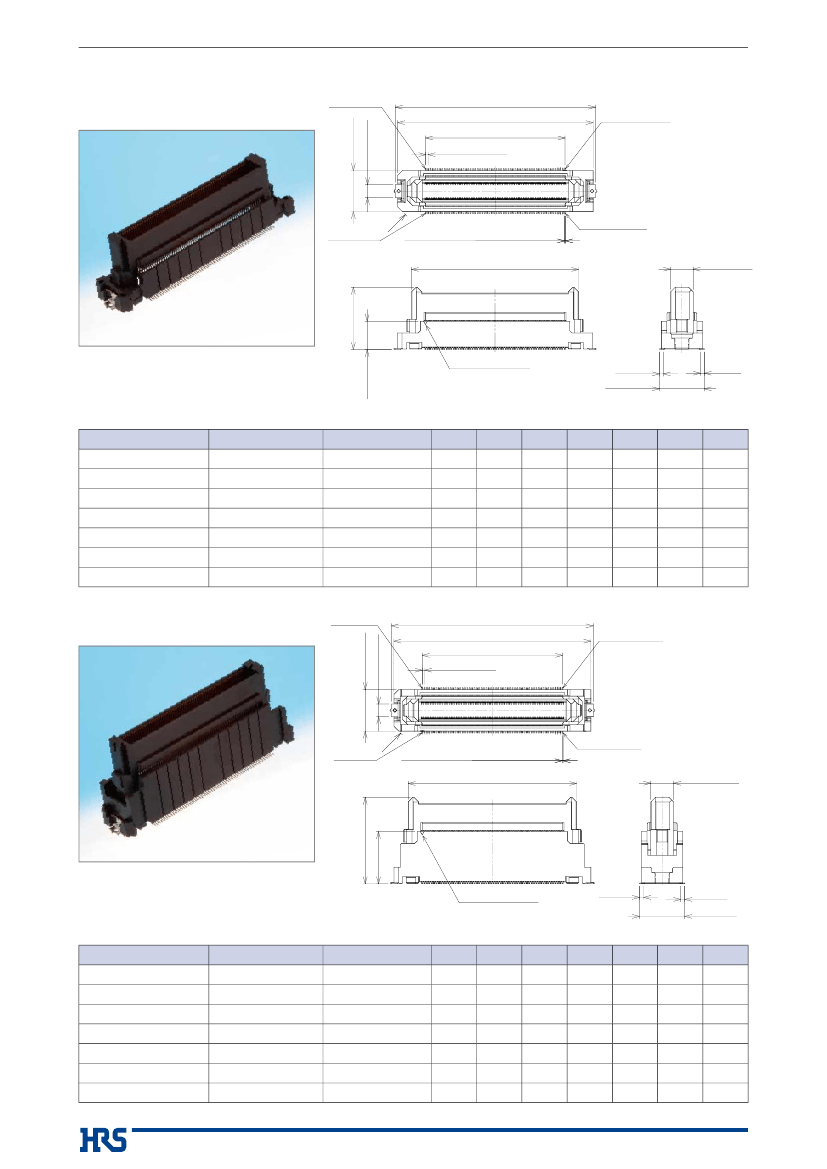

●Straight
header
FX20 − 60 P − 0.5 SV 15
❶
❷
❸
❹
❺
❻

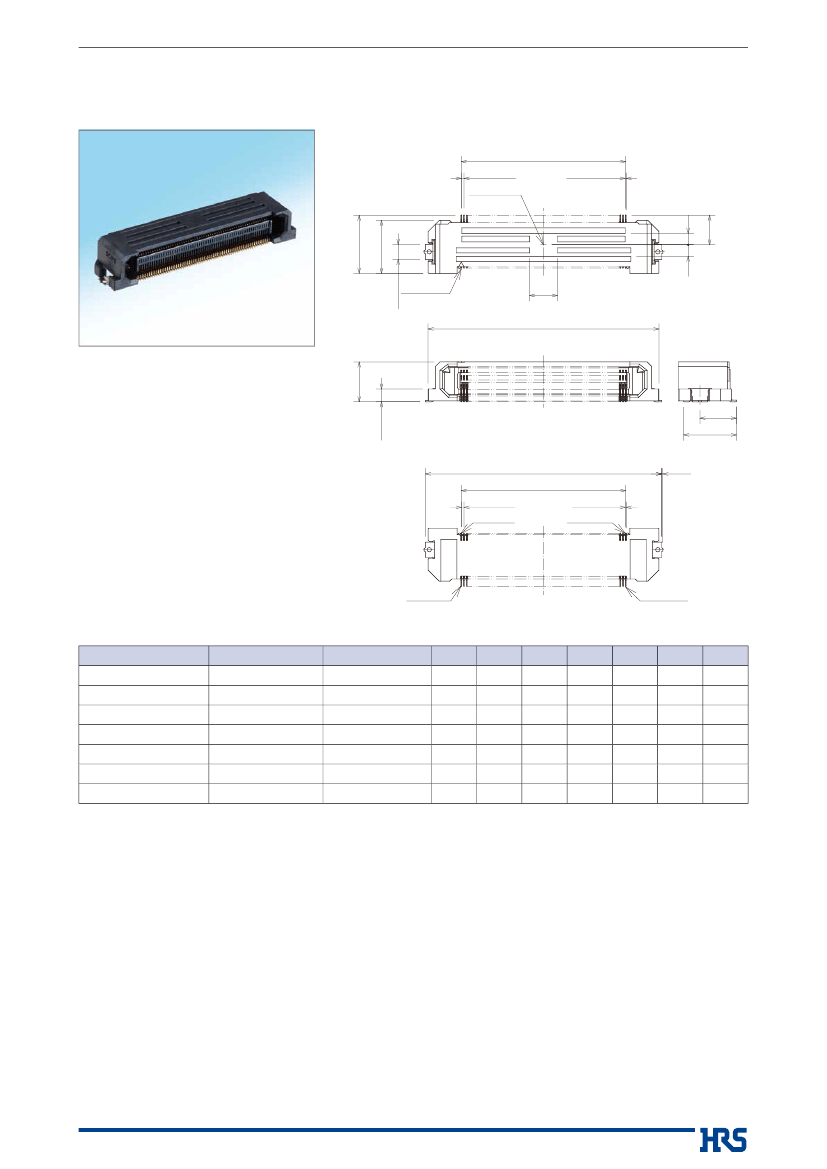

●Right
angle receptacle
FX20 − 60 S − 0.5 SH
❶
❶
Series name
❷
Number (contacts):
❸
Connector type
❹
Contact pitch
❺
Housing configuration
❻
Stacking height type
S: Receptacle type
P: Header type
:
0.5mm
:
SV: Straight type
SH: Right angle type
Mating height [mm] =
Height of the receptacle-side + Height of the header-side
❷
❸
:
FX20
❹
❺
2
