1996318-1: DescriptionSMPM STR PCB MNT PLUG; CategoryThe connector; File Size187KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1996318-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1996318-1	-	-	View	Buy Now

1996318-1 Overview

SMPM STR PCB MNT PLUG

1996318-1 Parametric

Parameter Name	Attribute value
RF interface	SMPM
RF connector types	plug
Connectors and terminals terminate to	A printed circuit board
Port configuration	single port
Number of Positions	1
PCB mounting direction	vertical
Number of coaxial terminals	1
Impedance (Ω)	50
Main material	beryllium copper alloy
Body surface coating	plating
Main body plating material	gold
RF connector center terminal plating material	gold
RF Connector Center Terminal Material	beryllium copper alloy
PCB Termination Methods	Through hole - solderless connection
RF Connector Coupling Mechanism	Push-in
RF terminal adsorption method	mechanical
brake	Smooth caliber
RF connector mating outer diameter (approximate)	4.75 mm [ .187 in ]
Height above PC board	6.52 mm [ .257 in ]
PCB tail length	3.12 mm [ .123 in ]
Working group temperature range	-55 – 125 °C [ -67 – 257 °F ]
Operating frequency (GHz)	20
Encapsulation method	Package
dielectric materials	PTFE
Other features	VITA 67

Preview

Download Datasheet

View All

4

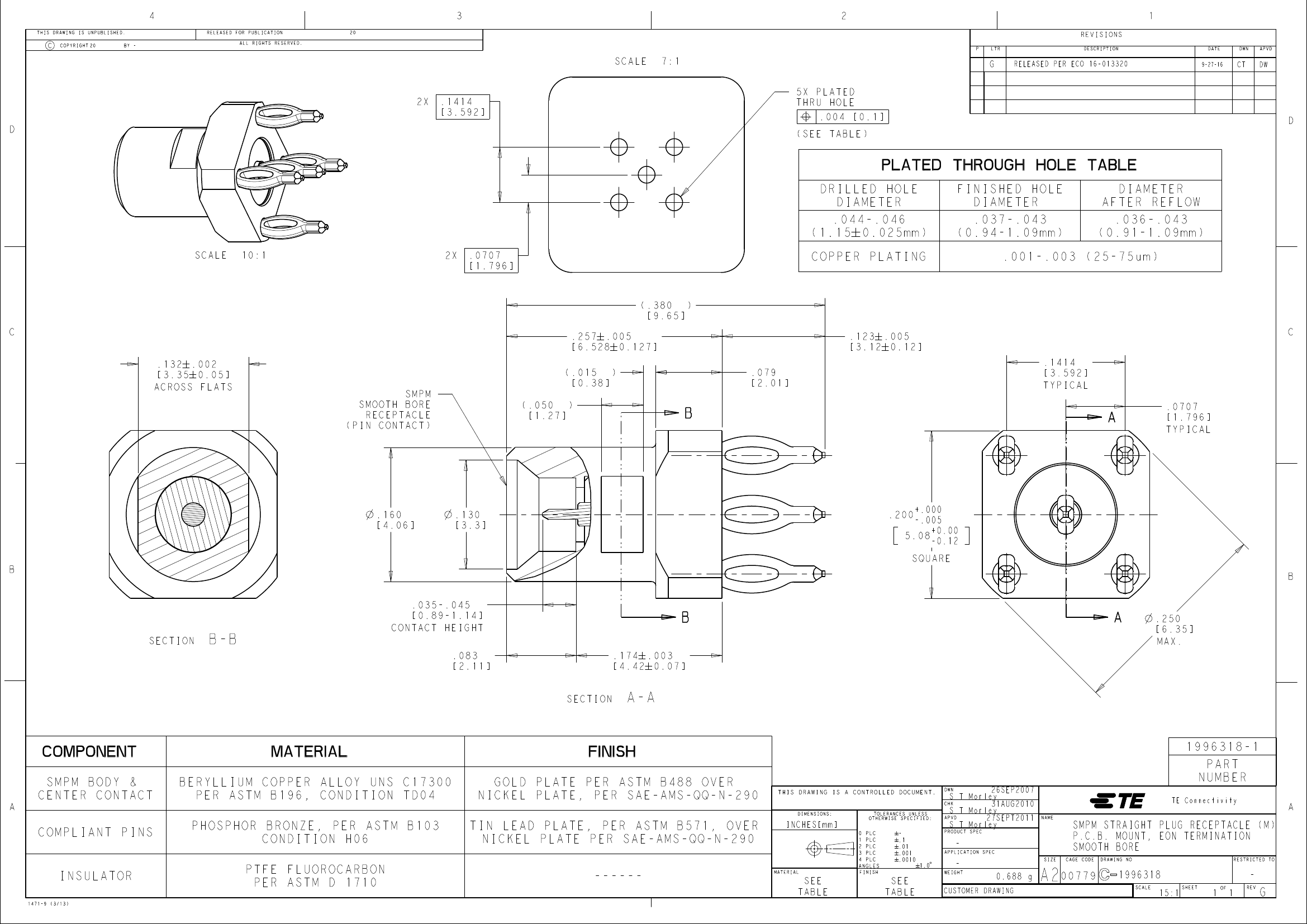

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

SCALE

7:1

5X PLATED

THRU HOLE

(SEE TABLE)

G

RELEASED PER ECO 16-013320

9-27-16

CT

DW

2X

D

.1414

[ 3.592 ]

D

PLATED THROUGH HOLE TABLE

.044-.046

(1.15 # 0.025mm)

SCALE

10:1

2X

.0707

[ 1.796 ]

DRILLED HOLE

DIAMETER

FINISHED HOLE

DIAMETER

.037-.043

(0.94-1.09mm)

.036-.043

(0.91-1.09mm)

DIAMETER

AFTER REFLOW

COPPER PLATING

.001-.003 (25-75um)

( .380

)

[ 9.65 ]

C

.132 .002

[ 3.35 0.05 ]

ACROSS FLATS

.257 .005

[ 6.528

0.127 ]

( .015

)

[ 0.38 ]

( .050

)

[ 1.27 ]

.079

[ 2.01 ]

.123 .005

[ 3.12 0.12 ]

.1414

[ 3.592 ]

TYPICAL

.0707

[ 1.796 ]

TYPICAL

C

SMPM

SMOOTH BORE

RECEPTACLE

(PIN CONTACT)

.160

[ 4.06 ]

.130

[ 3.3 ]

[

.200

+.000

-.005

+0.00

5.08

-0.12

SQUARE

]

B

.250

[ 6.35 ]

MAX.

B

.035 -.045

[ 0.89 -1.14 ]

CONTACT HEIGHT

.083

[ 2.11 ]

SECTION

.174 .003

[ 4.42 0.07 ]

SECTION

B-B

A-A

1996318-1

DWN

CHK

DIMENSIONS:

COMPONENT

A

MATERIAL

BERYLLIUM COPPER ALLOY UNS C17300

PER ASTM B196, CONDITION TD04

PHOSPHOR BRONZE, PER ASTM B103

CONDITION H06

PTFE FLUOROCARBON

PER ASTM D 1710

FINISH

GOLD PLATE PER ASTM B488 OVER

NICKEL PLATE, PER SAE-AMS-QQ-N-290

TIN LEAD PLATE, PER ASTM B571, OVER

NICKEL PLATE PER SAE-AMS-QQ-N-290

------

THIS DRAWING IS A CONTROLLED DOCUMENT.

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

SMPM BODY &

CENTER CONTACT

COMPLIANT PINS

INSULATOR

1471-9 (3/13)

S T Morley

26SEP2007

31AUG2010

NAME

PART

NUMBER

INCHES[mm]

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

.1

.01

.001

.0010

S T Morley

APVD

27SEPT2011

S T Morley

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

A

-

1.0 $

SEE

TABLE

SEE

TABLE

WEIGHT

-

0.688 g

CUSTOMER DRAWING

A2

00779

SIZE

CAGE CODE

SMPM STRAIGHT PLUG RECEPTACLE (M)

P.C.B. MOUNT, EON TERMINATION

SMOOTH BORE

DRAWING NO

RESTRICTED TO

1996318

SCALE

15:1

SHEET

1

OF

1

REV

-

G
