400HD011NF1905L datasheet, PDF

Datasheet> All Categories > The connector> 400HD011NF1905L

400HD011NF1905L: DescriptionCircular MIL Spec Backshells; CategoryThe connector; File Size43KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

400HD011NF1905L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	400HD011NF1905L	-	-	View	Buy Now

400HD011NF1905L Overview

Circular MIL Spec Backshells

400HD011NF1905L Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
MIL Type	MIL-DTL-38999 III, IV
Factory Pack Quantity	1

Preview

Download Datasheet

View All

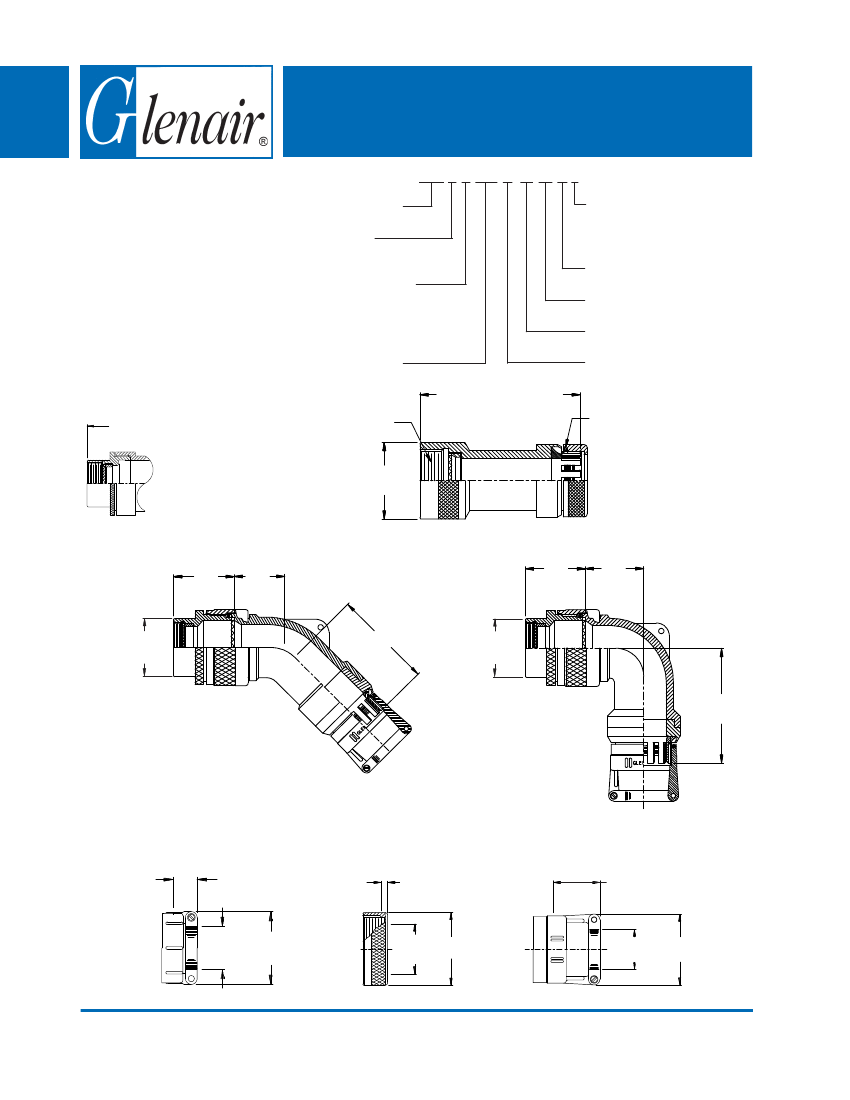

400-002

TAG

Ring Backshell

with Strain Relief

Direct Coupling - Low Profile

400 F S 002 M 16 06 L 6

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 5

CONNECTOR

DESIGNATORS

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Length ± .060 (1.52)

Min. Order Length 1.5 Inch

(See Note 4)

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (F, G, L)

Cable Entry (Tables V, VI)

Shell Size (Table I)

Finish (Table II)

DIRECT COUPLING

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

A Thread

(Table I)

Ground Spring

STYLE 2

(STRAIGHT

See Note 1)

(Table III) (Table IV)

Shown with Style G Nut

(Table III) (Table IV)

(Table I)

F (Table IV)

(Table I)

H (Table IV)

Shown with Style L

Strain Relief

STYLE F

Light Duty

(Table VI)

.416 (10.5)

Approx.

Cable

Range

STYLE G

Light Duty

(Table V)

.072 (1.8)

Approx.

STYLE L

Light Duty

(Table VI)

.850 (21.6)

Approx.

Cable

Entry

Cable

Range

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 40 - Page 10
